Cisco Catalyst C9200CX-8UXG-2X-E 8-Port PoE+ Compact Switch with Network Essentials | New

Overview of Cisco Catalyst C9200CX-8UXG-2X-E 8-Port PoE+ Compact Switch with Network Essentials | New

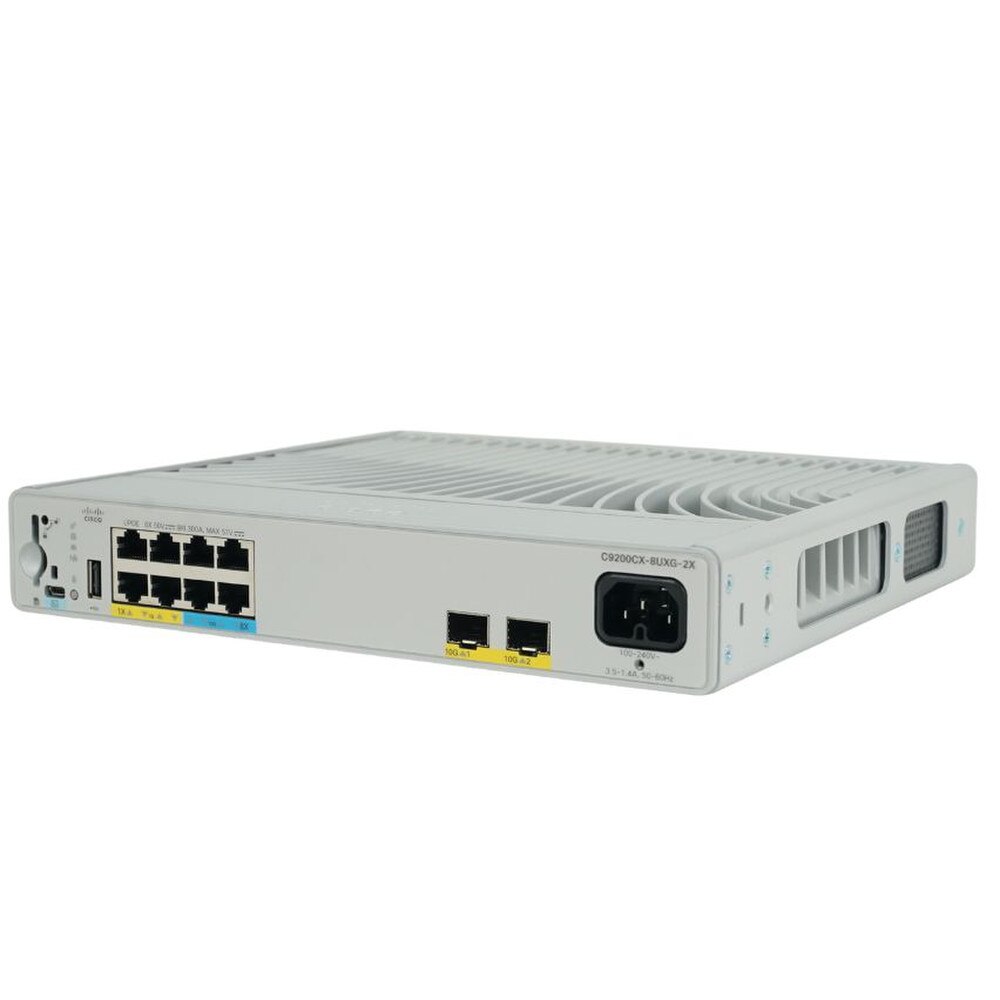

The Cisco Catalyst C9200CX-8UXG-2X-E 8-Port PoE+ Compact Switch with Network Essentials is an enterprise-grade, next-generation managed switch designed for high-performance access layer installations in environments with limited space. This model's small, fanless form makes it perfect for branch offices, open workplaces, retail establishments and hospitality environments where flexible installation and silent operation are essential. With a 240W PoE budget for seamless device connectivity, the switch offers a potent combination of four 10G multigigabit PoE+ ports and four 1G PoE+ ports, providing strong support for Wi-Fi 6/6E access points, IP phones, security cameras and other high-power devices. The C9200CX-8UXG-2X-E guarantees fast, reliable backbone connections to your core network with two 10G SFP+ uplink slots. With a forwarding rate of 95.23 Mbps and a switching capacity of 128 Gbps, it provides mission-critical applications with seamless, non-blocking data transfers. For complete protection and easier management, the bundled Network Essentials license unlocks robust security, including MACsec-128 encryption and 802.1X authentication, automation, model-driven telemetry and advanced Layer 2 and basic Layer 3 capabilities. This switch is a flexible solution for contemporary enterprise networks, supporting deployment choices such as rack, wall, DIN rail or under-table mounting.

Key Features of Cisco Catalyst C9200CX-8UXG-2X-E 8-Port PoE+ Compact Switch with Network Essentials

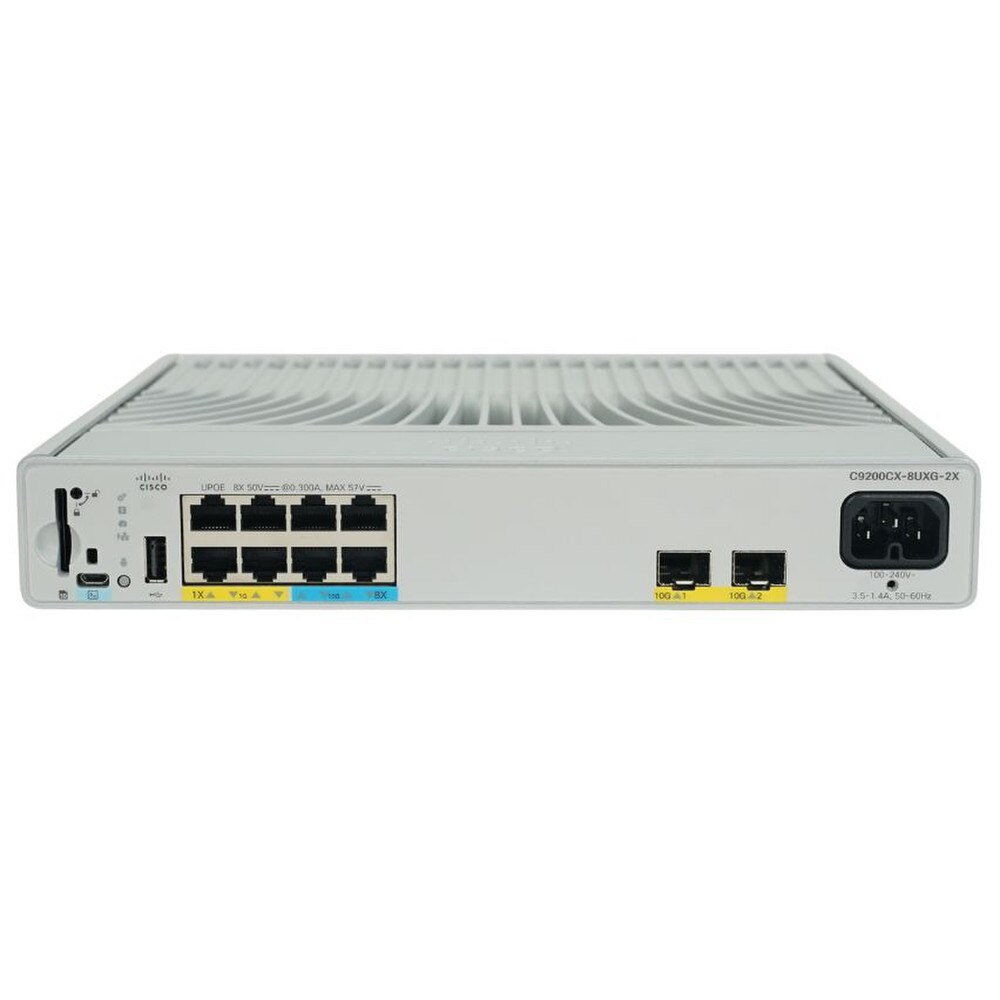

• 8 PoE+ Ports with four 10G multigigabit (mGig) PoE+ and four 1G PoE+ ports, supporting up to 30W per port and a total 240W PoE budget.

• 2 x 10G SFP+ Uplinks with high-speed fiber uplinks for resilient connections to aggregation or core switches.

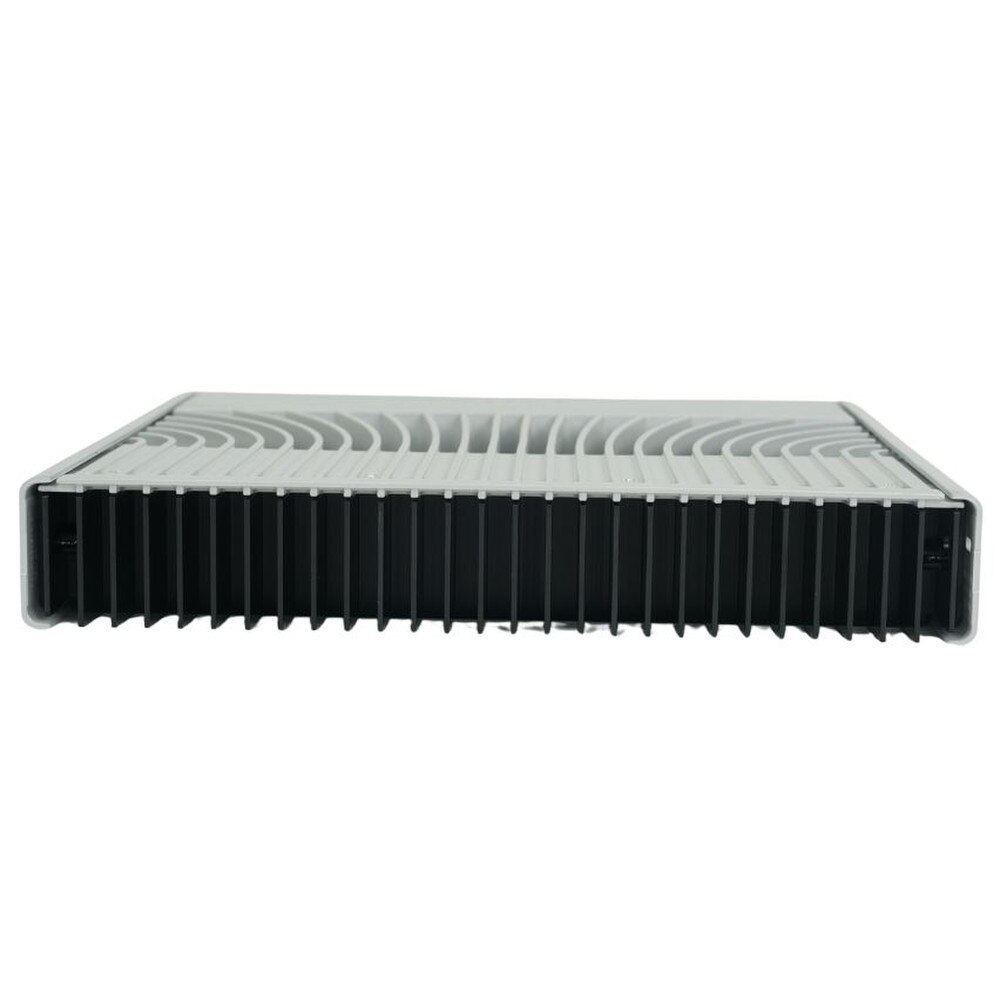

• Compact, Fanless Design with silent operation and flexible mounting (rack, wall, DIN rail, under-table) for deployment anywhere.

• 128 Gbps Switching Capacity with non-blocking performance for high-bandwidth applications.

• 95.23 Mpps Forwarding Rate that ensures smooth, reliable data transfer for demanding environments.

• Network Essentials License includes Layer 2 and basic Layer 3 features—VLANs, RIP, EIGRP Stub, OSPF (up to 1000 routes), PIM Stub Multicast, QoS, PVLAN, VRRP and more.

• Advanced Security with MACsec-128 encryption, 802.1X, CoPP, SXP and policy-based segmentation for robust network protection.

• Automation & Telemetry with NETCONF, RESTCONF, YANG, Plug and Play (PnP), model-driven telemetry and sampled NetFlow for simplified management and visibility.

• Energy Efficient with low power consumption and fanless design reduce operational costs and support green initiatives.

• Rugged Build with durable, enterprise-grade construction

Benefits of Cisco Catalyst C9200CX-8UXG-2X-E 8-Port PoE+ Compact Switch with Network Essentials

🗹 Compact, silent operation and versatile mounting options make it perfect for offices, retail and hospitality where space and noise matter.

🗹 240W PoE+ budget supports Wi-Fi 6/6E APs, VoIP phones and security cameras without extra cabling or power supplies.

🗹 Multigigabit and SFP+ uplinks ensure seamless connectivity and future-proof your network for bandwidth-intensive applications.

🗹 Advanced encryption and authentication features protect sensitive data and help meet regulatory requirements.

🗹 Network Essentials license, automation, and telemetry tools streamline configuration, monitoring and troubleshooting.

🗹 Backed by Cisco’s reliability, modular design, and upgradable software, ensuring long-term value and scalability as your business grows.

🗹 Fanless, low-power design reduces operational costs and supports sustainability initiatives.

🗹 Compatible with Cisco DNA Center and Meraki cloud monitoring for unified, intent-based network management.

Specifications for Cisco Catalyst C9200CX-8UXG-2X-E 8-Port PoE+ Compact Switch with Network Essentials | New

Cisco Catalyst C9200CX-8UXG-2X-E 8-Port PoE+ Compact Switch with Network Essentials
