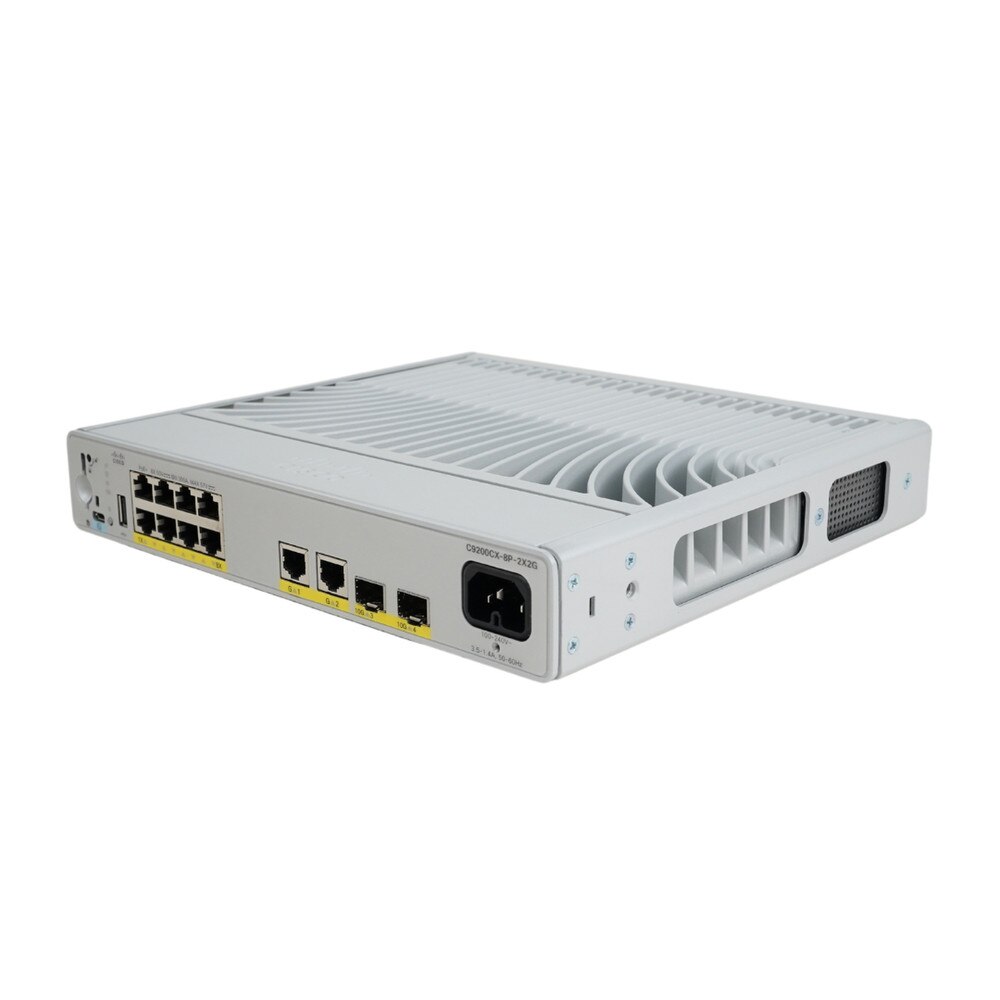

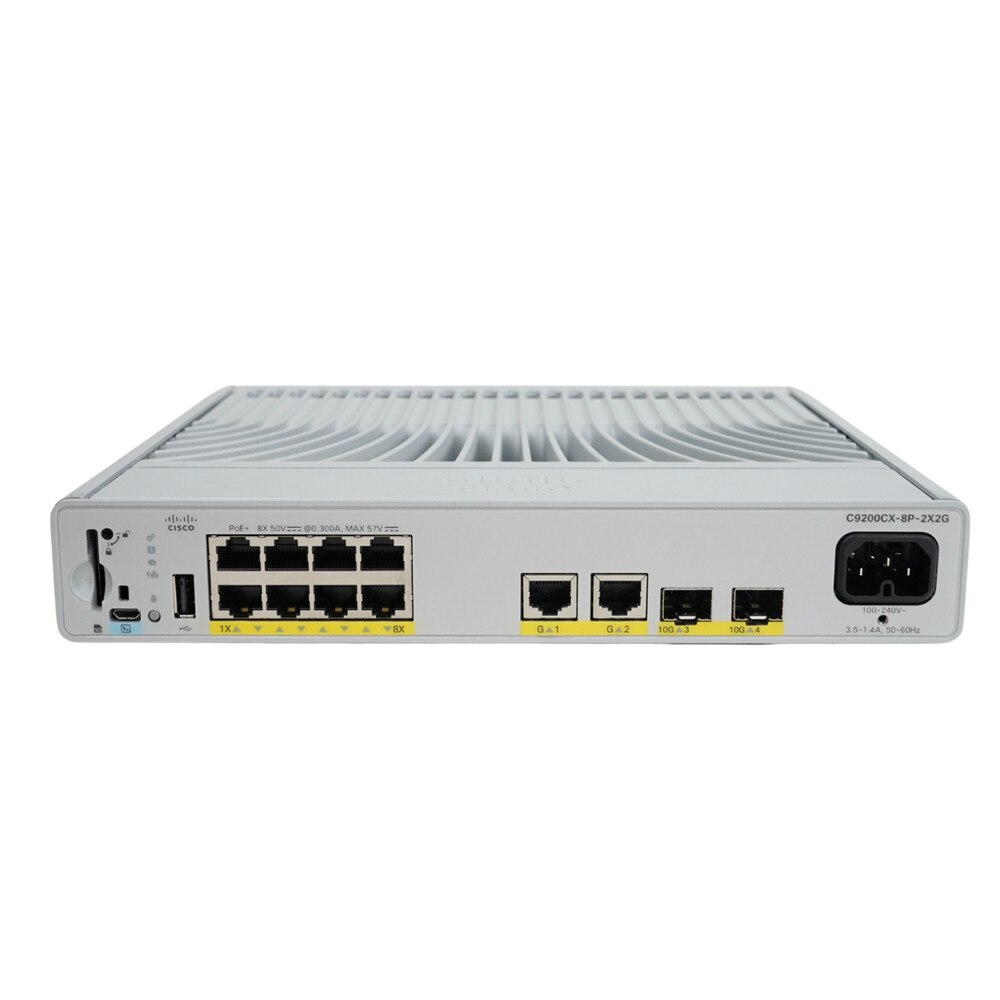

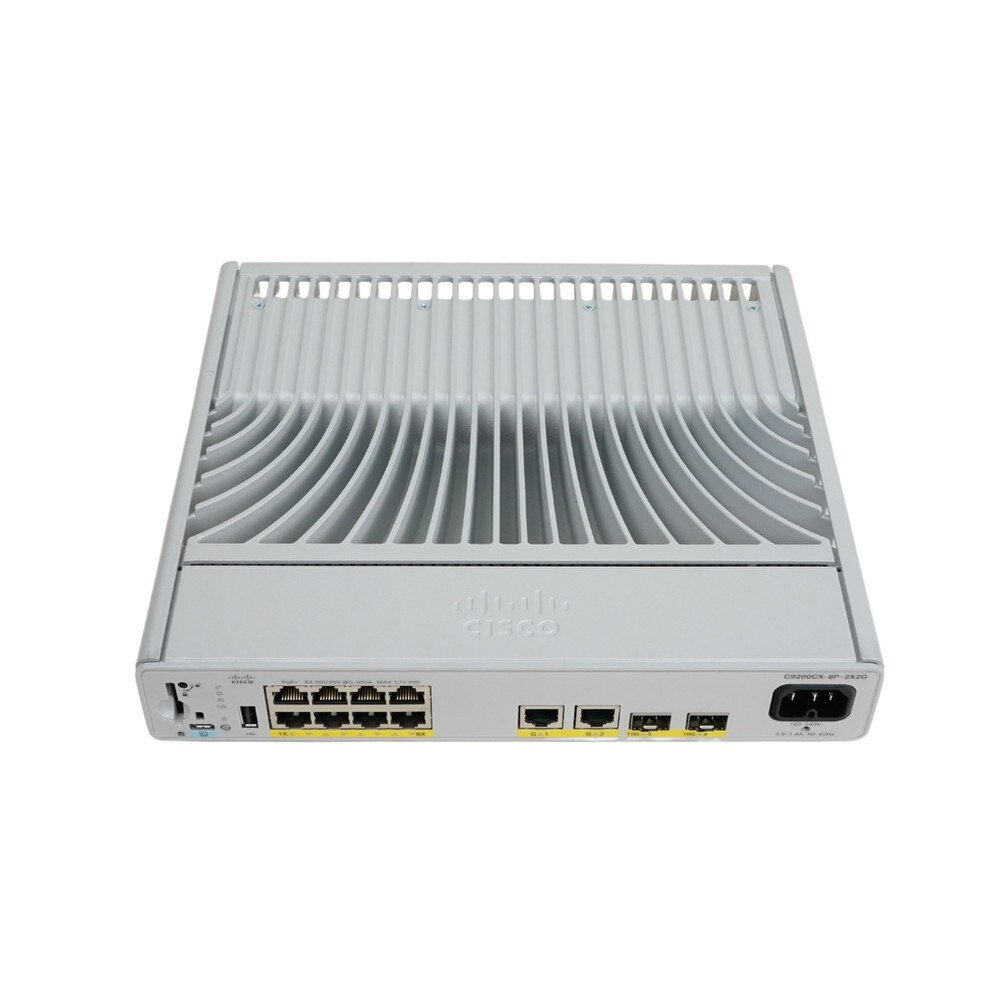

Cisco Catalyst 9200CX-8P-2X2G-E 8-Port PoE+ Compact Switch with Network Essentials | New

Cisco Catalyst 9200CX-8P-2X2G-E 8-Port PoE+ Compact Switch with Network Essentials | New

SKU: C9200CX-8P-2X2G-E-N
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$1,099.99 $1,099.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview for Cisco Catalyst 9200CX-8P-2X2G-E 8-Port PoE+ Compact Switch with Network Essentials | New

The Cisco Catalyst 9200CX-8P-2X2G-E 8-Port PoE+ Compact Switch with Network Essentials is a high-performance, enterprise-grade networking solution tailored for small to medium-sized businesses, branch offices and distributed networks. Its compact, fanless design ensures advanced connectivity, strong security and seamless scalability while operating silently. This switch, based on the architecture of Cisco’s Catalyst 9200 Series, is perfect for supplying power to connected devices like IP phones, cameras and wireless access points. With eight Gigabit Ethernet PoE+ ports and a maximum power budget of 240W, the Cisco Catalyst 9200CX-8P-2X2G-E guarantees effective power distribution to devices connected to it. It provides two 10G SFP+ uplinks and two 1G copper uplinks, allowing for flexible network expansion. This switch, running on Cisco IOS XE software with Network Essentials licensing, offers advanced Layer 2 capabilities, MACsec encryption and streamlined management through CLI or cloud-based services such as Cisco Meraki. Thanks to its design that saves space, it is ideal for use in noise-sensitive areas when mounted on a wall or placed on a desk.


Key Features of Cisco Catalyst 9200CX-8P-2X2G-E 8-Port PoE+ Compact Switch with Network Essentials


• 8 Gigabit Ethernet PoE+ Ports with high-speed connectivity with up to 30W power per port for connected devices.

• Flexible Uplink Options includes two 10G SFP+ uplinks and two 1G copper uplinks for network scalability.

• Power over Ethernet Plus (PoE+) supports a total power budget of 240W for powering IP phones, cameras and more.

• Cisco IOS XE Software offers advanced Layer 2 capabilities with Network Essentials licensing.

• Enterprise-Grade Security includes MACsec encryption and TrustSec for secure data transmission.

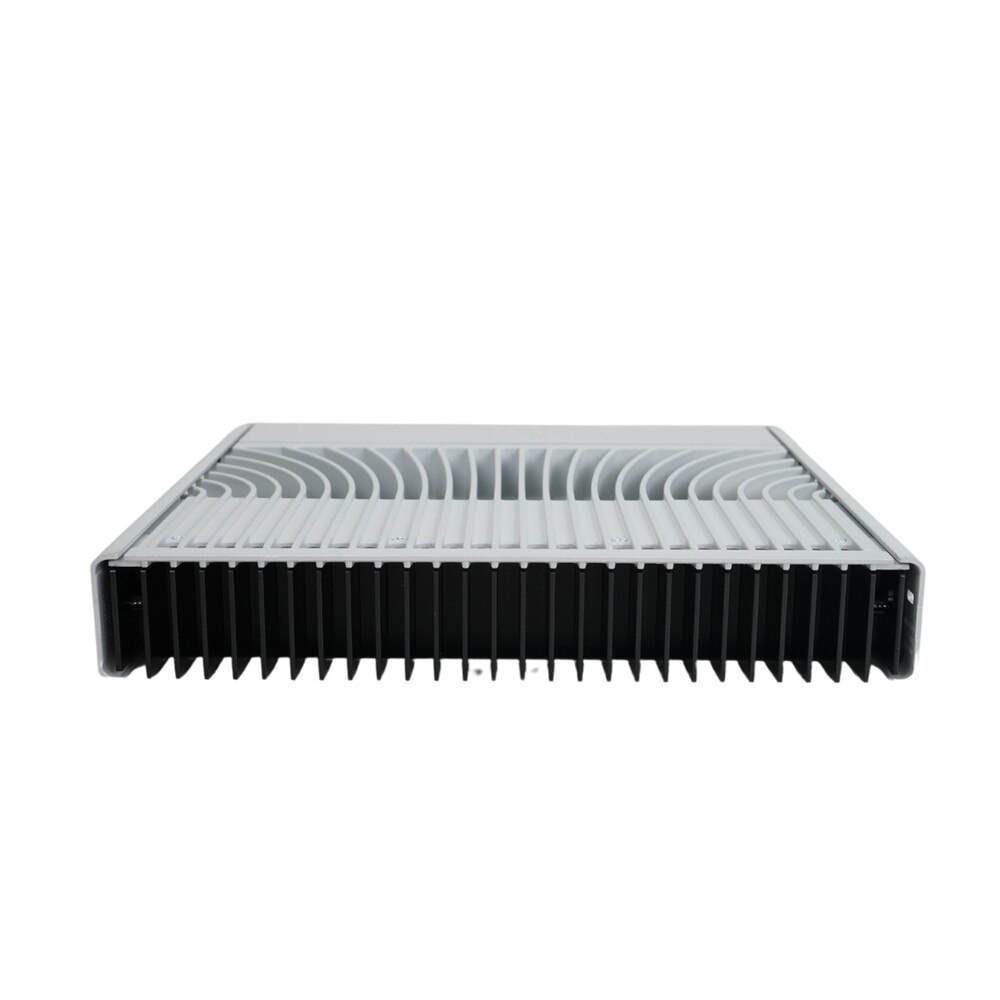

• Compact Fanless Design with silent operation ideal for offices or space-constrained environments.

• Complies with Energy Efficient Ethernet (EEE) standards to reduce power consumption.

• Cloud-Based Management is compatible with Cisco Meraki for simplified remote monitoring and configuration.

• High Performance supports up to 160 Gbps stacking bandwidth for seamless scalability.

• Resiliency Features includes redundant power supply options for uninterrupted operation.


Benefits of Cisco Catalyst 9200CX-8P-2X2G-E 8-Port PoE+ Compact Switch with Network Essentials


🗹 Provides reliable high-speed connections across multiple devices in your network.

🗹 PoE+ capability reduces the need for separate power supplies for connected devices.

🗹 Protects sensitive data with MACsec encryption and TrustSec protocols to prevent unauthorized access.

🗹 Flexible uplink options and stacking capabilities allow easy network expansion.

🗹 Fanless design ensures quiet performance in noise-sensitive environments like offices or classrooms.

🗹 Cisco IOS XE software offers intuitive tools for configuration and monitoring.

🗹 Advanced Layer 2 features ensure compatibility with evolving networking demands.

🗹 Combines advanced features with energy-efficient operation to reduce operational costs.

🗹 Ideal for branch offices, distributed networks, or campus environments.

🗹 Backed by Cisco’s reputation for reliability and innovation in networking solutions.

Specifications

Specifications for Cisco Catalyst 9200CX-8P-2X2G-E 8-Port PoE+ Compact Switch with Network Essentials | New

ManufacturerCisco
Manufacturer Part NumberC9200CX-8P-2X2G-E
Product NameCisco Catalyst 9200CX-8P-2X2G-E 8-Port PoE+ Compact Switch with Network Essentials
Product TypeFirewall
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 2 x 1000Base-T + 2 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
240 W
Performance
Switching capacity: 60 Gbps ¦ Forwarding rate: 95.23 Mpps ¦ Packet buffer size: 6 MB
Capacity
Virtual networks: 16 ¦ IPv4 routes: 14000 ¦ Direct IPv4 routes: 10000 ¦ Indirect IPv4 routes: 4000 ¦ IPv4 routing entries: 4000 ¦ IPv6 routing entries: 2000 ¦ Multicast scale: 1000 ¦ QoS scale entries: 1000 ¦ ACL scale entries: 1600 ¦ Flexible NetFlow entries: 16000 ¦ VLAN IDs: 4096 ¦ PVST instances: 128 ¦ STP Virtual Ports for PVST: 13000 ¦ STP Virtual Ports for MST: 13000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, YANG
Encryption Algorithm
128-bit AES
Features
Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Zero-touch provisioning (ZTP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Unified Access Data Plane (UADP) 2.0, trustworthy systems
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at
RAM
4 GB
Flash Memory
8 GB
Built-in Devices
RFID tag
Status Indicators
Power
Interfaces
8 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-T RJ-45 ¦ 2 x 10GBase-X SFP+ uplink ¦ 1 x USB 2.0 ¦ 1 x console (micro-USB)
Expansion Slots
1 (total) / 1 (free) x SD Memory Card
Power Device
Internal power supply
Power Provided
310 Watt
Voltage Required
AC 100-240 V (50/60 Hz)
MTBF
569,530 hours
Compliant Standards
Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Software Included
Cisco IOS Universal 17.8
Width
10.6 in
Depth
9.6 in
Height
1.7 in
Weight
6.59 lbs
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Min Operating Temperature
23 °F
Max Operating Temperature
113 °F
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-40 °F
Max Storage Temperature
158 °F
Humidity Range Storage
5 - 90% (non-condensing)

User Guides

Cisco Catalyst 9200 Series Switches Data Sheet

Frequently Asked Questions

Cisco Catalyst 9200CX-8P-2X2G-E 8-Port PoE+ Compact Switch with Network Essentials
Frequently Asked Questions (FAQ's)



What are the key features of the Cisco Catalyst C9200CX-8P-2X2G-E?
  • The key features include eight PoE+ ports, two 10 Gigabit SFP+ uplink ports, Layer 2/3 switching capabilities, and Cisco IOS XE software.
    • What is the power capacity of the Cisco C9200CX-8P-2X2G-E for PoE+?
  • The switch supports up to 240W of PoE+ power to connected devices.
    • What is the uplink configuration for the Cisco C9200CX-8P-2X2G-E?
  • It has two 10 Gigabit SFP+ uplink ports for high-speed network expansion.
    • What are the benefits of Cisco IOS XE on the C9200CX-8P-2X2G-E?
  • Cisco IOS XE provides enhanced security, programmability, automation and network management features.
    • Can the Cisco Catalyst C9200CX-8P-2X2G-E be used in a stackable configuration?
  • Yes, it supports stackable configurations with up to 160 Gbps stacking bandwidth.
    • What security features are included with the Cisco C9200CX-8P-2X2G-E?
  • Security features include MACsec encryption, TrustSec, role-based access control and advanced threat protection.
    • How does the C9200CX-8P-2X2G-E improve network reliability?
  • It supports advanced redundancy, with technologies like StackWise and dual power supply options for enhanced uptime.
    • What is the typical use case for the Cisco C9200CX-8P-2X2G-E?
  • It is commonly used in small to medium-sized enterprise networks that require PoE+ for connected devices like IP phones and access points.
    • How many devices can be powered via PoE+ on the Cisco C9200CX-8P-2X2G-E?
  • The switch can power up to 8 devices using PoE+ technology.
    • What is the maximum throughput of the Cisco C9200CX-8P-2X2G-E?
  • The switch provides a forwarding rate of up to 176 Gbps.
    • Does the Cisco C9200CX-8P-2X2G-E support SD-Access?
  • Yes, it supports Cisco SD-Access, enabling simplified segmentation and automation.
    • What type of power redundancy does the C9200CX-8P-2X2G-E offer?
  • The switch offers dual power supplies, with one primary and one backup for redundancy.
    • What management options are available for the Cisco C9200CX-8P-2X2G-E?
  • The switch can be managed via Cisco DNA Center, CLI, web-based UI or SNMP.
    • What VLAN capabilities does the Cisco C9200CX-8P-2X2G-E support?
  • It supports up to 4,000 VLANs, allowing for extensive network segmentation and control.
    • Can I use third-party transceivers with the Cisco C9200CX-8P-2X2G-E?
  • Yes, but it is recommended to use Cisco-certified transceivers for optimal compatibility and performance.
    • What kind of Layer 3 routing features are supported by the Cisco C9200CX-8P-2X2G-E?
  • The switch supports static routing, OSPF, EIGRP and RIP for Layer 3 routing.
    • How does the Cisco Catalyst C9200CX-8P-2X2G-E ensure energy efficiency?
  • It features Energy Efficient Ethernet (EEE) and intelligent power management to reduce energy consumption.
    • What are the dimensions of the Cisco Catalyst C9200CX-8P-2X2G-E?
  • The switch measures 1.73 x 10.56 x 9.45 inches (44 x 268 x 240 mm).
    • What is the operating temperature range for the Cisco C9200CX-8P-2X2G-E?
  • The switch operates in a temperature range of 32°F to 113°F (0°C to 45°C).
    • How many MAC addresses can the Cisco C9200CX-8P-2X2G-E handle?
  • It supports up to 32,000 MAC addresses, suitable for large-scale network environments.
