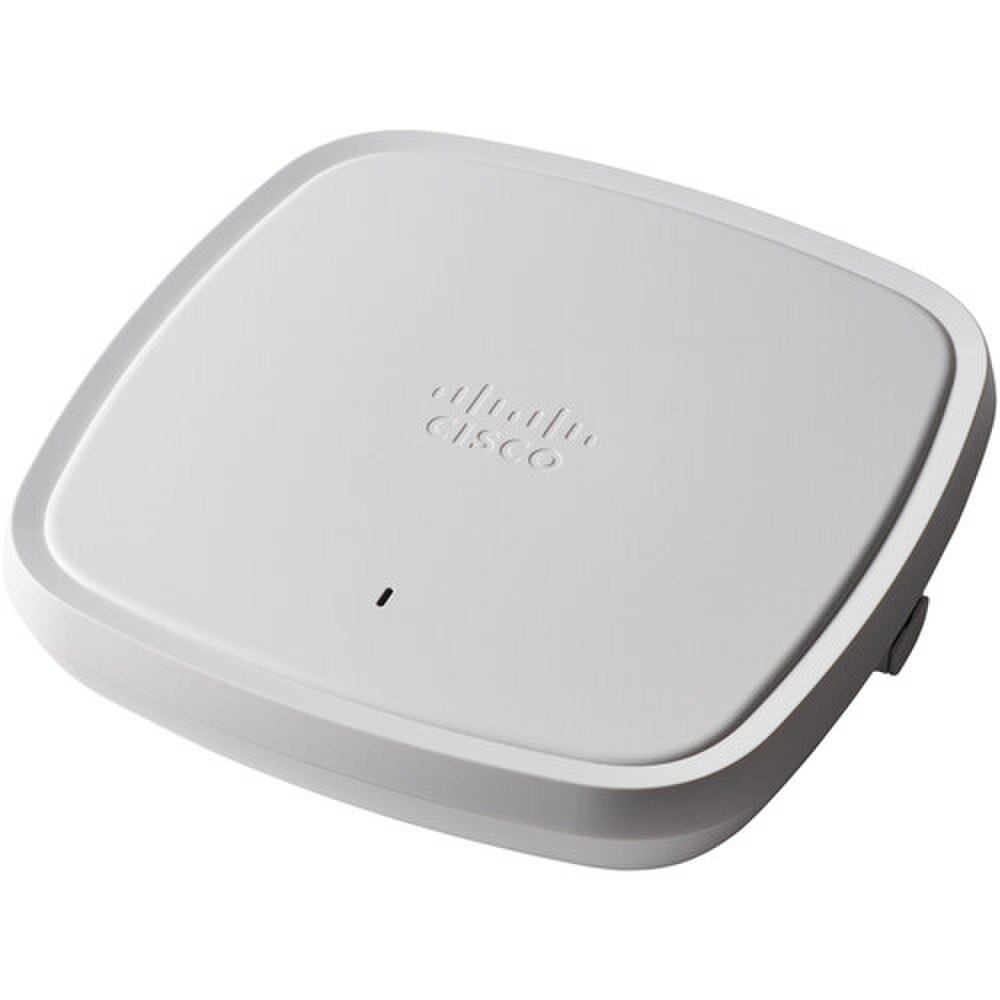

Cisco Catalyst C9105AXW-B Wireless Dual-Band Wi-Fi 6 Access Point | New
SKU: C9105AXW-B-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Cisco Catalyst C9105AXW-B Wireless Dual-Band Wi-Fi 6 Access Point | New
The Cisco Catalyst C9105AXW-B Wireless Dual-Band Wi-Fi 6 Access Point is a robust enterprise-class wireless access point that provides high-performance Wi-Fi 6 connectivity. This wall-mounted access point is ideal for hospitality, multi-dwelling units, and other environments that require dependable wireless coverage. The Cisco Catalyst C9105AXW-B includes dual-band radios that operate in both the 2.4 GHz and 5 GHz bands, allowing for seamless connectivity with a wide range of client devices. This access point, which supports the latest Wi-Fi 6 (802.11ax) standard, provides improved efficiency, capacity, and performance when compared to previous Wi-Fi generations. The C9105AXW-B is an excellent choice for businesses that want to upgrade their wireless infrastructure to Wi-Fi 6. Its high-performance connectivity, enterprise-grade features, and flexible deployment options make it an invaluable asset to any company.
Key Features of Cisco Catalyst C9105AXW-B Wireless Dual-Band Wi-Fi 6 Access Point
• Dual-Band Wi-Fi 6 Radios delivers high-speed wireless connectivity on both the 2.4 GHz and 5 GHz bands, ensuring reliable performance for a variety of applications.
• 2x2 MU-MIMO Technology enables simultaneous data streaming to multiple clients, improving overall network efficiency and throughput.
• Integrated Antennas features two internal dual-band antennas and one single-band IoT antenna, providing wide coverage and optimal performance.
• Multigigabit Ethernet Port supports speeds up to 2.5 Gbps, ensuring fast wired connectivity for high-bandwidth applications.
• Rugged Wall-Mountable Design built to withstand challenging environments, making it suitable for deployment in various settings.
• Cisco IOS XE Software provides advanced security features, API-driven configuration, and seamless integration with Cisco management tools.
• Can be managed by Cisco Catalyst 9800 Series Wireless Controllers or Cisco Embedded Wireless Controllers.
Specifications
Specifications for Cisco Catalyst C9105AXW-B Wireless Dual-Band Wi-Fi 6 Access Point | New
| Manufacturer | Cisco |
| Manufacturer Part Number | C9105AXW-B |
| Product Name | Cisco Catalyst C9105AXW-B Wireless Dual-Band Wi-Fi 6 Access Point |
| Product Type | Access Point |
Ruggedized Design | Indoor |
Width | 6.3 in |
Depth | 3.5 in |
Height | 1.3 in |
Weight | 13.16 oz |
Localization | Puerto Rico, United States |
Form Factor | Wall mountable |
Connectivity Technology | Wireless |
Line Coding Format | OFDMA |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
Frequency Band | 2.4 GHz, 5 GHz |
Status Indicators | Status |
Features | DFS support, Access Control List (ACL) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Cisco VideoStream technology, radio resource management (RRM), cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Pre-Shared Key (PSK), Dynamic QoS, guest access, 2x2 MU-MIMO technology, secure boot, Target Wait Time (TWT), image signing, Cisco Trust Anchor module, BSS Coloring |
Encryption Algorithm | AES, TLS, PEAP, TTLS, WPA, WPA2, EAP-SIM, WPA3, EAP-FAST |
Authentication Method | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM |
Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Antenna | Internal |
Directivity | Omni-directional |
Internet of Things (IoT) Compatible | Yes |
Communications Technology | Bluetooth Low Energy (LE) |
Interfaces | 1 x 1/2.5GBase-T - RJ-45 ¦ 3 x 1000Base-T - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x USB 2.0 |
Compliant Standards | CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, FCC Part 15.247, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC Part 15.407, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, EN 60601, VCCI V-3, EN 62209-1, SRRC, EN 300 328, EN 50385, EN 62209-2, EN 301 489-1, LP0002, RSS-247, KN32, KN35, AS/NZS CISPR 32 Class B, TCVN 7189, EN 301 893, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 60950-1, EN 55035, VCCI-CISPR 32:2016, CNS, EN 301 489-17, AS/NZS 2772, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN, KN 301 489-17 |
Power Over Ethernet (PoE) Supported | UPOE |
Service & Support | Limited warranty - advance hardware replacement - lifetime - response time: 10 days |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
User Guides
Frequently Asked Questions
Cisco Catalyst C9105AXW-B Wireless Dual-Band Wi-Fi 6 Access Point
Frequently Asked Questions (FAQ's)
Does the C9105AXW-B support Cisco CleanAir technology? Yes, Cisco CleanAir technology can automatically detect and mitigate wireless interference in real time, resulting in a more reliable connection.
What Wi-Fi standards does the C9105AXW-B support? It supports Wi-Fi 6 (802.11ax) and is backward compatible with 802.11a/b/g/n/ac standards.
Can the C9105AXW-B be used in outdoor environments? The C9105AXW-B is intended for indoor use. Cisco offers models specifically designed for harsh outdoor conditions.
What frequency bands does the C9105AXW-B operate on? It supports both the 2.4 GHz and 5 GHz frequency bands, allowing for dual-band connectivity.
How many users can the C9105AXW-B support simultaneously? The C9105AXW-B can accommodate hundreds of users, depending on network configuration and environment.
What is OFDMA, and how does it benefit the C9105AXW-B? OFDMA (Orthogonal Frequency-Division Multiple Access) enables multiple users to share a single channel, increasing efficiency and decreasing latency in high-density environments.
Does the C9105AXW-B support MU-MIMO technology? Yes, the C9105AXW-B supports MU-MIMO (Multi-User, Multiple Input, Multiple Output), which improves performance for multiple concurrent users.
Is the C9105AXW-B access point suitable for high-density environments? Yes, it is intended for high-density environments such as schools, hotels, and offices, and it delivers consistent performance even with a large number of connected devices.
What is Target Wake Time (TWT), and how does it help? TWT is a Wi-Fi 6 feature that reduces power consumption by scheduling communication between the access point and devices, thereby increasing the battery life of IoT and mobile devices.
Does the C9105AXW-B support WPA3 encryption? Yes, it supports WPA3, the most recent wireless security protocol, which provides enhanced security for wireless networks.
What management platforms are compatible with the C9105AXW-B? It seamlessly integrates with Cisco DNA Center, providing centralized management, automation, and monitoring.
Can the C9105AXW-B be wall-mounted? Yes, the C9105AXW-B has a compact, wall-mountable design, making it ideal for environments such as hotels and dormitories.
Does the C9105AXW-B support PoE (Power over Ethernet)? Yes, the C9105AXW-B supports Power over Ethernet (PoE), which allows for easy installation and power delivery via a single Ethernet cable.
What kind of throughput can the C9105AXW-B provide? The C9105AXW-B can provide aggregate throughput of up to 5 Gbps, depending on network configuration.
Is the C9105AXW-B backward compatible with older Wi-Fi standards? Yes, it is backward compatible with 802.11a/b/g/n/ac, which means it will work with legacy devices.
Does the C9105AXW-B support mesh networking? Yes, the C9105AXW-B supports mesh networking, which allows it to communicate with other Cisco access points for greater coverage.
What security features are available on the C9105AXW-B? It supports WPA3 encryption, secure boot, segmentation, and rogue access point detection.
What is the maximum coverage area of the C9105AXW-B? The coverage area varies depending on the deployment environment, but it typically covers a range suitable for enterprise and small business settings.
How does the C9105AXW-B handle interference? The C9105AXW-B minimizes interference and optimizes performance through features such as dynamic channel assignment and band steering.
What are the use cases for the Cisco Catalyst C9105AXW-B? It is ideal for enterprise networks, educational institutions, hospitality, healthcare facilities, and other environments that require dependable, high-performance wireless connectivity.
