Cisco Catalyst C1300-8MGP-2X 8-Port Multi-Gig PoE+ Managed Network Switch | Refresh

Cisco Catalyst C1300-8MGP-2X 8-Port Multi-Gig PoE+ Managed Network Switch | Refresh

SKU: C1300-8MGP-2X-RF
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$349.99 $349.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco Catalyst C1300-8MGP-2X 8-Port Multi-Gig PoE+ Managed Network Switch | Refresh


The Cisco Catalyst C1300-8MGP-2X 8-Port Multi-Gig PoE+ Managed Network Switch offers small to mid-sized business networks that require connection that is future-proof with unprecedented flexibility, speed and security. This switch, which has a total PoE+ budget of up to 120W, powers wireless access points, IP cameras and edge devices without the need for additional power sources due to its four 1Gb and four 2.5Gb PoE+ ports and two 10G SFP+ uplinks. Its fanless design guarantees quiet operation, the Layer 3 feature set makes traffic segmentation easier and its cutting-edge hardware performance enables enterprise-grade security, lightning-fast processing and seamless integration—all essential for converged, high-density deployments in offices, schools and hospitality spaces.


Key Features of Cisco Catalyst C1300-8MGP-2X 8-Port Multi-Gig PoE+ Managed Network Switch


• 8 multi-gigabit PoE+ ports with four 1Gb and four 2.5Gb copper RJ-45, 120W PoE+ power for WAPs/IP cameras.

• 2 x 10G SFP+ uplinks that handle rapid WAN, fiber or backbone connections for network growth.

• Layer 3 managed switch with VLAN, link aggregation, access control, multicast and static/dynamic routing.

• High-performance processor with dual-core ARM 1.4 GHz CPU, 1GB RAM, 42 Mpps forwarding rate for stable throughput and low network latency.

• Silent fanless design with reliable, noise-free operation ideal for offices and classrooms.

• Intelligent management with Cisco Business app, REST API, Bluetooth and USB console for easy setup, monitoring and automation.

• Enterprise security suite with 802.1X, ACLs, MAC filtering, DHCP snooping, DoS protection and secure SSH/HTTPS interface.

• PoE survives reboots that devices remain powered even during system restarts for maximum continuity.

• Compact rack-mountable chassis with 26.8 x 32.3 x 4.4 cm; fits tight spaces and dense wiring closets.

• Energy efficient consumes just 20W at idle, promoting lower operating costs and sustainability.


Benefits of Cisco Catalyst C1300-8MGP-2X 8-Port Multi-Gig PoE+ Managed Network Switch


🗹 Future-proofs network investments with multi-gig PoE+ ports support new Wi-Fi 6/7 APs and high-density edge devices.

🗹 Boosts operational flexibility that mixes 1Gb/2.5Gb access with fast 10Gb uplinks—ideal for rapid expansion and network upgrades.

🗹 Enables high-density deployments with 120W PoE+ budget powers more devices from a single switch, centralizing IT resources and reducing clutter.

🗹 Minimal downtime, maximum reliability with fanless architecture, modular firmware and live PoE power mean network remains robust through updates and reboots.

🗹 Strengthens network security with Layer 3 controls, ACLs and authentication keep users, data and devices protected.

🗹 Streamlined management that setup, monitoring and automation are fast using Cisco’s mobile app, Bluetooth console or REST API.

🗹 Eco-conscious, workspace-friendly with low power, silent operation and compact size support green IT and flexible deployments.

Specifications

Specifications for Cisco Catalyst C1300-8MGP-2X 8-Port Multi-Gig PoE+ Managed Network Switch | Refresh


ManufacturerCisco
Manufacturer Part NumberC1300-8MGP-2X-RF
Product NameCisco Catalyst C1300-8MGP-2X 8-Port Multi-Gig PoE+ Managed Network Switch
Product TypeNetwork Switch
Enclosure Type
Rack-mountable
Subtype
10 Gigabit Ethernet
Ports
4 x Gigabit Ethernet + 4 x 100/1000/2.5G + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
PoE Budget
120 W
Performance
Forwarding rate (64‑byte packets): 41.66 Mpps ¦ Switching capacity: 56 Gbps
Capacity
MSTP instances: 8 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 8 ¦ Link aggregation ports: 8 ¦ VLAN IDs: 4093 ¦ IGMP multicast groups: 2000 ¦ IPv4 routes (static): up to 990 ¦ IPv4 interfaces: 128 ¦ ACL rules: 1024 ¦ Priority queues: 8 ¦ Packet buffer size: 1.5 MB
MAC Address Table Size
16000 entries
Jumbo Frame Support
9000 bytes
Max Units In A Stack
8
Routing Protocol
STP, static IP routing, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, CIDR, RIP-2, policy-based routing (PBR), MLD, MLDv2
Remote Management Protocol
CLI, Telnet, SSH, SSH-2, DHCP, SCP, HTTPS, HTTP, ICMP, TFTP, Syslog, SNMP, SNMP 2c, SNMP 3, RMON, RADIUS
Encryption Algorithm
SSL, MD5
Authentication Method
RADIUS, TACACS+
Features
Fanless, VLAN support, STP support, CLI management, QoS, sFlow, dynamic routing, Zero-Touch Deployment, Port Security, Web authentication, Address Resolution Protocol, ARP inspection, IP source guard, DHCP snooping, IPMB, NDP, router advertisement guard, DHCPv6 guard, layer 3 routing, LAG, port mirroring, EEE, RSTP, MSTP support, PVST+, RPVST+, LACP, Protocol-based VLANs support, MAC based VLAN, VLAN management, Private VLAN, PVE, Guest VLAN, GVRP, CPE VLAN, Auto Surveillance VLAN, MVR, Q-in-Q tunneling, TPID, GARP, UDLD, DHCP relay, DHCP server, IGMP snooping, IGMP querier, IGMP proxy, HoL Blocking Prevention, loopback detection, ACL support, BOOTP support, UDP, High Availability, MAC address authentication, BPDU Guard, STP Root Guard, STP loop guard, DAI, DoS protection, SCT, SSD, trustworthy systems, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unicast Storm Control, Unknown Storm Control, DoS attack prevention, WRR, ToS, DSCP based CoS, DiffServ support, TCP congestion, iSCSI traffic optimization, path MTU discovery, DAD, RA guard, MLD snooping, MLD proxy, Telnet server, DNS client, Telnet client, DHCP client, IPv4 and IPv6 dual stack, VLAN mirroring, RSPAN, SCP, chip guard, boot integrity, persistent PoE, PoE scheduling, time-based port operation, cable length detection, LLDP, LLDP-MED, reset button
Compliant Standards
IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
Processor
X ARM: 1.4 GHz
RAM
1 GB DDR4 SDRAM
Flash Memory
512 MB
Status Indicators
System, link/activity/speed, PoE
Interfaces
4 x 10/100/1000 Base-T RJ-45 PoE+ - 65 W ¦ 4 x 2.5Gbit LAN RJ-45 PoE+ - 65 W ¦ 2 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x USB-C console
Power Device
External power adapter
Voltage Required
AC 100-240 V (50 - 60 Hz)
Included Accessories

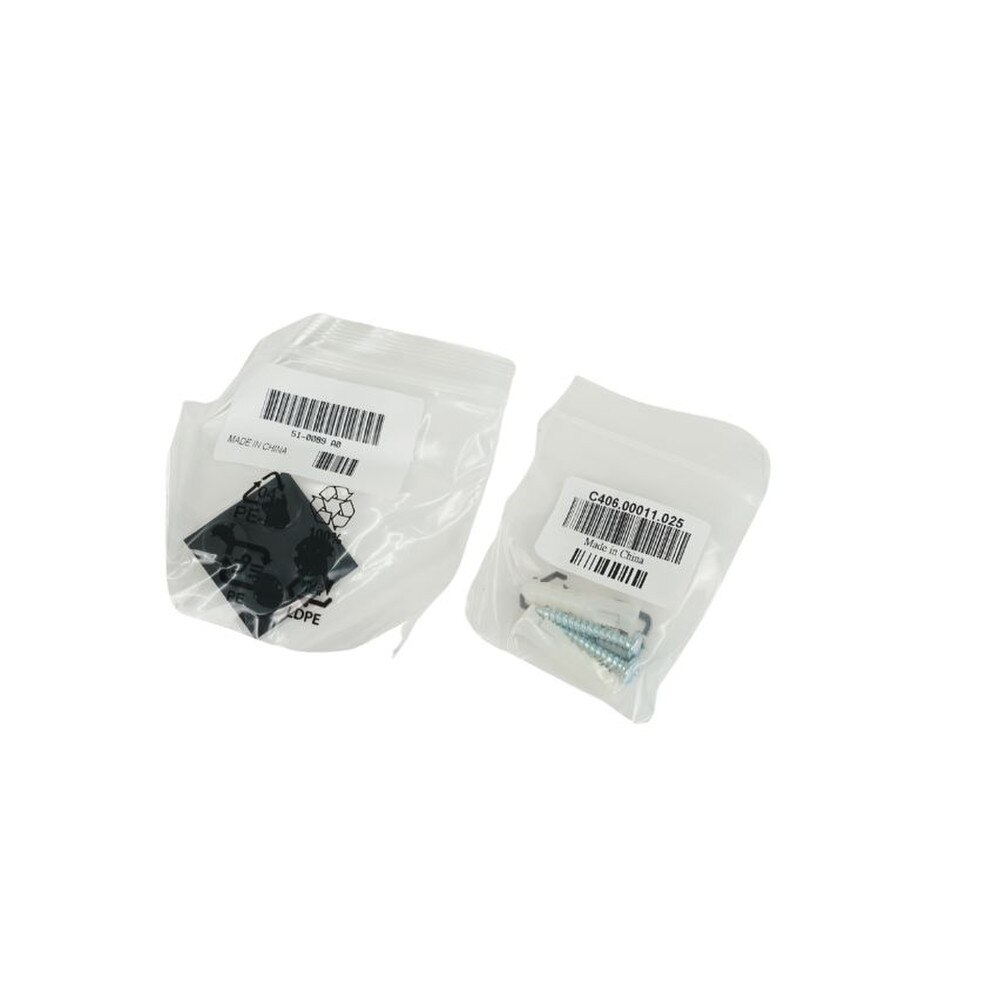

Pointer card, mounting kit
MTBF
2,165,105 hours
Compliant Standards
Plug and Play, RFC768, RFC783, RFC791, RFC792, RFC793, RFC813, RFC826, RFC879, RFC896, RFC854, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC951, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1157, RFC1213, RFC1215, RFC1286, RFC1350, RFC1442, RFC1451, RFC1493, RFC1533, RFC1541, RFC1542, RFC1573, RFC1624, RFC1643, RFC1700, RFC1757, RFC1867, RFC1907, RFC2011, RFC2012, RFC2013, RFC2030, RFC2131, RFC2132, RFC2233, RFC2576, RFC2616, RFC2618, RFC2665, RFC2666, RFC2674, RFC2737, RFC2819, RFC2863, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4443, RFC4291, RFC2460, RFC4861, RFC4862, RFC1981, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595, CSA 22.2, FCC CFR47 Part 15, UL 62368, WEEE
Width
10.6 in
Depth
7.3 in
Height
1.7 in
Weight
5.49 lbs
Min Operating Temperature
23 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% RH (non-condensing)
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 - 90% RH (non-condensing)

User Guides

Cisco Catalyst 1300 Series Switches Data Sheet

Frequently Asked Questions

Cisco Catalyst C1300-8MGP-2X 8-Port Multi-Gig PoE+ Managed Network Switch
Frequently Asked Questions (FAQ's)



What speeds do the Multi-Gig ports support?
  • Each port can auto-negotiate between 1G, 2.5G, 5G, and 10G speeds based on connected devices.
    • How much PoE power is available per port?
  • Each PoE+ port can deliver up to 30W of power, supporting devices like access points and IP cameras.
    • What’s the total PoE power budget?
  • The switch supports a total PoE power budget of up to 240W across all 8 ports.
    • Is the switch fanless?
  • Yes, the C1300-8MGP-2X has a fanless design for silent operation.
    • Can I use this switch for Wi-Fi 6 access points?
  • Absolutely—Multi-Gig ports and full PoE+ support make it ideal for Wi-Fi 6/6E deployments.
    • What type of uplinks does it have?
  • It includes two 10G SFP+ ports for fiber or high-speed backbone uplinks.
    • Does it support VLANs?
  • Yes, it fully supports 802.1Q VLAN tagging for traffic segmentation and enhanced security.
    • Is this a Layer 3 switch?
  • No, it’s a Layer 2 switch with management capabilities but no dynamic routing.
    • Can it be rack-mounted?
  • Yes, it includes hardware for desktop, wall, or rackmount installation.
    • What security features does it offer?
  • Port security, 802.1X authentication, ACLs, MAC filtering and DHCP snooping.
    • Can I manage it remotely?
  • Yes, through Cisco Business Dashboard, web GUI or CLI.
    • Does it support Link Aggregation?
  • Yes, LACP is supported for port channeling and redundancy.
    • What is the switching capacity?
  • Switching capacity is approximately 160 Gbps, ensuring lag-free performance.
    • Does it have IGMP Snooping?
  • Yes, it supports IGMP snooping for efficient multicast traffic management.
    • Is it suitable for surveillance systems?
  • Yes, its PoE+ ports and bandwidth support make it great for powering and backhauling IP cameras.
    • How do I update the firmware?
  • Firmware updates can be performed via web GUI or CLI.
    • Can it detect unauthorized devices?
  • Yes, through port security, MAC address filtering, and 802.1X.
    • Is it compatible with Cisco DNA Center?
  • No, the C1300 series is designed for Cisco Business Dashboard and does not integrate with Cisco DNA Center.
    • What’s the MAC address table size?
  • It supports up to 16K MAC addresses, suitable for high-density deployments.
    • Does it support SNMP?
  • Yes, SNMP v1, v2c, and v3 are supported for monitoring and integration with NMS platforms.
