Cisco Catalyst C1300-16P-2G 16-Port Gigabit PoE+ Managed Network Switch | Refresh
SKU: C1300-16P-2G-RF
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Cisco Catalyst C1300-16P-2G 16-Port Gigabit PoE+ Managed Network Switch | Refresh
The Cisco Catalyst C1300-16P-2G 16-Port Gigabit PoE+ Managed Network Switch is a powerful and flexible solution for small and medium-sized businesses looking to improve their network infrastructure. This switch combines high-performance connectivity, extensive Power over Ethernet (PoE+) capabilities, and advanced security features, making it an excellent choice for modern network configurations. The C1300-16P-2G is intended to lay a solid foundation for your business network. Its extensive PoE+ capabilities make it easy to deploy powered devices, while its smart management features allow for simple configuration and monitoring, making it an excellent choice for businesses without dedicated IT staff.
Key Features of Cisco Catalyst C1300-16P-2G 16-Port Gigabit PoE+ Managed Network Switch
• 16 Gigabit Ethernet Ports provides reliable high-speed connectivity for various network devices, ensuring seamless data transfer and communication.
• Power over Ethernet (PoE+) delivers up to 30W per port with a total power budget of 240W, allowing for the powering of devices such as IP phones, security cameras, and wireless access points directly through Ethernet cables.
• Features two SFP ports for flexible uplink options, enabling easy integration with existing network infrastructure and enhancing network scalability.
• Managed through Cisco's intuitive web interface or Cisco Business mobile app, providing centralized control and visibility for easy configuration and monitoring without requiring extensive IT expertise.
• Supports essential Layer 2 features, including VLANs, Quality of Service (QoS), and link aggregation, as well as Layer 3 routing capabilities for efficient data traffic management.
• Incorporates IP-MAC port binding to detect and block deliberate network attacks, along with IPv6 First Hop Security to protect against address spoofing and man-in-the-middle attacks.
• Compliant with IEEE 802.3az Energy Efficient Ethernet, optimizing power usage to lower operational costs. The fanless design ensures silent operation, making it suitable for noise-sensitive environments.
• Designed for easy installation in various environments, the switch can be mounted in racks or placed on desktops, providing flexibility in deployment.
• Engineered for high reliability and performance, ensuring consistent network uptime and productivity for critical applications.
• Backed by Cisco's limited lifetime warranty and ongoing firmware updates, providing peace of mind and long-term investment protection.
Specifications
Specifications for Cisco Catalyst C1300-16P-2G 16-Port Gigabit PoE+ Managed Network Switch | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | C1300-16P-2G-RF |
| Product Name | Cisco Catalyst C1300-16P-2G 16-Port Gigabit PoE+ Managed Network Switch |
| Product Type | Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 120 W |
Performance | Forwarding rate (64‑byte packets): 26.78 Mpps ¦ Switching capacity: 36 Gbps |
Capacity | MSTP instances: 8 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 8 ¦ Link aggregation ports: 8 ¦ VLAN IDs: 4093 ¦ IGMP multicast groups: 2000 ¦ IPv4 routes (static): up to 990 ¦ IPv4 interfaces: 128 ¦ ACL rules: 1024 ¦ Priority queues: 8 ¦ Packet buffer size: 1.5 MB |
MAC Address Table Size | 16000 entries |
Jumbo Frame Support | 9000 bytes |
Routing Protocol | RIP-2, IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour |
Remote Management Protocol | SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog |
Encryption Algorithm | MD5, SSL |
Authentication Method | RADIUS, TACACS+ |
Features | BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, sFlow, DHCP snooping, DHCP server, MLD snooping, reset button, STP Root Guard, fanless, DHCP relay, Port Security, DHCP client, IGMP proxy, Protocol-based VLANs support, Storm Control, MLD proxy, IP source guard, ARP inspection, MAC address authentication, IGMP querier, VLAN mirroring, DNS client, VLAN management, LLDP-MED, Private VLAN, RA guard, Guest VLAN, STP loop guard, EEE, DSCP based CoS, MAC based VLAN, loopback detection, Telnet server, Telnet client, Unknown Storm Control, BPDU Guard, router advertisement guard, DHCPv6 guard, Q-in-Q tunneling, IPv4 and IPv6 dual stack, Zero-Touch Deployment, cable length detection, Web authentication, PoE scheduling, trustworthy systems, layer 3 routing, dynamic routing, ACL support, eco-friendly button, Address Resolution Protocol, Auto Surveillance VLAN, CPE VLAN, TCP congestion, iSCSI traffic optimization, chip guard, boot integrity, persistent PoE, time-based port operation, MSTP support, QoS, PVST+, LACP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS protection, WRR, HoL Blocking Prevention, LAG, RPVST+, DAD, LLDP, path MTU discovery, STP support, CLI management, ATP, FHS, IPMB, NDP, RSTP, PVE, MVR, TPID, UDLD, DAI, Cisco NG PnP Protocol, RSPAN |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az |
Processor | X ARM: 1.4 GHz |
RAM | 1 GB DDR4 SDRAM |
Flash Memory | 512 MB |
Status Indicators | System, PoE, link/activity/speed |
Interfaces | 16 x 10/100/1000 Base-T (PoE+) RJ-45 ¦ 2 x 1000Base-X SFP ¦ 1 x console RJ-45 ¦ 1 x USB-C console |
Power Device | Internal power supply |
Voltage Required | AC 100-240 V (50 - 60 Hz) |

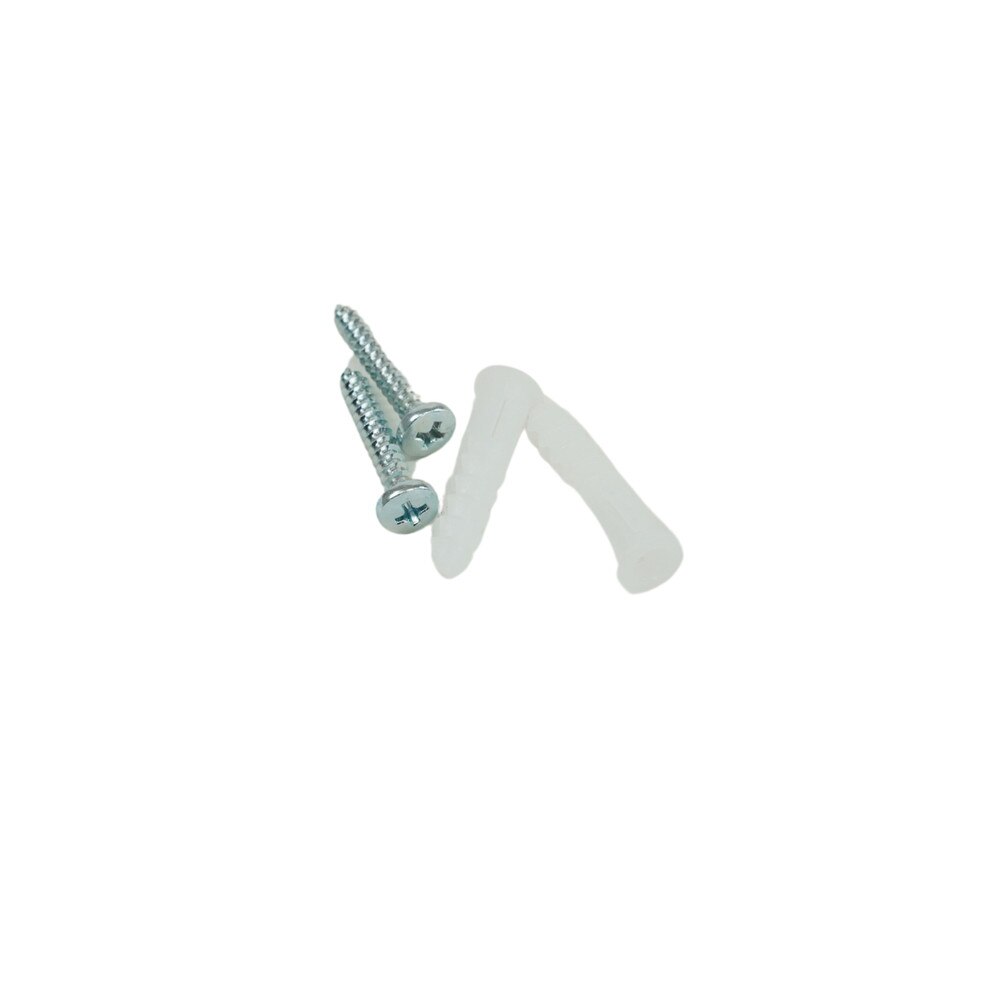

Included Accessories | Mounting kit, pointer card |
MTBF | 706,983 hours |
Compliant Standards | Plug and Play, FCC CFR47 Part 15, WEEE, CSA 22.2, RFC1213, RFC1493, RFC1757, RFC2674, RFC768, RFC791, RFC1157, RFC2460, RFC2011, RFC1643, RFC2012, RFC2013, UL 62368, RFC783, RFC792, RFC2863, RFC793, RFC826, RFC854, RFC2131, RFC2132, RFC1907, RFC1215, RFC2233, RFC2665, RFC951, RFC1542, RFC2618, RFC4443, RFC1981, RFC4861, RFC4862, RFC4291, RFC813, RFC879, RFC896, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1286, RFC1350, RFC1442, RFC1451, RFC1533, RFC1541, RFC1573, RFC1624, RFC1700, RFC1867, RFC2030, RFC2576, RFC2616, RFC2666, RFC2737, RFC2819, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595 |
Width | 10.6 in |
Depth | 11.7 in |
Height | 1.7 in |
Weight | 5.25 lbs |
Service & Support | Limited warranty - lifetime - response time: next business day ¦ Technical support - consulting - 1 year |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 5 - 90% RH (non-condensing) |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 90% RH (non-condensing) |
User Guides
Frequently Asked Questions
Cisco Catalyst C1300-16P-2G 16-Port Gigabit PoE+ Managed Network Switch
Frequently Asked Questions (FAQ's)
What is the total PoE power budget of the Cisco Catalyst C1300-16P-2G? The switch has a total PoE power budget of up to 240W, which is distributed across its 16 PoE+ ports.
Does the Cisco Catalyst C1300-16P-2G support Layer 3 routing? No, this switch is intended for Layer 2 switching, with features like VLANs, QoS, and port security.
Can the Cisco Catalyst C1300-16P-2G be managed remotely? Yes, the switch can be managed remotely using a web-based interface, CLI (Command-Line Interface), or Cisco network management tools.
What types of uplink ports are available on the Cisco Catalyst C1300-16P-2G? The switch has two Gigabit SFP uplink ports for flexible connectivity.
Is the Cisco Catalyst C1300-16P-2G stackable? No, the C1300-16P-2G is not stackable. It is designed to be a stand-alone unit with strong management capabilities.
What security features are included in the Cisco Catalyst C1300-16P-2G? The switch includes security features such as Access Control Lists (ACLs), 802.1X authentication, port security, and DHCP snooping.
Does the switch support VLAN configuration? Yes, the Cisco Catalyst C1300-16P-2G supports VLANs, which enable network segmentation for increased performance and security.
How do I power the switch? The switch is powered by a standard AC power cord and does not require an additional power supply to operate.
What is the maximum data throughput of the Cisco Catalyst C1300-16P-2G? The switch offers non-blocking, full-duplex Gigabit Ethernet speeds and a switching capacity of up to 36 Gbps.
Does the Cisco Catalyst C1300-16P-2G support energy-efficient features? Yes, it includes Cisco's Energy Efficient Ethernet (EEE) and other power-saving technologies to help reduce energy consumption.
Can the PoE ports be prioritized for critical devices? Yes, PoE port prioritization can be set to ensure that power is delivered to critical devices first.
Does the Cisco Catalyst C1300-16P-2G support redundant power supplies? No, this switch does not accommodate redundant power supplies. It runs on a single internal power supply.
Does the switch support Quality of Service (QoS)? Yes, it supports QoS, which prioritizes network traffic and ensures peak performance for voice, video, and data services.
Can I use the Cisco Catalyst C1300-16P-2G in a high-density deployment? Yes, the switch is suitable for high-density environments, as it supports up to 16 PoE+ devices and has advanced traffic management capabilities.
What are the management options available for the Cisco Catalyst C1300-16P-2G? The switch can be managed using a web-based GUI, command-line interface, or one of Cisco's network management platforms, such as Cisco DNA Center.
What is the operating temperature range of the Cisco Catalyst C1300-16P-2G? The switch has a temperature range of 0°C to 40°C (32°F to 104°F).
Is there support for IPv6 on the Cisco Catalyst C1300-16P-2G? Yes, the switch supports IPv6, providing future-proof networking capabilities.
What kind of devices can be powered using the PoE+ ports? The PoE+ ports can power IP phones, wireless access points, IP cameras, and other PoE-capable devices.
How can I update the firmware on the Cisco Catalyst C1300-16P-2G? Firmware updates can be performed via the web interface, command line interface, or Cisco network management tools.
Is there a fan in the Cisco Catalyst C1300-16P-2G, and if so, is it loud? Yes, the switch has an internal fan for cooling and operates at a noise level appropriate for most office environments, making it relatively quiet.
