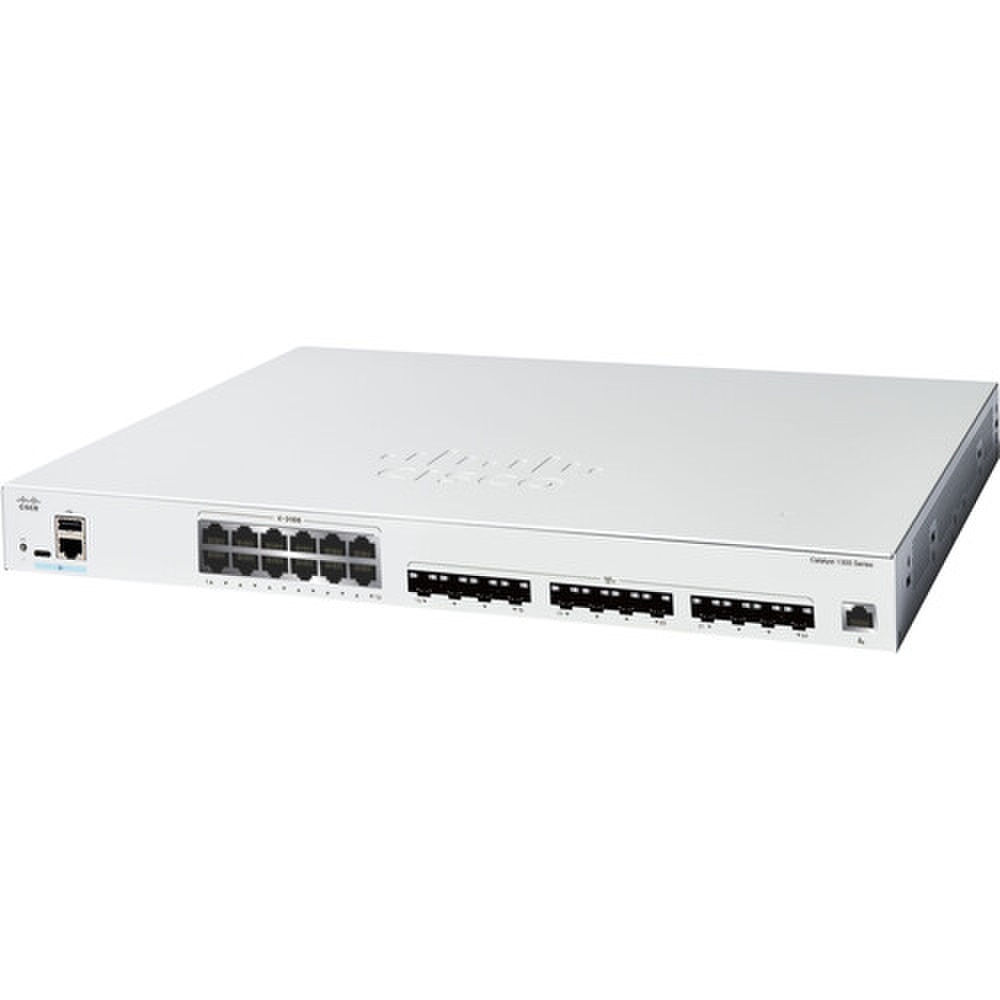

Cisco Catalyst C1300-24XTS 24-Port 10G RJ45/SFP+ Managed Network Switch | Refresh

Cisco Catalyst C1300-24XTS 24-Port 10G RJ45/SFP+ Managed Network Switch | Refresh

SKU: C1300-24XTS-RF
(0)No Reviews yet

🗹 12 x 10G RJ45 Ethernet Ports
🗹 12 x 10G SFP+ Ports
🗹 480 Gb/s Switching Capacity
🗹 357.12 Mpps Forwarding Rate
🗹 IPV6 Support
🗹 Layer 3 Features
🗹 Front Panel Hardware Stacking
🗹 Fan Cooling
🗹 Rack Mountable

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$1,999.99 $1,999.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco Catalyst C1300-24XTS 24-Port 10G RJ45/SFP+ Managed Network Switch | Refresh

The Cisco Catalyst C1300-24XTS 24-Port 10G RJ45/SFP+ Managed Network Switch is a high-performance managed network switch intended for small to medium-sized organizations that require advanced networking features. This powerful switch has 12 10G RJ45 connections and 12 10G SFP+ ports, ensuring outstanding flexibility and high-speed connectivity in demanding network situations. The C1300-24XTS, with its powerful Layer 2 and Layer 3 features, provides enterprise-class functionality in a small package. Its comprehensive security features, user-friendly management interface, and energy-efficient architecture make it an excellent choice for enterprises wishing to improve their network infrastructure and meet increasing connection demands.


Key Features of Cisco Catalyst C1300-24XTS 24-Port 10G RJ45/SFP+ Managed Network Switch:


• 12 10G RJ45 ports and 12 10G SFP+ ports for versatile high-speed connectivity

• 480 Gbps switching capacity for efficient data transfer

• 357.12 Mpps forwarding rate for high-performance packet processing

• Advanced Layer 2 and Layer 3 features including static routing

• Comprehensive security features including ACLs and 802.1X authentication

• Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption

• Quality of Service (QoS) for traffic prioritization

• VLAN support for network segmentation (up to 4,094 VLANs)

• IPv6 support for future-proof networking

• Stackable design supporting up to 8 units in a stack

• Intuitive web-based interface for easy configuration and management

• Cisco Business Dashboard for centralized network management

• Fanless design for quiet operation in office environments

• Rack-mountable with included mounting kit

• Limited lifetime warranty with next-business-day replacement

Specifications

Specifications for Cisco Catalyst C1300-24XTS 24-Port 10G RJ45/SFP+ Managed Network Switch | Refresh

Manufacturer Cisco
Manufacturer Part Number C1300-24XTS-RF
Product Name Cisco Catalyst C1300-24XTS 24-Port 10G RJ45/SFP+ Managed Network Switch
Product Type Networking Switch
Enclosure Type
Rack-mountable
Subtype
10 Gigabit Ethernet
Ports
12 x 10 Gigabit Ethernet + 12 x 10 Gigabit SFP+
Performance
Forwarding rate (64‑byte packets): 357.12 Mpps ¦ Switching capacity: 480 Gbps
Capacity
MSTP instances: 8 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 8 ¦ Link aggregation ports: 8 ¦ VLAN IDs: 4093 ¦ IGMP multicast groups: 2000 ¦ IPv4 routes (static): up to 990 ¦ IPv4 interfaces: 128 ¦ ACL rules: 1024 ¦ Priority queues: 8 ¦ Packet buffer size: 1.5 MB
MAC Address Table Size
16000 entries
Jumbo Frame Support
9000 bytes
Routing Protocol
STP, static IP routing, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, CIDR, RIP-2, policy-based routing (PBR), MLD, MLDv2
Remote Management Protocol
CLI, Telnet, SSH, SSH-2, DHCP, SCP, HTTPS, HTTP, ICMP, TFTP, Syslog, SNMP, SNMP 2c, SNMP 3, RMON, RADIUS
Encryption Algorithm
SSL, MD5
Authentication Method
RADIUS, TACACS+
Features
Fanless, VLAN support, STP support, CLI management, QoS, sFlow, dynamic routing, Zero-Touch Deployment, Port Security, Web authentication, Address Resolution Protocol, ARP inspection, IP source guard, DHCP snooping, IPMB, NDP, router advertisement guard, DHCPv6 guard, layer 3 routing, LAG, port mirroring, EEE, RSTP, MSTP support, PVST+, RPVST+, LACP, Protocol-based VLANs support, MAC based VLAN, VLAN management, Private VLAN, PVE, Guest VLAN, GVRP, CPE VLAN, Auto Surveillance VLAN, MVR, Q-in-Q tunneling, TPID, GARP, UDLD, DHCP relay, DHCP server, IGMP snooping, IGMP querier, IGMP proxy, HoL Blocking Prevention, loopback detection, ACL support, BOOTP support, UDP, High Availability, MAC address authentication, BPDU Guard, STP Root Guard, STP loop guard, DAI, DoS protection, SCT, SSD, trustworthy systems, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unicast Storm Control, Unknown Storm Control, DoS attack prevention, WRR, ToS, DSCP based CoS, DiffServ support, TCP congestion, iSCSI traffic optimization, path MTU discovery, DAD, RA guard, MLD snooping, MLD proxy, Telnet server, DNS client, Telnet client, DHCP client, IPv4 and IPv6 dual stack, VLAN mirroring, RSPAN, SCP, chip guard, boot integrity, time-based port operation, cable length detection, LLDP, LLDP-MED, reset button
Compliant Standards
IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
Processor
X ARM: 1.4 GHz
RAM
1 GB DDR4 SDRAM
Flash Memory
512 MB
Status Indicators
System, link/activity/speed
Interfaces

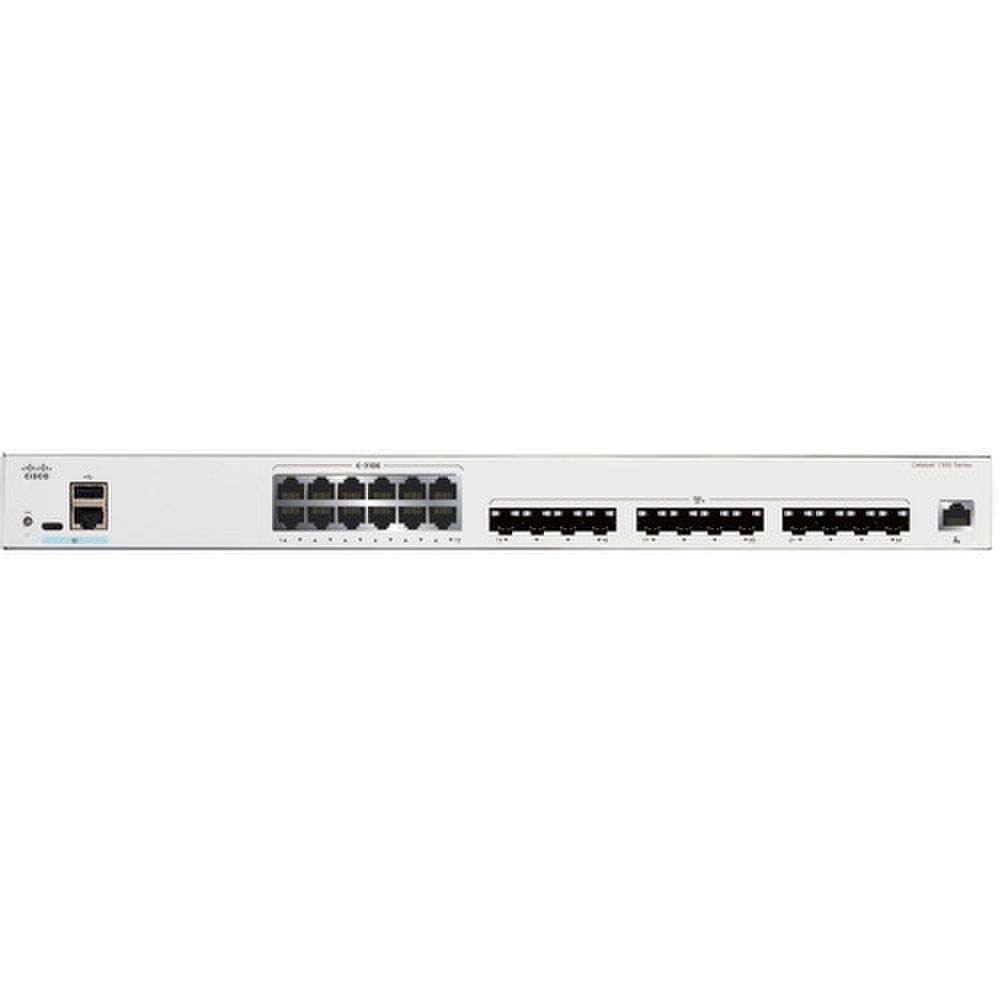

12 x 10GBase-T RJ-45 ¦ 12 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x USB-C console
Power Device

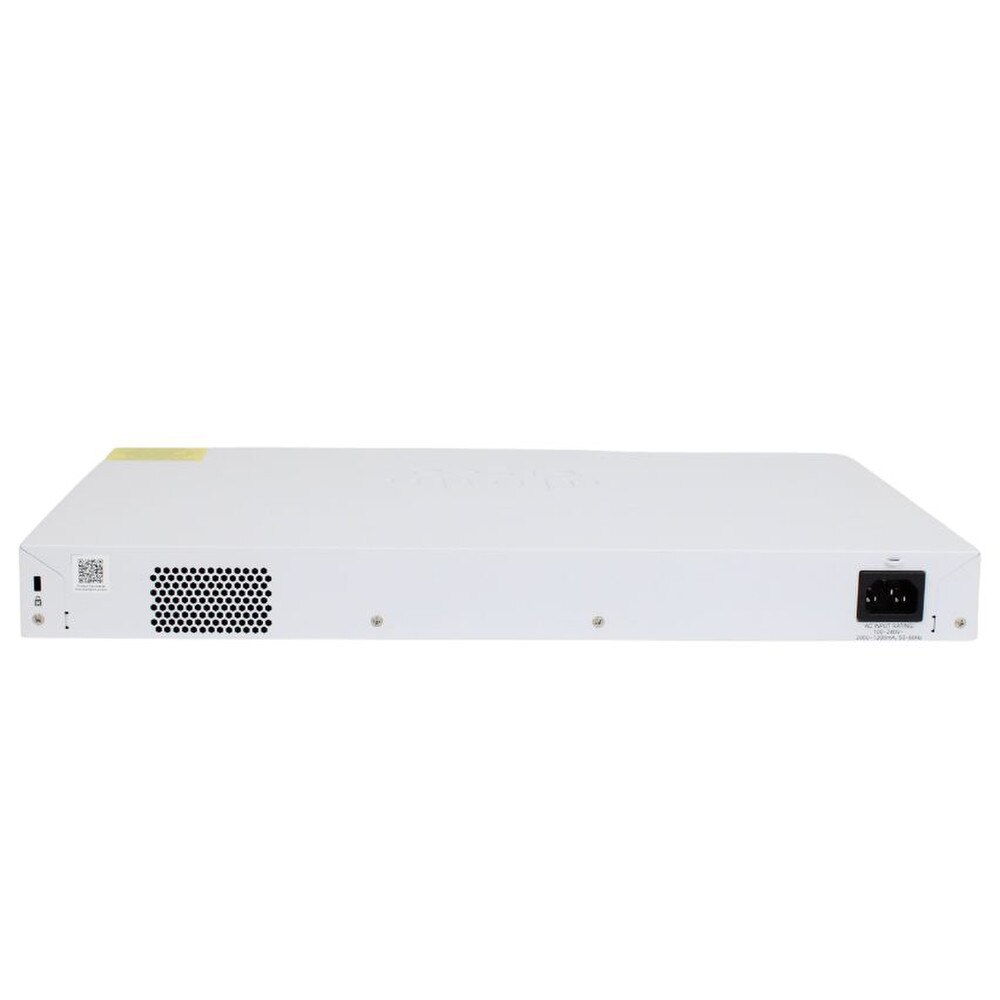

Internal power supply
Voltage Required
AC 100-240 V (50 - 60 Hz)
Included Accessories

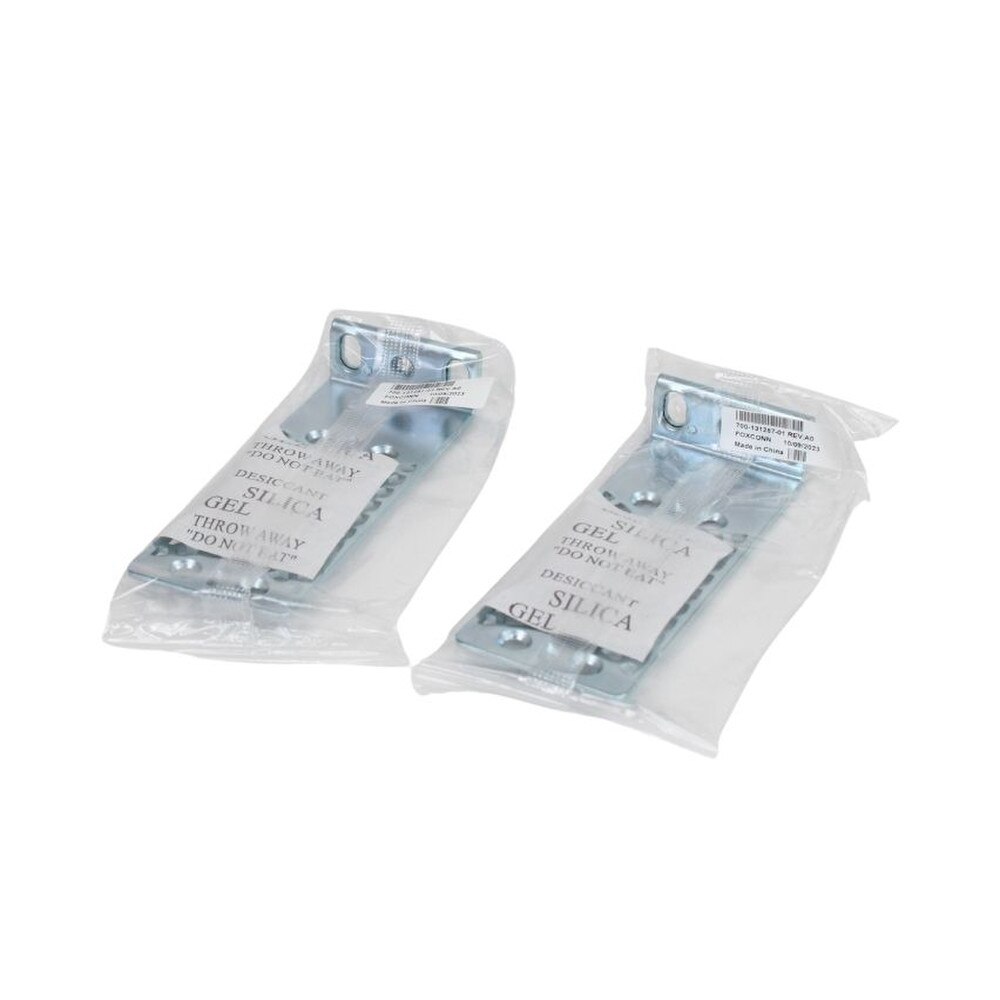

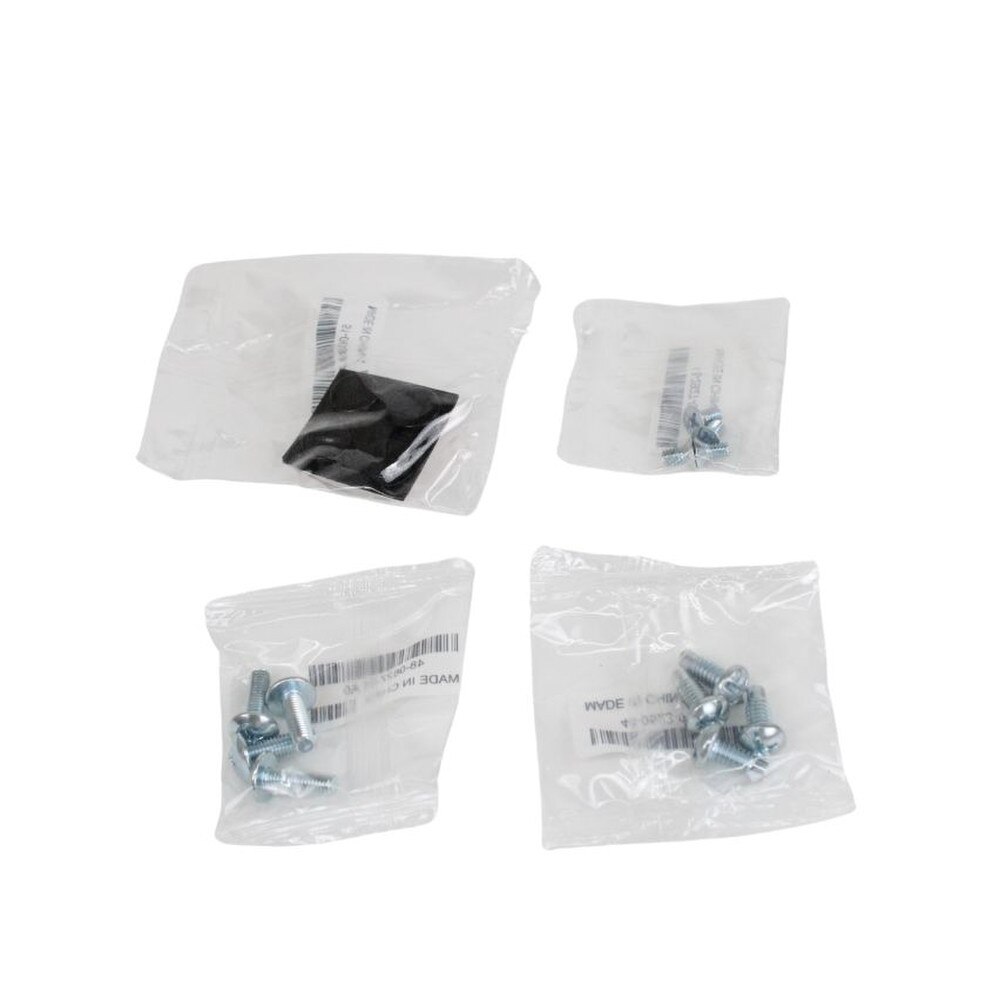

Pointer card, mounting kit
MTBF
2,165,105 hours
Compliant Standards
Plug and Play, RFC768, RFC783, RFC791, RFC792, RFC793, RFC813, RFC826, RFC879, RFC896, RFC854, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC951, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1157, RFC1213, RFC1215, RFC1286, RFC1350, RFC1442, RFC1451, RFC1493, RFC1533, RFC1541, RFC1542, RFC1573, RFC1624, RFC1643, RFC1700, RFC1757, RFC1867, RFC1907, RFC2011, RFC2012, RFC2013, RFC2030, RFC2131, RFC2132, RFC2233, RFC2576, RFC2616, RFC2618, RFC2665, RFC2666, RFC2674, RFC2737, RFC2819, RFC2863, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4443, RFC4291, RFC2460, RFC4861, RFC4862, RFC1981, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595, CSA 22.2, FCC CFR47 Part 15, UL 62368, WEEE
Width
17.5 in
Depth
9.4 in
Height
1.7 in
Weight
6.13 lbs
Service & Support
Limited warranty - lifetime - response time: next business day ¦ Technical support - return to factory - 1 year
Min Operating Temperature
23 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% RH (non-condensing)
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 - 90% RH (non-condensing)

User Guides

Cisco Catalyst 1300 Series Switches Data Sheet

Frequently Asked Questions

Cisco Catalyst C1300-24XTS 24-Port 10G RJ45/SFP+ Managed Network Switch
Frequently Asked Questions (FAQ's)



What types of ports are available on the Cisco Catalyst C1300-24XTS?
  • The switch has 24 ports that enable 10G RJ45 and SFP+ connections, providing flexibility for copper and fiber networking.
    • Is the C1300-24XTS suitable for small to medium-sized businesses?
  • Yes, it is intended for enterprise branch offices and SMB networks, with excellent performance and management.
    • Does the switch support Power over Ethernet (PoE)?
  • The C1300-24XTS does not support PoE. However, other models in the Catalyst 1300 Series support PoE.
    • Can the C1300-24XTS be managed via a web interface?
  • Yes, it can be handled via the Cisco Business Dashboard and the Cisco Business mobile app, which offer a user-friendly web interface.
    • Is stacking supported on the C1300-24XTS switch?
  • Yes, the Catalyst 1300 Series offers front panel stacking of up to eight switches, enabling unified management.
    • Does the C1300-24XTS support both copper and fiber connections?
  • Yes, the switch's ports have dual functionality, enabling both 10G RJ45 (copper) and SFP+ (fiber) connections.
    • Does the switch support Layer 3 routing?
  • Yes, the Catalyst 1300 Series switches are designed to enable Layer 3 routing.
    • What security features are included in the C1300-24XTS?
  • The switch protects data integrity with powerful security features such as MACsec encryption and safe boot.
    • Is the C1300-24XTS energy efficient?
  • Yes, it is built with energy-efficient components to save operating expenses and environmental impact.
    • Can the switch be mounted in a standard 19-inch rack?
  • Yes, the C1300-24XTS is intended for typical rack-mounting configurations.
    • What operating system does the C1300-24XTS run?
  • The switch runs a modified Linux OS software, which includes an intuitive dashboard for easy network configuration.
    • Does the switch support Quality of Service (QoS) features?
  • Yes, it supports QoS, which prioritizes crucial network traffic and ensures peak performance for critical applications.
    • What is the maximum number of switches that can be stacked with the C1300-24XTS?
  • Up to eight switches can be stacked, providing for centralized management and scalability.
    • Is IPv6 supported on the C1300-24XTS switch?
  • Yes, the switch supports both IPv4 and IPv6, ensuring compatibility with existing and future network standards.
    • Can the switch be used in a virtualized environment?
  • Yes, it is appropriate for virtualized systems, delivering the necessary performance and features to meet virtualization requirements.
    • What management protocols are supported by the C1300-24XTS?
  • The switch supports a variety of management protocols, including SNMP, RMON, and Syslog, allowing for extensive network management.
    • Is there a fanless model available in the Catalyst 1300 Series?
  • Yes, some Catalyst 1300 Series models have a fanless design, which allows for silent operation in noise-sensitive situations.
    • Does the C1300-24XTS support VLAN configurations?
  • Yes, it supports VLAN configurations, which enable network segmentation for better security and traffic control.
    • Is the C1300-24XTS compatible with other models in the Catalyst 1300 Series for stacking?
  • Yes, it may be stacked with other models from the Catalyst 1300 Series.
    • Can the C1300-24XTS be integrated into a software-defined networking (SDN) environment?
  • The switch is managed using the Cisco Business Dashboard and the Cisco Business mobile app, making for an easy and dependable experience.
