Cisco Catalyst C1200-24FP-4G 24-Port Gigabit PoE+ Managed Network Switch | Refresh
SKU: C1200-24FP-4G-RF
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Cisco Catalyst C1200-24FP-4G 24-Port Gigabit PoE+ Managed Network Switch | Refresh
The Cisco Catalyst C1200-24FP-4G 24-Port Gigabit PoE+ Managed Network Switch is a powerful and versatile networking solution built to meet the needs of small and medium-sized businesses. This smart switch combines high performance, dependability, and advanced features, making it an excellent choice for businesses looking to improve their network infrastructure with strong connectivity and easy management. The Cisco Catalyst C1200-24FP-4G is intended to be a strong foundation for your business network. Its PoE+ capability facilitates the deployment of powered devices by eliminating the need for additional power sources and cabling. The switch's smart management features enable simple configuration, monitoring, and troubleshooting, making it an excellent choice for businesses without a dedicated IT staff. With its advanced security features, the C1200-24FP-4G protects your network from unauthorized access and potential threats. The switch's energy-efficient design and fanless operation make it ideal for office environments that require low noise levels. The switch's compact form factor and versatile mounting options make it suitable for a wide range of deployment scenarios, from desktop to rack-mounted installations.
Key Features of Cisco Catalyst C1200-24FP-4G 24-Port Gigabit PoE+ Managed Network Switch
• 24 Gigabit Ethernet Ports provides high-speed connectivity for various network devices, ensuring seamless data transfer and communication.
• Power over Ethernet (PoE+) delivers up to 30W per port with a total power budget of 375W, ideal for powering IP phones, cameras, and wireless access points.
• 4 Gigabit SFP Uplink Ports offers flexible and high-speed uplink options for network expansion and enhanced connectivity.
• Managed through the intuitive Cisco web interface or Cisco Business mobile app, providing centralized control and visibility for easy configuration and monitoring.
• Supports essential Layer 2 features, including VLANs, QoS, and link aggregation, as well as basic Layer 3 static routing.
• Features such as Access Control Lists (ACLs), port security, and 802.1X authentication ensure a secure network environment, protecting against unauthorized access and potential threats.
• Fanless operation ensures silent running and reduced power consumption, making it ideal for noise-sensitive environments.
• Suitable for desktop or rack-mount installations, offering flexibility in deployment and saving valuable space.
• Tested to deliver high reliability and performance, ensuring consistent network uptime and productivity.
• Backed by Cisco's limited lifetime warranty and ongoing firmware updates, providing peace of mind and long-term investment protection.
Specifications
Specifications for Cisco Catalyst C1200-24FP-4G 24-Port Gigabit PoE+ Managed Network Switch | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | C1200-24FP-4G-RF |
| Product Name | Cisco Catalyst C1200-24FP-4G 24-Port Gigabit PoE+ Managed Network Switch |
| Product Type | Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit Ethernet SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 375 W |
Performance | Forwarding rate (64‑byte packets): 41.66 Mpps ¦ Switching capacity: 56 Gbps |
Capacity | MSTP instances: 8 ¦ PVST+ instances: 126 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 4 ¦ Link aggregation ports: 8 ¦ Active VLANs: 255 ¦ IGMP multicast groups: 255 ¦ IPv4 routes (static): 32 ¦ IPv4 interfaces: 16 ¦ ACL rules: 512 ¦ Priority queues: 8 ¦ Packet buffer size: 1.5 MB |
MAC Address Table Size | 8000 entries |
Jumbo Frame Support | 9000 bytes |
Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour |
Remote Management Protocol | SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog |
Encryption Algorithm | SSL |
Authentication Method | RADIUS |
Features | BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, DHCP server, reset button, Cable Diagnostics Function, fanless, DHCP relay, Port Security, SNMP trap, DHCP client, port grouping, Storm Control, Link Aggregation, IGMP querier, VLAN mirroring, DNS client, Voice VLAN, VLAN management, LLDP-MED, Guest VLAN, ingress rate limiting, STP loop guard, EEE, TCP/UDP proxy, DSCP based CoS, loopback detection, port-based VLAN, Telnet server, Telnet client, Unknown Storm Control, IPv4 and IPv6 dual stack, Zero-Touch Deployment, cable length detection, trustworthy systems, layer 3 routing, remote firmware upgrade, ACL support, eco-friendly button, Auto Surveillance VLAN, TCP congestion, chip guard, boot integrity, time-based port operation, tag-based VLANs, WRR queuing, MSTP support, TFTP support, QoS, PVST+, LACP, CoS, SP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS protection, WRR, HoL Blocking Prevention, LAG, CDP, VSDP, RPVST+, DAD, LLDP, EQS, path MTU discovery |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
Processor | X ARM: 1.4 GHz |
RAM | 1 GB DDR4 SDRAM |
Flash Memory | 512 MB |
Status Indicators | System, PoE, link/activity/speed |
Interfaces | 24 x 10/100/1000 Base-T (PoE+) RJ-45 ¦ 4 x 1000Base-X SFP ¦ 1 x console RJ-45 ¦ 1 x USB-C console |
Power Device | Internal power supply |
Voltage Required | AC 100-240 V (50 - 60 Hz) |

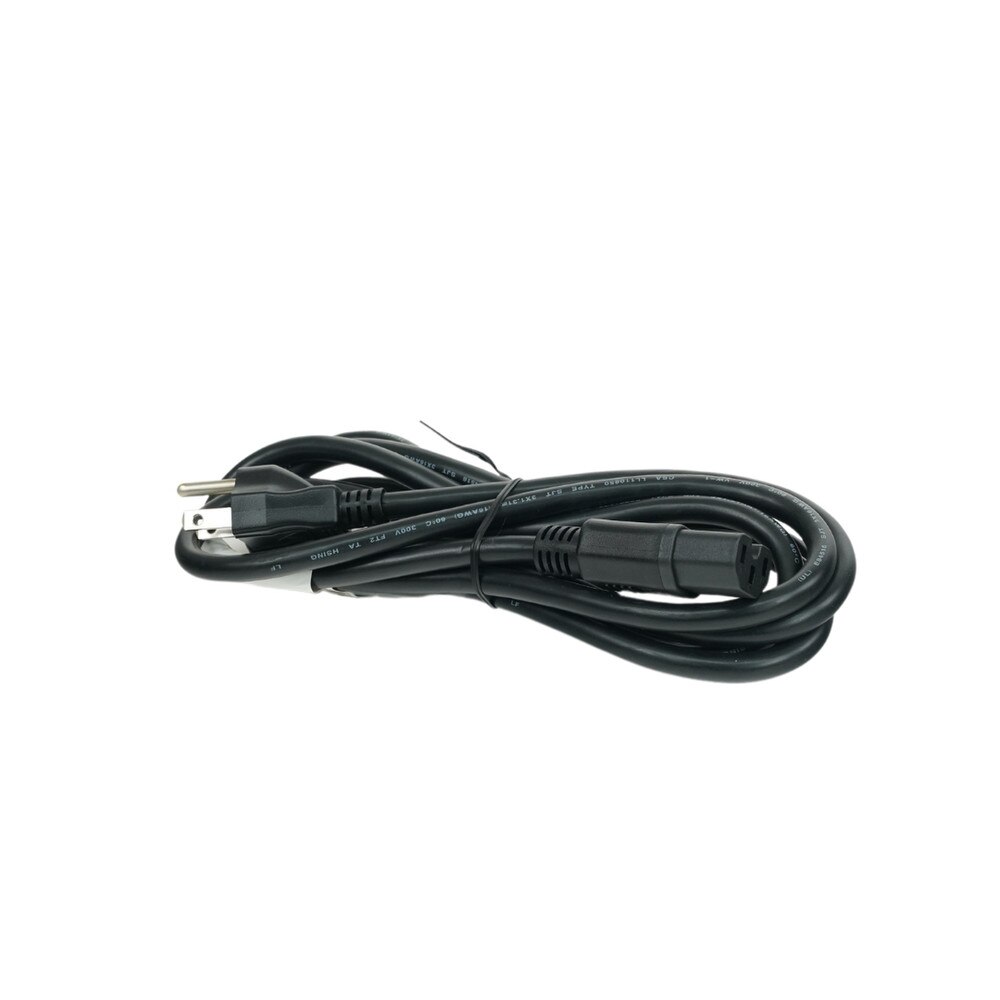

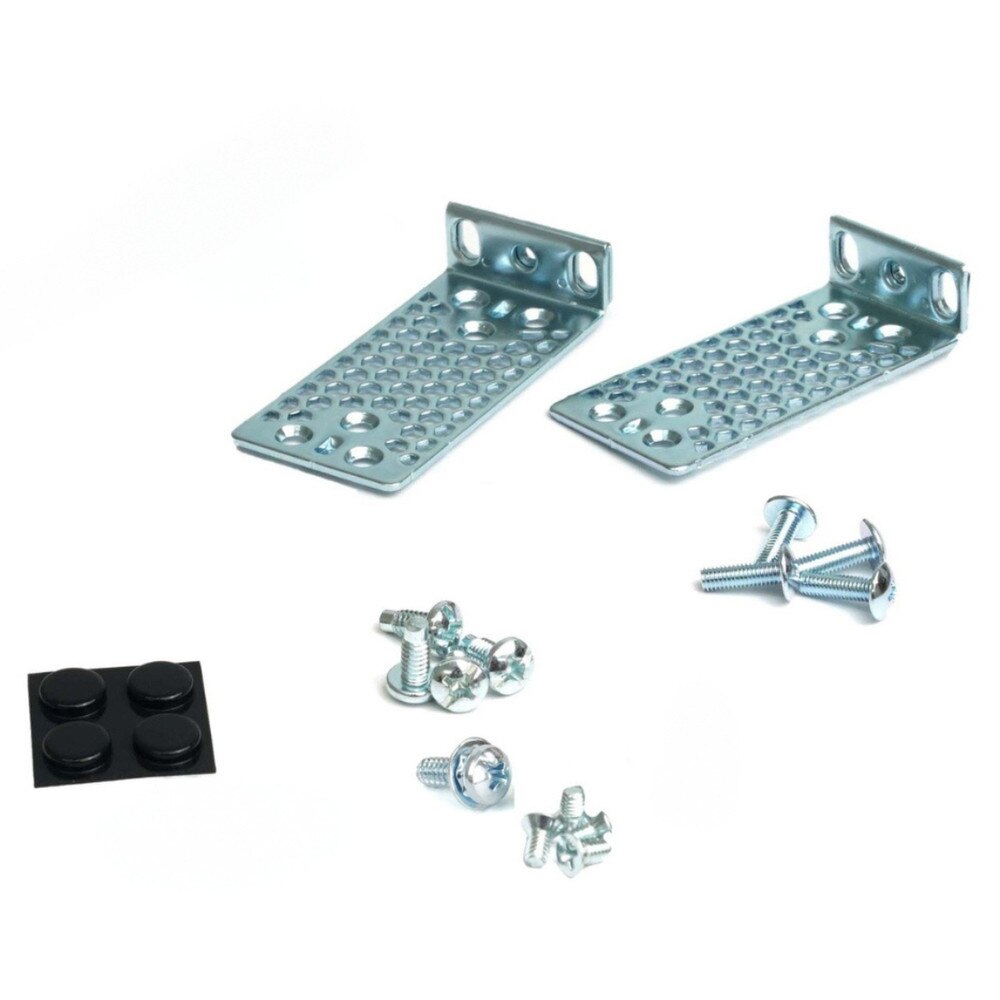

Included Accessories | Mounting kit, pointer card |
MTBF | 698,220 hours |
Compliant Standards | Plug and Play, FCC CFR47 Part 15, WEEE, CSA 22.2, RFC1213, RFC1493, RFC1757, RFC2674, RFC768, RFC791, RFC1157, RFC2460, RFC2011, RFC1643, RFC2012, RFC2013, UL 62368, RFC783, RFC792, RFC2863, RFC793, RFC826, RFC854, RFC2131, RFC2132, RFC1907, RFC1215, RFC2233, RFC2665, RFC951, RFC1542, RFC2618, RFC4443, RFC1981, RFC4861, RFC4862, RFC4291, RFC813, RFC879, RFC896, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1286, RFC1350, RFC1442, RFC1451, RFC1533, RFC1541, RFC1573, RFC1624, RFC1700, RFC1867, RFC2030, RFC2576, RFC2616, RFC2666, RFC2737, RFC2819, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595 |
Width | 17.5 in |
Depth | 13.6 in |
Height | 1.7 in |
Weight | 10.14 lbs |
Service & Support | Limited warranty - lifetime - response time: next business day ¦ Technical support - consulting - 1 year |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% RH (non-condensing) |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 10 - 90% RH (non-condensing) |
User Guides
Frequently Asked Questions
Cisco Catalyst C1200-24FP-4G 24-Port Gigabit PoE+ Managed Network Switch
Frequently Asked Questions (FAQ's)
What is the total PoE budget for the switch? The switch has a total PoE budget of 370W, which allows it to power multiple PoE-enabled devices at once.
What PoE standards are supported by the switch? The switch complies with both PoE (802.3af) and PoE+ (802.3at) standards.
How many of the 24 ports support PoE? All 24 ports support full PoE/PoE+, so you can power a variety of devices.
What are the uplink options for this switch? The switch has four dedicated Gigabit SFP uplink ports that allow for flexible network expansion and connectivity.
Can this switch be used in a small to medium-sized business environment? Yes, the switch is ideal for small and medium-sized businesses that require reliable PoE and high-speed networking.
Does the switch support VLANs? Yes, the switch supports VLANs, which enable network segmentation and increased security.
What is the total switching capacity of the switch? The switch has an overall switching capacity of 56 Gbps.
Is the switch manageable remotely? Yes, the switch can be remotely managed using Cisco's web-based interface, CLI, and SNMP.
What is the maximum distance supported by the SFP uplinks? The maximum distance is determined by the SFP module used; typically, it ranges between 100 meters (using copper SFP) and 10 kilometers (using single-mode fiber).
Does the switch have energy-efficient features? Yes, the switch incorporates Energy Efficient Ethernet (EEE) and other energy-saving features.
Can the switch be rack-mounted? Yes, the switch is designed for 1U rack mounting and includes rack mounting brackets.
What security features does the switch offer? The switch supports advanced security features such as 802.1X authentication, port security, and access control lists (ACLs).
Is the switch suitable for use in a VoIP network? Yes, with full PoE support and QoS capabilities, the switch is ideal for VoIP deployments.
Does the switch support QoS (Quality of Service)? Yes, the switch supports QoS, which prioritizes critical traffic such as voice and video.
What is the mean time between failures (MTBF) for this switch? The MTBF is typically hundreds of thousands of hours, indicating high reliability.
How do I update the firmware on the switch? Firmware can be updated via the web interface, the CLI, or Cisco's network management tools.
What logging capabilities does the switch have? The switch has syslog and local logging capabilities for monitoring and troubleshooting network issues.
Is the switch fanless? No, the switch maintains optimal operating temperatures through active cooling via a fan.
Does the switch support link aggregation? Yes, the switch supports link aggregation, which combines multiple ports into a single high-speed channel.
Can the switch be integrated into an existing Cisco network? Yes, the switch is completely compatible with other Cisco devices and can be seamlessly integrated into an existing Cisco network.
