Overview of Cisco Catalyst C1000-24T-4G-L-RF 24-Port Managed Network Switch | Refresh

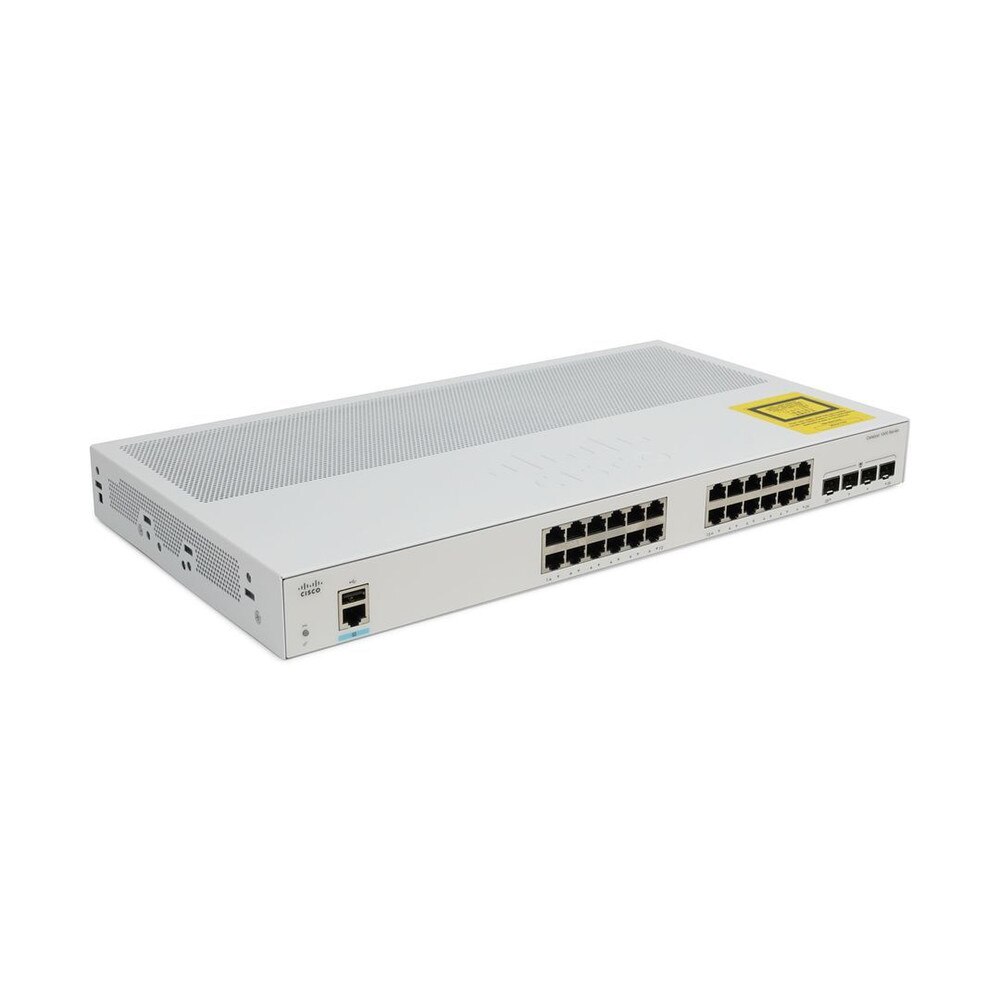

The Cisco Catalyst C1000-24T-4G-L-RF 24-Port Managed Network Switch has 24 Gigabit speed ports as well as four 1G SFP ports for connecting to compatible devices via fiber uplink. Configure and manage your network with a wide range of Layer 2 features using the simple web-based or command line interface.
Key Features of Cisco Catalyst C1000-24T-4G-L 24-Port Managed Network Switch
Reliable Performance
The C1000-24T-4G-L, which is powered by an 800 MHz ARM processor with 512MB of memory, helps to ensure smooth data transfers with a 56 Gb/s switching capacity and 41.67 Mpps forwarding rate.
Easy ManagementConfigure, manage, and monitor your network using the web-based or command line interface.
SecurityThe Cisco Catalyst C1000-24T-4G-L includes 802.1x support for connected devices, as well as a Switched Port Analyzer (SPAN), Access Control List, Bridge Protocol Data Unit (BPDU) Guard, and other features.
Specifications
Specifications for Cisco Catalyst C1000-24T-4G-L-RF 24-Port Managed Network Switch | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | C1000-24T-4G-L-RF |
| Product Name | Cisco Catalyst C1000-24T-4G-L 24-Port Managed Network Switch |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 + 4 x Gigabit SFP (uplink) |
Performance | Forwarding bandwidth: 28 Gbps ¦ Switching bandwidth: 56 Gbps ¦ Forwarding rate (64‑byte L3 packets): 41.67 Mpps |
Capacity | Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte |
Jumbo Frame Support | 10240 bytes |
Routing Protocol | IGMP, MLDv2, MLD, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Features | BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX |
Processor | X ARM: 800 MHz |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | Status |

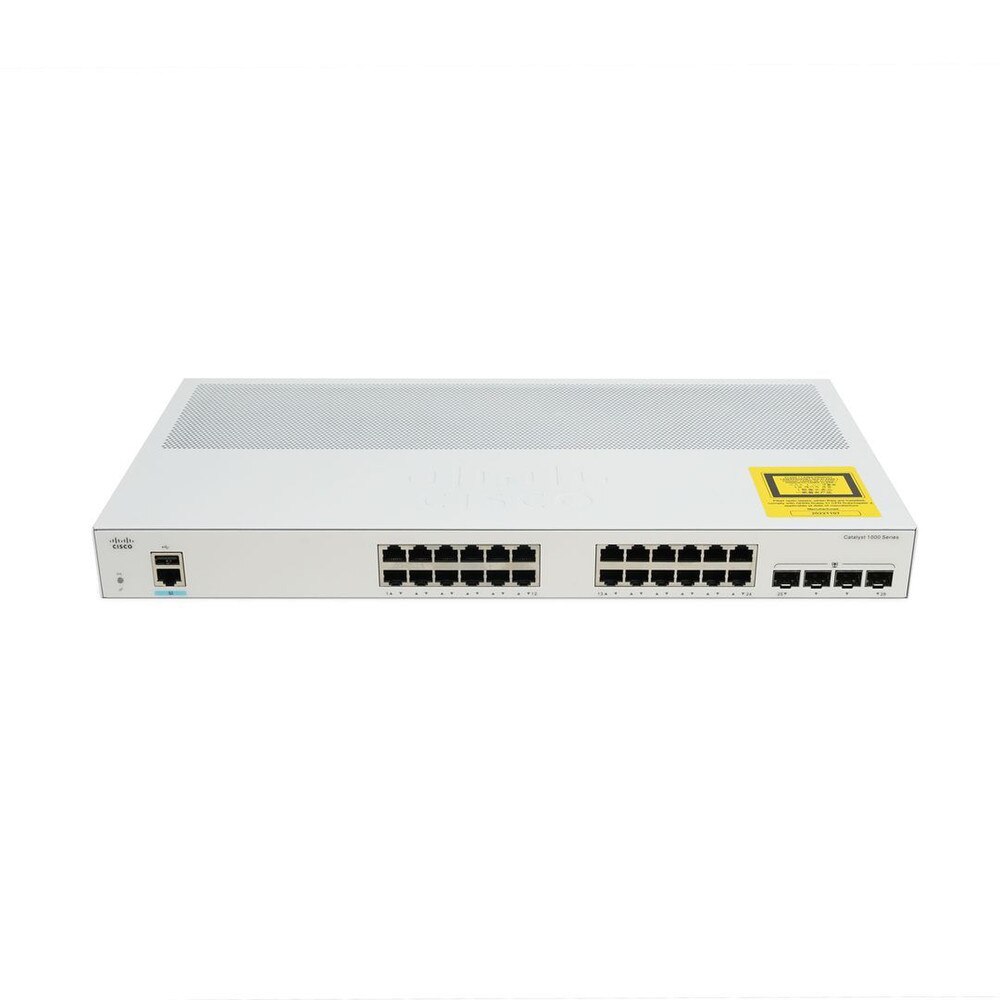

Interfaces | 24 x 1000Base-T RJ-45 ¦ 4 x 1000Base-X SFP uplink ¦ 1 x management RJ-45 ¦ 1 x mini-USB Type B ¦ 1 x USB Type A |
Power Device | Internal power supply |
Installed Qty | 1 |

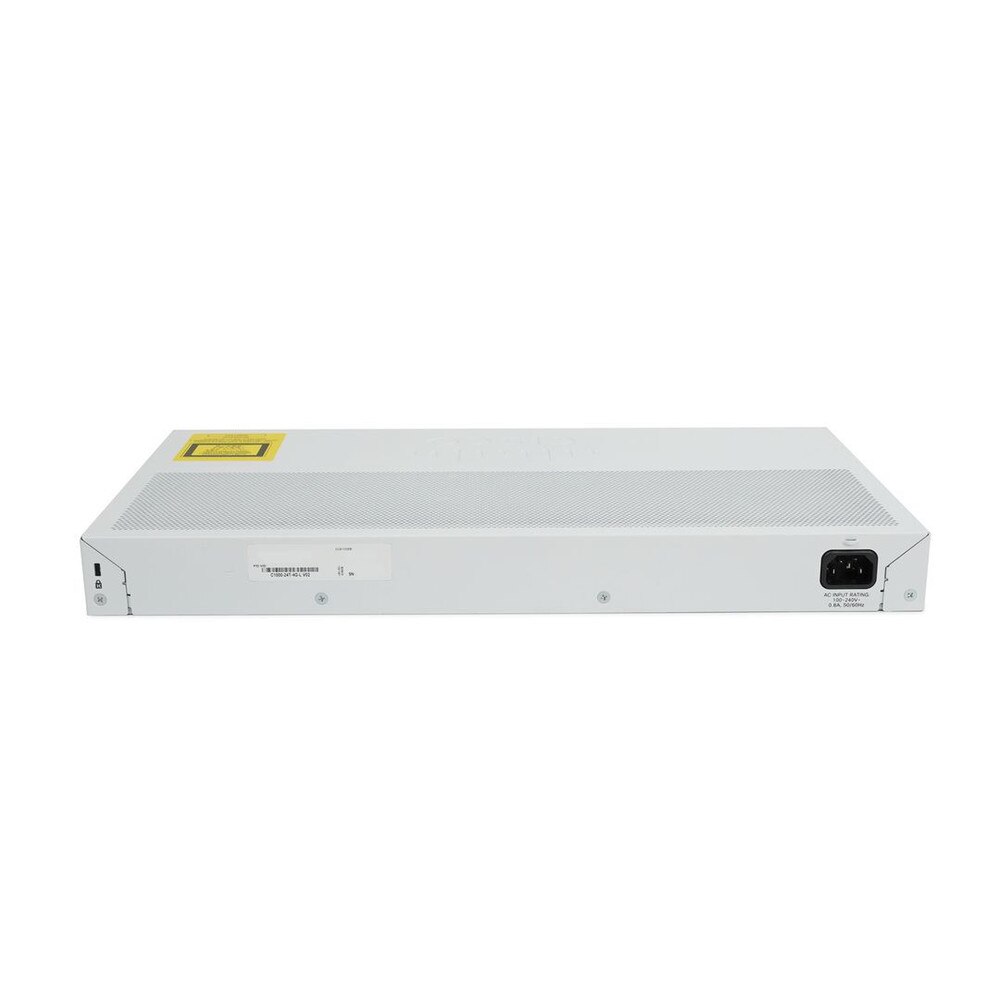

Voltage Required | AC 120/230 V (50 - 60 Hz) |
MTBF | 2,026,793 hours |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A |
Width | 17.5 in |
Depth | 9.4 in |
Height | 1.7 in |
Weight | 5.8 lbs |
Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 5 - 90% |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 95% |
User Guides
Frequently Asked Questions
Cisco Catalyst C1000-24T-4G-L-RF 24-Port Managed Network Switch
Frequently Asked Questions (FAQ's)
What are Cisco Catalyst 1000 Series Switches? Fixed managed Layer 2 Gigabit Ethernet switches are ideal for small deployments, applications that do not require a wiring closet, and essential IoT deployments.
What software do Cisco Catalyst 1000 Series Switches run on? They operate on Cisco IOS Software.
What management interfaces are supported? Command-Line Interface (CLI) and on-box web UI.
Do Cisco Catalyst 1000 Series Switches support PoE? Yes, they offer Power over Ethernet Plus (PoE+) power.
What is the input voltage range for these switches? AC input voltage range is 100V to 240V.
What is the AC frequency range? 50 to 60 Hz.
Do Cisco Catalyst 1000 Series Switches support single IP management? Yes, you can handle up to eight switches using a single IP address.
What are the flash and DRAM sizes on the switches? All switches have 256 MB flash and 512 MB DRAM.
Do the Cisco Catalyst 1000 Series Switches support line rate? Yes, all switches are nonblocking line-rate switches.
Is the C1000-24T-4G-L model fanless? Yes, all 24-port models are fanless except for the full PoE models.
What is the purpose of the Mode button on the switch? It's used for resetting the switch, entering day-zero setup mode, or changing an LED mode.
What can the USB Type A port on the front of the switch be used for? Additional storage, software upgrades, configuration storage, and memory core dump generation for debugging.
What is the maximum USB flash drive capacity supported? The switches support up to 8-GB Cisco flash drives.
How many IPv4 multicast groups does the switch support? 1024 IPv4 multicast groups.
What is the number of unicast MAC addresses supported? 16,000 unicast MAC addresses.
How many IPv4/IPv6/MAC access control entries are supported? 600 (384/256 for FE SKU).

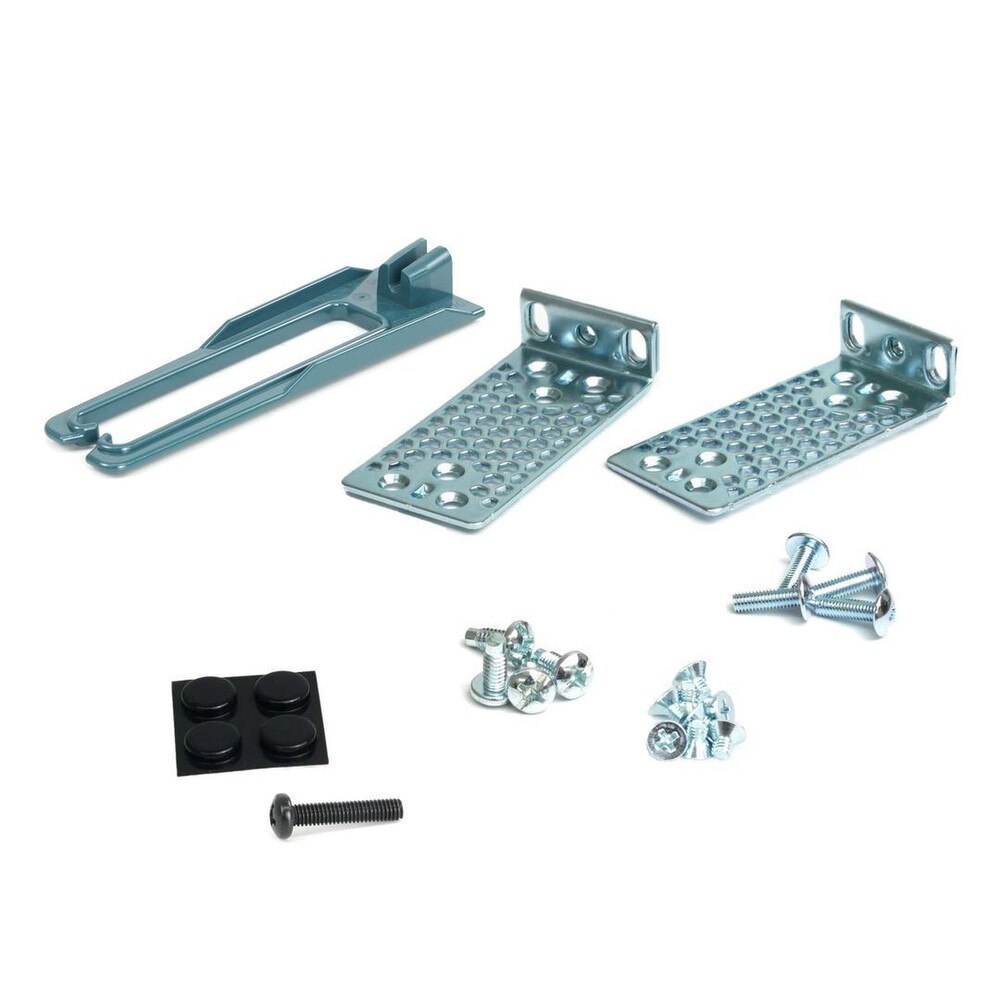

What mounting options are available for 24-port SKUs? Rack mount (with rack mount kit), wall mount, and on a desk or shelf.
What are the vertical mounting options for 24-port SKUs? They can be mounted upright (in a rack) or vertical (on a wall, ports facing down).
How many egress queues per port does the switch support? Up to four egress queues per port.
What scheduling and congestion avoidance mechanisms are supported? Congestion can be avoided using Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD).
