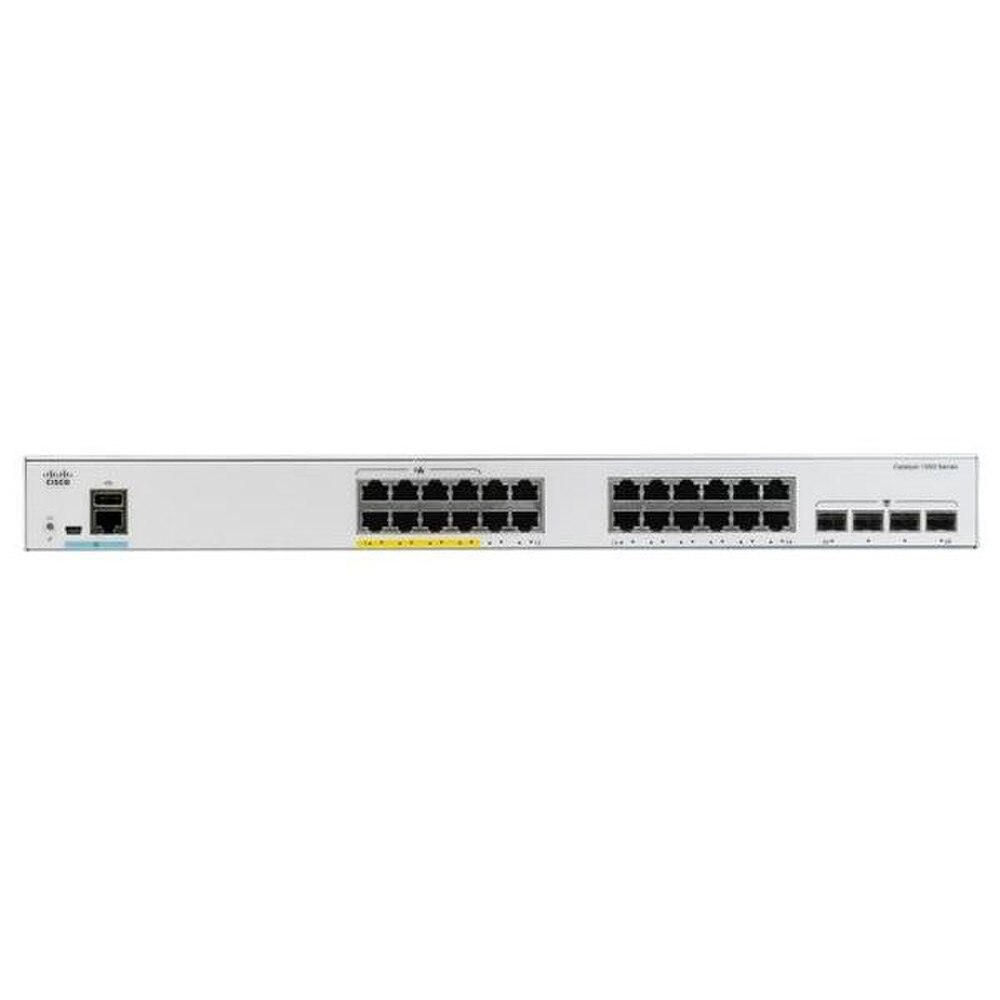

Cisco Catalyst 1000-24FP-4G-L 24-Port Gigabit Ethernet PoE+ Switch with 4 SFP Uplinks | Refresh

Cisco Catalyst 1000-24FP-4G-L 24-Port Gigabit Ethernet PoE+ Switch with 4 SFP Uplinks | Refresh

SKU: C1000-24FP-4G-L-RF
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$699.99 $699.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview for Cisco Catalyst 1000-24FP-4G-L 24-Port Gigabit Ethernet PoE+ Switch with 4 SFP Uplinks | Refresh

The Cisco Catalyst 1000-24FP-4G-L 24-Port Gigabit Ethernet PoE+ Switch with 4 SFP Uplinks is an enterprise-grade Layer 2 managed switch intended for small enterprises and branch offices. This switch, with its high-performance connectivity, comprehensive security features and Power over Ethernet Plus (PoE+) capabilities, is excellent for current network deployments such as IoT devices, IP telephony and wireless access points. This Catalyst switch has 24 Gigabit Ethernet PoE+ ports and a total PoE budget of 370W, allowing it to power IP phones, cameras and access points directly over the network connection. It also offers four SFP uplink ports for high-speed fiber connectivity to core networks or additional switches. With a switching capacity of 56 Gbps and fanless operation for silent performance, the switch provides dependable and efficient network management in noise-sensitive environments. Advanced Layer 2 features such as VLAN support, Quality of Service (QoS) and enhanced security ensure seamless operation for growing business networks.


Key Features of Cisco Catalyst 1000-24FP-4G-L 24-Port Gigabit Ethernet PoE+ Switch with 4 SFP Uplinks


• 24 PoE+ Ports provides up to 30W per port with a total power budget of 370W for powering connected devices.

• 4 SFP Uplink Ports with high-speed fiber connectivity for seamless network expansion.

• Layer 2 Switching includes VLANs, QoS,link aggregation and IGMP snooping for optimized traffic management.

• Advanced Security features ACLs, IEEE 802.1X authentication, port security and IP source guard.

• Fanless Design with silent operation suitable for noise-sensitive environments like offices or classrooms.

• Energy Efficiency complies with Energy Efficient Ethernet (EEE) standards to reduce power consumption.

• Rack-mountable design fits neatly into small spaces.

• Managed via CLI or an intuitive web-based interface.

• Supports up to 41.67 Mpps forwarding rate for efficient data handling.


Benefits of Cisco Catalyst 1000-24FP-4G-L 24-Port Gigabit Ethernet PoE+ Switch with 4 SFP Uplinks


🗹 PoE+ eliminates the need for separate power adapters, reducing cable clutter.

🗹 SFP uplink ports enable easy integration with core networks or additional switches.

🗹 Protect sensitive data with advanced security features like ACLs and port authentication.

🗹 Layer 2 features ensure efficient handling of network traffic for improved performance.

🗹 Fanless design ensures quiet performance in noise-sensitive environments like offices or classrooms.

🗹 Energy-efficient technologies help reduce operational costs over time.

🗹 Fits neatly into any workspace without taking up excessive space.

🗹 Intuitive management options simplify installation and configuration.

🗹 Built with Cisco’s trusted quality for long-term use in demanding environments.

🗹 Advanced features ensure compatibility with evolving business needs.

Specifications

Specification for Cisco Catalyst 1000-24FP-4G-L 24-Port Gigabit Ethernet PoE+ Switch with 4 SFP Uplinks | Refresh

ManufacturerCisco
Manufacturer Part NumberC1000-24FP-4G-L-RF
Product NameCisco Catalyst 1000-24FP-4G-L 24-Port Gigabit Ethernet PoE+ Switch with 4 SFP Uplinks
Product TypeNetworking Switch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
370 W
Performance
Forwarding bandwidth: 28 Gbps ¦ Switching bandwidth: 56 Gbps ¦ Forwarding rate (64‑byte L3 packets): 41.67 Mpps
Capacity
Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte
Jumbo Frame Support
10240 bytes
Routing Protocol
IGMP, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Authentication Method
Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
Status
Interfaces
24 x 1000Base-T RJ-45 PoE+ - 15 W ¦ 4 x 1000Base-X SFP uplink ¦ 1 x management RJ-45 ¦ 1 x mini-USB Type B ¦ 1 x USB Type A
Power Device
Internal power supply
Installed Qty
1
Voltage Required
AC 120/230 V (50 - 60 Hz)
MTBF
2,026,793 hours
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A
Width
17.5 in
Depth
13.6 in
Height
1.7 in
Weight
10.14 lbs
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Min Operating Temperature
23 °F
Max Operating Temperature
122 °F
Humidity Range Operating
5 - 90%
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
5 - 95%

User Guides

Cisco Catalyst 1000-24FP-4G-L 24-Port Gigabit Ethernet PoE+ Switch with 4 SFP Uplinks Data Sheet

Frequently Asked Questions

Cisco Catalyst 1000-24FP-4G-L 24-Port Gigabit Ethernet PoE+ Switch with 4 SFP Uplinks
Frequently Asked Questions (FAQ's)



What is the Cisco Catalyst C1000-24FP-4G-L?
  • It is a 24-port full Power over Ethernet (PoE) switch designed for small businesses and branch offices, offering enterprise-grade features in a compact form factor.
    • What is the total PoE power budget of this switch?
  • The switch has a total PoE power budget of 195W.
    • How many SFP ports does the switch have?
  • It has 4 Gigabit Ethernet SFP ports.
    • Is the Cisco Catalyst C1000-24FP-4G-L managed or unmanaged?
  • It is a managed switch, providing advanced security, management, and control features.
    • What is the switching capacity of this model?
  • The switching capacity is 56 Gbps.
    • Does the switch support stacking?
  • No, the Cisco Catalyst C1000 series does not support stacking.
    • What are the dimensions of the switch?
  • The dimensions are 44.5 cm x 27.9 cm x 4.45 cm.
    • Does the switch come with a fan?
  • Yes, it includes an internal fan for cooling.
    • What types of PoE standards are supported by this switch?
  • It supports IEEE 802.3af (PoE) and IEEE 802.3at (PoE+).
    • Is there a web-based interface for managing the switch?
  • Yes, it provides a web-based interface for easy management.
    • Can this switch be used in a Layer 3 environment?
  • It operates primarily as a Layer 2 switch but includes basic Layer 3 features such as static routing.
    • Does the switch support Quality of Service (QoS)?
  • Yes, it supports QoS to ensure the performance of critical applications.
    • What is the power consumption of the switch?
  • The maximum power consumption is 250W.
    • Is the switch Energy Efficient Ethernet (EEE) compliant?
  • Yes, it supports EEE for energy savings.
    • Can the switch be rack-mounted?
  • Yes, it can be mounted in a standard 19-inch rack.
    • What security features does the switch offer?
  • It includes features like 802.1x authentication, DHCP snooping, and dynamic ARP inspection.
    • What is the MAC address table size?
  • The MAC address table can hold up to 16,000 entries.
    • Does it support VLANs?
  • Yes, it supports up to 256 VLANs.
    • What management protocols are supported by the switch?
  • It supports protocols such as SNMP, RMON, Telnet, and HTTP/HTTPS for management.
    • Does the switch support Quality of Service (QoS)?
  • Yes, it supports QoS to ensure the performance of critical applications.
