🗹 8x 1 Gigabit Ethernet PoE+ RJ-45
🗹 2x 1 Gigabit Ethernet Combo
🗹 67W PoE Budget
🗹 20 GbpsSwitching Capacity
🗹 14.88 Mpps Forwarding Rate
🗹 Fanless
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us

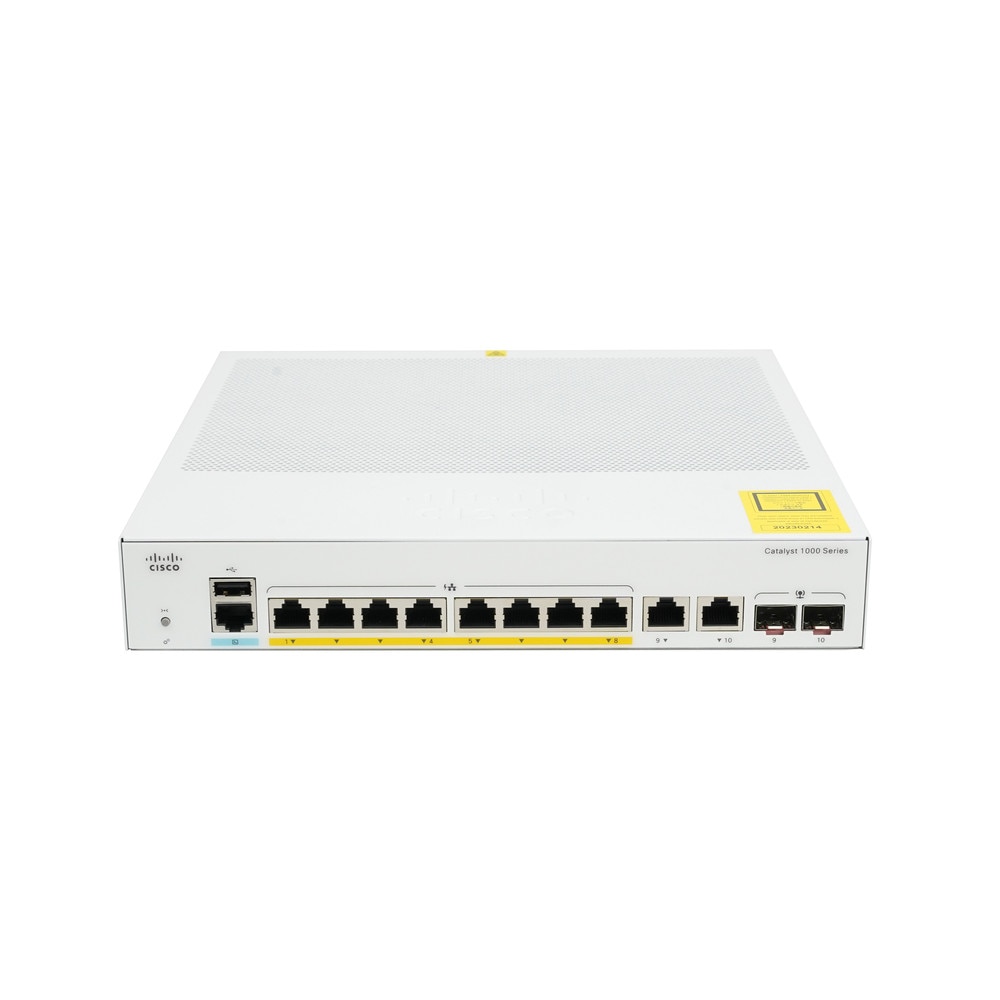

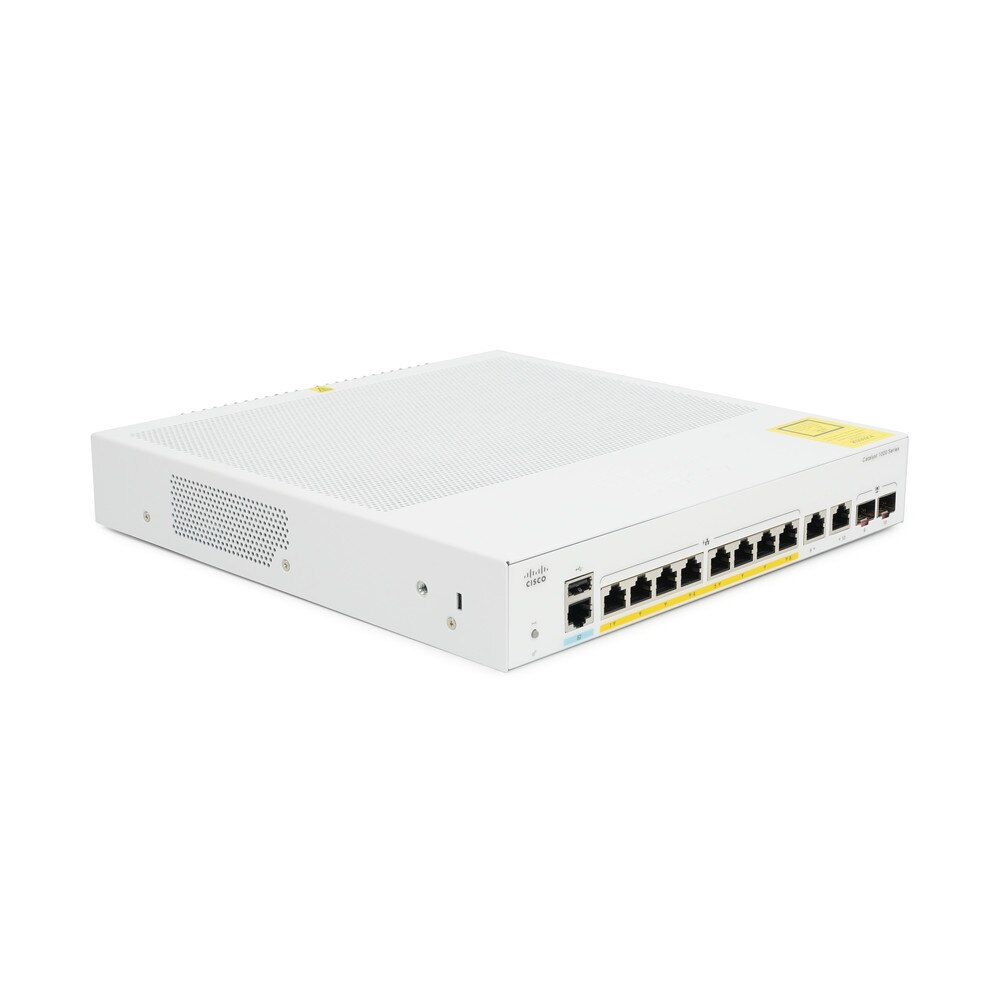

The Cisco Catalyst C1000-8P-2G-L 8-Port Gigabit Ethernet PoE+ Managed Switch is a compact, enterprise-level Layer 2 switch designed specifically for small businesses, branch offices and essential IoT deployments. This switch includes eight high-speed Gigabit Ethernet ports, four of which support PoE+ and have a combined power budget of 67W. As a result, you can directly power wireless access points, security cameras and IP phones over the network cable, simplifying installation and minimizing clutter. With two combo Gigabit SFP uplink ports, your network can easily expand or integrate fiber, keeping it agile and scalable. The C1000-8P-2G-L, driven by Cisco IOS Software, provides strong security features, user-friendly management through CLI and web GUI and a silent, fanless design that makes it suitable for environments where noise is a concern. Advanced Layer 2 features such as VLANs, QoS, IGMP snooping and robust security protocols guarantee that your network is flexible and secure. This switch provides dependable, high-performance connectivity for demanding business applications, with a switching bandwidth of 20 Gbps and a forwarding rate of 14.88 Mpps. This solution is secure, efficient and future-proof.
• 8 x 10/100/1000 Gigabit Ethernet Ports with high-speed connectivity for a range of wired devices.
• 4 x PoE+ Ports (67W Budget) that powers IP phones, wireless APs and cameras directly via Ethernet.
• 2 x Combo Gigabit SFP Uplink Ports with flexible fiber or copper uplinks for seamless network expansion.
• 20 Gbps Switching Bandwidth & 14.88 Mpps Forwarding Rate ensures smooth, uninterrupted data transfers.

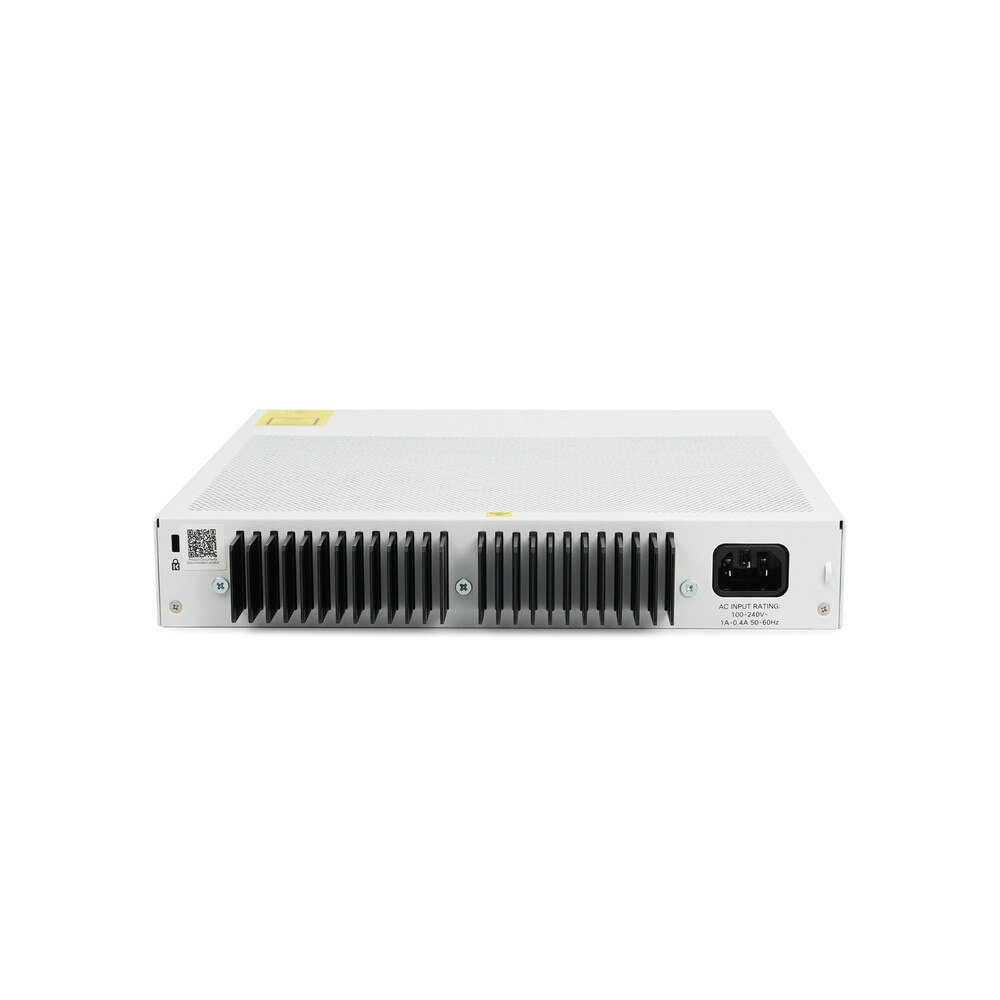

• Fanless, Silent Operation that is ideal for office and noise-sensitive environments.
• Advanced Security with 802.1X authentication, DHCP snooping, dynamic ARP inspection and ACLs protect your network.
• Layer 2 Features with VLANs, QoS, IGMP/MLD snooping, STP/RSTP/MSTP and link aggregation for efficient traffic management.
• Easy Management that configure and monitor via intuitive web UI or CLI; supports SNMP, SSH and RADIUS/TACACS+ authentication.
• Compact, Rack-Mountable Design that fits easily in small spaces or standard racks.
• Energy Efficient that supports Energy Efficient Ethernet (EEE) for reduced power consumption.
🗹 PoE+ support powers multiple devices directly, eliminating the need for separate power supplies and reducing installation complexity.
🗹 Advanced access controls and threat protection features safeguard sensitive business data and devices.
🗹 High switching capacity and robust hardware ensure uninterrupted connectivity for critical business operations.
🗹 User-friendly interfaces and Cisco’s trusted software make setup, monitoring and troubleshooting efficient for IT teams.
🗹 Combo uplink ports and scalable design support network expansion and evolving business needs.
🗹 Fanless design is perfect for open offices, retail and environments where noise reduction is essential.
🗹 Cisco’s quality engineering provide long-term value and peace of mind.
| Manufacturer | Cisco |
| Manufacturer Part Number | C1000-8P-2G-L-RF |
| Product Name | Cisco Catalyst C1000-8P-2G-L 8-Port Gigabit Ethernet PoE+ Managed Switch |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 4 x 10/100/1000 (PoE+) + 4 x 10/100/1000 + 2 x combo Gigabit SFP (uplink) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 67 W |
Performance | Forwarding bandwidth: 10 Gbps ¦ Switching bandwidth: 20 Gbps ¦ Forwarding rate (64‑byte L3 packets): 14.88 Mpps |
Capacity | Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte |
Jumbo Frame Support | 10240 bytes |
Routing Protocol | IGMP, MLDv2, MLD, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Features | BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), IDS, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, DTP support, PAgP support, ACL support, QoS, UDLD, Rapid PVST+, fanless, SRR, LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, MIB, CoS, 802.1x authentication, DSCP support, IGMP filtering, IP source guard, WTD, SmartPort technology, VTP, STRG, AAA, UDP, proxy ARP, SPAN, loopback detection, MAB, BPDU Guard, NEAT |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX |
Processor | X ARM: 800 MHz |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | Status |
Interfaces | 4 x 1000Base-T RJ-45 PoE+ - 15 W ¦ 4 x 1000Base-T RJ-45 ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP uplink ¦ 1 x management RJ-45 ¦ 1 x mini-USB Type B ¦ 1 x USB Type A |
Power Device | Internal power supply |
Installed Qty | 1 |
Voltage Required | AC 120/230 V (50 - 60 Hz) |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A |
Width | 10.6 in |
Depth | 12.7 in |
Height | 1.7 in |
Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 5 - 90% |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 95% |
