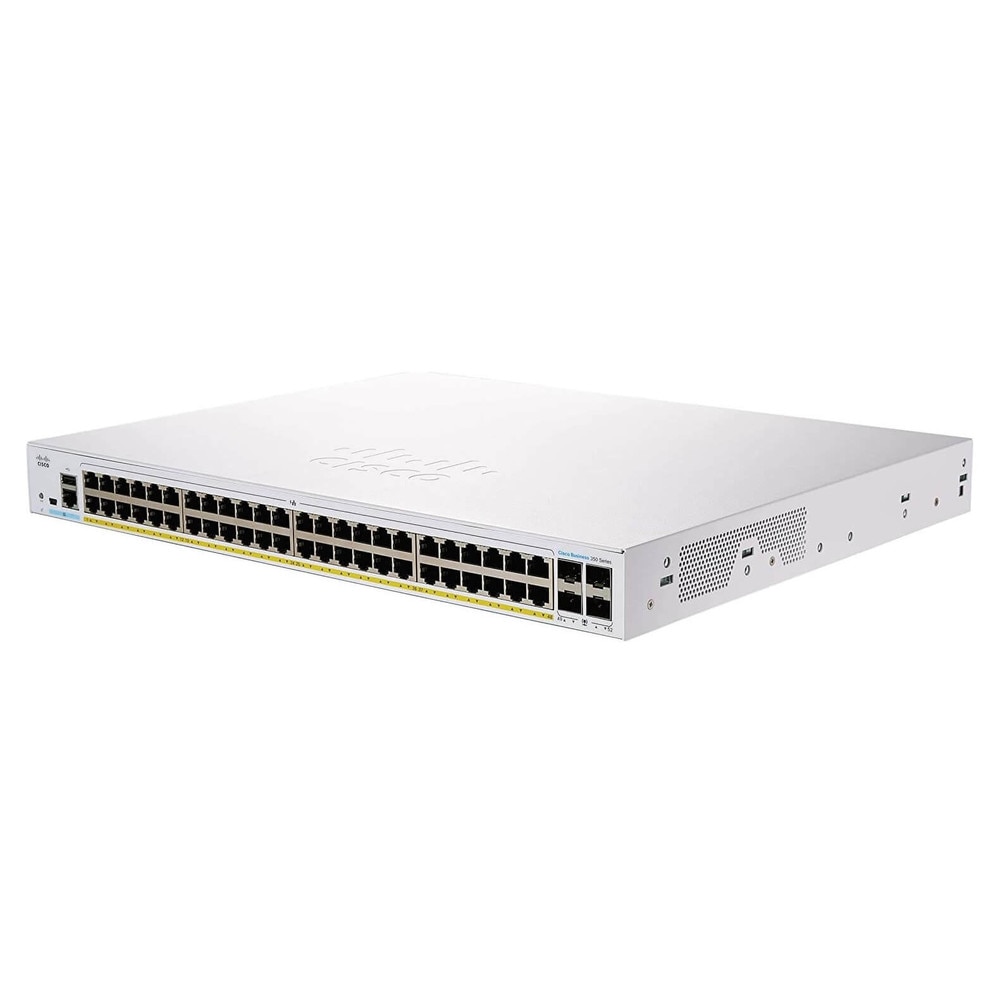

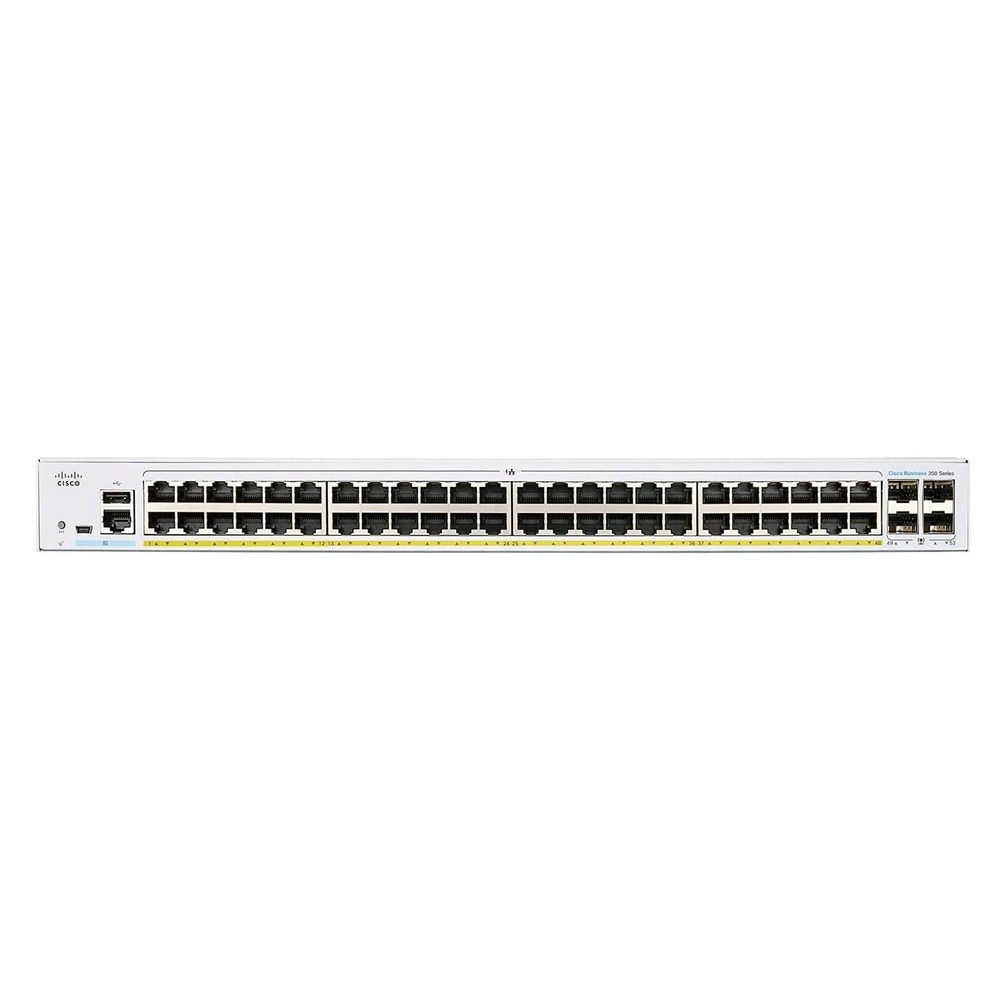

Cisco CBS350-48T-4X 48-Port Gigabit Managed Network Switch with 10G SFP+ (NA) | Refresh

Cisco CBS350-48T-4X 48-Port Gigabit Managed Network Switch with 10G SFP+ (NA) | Refresh

SKU: CBS350-48T-4X-NA-RF
(0)No Reviews yet

🗹 48 x Gigabit Ethernet Ports
🗹 4 x 10GbE SFP+ Ports
🗹 176 Gb/s Switching Capacity
🗹 130.94 Mpps Forwarding Rate
🗹 800 MHz ARM Processor
🗹 512MB RAM
🗹 Rack-Mountable Design
🗹 Comprehensive Layer 2 & 3 Features
🗹 Works with Cisco Business Dashboard

Cisco Refresh offers fully remanufactured, Cisco Certified products with SmartNet eligibility (OEM Refurbished).

Clean Serial: YES

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$469.99 $469.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview for Cisco CBS350-48T-4X 48-Port Gigabit Managed Network Switch with 10G SFP+ (NA) | Refresh

The Cisco CBS350-48T-4X 48-Port Gigabit Managed Network Switch with 10G SFP+ is a high-performance managed network switch built for small and medium-sized enterprises that require advanced networking capabilities. This powerful switch has 48 Gigabit Ethernet connections and 4 10G SFP+ ports, allowing for maximum flexibility and high-speed connectivity in demanding network situations. The CBS350-48T-4X provides enterprise-class functionality in a small package because to its powerful Layer 2 and Layer 3 capabilities. Its comprehensive security features, user-friendly management interface, and energy-efficient architecture make it an excellent choice for enterprises wishing to improve their network infrastructure and meet increasing connection demands.


Key Features of Cisco CBS350-48T-4X 48-Port Gigabit Managed Network Switch with 10G SFP+


• 48 Gigabit Ethernet ports for high-speed connectivity

• 4 10G SFP+ ports for fiber uplink options

• 176 Gbps switching capacity for efficient data transfer

• 130.94 Mpps forwarding rate for high-performance packet processing

• Advanced Layer 2 and Layer 3 features including static routing

• Comprehensive security features including ACLs and 802.1X authentication

• Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption

• Quality of Service (QoS) for traffic prioritization

• VLAN support for network segmentation (up to 4,094 VLANs)

• IPv6 support for future-proof networking

• Stackable design supporting up to 4 units in a stack

• Intuitive web-based interface for easy configuration and management

• Cisco Business Dashboard for centralized network management

• Rack-mountable design with included mounting kit

• Limited lifetime warranty with next-business-day replacement

Specifications

Specification for Cisco CBS350-48T-4X 48-Port Gigabit Managed Network Switch with 10G SFP+ (NA) | Refresh

Manufacturer Cisco
Manufacturer Part Number CBS350-48T-4X-NA-RF
Product Name Cisco CBS350-48T-4X 48-Port Gigabit Managed Network Switch with 10G SFP+
Product Type Networking Switch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 + 4 x 10 Gigabit SFP+
Performance
Switching capacity: 176 Gbps ¦ Forwarding performance (64-byte packet size): 130.94 Mpps
Capacity
RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 3
MAC Address Table Size
16K entries
Jumbo Frame Support
2KB
Max Units In A Stack
4
Routing Protocol
IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Encryption Algorithm
SSL
Authentication Method
Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features
Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, LACP support, LLDP support, DHCP relay, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), ISATAP tunnel support, RA guard, User Datagram Protocol (UDP), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
Status, link/activity/speed
Interfaces
48 x 10/100/1000 Base-T RJ-45 ¦ 4 x 10GBase-X SFP+ ¦ 1 x console (mini-USB) Type B ¦ 1 x USB Type A ¦ 1 x console RJ-45
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
51.01 Watt
Width
17.5 in
Depth
10.7 in
Height
1.7 in
Weight
8.71 lbs
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Min Operating Temperature
23 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 - 90% (non-condensing)

User Guides

Cisco CBS350-48T-4X 48-Port Gigabit Managed Network Switch with 10G SFP+ Data Sheet

Frequently Asked Questions

Cisco CBS350-48T-4X 48-Port Gigabit Managed Network Switch with 10G SFP+ (NA)
Frequently Asked Questions (FAQ's)



What is the Cisco CBS350-48T-4X?
  • It is a 48-port gigabit managed switch with four 10G SFP+ uplink ports, suitable for small and medium-sized companies.
    • What are the main features of the CBS350-48T-4X?
  • Advanced Layer 3 capability, 10G SFP+ uplinks, energy efficiency, improved security, and user-friendly management tools are among the features.
    • What is the purpose of the 10G SFP+ ports?
  • These ports offer high-speed uplinks for connecting to servers, storage, and other switches.
    • Does the switch support PoE (Power over Ethernet)?
  • No, the CBS350-48T-4X is not PoE compatible. Consider the CBS350-48FP-4X model if you want PoE capabilities.
    • What is the total switching capacity of the CBS350-48T-4X?
  • The total switching capacity is 176 Gbps.
    • Is the switch stackable?
  • Yes, the CBS350-48T-4X can stack up to four units for easier management and scalability.
    • Does the switch support Layer 3 routing?
  • Yes, it supports static and dynamic Layer 3 routing protocols.
    • What type of management interface does the switch provide?
  • It offers a web-based interface, a CLI (Command Line Interface), and a Cisco Business Dashboard for centralised management.
    • What are the VLAN capabilities of the CBS350-48T-4X?
  • It supports up to 4,094 VLAN IDs and VLAN-based configurations for network segmentation.
    • Is the CBS350-48T-4X energy efficient?
  • Yes, it meets the Energy Efficient Ethernet (IEEE 802.3az) specifications.
    • Can the switch operate in high-availability configurations?
  • Yes, it supports protocols like RSTP, MSTP, and ERPS for redundancy and high availability.
    • What security features does the switch include?
  • Security features include ACLs, port security, 802.1X authentication, and DoS attack prevention.
    • Does it support Quality of Service (QoS)?
  • Yes, it has extensive QoS capabilities like traffic prioritization and bandwidth management.
    • What are the dimensions of the CBS350-48T-4X?
  • The dimensions are 440 x 200 x 44.5 mm (17.3 x 7.87 x 1.75 inches).
    • Does the switch include a fan?
  • Yes, the CBS350-48T-4X includes fans for cooling.
    • Can this switch be used in a home office setup?
  • While intended for commercial use, it can also be used in a home office if extensive networking capabilities are necessary.
    • How many MAC addresses does the switch support?
  • It supports up to 16,000 MAC addresses.
  • Is it compatible with IPv6 networks?
  • Yes, it fully supports IPv6.
    • What is the power consumption of the switch?
  • The maximum power consumption is 36.8 watts.
    • Can I use RJ-45 ports for stacking?
  • No, only the 4 SFP+ ports can be used for stacking
