  • Cisco CBS350-24XT 24-Port 10G Managed Network Switch with SFP+/RJ45 (NA) | Refresh

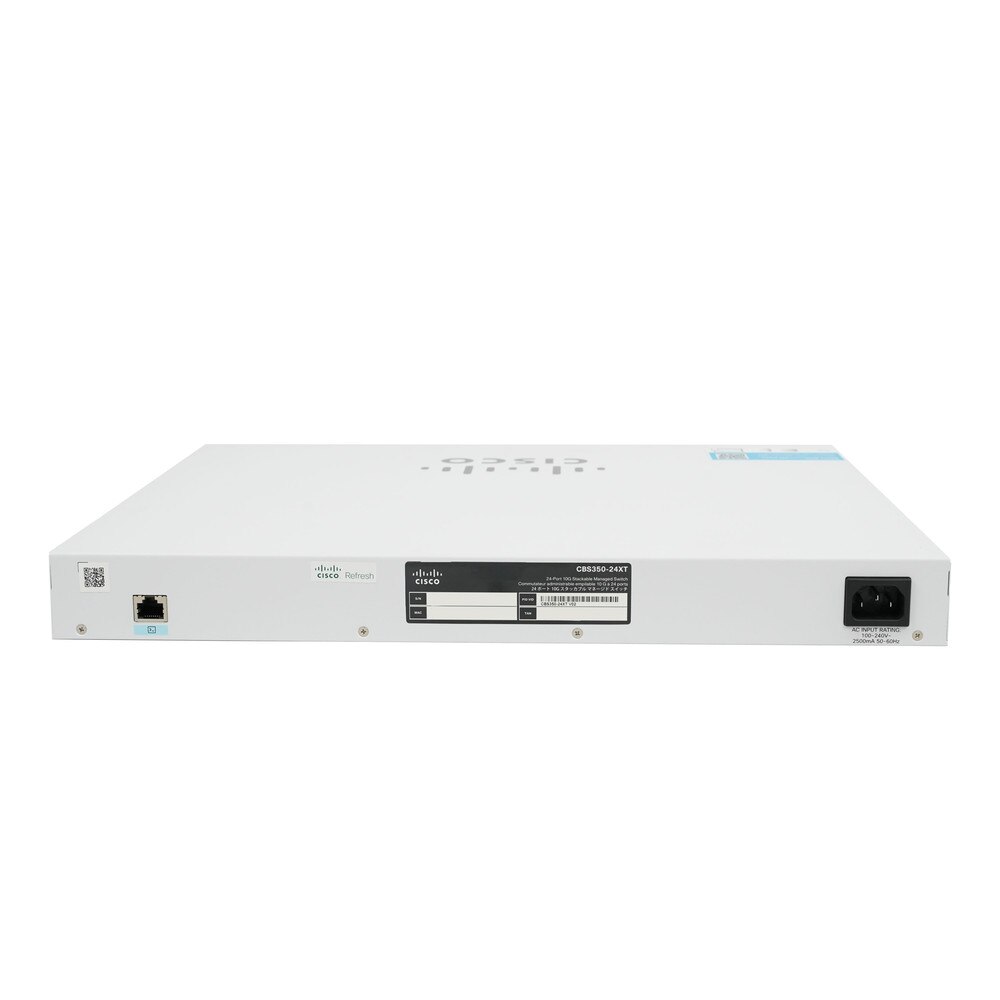

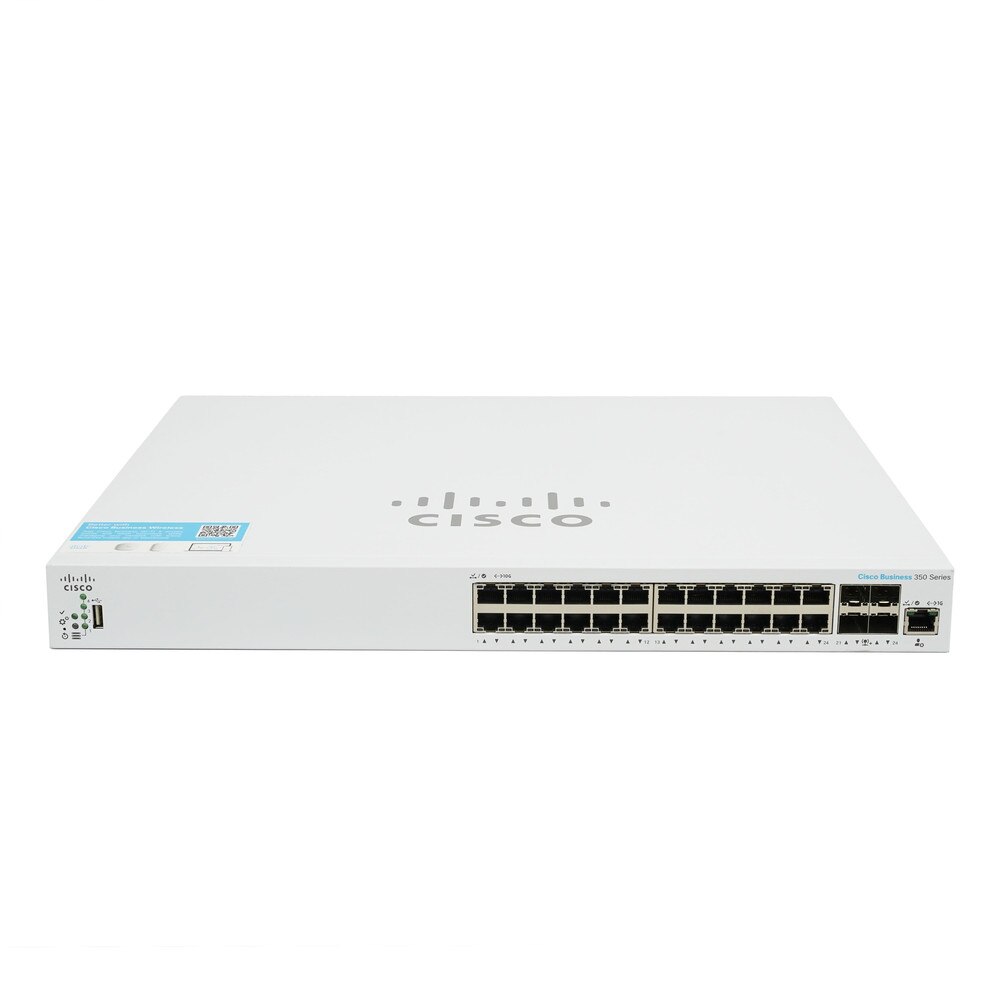

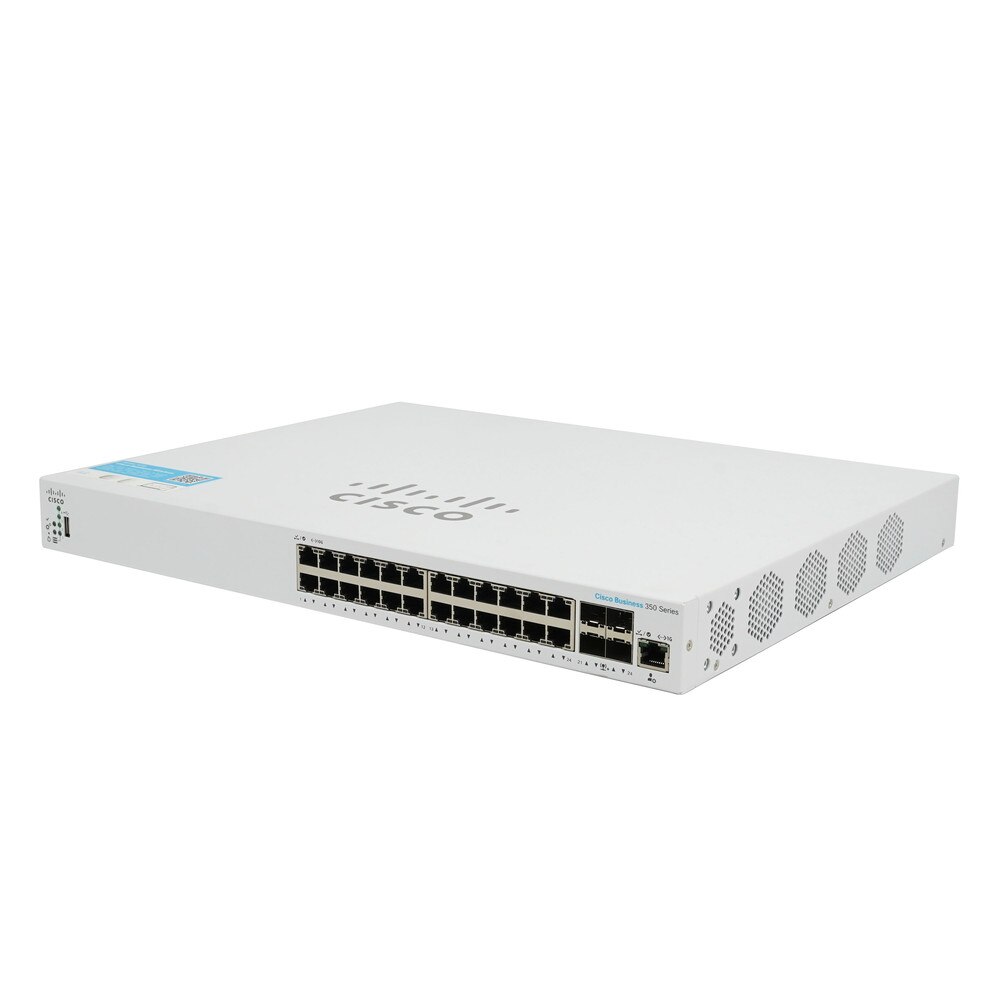

Cisco CBS350-24XT 24-Port 10G Managed Network Switch with SFP+/RJ45 (NA) | Refresh

Cisco CBS350-24XT 24-Port 10G Managed Network Switch with SFP+/RJ45 (NA) | Refresh

SKU: CBS350-24XT-NA-RF
(0)No Reviews yet

Cisco Refresh offers fully remanufactured, Cisco Certified products with SmartNet eligibility (OEM Refurbished).

Clean Serial: YES

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$1,299.99 $1,299.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco CBS350-24XT 24-Port 10G Managed Network Switch with SFP+/RJ45 (NA) | Refresh

The Cisco CBS350-24XT 24-Port 10G Managed Network Switch with SFP+/RJ45 (NA) is a high-performance networking solution ideal for enterprises that require advanced capabilities and lightning-fast connectivity. The CBS350-24XT is part of Cisco's Business 350 Series, which provides enterprise-grade management capabilities and comprehensive security features in a small package. This switch has 24 10-Gigabit Ethernet ports that accept both RJ45 and SFP+ connections, providing great speed and versatility for demanding network environments. Its extensive feature set makes it an excellent solution for enterprises who want to future-proof their network infrastructure while retaining high performance and security. The CBS350-24XT is an excellent choice for businesses looking for a high-performance, future-proof networking solution that offers lightning-fast speeds, extensive capabilities, and strong security in a small package.


Key Features of Cisco CBS350-24XT 24-Port 10G Managed Network Switch with SFP+/RJ45


• 24 10-Gigabit Ethernet Ports delivers ultra-high-speed connectivity for bandwidth-intensive applications.

• Flexible Port Configuration supports both RJ45 and SFP+ connections for versatile network design.

• Advanced Layer 2 and Layer 3 Features that supports static routing, VLAN, QoS, and more.

• Robust Security includes 802.1X authentication, ACLs, and DHCP snooping.

• Supports Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption.

• Flexible Management offers web GUI, CLI, and SNMP management options.

• Cisco Business Dashboard Compatible enables easy network management and monitoring.

• Advanced QoS ensures optimal performance for voice, video, and data applications.

• IPv6 Support ensures future-proofing for next-generation IP networks.

• Stacking Capability supports stacking of up to 4 units for simplified management.

• High Reliability includes features like STP, RSTP, and MSTP for network redundancy.

• Voice VLAN Support simplifies IP telephony deployments.

• Limited Lifetime Warranty backed by Cisco's renowned support and service.

• Compact Design features 1U rack-mountable form factor for efficient space utilization.

• Jumbo Frame Support handles large data transfers efficiently with up to 9K byte frame size.

Specifications

Specifications for Cisco CBS350-24XT 24-Port 10G Managed Network Switch with SFP+/RJ45 (NA) | Refresh

ManufacturerCisco
Manufacturer Part NumberCBS350-24XT-NA-RF
Product NameCisco CBS350-24XT 24-Port 10G Managed Network Switch with SFP+/RJ45
Product TypeNetworking Switch
Enclosure Type
Rack-mountable
Subtype
10 Gigabit Ethernet
Ports
10 x 10GBase-T + 4 x combo 10 Gigabit SFP+/RJ-45
Performance
Switching capacity: 480 Gbps ¦ Forwarding performance (64-byte packet size): 240 Mpps
Capacity
RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 3
MAC Address Table Size
16K entries
Jumbo Frame Support
2KB
Max Units In A Stack
4
Routing Protocol
IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Encryption Algorithm
SSL
Authentication Method
Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features
Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), LACP support, LLDP support, DHCP relay, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), ISATAP tunnel support, RA guard, User Datagram Protocol (UDP), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
Status, link/activity/speed
Interfaces
24 x 10GBase-T RJ-45 ¦ 4 x 10GBase-X SFP+ uplink ¦ 1 x USB Type A ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x console RJ-45
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50/60 Hz)

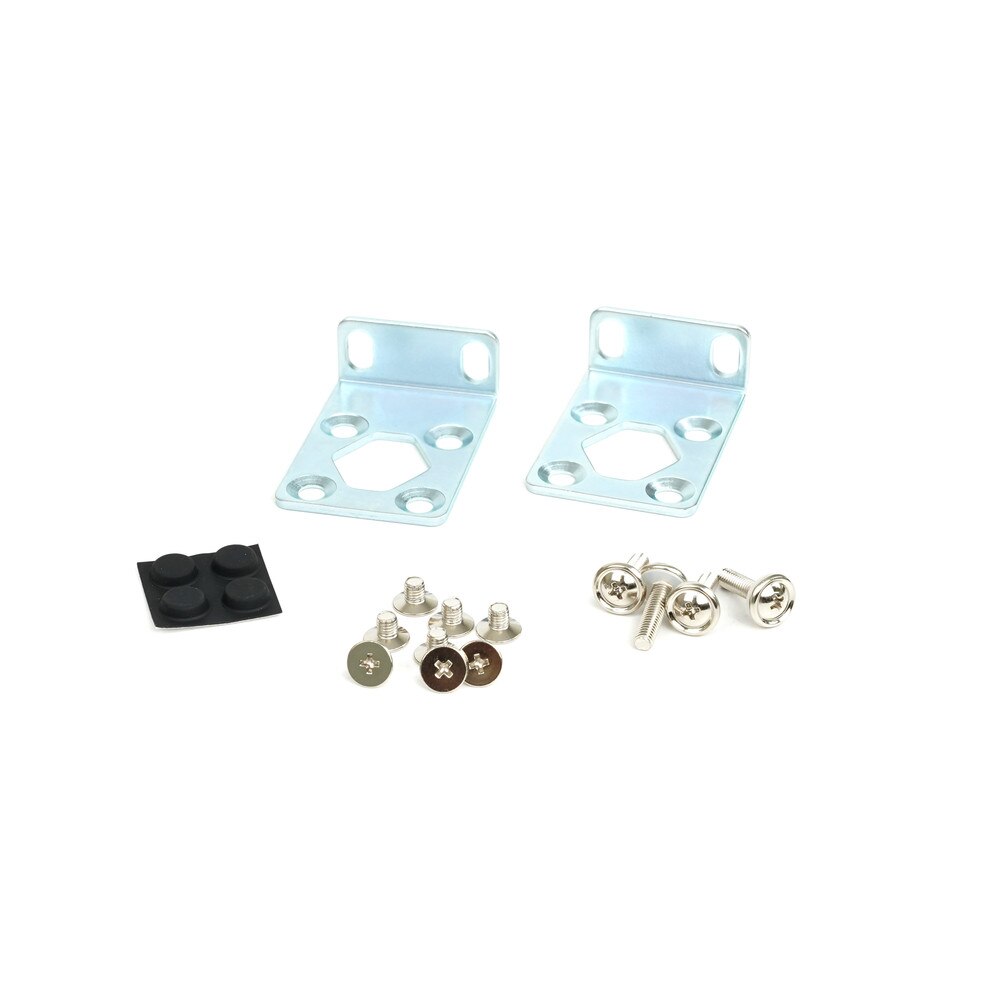

Rack Mounting Kit
Included
MTBF
556,642 hours
Compliant Standards
UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A, USGv6
Localization
Colombia, Canada, Chile, Mexico, Latin America, United States
Width
17.3 in
Depth
13.8 in
Height
1.7 in
Weight
11.24 lbs
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Min Operating Temperature
32 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 - 90% (non-condensing)

User Guides

Frequently Asked Questions

Cisco CBS350-24XT 24-Port 10G Managed Network Switch with SFP+/RJ45
Frequently Asked Questions (FAQ's)



What is the maximum data transfer rate supported by the Cisco CBS350-24XT-NA-RF?
  • The maximum data transfer rate is 10 Gbps per port.
  • How many ports does the Cisco CBS350-24XT-NA-RF have?
  • It has 24 10GBASE-T ports.
  • Does the switch support Power over Ethernet (PoE)?
  • No, the Cisco CBS350-24XT-NA-RF does not support PoE.
  • What management options are available for this switch?
  • It supports web-based management, SNMP, and command-line interface (CLI) for advanced management.
  • Is the Cisco CBS350-24XT-NA-RF stackable?
  • Yes, it supports physical and virtual stacking.
  • What is the switching capacity of the Cisco CBS350-24XT-NA-RF?
  • The switching capacity is 480 Gbps.
  • Can the Cisco CBS350-24XT-NA-RF be mounted in a rack?
  • Yes, it is rack-mountable and comes with rack-mounting brackets.
  • Does this switch support VLANs?
  • Yes, it supports up to 4096 VLANs.
  • What kind of security features are available on the Cisco CBS350-24XT-NA-RF?
  • It includes features like ACLs, 802.1X authentication, DHCP snooping, and port security.
  • What is the power consumption of the Cisco CBS350-24XT-NA-RF?
  • The maximum power consumption is approximately 108 watts.
  • Does this switch support link aggregation?
  • Yes, it supports link aggregation for combining multiple ports to increase bandwidth.
  • What is the noise level of the Cisco CBS350-24XT-NA-RF?
  • The noise level is approximately 40 dB.
  • Does the Cisco CBS350-24XT-NA-RF support Quality of Service (QoS)?
  • Yes, it supports QoS for traffic prioritization.
  • Can the Cisco CBS350-24XT-NA-RF be used in a temperature-controlled environment?
  • Yes, the operating temperature range is 32°F to 104°F (0°C to 40°C).
  • What type of ports does the Cisco CBS350-24XT-NA-RF have?
  • It has 10GBASE-T copper ports.
  • Is IPv6 supported on the Cisco CBS350-24XT-NA-RF?
  • Yes, it supports both IPv4 and IPv6.
  • How many MAC addresses can the Cisco CBS350-24XT-NA-RF support?
  • It can support up to 32,000 MAC addresses.
  • What is the forwarding rate of the Cisco CBS350-24XT-NA-RF?
  • The forwarding rate is 357.12 Mpps (million packets per second).
  • Does the Cisco CBS350-24XT-NA-RF support dual power supplies?
  • No, it does not support dual power supplies; it has a single internal power supply.
