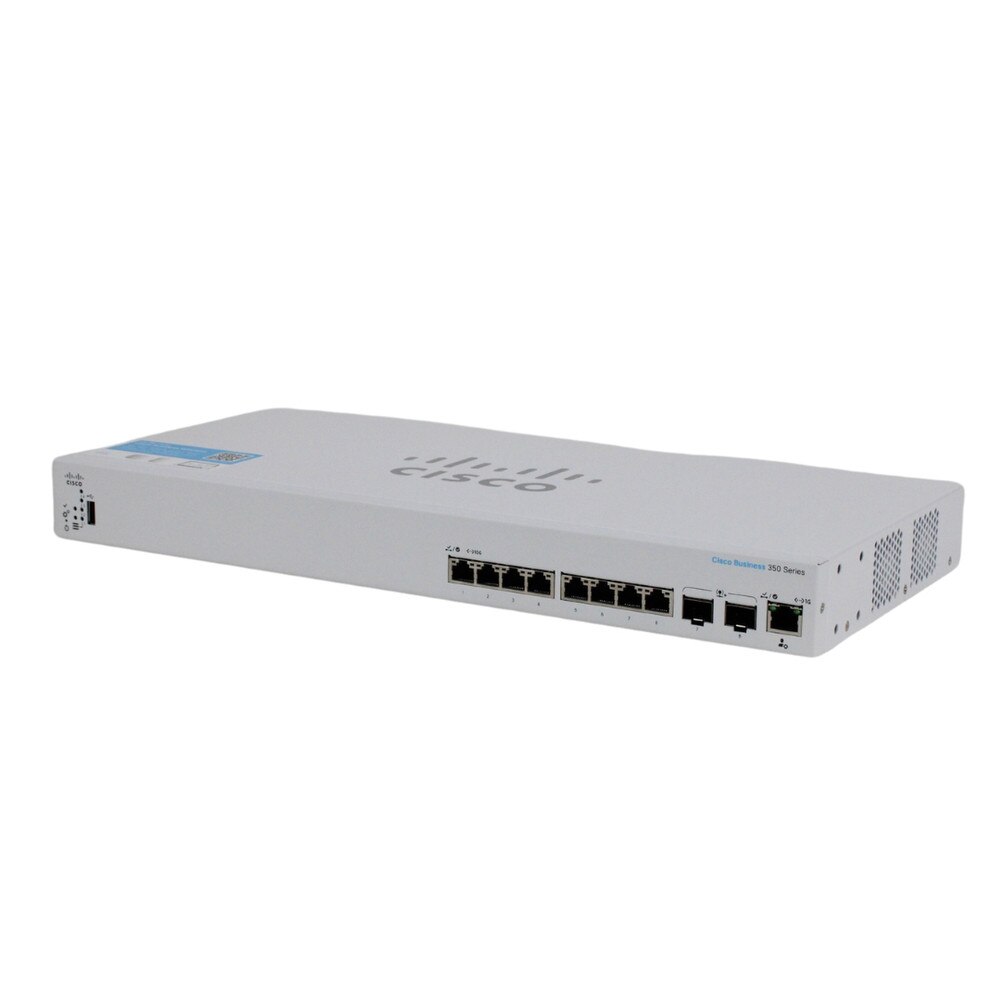

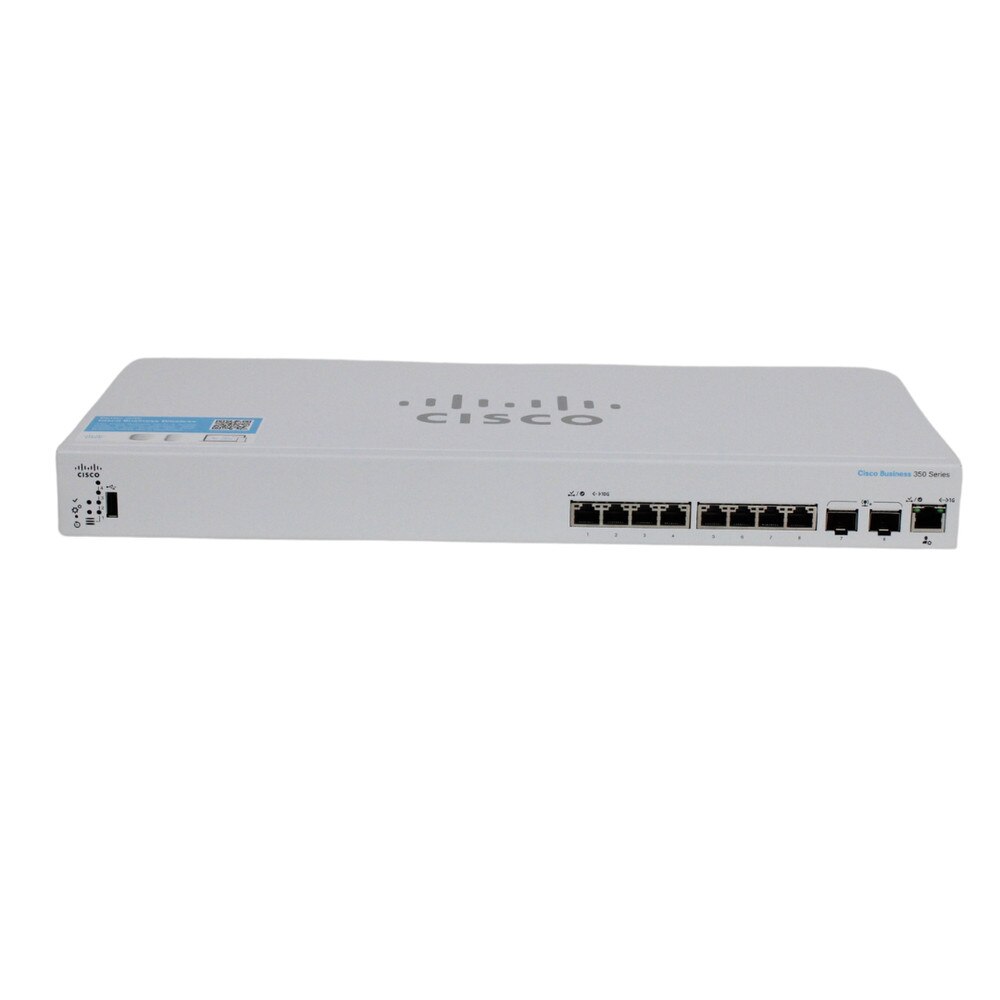

The Cisco CBS350-8XT 8-Port 10G Managed Network Switch with 10G SFP+/RJ45 Combo (NA) is a high-performance managed network switch developed for small and medium-sized enterprises that want a reliable, secure, and scalable network solution. This adaptable switch combines advanced capabilities, various connectivity options, and simple management to enable modern corporate applications and future network expansion. The CBS350-8XT has eight 10G Ethernet ports that are compatible with wired devices like computers and network-attached storage. It also includes two 10G fiber SFP+ / copper RJ45 combo connectors for high-speed uplink connections. With a switching capability of 160 Gb/s and a forwarding rate of 119.05 Mpps, this switch offers smooth and dependable data transfers for your mission-critical applications.
• Eight 10G Ethernet ports for ultra-fast connectivity
• Two 10G SFP+/RJ45 combo ports for flexible uplink options
• 160 Gb/s switching capacity and 119.05 Mpps forwarding rate
• Advanced Layer 2 and Layer 3 features including static routing
• True stacking capability for unified management of multiple switches
• Robust security features including DoS attack prevention and RADIUS authentication
• Energy-efficient design with power-saving features
• Intuitive web-based interface and Cisco Business Dashboard for easy configuration
• Compact design with dual-fan cooling for quiet operation
• IPv4 and IPv6 support for future-proof networking
🗹 Enhance network performance with 10G speeds across all ports
🗹 Improve network reliability with advanced QoS and security features
🗹 Simplify management and troubleshooting with true stacking capability
🗹 Ensure business continuity with robust security and high availability
🗹 Future-proof your investment with advanced Layer 3 features and IPv6 support
🗹 Optimize application performance with link aggregation and jumbo frame support
🗹 Reduce operational costs with energy-efficient design
🗹 Scale your network easily with flexible SFP+/RJ45 combo uplink options
🗹 Deploy in various environments thanks to the compact, quiet design
🗹 Leverage Cisco's renowned quality and support for peace of mind
| Manufacturer | Cisco |
| Manufacturer Part Number | CBS350-8XT-NA-RF |
| Product Name | Cisco CBS350-8XT 8-Port 10G Managed Network Switch with 10G SFP+/RJ45 Combo |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | 10 Gigabit Ethernet |
Ports | 6 x 10GBase-T + 2 x combo 10 Gigabit SFP+/RJ-45 |
Performance | Switching capacity: 160 Gbps ¦ Forwarding performance (64-byte packet size): 119.05 Mpps |
Capacity | RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 6 |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 2KB |
Max Units In A Stack | 4 |
Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
Encryption Algorithm | SSL |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
Features | Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), LACP support, LLDP support, DHCP relay, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), ISATAP tunnel support, RA guard, User Datagram Protocol (UDP), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az |
Processor | X ARM: 800 MHz |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | Status, link/activity/speed |
Interfaces | 8 x 10GBase-T RJ-45 ¦ 2 x 10GBase-X SFP+ uplink ¦ 1 x USB Type A ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x console RJ-45 |
Power Device | Internal power supply |
Voltage Required | AC 100-240 V (50/60 Hz) |

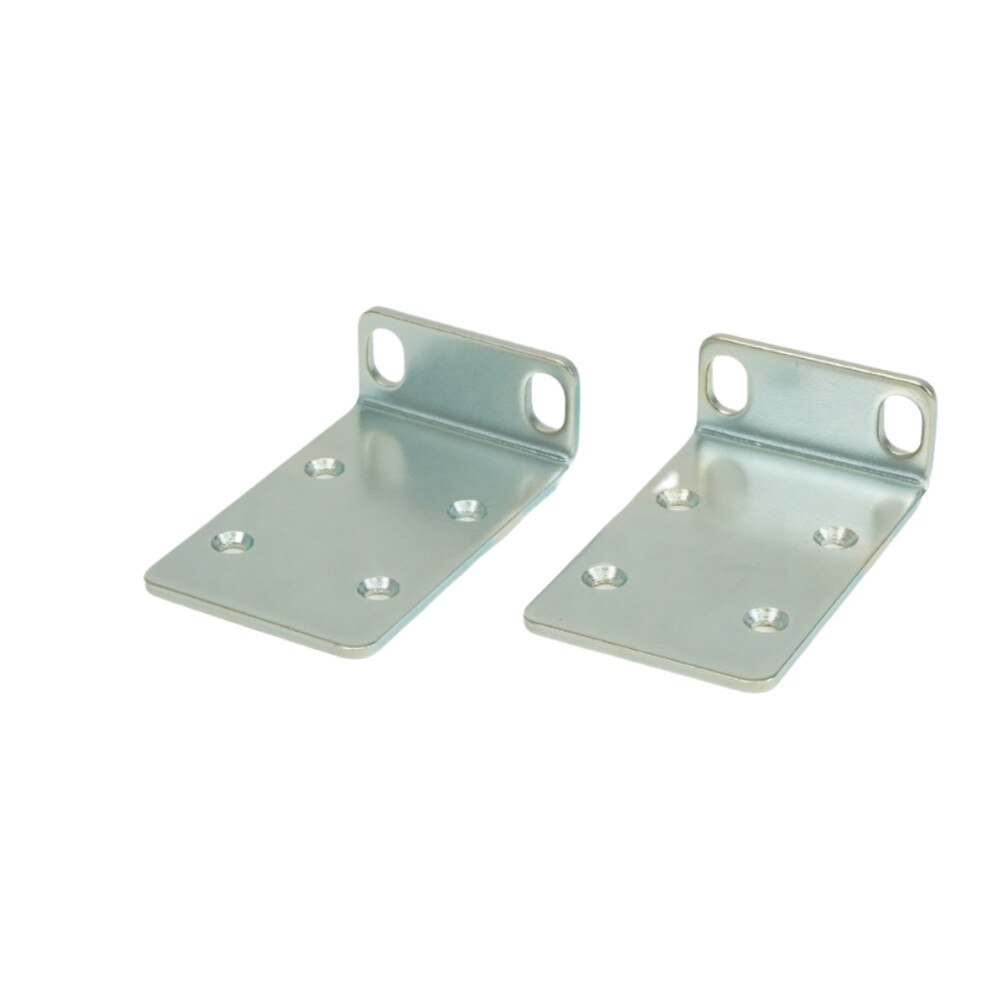

Rack Mounting Kit | Included |
MTBF | 1,418,411 hours |
Compliant Standards | UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A, USGv6 |
Localization | Colombia, Canada, Chile, Mexico, Latin America, United States |
Width | 17.3 in |
Depth | 8 in |
Height | 1.7 in |
Weight | 6.57 lbs |
Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 10 - 90% (non-condensing) |
