Cisco 8832 IP Conference Phone (CP-8832-K9-NA) | New
SKU: CP-8832-K9-NA-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Cisco CP-8832-K9-NA Conference VoIP Phone

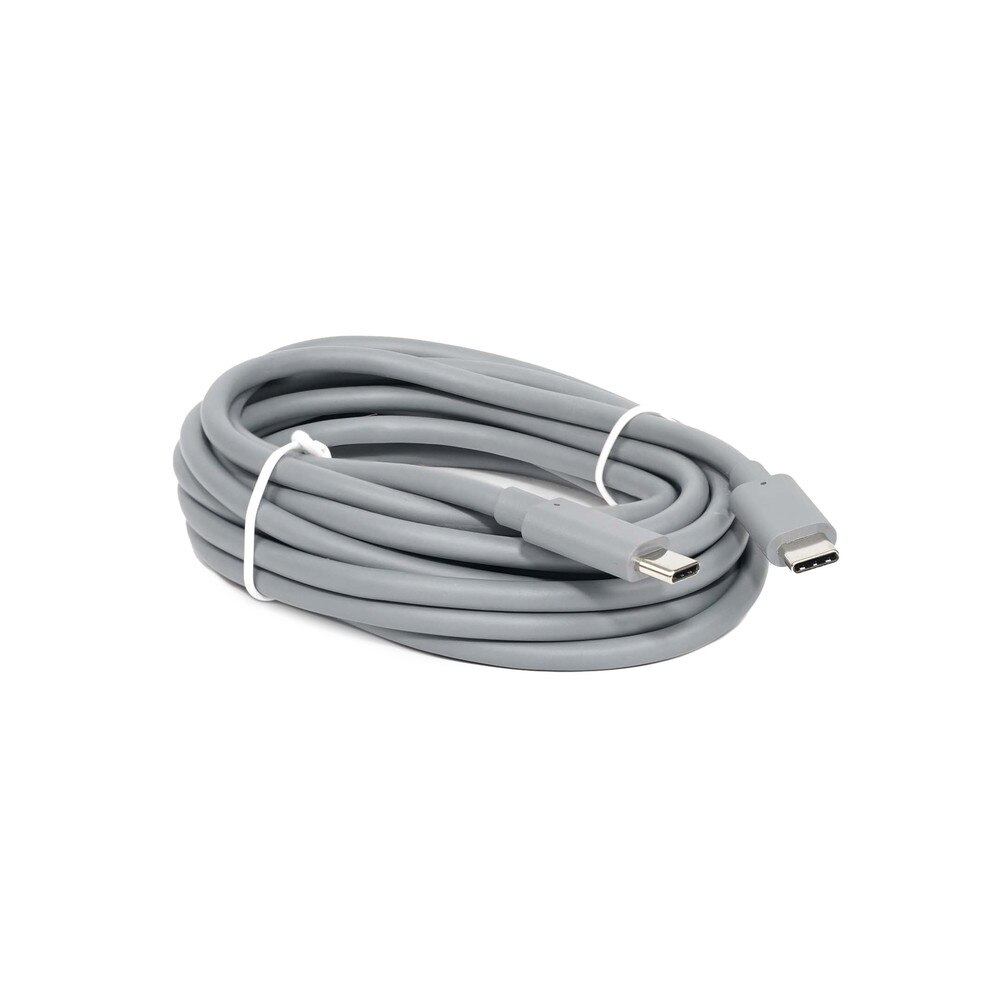

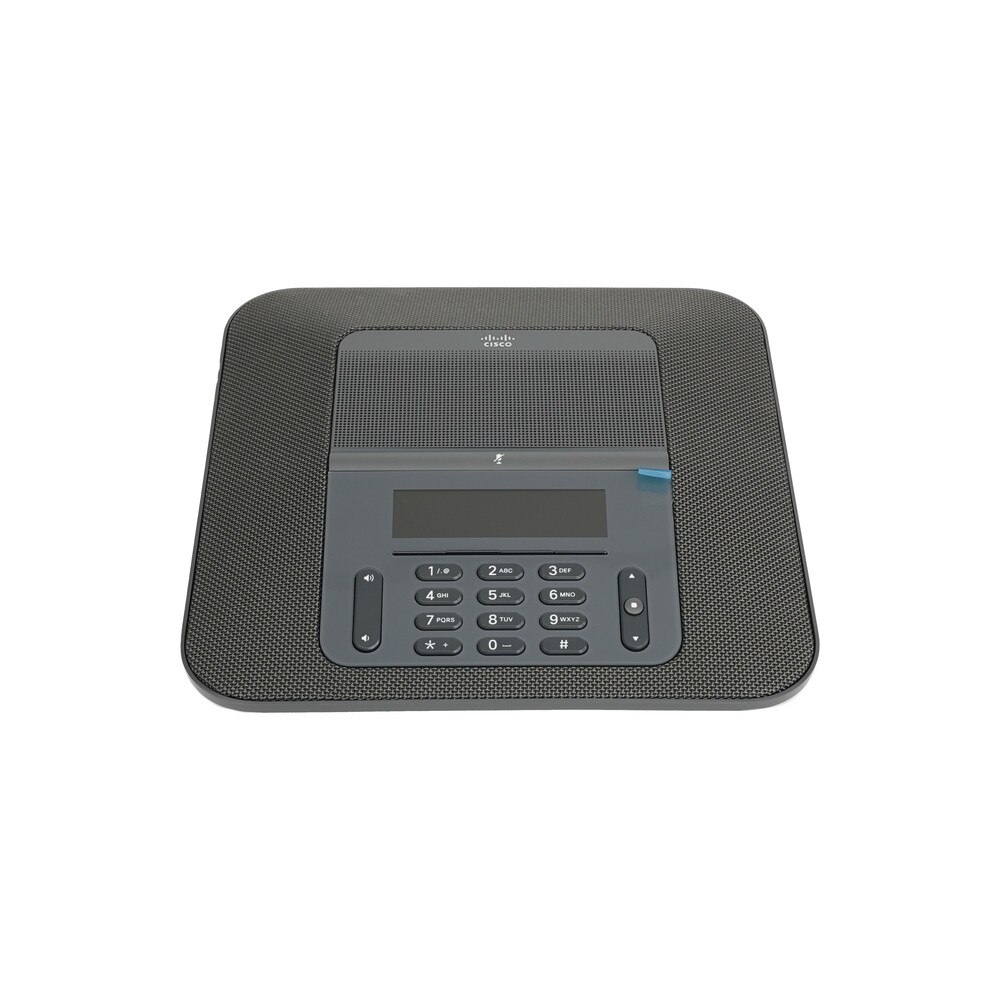

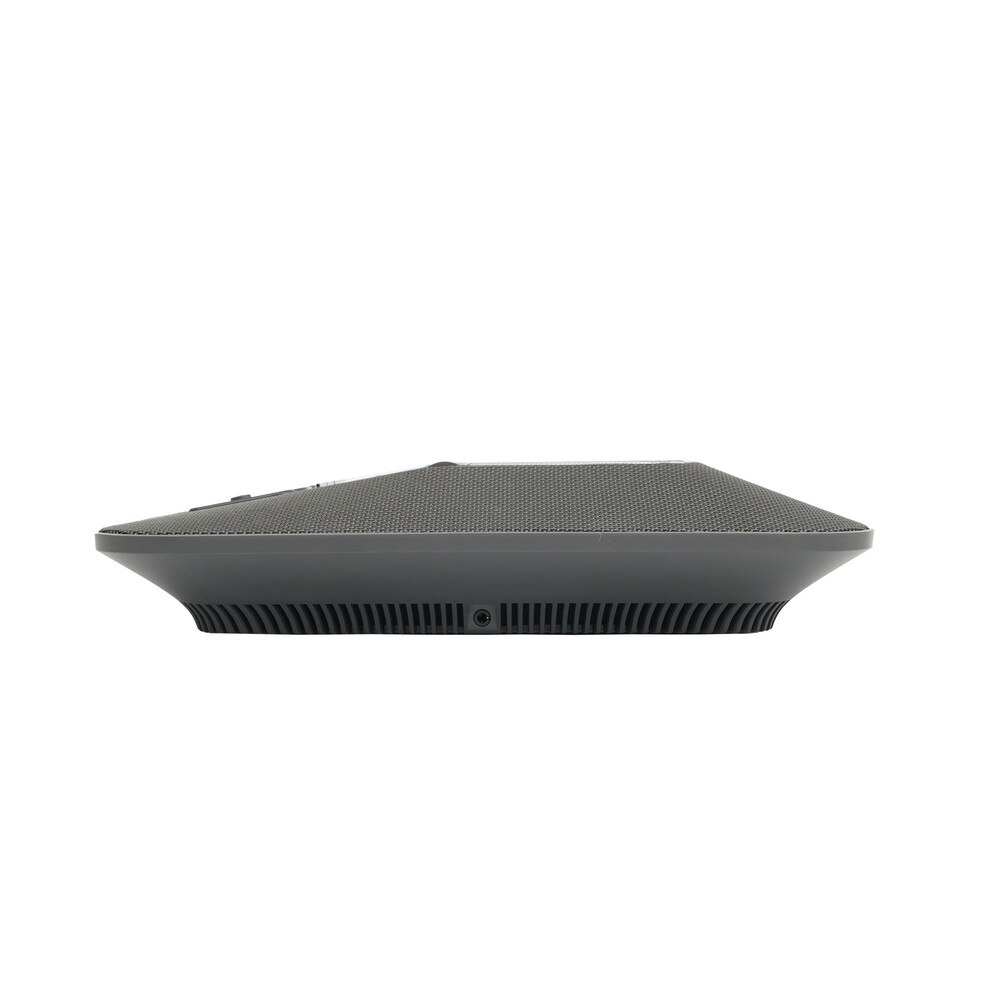

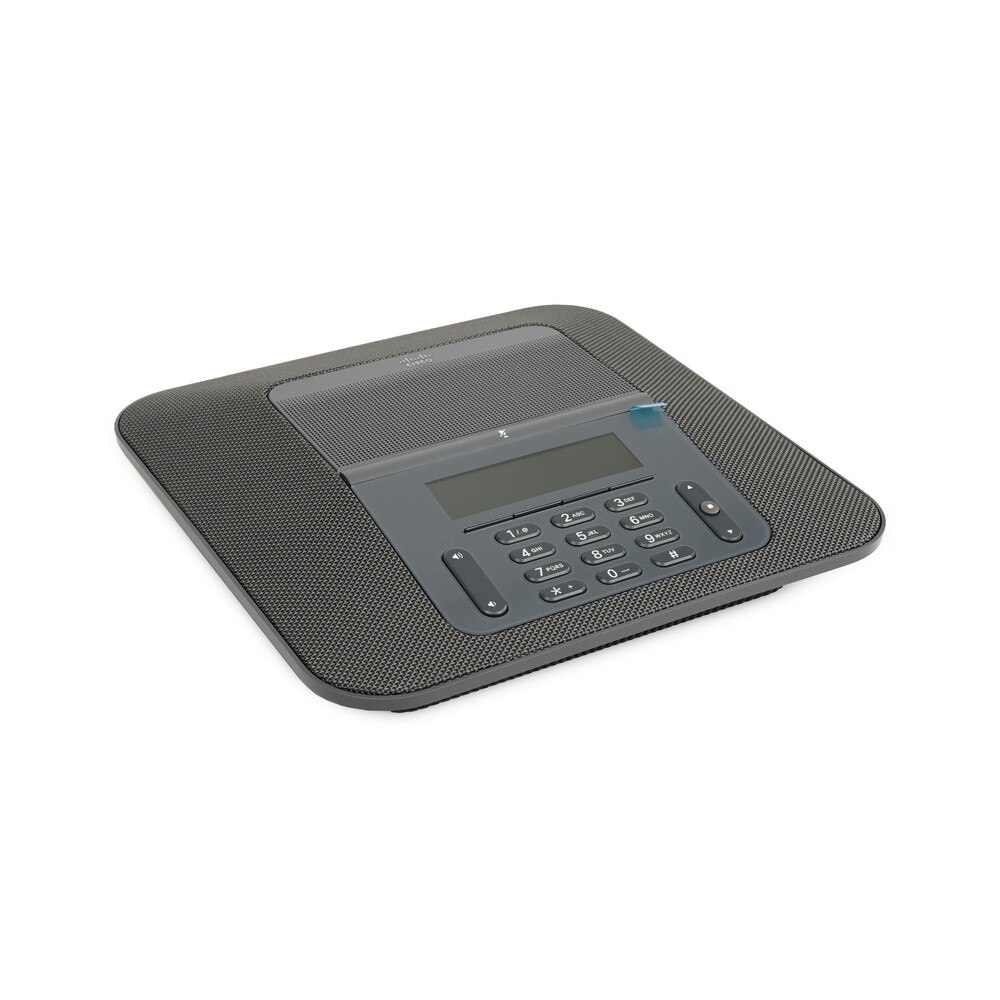

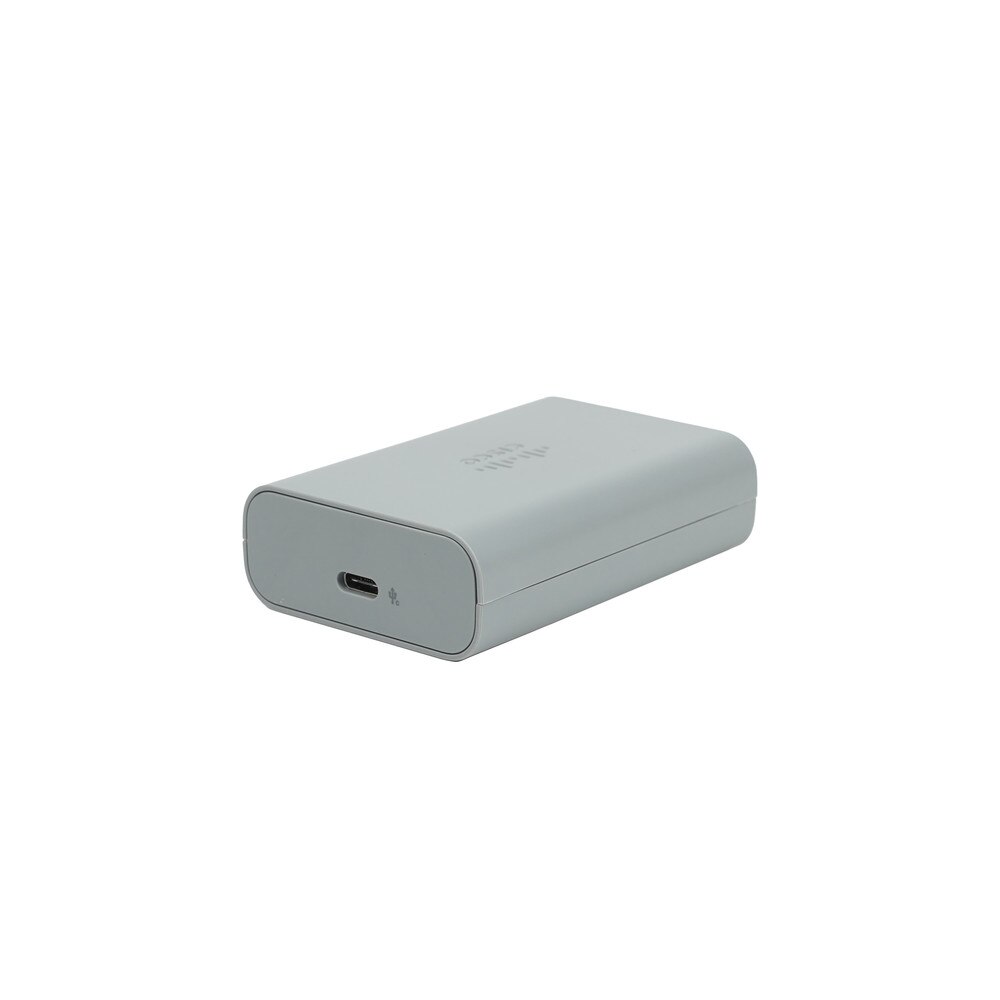

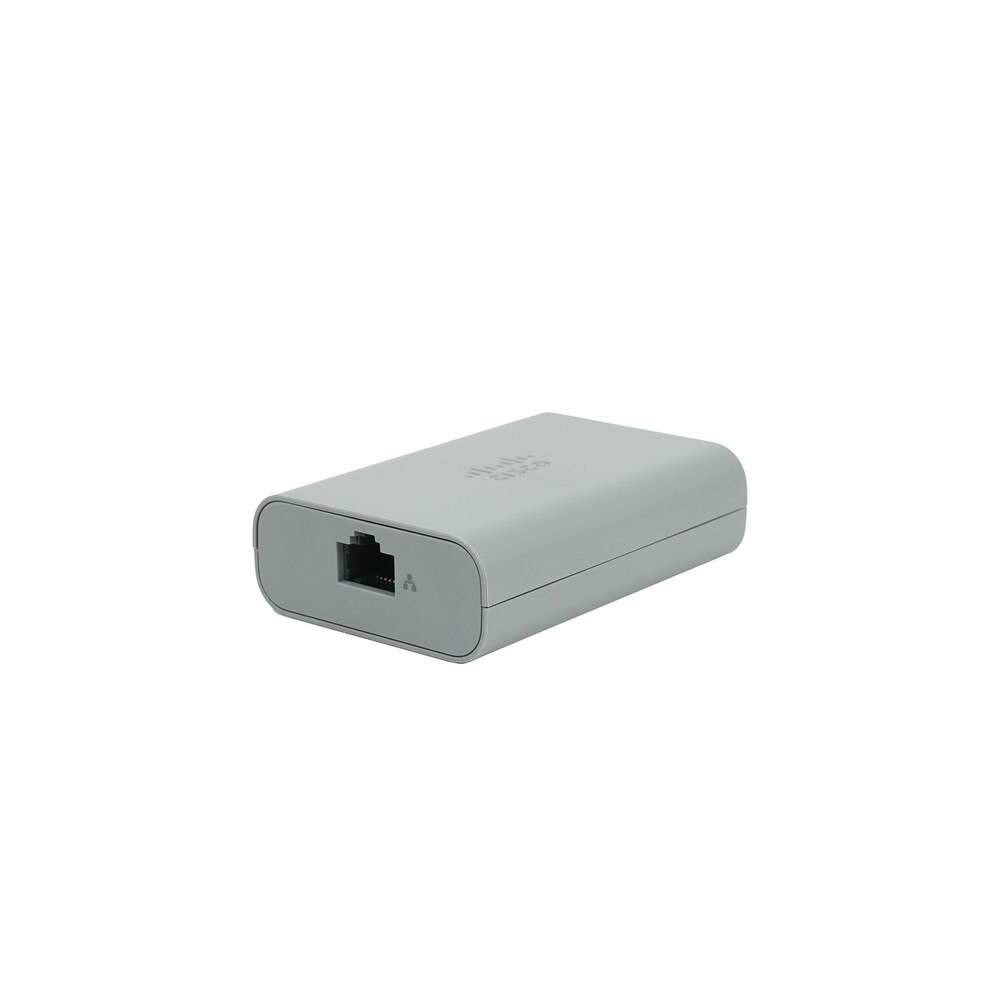

CP-8832-K9 is a Cisco IP Conference Phone 8832 base in charcoal for North America. This IP phone also includes an Ethernet injector or an 18W power adapter, as well as a USB-C cable measuring 9.8 feet (3 meters). The Cisco IP Conference Phone 8832 improves people-centric collaboration by providing simple audio conferencing with high voice quality and clarity. Newly developed microphones and loudspeakers provide the best sound quality of any conference phone on the market. Our unique acoustic design includes a full-range "studio-monitor" speaker. This loudspeaker architecture delivers dynamic, detailed sound with low distortion and low-frequency clarity, transforming conferencing into an in-person experience with exceptionally clear and natural audio quality.
Features
● 480x128-pixel backlit 24-bit color LCD, 3.9-in. (9.9-cm) diagonal
● 10/100 BASE-T via an Ethernet injector
● Four context-sensitive soft key bars
● Two-way navigation bar and select button
● Standard keypad
● Volume-control bar
● Large mute key for ease of access
● IEEE PoE Class 3; compatible with both IEEE 802.3af and 802.3at switch blades; supports both Cisco Discovery Protocol and Link Layer Discovery Protocol - Power over Ethernet (LLDP-PoE)
● Native support in Cisco Unified Communications Manager 12.0(1); DevPack required for Cisco Unified Communications Manager 10.5.2, 11.0, and 11.5
● 480x128-pixel backlit 24-bit color LCD, 3.9-in. (9.9-cm) diagonal
● 10.9 x 10.9 x 2.4 in. (278 x 278 x 61 mm)
● 4.07 lb (1.85 kg)
Specifications
Specifications of Cisco 8832 IP Conference Phone
| Manufacturer | Cisco |
| Manufacturer Part Number | CP-8832-K9 |
| Product Name | Cisco 8832 IP Conference Phone |
| Product Type | Conference Phone |
| Graphical display | 480x128-pixel backlit 24-bit color LCD, 3.9-in. (9.9-cm) diagonal |
| Ethernet switch | 10/100 BASE-T via an Ethernet injector |
| Keys | The phone has the following keys: |
| · Four context-sensitive soft key bars | |
| · Two-way navigation bar and select button | |
| · Standard keypad | |
| · Volume-control bar | |
| · Large mute key for ease of access | |
| IEEE PoE | IEEE PoE Class 3; compatible with both IEEE 802.3af and 802.3at switch blades; supports both Cisco Discovery Protocol and Link Layer Discovery Protocol - Power over Ethernet (LLDP-PoE) |
| Call control support | Native support in Cisco Unified Communications Manager 12.0(1); DevPack required for Cisco Unified Communications Manager 10.5.2, 11.0, and 11.5 |
| Graphical display | 480x128-pixel backlit 24-bit color LCD, 3.9-in. (9.9-cm) diagonal |
| Physical dimensions (H x W x D) | 10.9 x 10.9 x 2.4 in. (278 x 278 x 61 mm) |
| Weight | 4.07 lb (1.85 kg) |
| Feature | Specifications |
| Audio codec support | G.711 a-law and mu-law, wideband (G.722), G.729a, G.729ab, Internet Low Bitrate Codec (iLBC), OPUS |
| Acoustics | Frequency: Speaker, 100 Hz to 20 kHz; microphones, 100 Hz to 12 kHz, ±3 dB |
| Max adjustable volume: 89 dB within 0.5 m | |
| Call features | · Dialing |
| · Adjustable ring tones and volume levels | |
| · Barge | |
| · Call forward | |
| · Call history lists | |
| · Call timer | |
| · Call waiting | |
| · Caller ID | |
| · Corporate directory | |
| · Conference | |
| · Hold | |
| · Music on Hold (MoH) | |
| · Mute | |
| · Predialing before sending | |
| · Redial | |
| · Shared line | |
| · Speed dial (Favorites) | |
| · Time and date display | |
| · Transfer | |
| · Voicemail (messages) | |
| Quality-of-Service (QoS) options | The phone supports Cisco Discovery Protocol and 802.1Q/p standards and can be configured with an 801.1Q VLAN header containing the VLAN ID overrides configured by the admin VLAN ID. |
| Network features | · Session Initiation Protocol (SIP) for signaling |
| · Session Description Protocol (SDP) | |
| · IPv4 | |
| · IPv6 | |
| · User Datagram Protocol (UDP) (used only for Real-Time Transport Protocol streams) | |
| · Dynamic Host Configuration Protocol (DHCP) client or static configuration | |
| · Gratuitous Address Resolution Protocol (GARP) | |
| · Domain Name System (DNS) | |
| · Trivial File Transfer Protocol (TFTP) | |
| · Secure HTTP (HTTPS) | |
| · VLAN | |
| · Real-Time Transport Protocol (RTP) | |
| · Real-Time Control Protocol (RTCP) | |
| · Cisco Discovery Protocol | |
| · LLDP (including LLDP-MED) | |
| · Switch speed auto-negotiation | |
| Security features | · Secure credential storage |
| · Image authentication | |
| · Random bit generation | |
| · Manufacturer-Installed Certificates (MICs) | |
| · Secure boot | |
| · SHA-256 enabled for advanced security features | |
| · Ethernet 802.1X supplicant options: Extensible Authentication Protocol – Flexible Authentication via Secure Tunneling (EAP-FAST) and Extensible Authentication Protocol – Transport Layer Security (EAP-TLS) | |
| · Signaling authentication and encryption using TLS v1.2 | |
| · Media authentication and encryption using SRTP | |
| · HTTPS for client and server | |
| · Secure Shell (SSH) Protocol server | |
| Physical dimensions (H x W x D) | 10.9 x 10.9 x 2.4 in. (278 x 278 x 61 mm) |
User Guides
Frequently Asked Questions
Cisco 8832 IP Conference Phone
Frequently Asked Questions (FAQ's)
What is the primary purpose of the Cisco 8832 IP Conference Phone? It is designed for high-quality audio conferencing in medium to large-sized meeting rooms.
Does the Cisco 8832 support wireless connectivity? Yes, it supports Wi-Fi connectivity for flexible deployment.
What audio technology does it use? It features full-duplex audio and wideband audio (HD voice) for crystal-clear sound.
How many participants can it accommodate? It is ideal for meetings with up to 20 participants in medium-to-large conference rooms.
What are the compatible call control systems? It is compatible with Cisco Unified Communications Manager, Cisco Webex Calling, and third-party SIP call control platforms.
Does the Cisco 8832 have expansion microphone support? Yes, it supports optional wired or wireless extension microphones for increased audio coverage.
What network connectivity options are available? It supports Ethernet (with PoE) and Wi-Fi connectivity.
Can the Cisco 8832 be powered using Power over Ethernet (PoE)? Yes, it supports PoE for simplified cabling and installation.
What kind of display does the phone have? It features a 3.9-inch monochrome LCD for viewing call information and settings.
Does the phone support SIP protocol? Yes, it supports Session Initiation Protocol (SIP).
Can the Cisco 8832 be used in daisy-chain mode? Yes, it allows daisy-chaining of two units for enhanced coverage in larger rooms.
What are the audio range and pickup capabilities? It has a 360-degree microphone pickup range of up to 10 feet without extension microphones.
Is it compatible with third-party PBX systems? Yes, it works with many third-party SIP-based PBX systems.
Does it support call encryption for secure communications? Yes, it supports secure RTP (SRTP) and Transport Layer Security (TLS) for encrypted communications.
What are the dimensions of the Cisco 8832? The dimensions are 13.8 x 1.6 x 13.8 inches (W x H x D).
Does the phone have a touchscreen interface? No, it uses physical buttons for navigation and control.
What is the weight of the Cisco 8832? The base unit weighs approximately 2.1 pounds (0.95 kg).
Can the phone support multiple languages? Yes, it supports multiple language options depending on the configuration.
What accessories are included with the phone? The standard package includes the base unit, Ethernet cable, and quick start guide. Optional accessories like microphones are sold separately.
Is there a warranty provided with the Cisco 8832? Yes, it typically comes with a one-year limited hardware warranty, depending on the region.
