Zebra ZD621 TT 300dpi Ethernet Printer (ZD6A043-30EF00EZ, ZD6A043-301F00EZ) | New

Zebra ZD621 TT 300dpi Ethernet Printer (ZD6A043-30EF00EZ, ZD6A043-301F00EZ) | New

SKU: ZD6A043-30EF00EZ-N
(0)No Reviews yet

🗹 Thermal transfer
🗹 Heavy-duty remote management features
🗹 Built-in security that protects your infrastructure against cyberattacks
🗹 30% more power than the ZD620 and virtually 300% more than the Zebra GX series
🗹 Easy printer installation and configuration via Bluetooth Low Energy (BLE)
🗹 Mobile printing with easy tap-to-pair as well as instant access to Zebra's extensive knowledge database with video tutorials, with Print Touch Chip (NFC)
🗹 Easy transport with optional battery options

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$429.99 $429.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Zebra ZD621 TT 300dpi Ethernet Printer (ZD6A043-30EF00EZ, ZD6A043-301F00EZ) | New

The Zebra ZD621 TT 300dpi Ethernet Printer (ZD6A043-30EF00EZ) is a high-performance desktop thermal transfer printer built for versatility and dependability in a variety of corporate environments. This modern printer combines high-quality print output with user-friendly features, making it perfect for retail, healthcare, and light industrial applications. The ZD621, with its 300 dpi resolution, Ethernet connectivity, and sturdy build, effectively produces crisp, clear labels and tags. The printer's user-friendly interface, small size, and powerful capabilities provide seamless integration into existing workflows while allowing for future expansion.


Key Features of Zebra ZD621 TT 300dpi Ethernet Printer


• 300 dpi print resolution for high-quality barcodes, text, and graphics

• Thermal transfer and direct thermal printing capabilities

• Print speeds up to 8 inches per second for efficient label production

• 4.3-inch full-color LCD touch display for easy operation and status monitoring

• Ethernet connectivity for seamless network integration

• Compact design suitable for space-constrained environments

• 2.36-inch maximum print width for versatile label sizes

• Durable construction with a dual-wall frame

• 512 MB RAM and 512 MB Flash memory for smooth data processing

• Multiple connectivity options including USB 2.0, USB Host, and Serial

• Zebra PrintDNA software suite for enhanced printer management and security

• ENERGY STAR certified for reduced power consumption

• Field-installable options for future upgrades (cutter, peeler)

• Compatible with a wide range of media types and sizes

• Print DNA apps, utilities, and developer tools for optimized performance

Specifications

Specifications for Zebra ZD621 TT 300dpi Ethernet Printer (ZD6A043-30EF00EZ, ZD6A043-301F00EZ) | New

ManufacturerZebra
Manufacturer Part NumberZD6A043-30EF00EZ, ZD6A043-301F00EZ
Product NameZebra ZD621 TT 300dpi Ethernet Printer
Product TypeLabel Printer
Enclosure Color
Gray
Print Speed
Up to 359.1 inch/min - max speed
Connectivity Technology
Wired
Interface
USB 2.0, LAN, serial, USB host
Max Resolution (B&W)
300 dpi
Language Simulation
ZPL II, EPL2, ZBI, EZPL, Extensible Mark-up Language (XML), PDF Direct
Features
Realtime clock, Print Touch tag, transmissive/gap sensor, reflective/black mark sensor
Fonts Included
16 x bitmapped ZPL II ¦ 2 x scalable ZPL ¦ 5 x expandable EPL2
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI
RAM Installed (Max)
256 MB
Technology / Form Factor
SDRAM
Flash Memory
512 MB
Media Type
Receipt paper, tag stock, continuous labels, die cut labels, wristband labels, fanfold labels
Max Media Size
Roll (4.65 in)
Min Media Size (Custom)
0.59 in
Max Media Size (Custom)
4.65 in x 39 in
Media Sizes
Roll (0.59 in - 4.65 in)
Max Printing Width
4.25 in
Media Thickness Range
0.003 in - 0.0075 in
Roll Maximum Outer Diameter
5 in
Roll Core Diameter
1 in, 3 in, 1.5 in, 0.5 in, 2 in
Media Feeders
1 x manual - 1 roll - Roll (4.65 in)
Networking
Print server
Connections

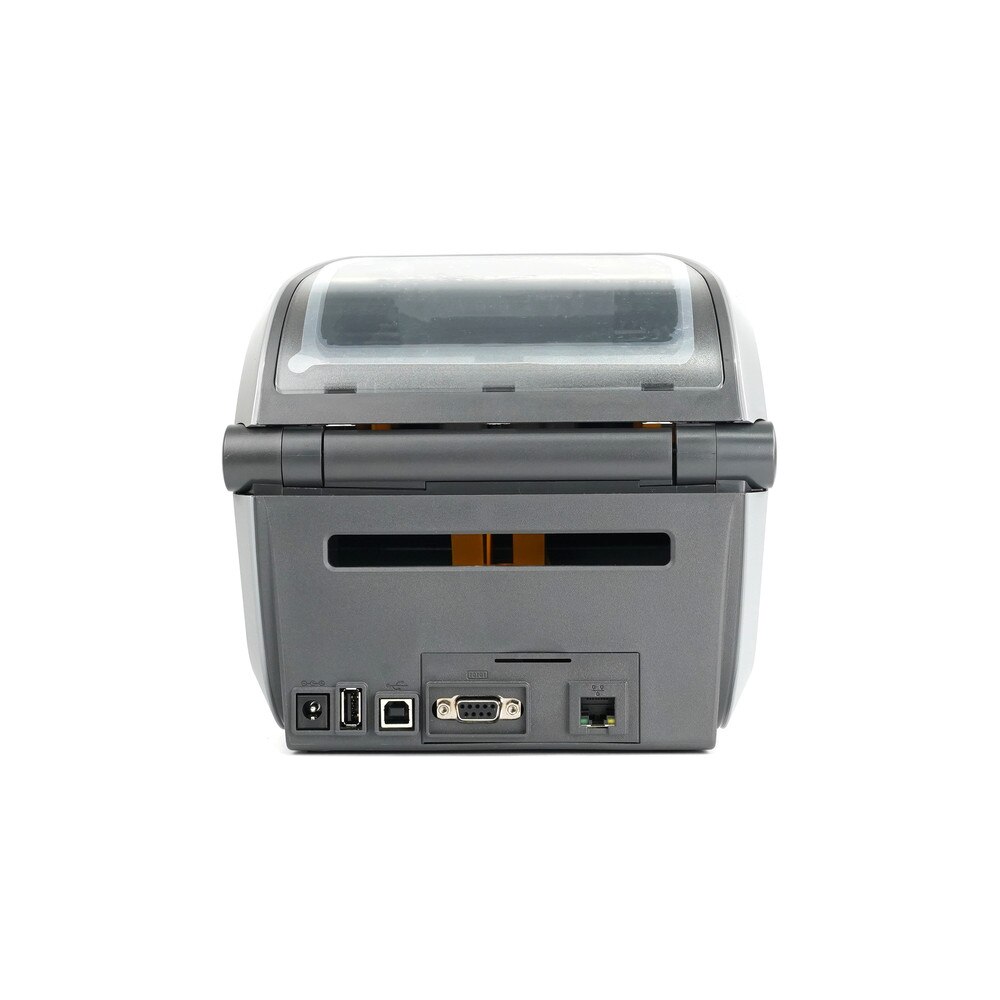

1 x USB 2.0 - 4 pin USB Type B ¦ 1 x USB host - 4 pin USB Type A ¦ 1 x LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9)
Included Accessories
2 core adapters, 2 ribbon cores
Cables Included

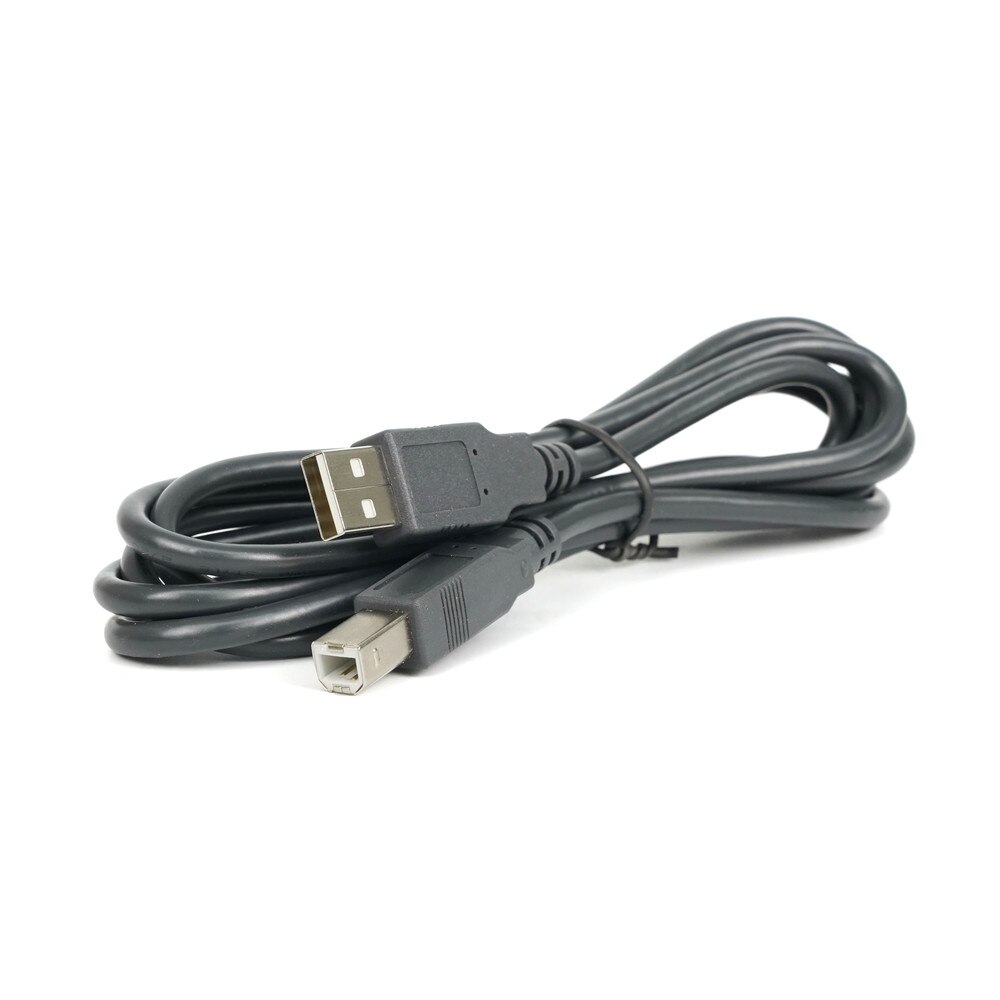

1 x USB cable
Features
Printer setup mobile app via BLE connection
Compliant Standards
FCC Class B certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, SABS, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15.247, CCC, IC, IEC 60950-1, KCC, FCC Part 15.209, S Mark, cTUVus, EN 62311, EN 300 328, BIS, INMETRO, CU, RSS-247, IEC 62368-1, EN 301 893, RoHS 2011/65/EU Amendment 2015/863
Power Device

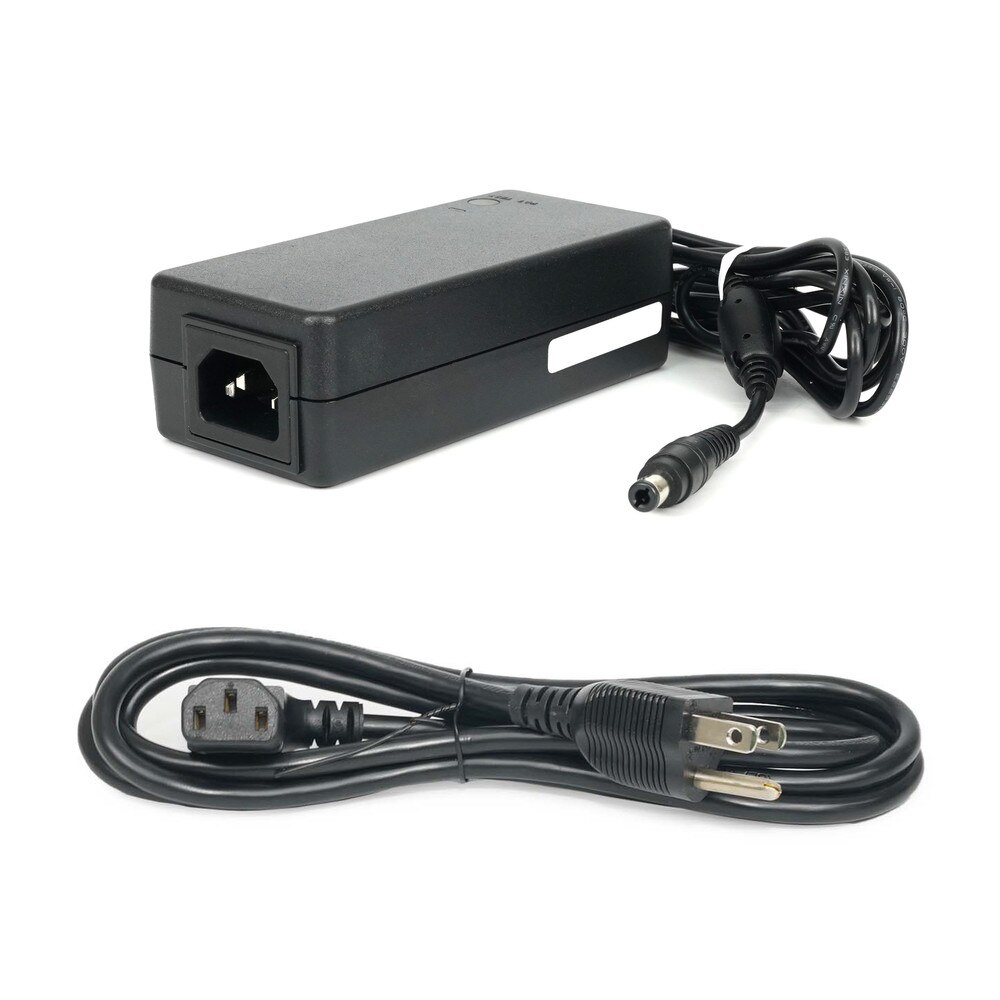

Power adapter - external
Frequency Required
50/60 Hz
Power Factor Correction
Yes
ENERGY STAR
Yes
Service & Support
Limited warranty - 2 years
Min Operating Temperature
39.9 °F
Max Operating Temperature
105.8 °F
Humidity Range Operating
10 - 90% (non-condensing)
Width
8 in
Depth
10.5 in
Height
7.6 in
Weight
5.51 lbs


User Guides

Frequently Asked Questions

Zebra ZD621 TT 300dpi Ethernet Printer
Frequently Asked Questions (FAQ's)



What types of media does the ZD621T support?
  • The ZD621T supports thermal transfer and direct thermal labels, receipts, and tags.
  • What is the maximum print speed of the ZD621T?
  • The maximum print speed is 8 inches per second.
  • What is the maximum print width for the ZD621T?
  • The maximum print width is 4.09 inches (104 mm).
  • Does the ZD621T have wireless connectivity options?
  • Yes, it supports Wi-Fi and Bluetooth connectivity, depending on the configuration.
  • What is the resolution of the ZD621T?
  • The printer comes in two resolutions: 203 dpi and 300 dpi.
  • Can the ZD621T handle ribbon and label rolls of different sizes?
  • Yes, it supports different ribbon and label roll sizes with a maximum ribbon length of 300 meters.
  • Is the ZD621T compatible with Zebra’s Print DNA software suite?
  • Yes, it is compatible with Zebra Print DNA for enhanced manageability, security, and productivity.
  • What interfaces are available on the ZD621T?
  • The ZD621T offers multiple interfaces, including USB, USB Host, Ethernet, and optional RS-232 and Bluetooth/Wi-Fi.
  • Does the ZD621T have a touchscreen display?
  • Yes, it features a 4.3-inch full-color touchscreen display for easy operation.
  • What is the difference between direct thermal and thermal transfer printing?
  • Direct thermal printing uses heat-sensitive paper without a ribbon, while thermal transfer printing uses a ribbon to transfer ink onto the media, providing longer-lasting prints.
  • Can I use the ZD621T with cloud-based applications?
  • Yes, the ZD621T supports cloud-based applications through Zebra’s Print DNA and other compatible software.
  • Is the ZD621T backward compatible with older Zebra printers?
  • Yes, the ZD621T is backward compatible with previous models and supports Zebra’s legacy command languages.

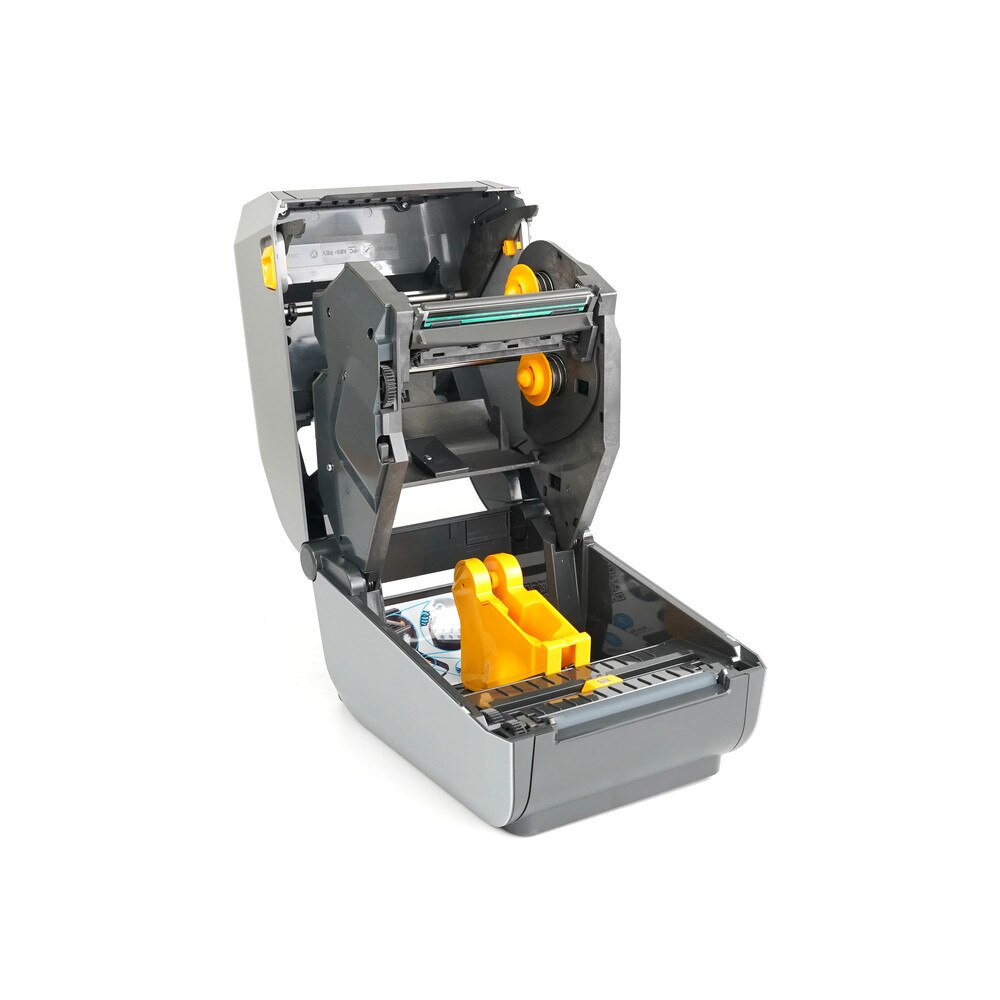

  • How do I load media and ribbons into the ZD621T?
  • The ZD621T has a simple media-loading process with color-coded touchpoints to guide users through loading labels and ribbons.
  • Does the ZD621T support RFID printing?
  • The ZD621T does not have built-in RFID printing capabilities, but Zebra offers other models that do.
  • What kind of power supply does the ZD621T use?
  • The ZD621T uses an external universal power supply with an auto-sensing feature that adjusts to different voltages.
  • Is the ZD621T suitable for harsh environments?
  • The ZD621T is designed for light industrial and commercial environments. It is not ruggedized for extremely harsh conditions.
  • Can I integrate the ZD621T with mobile devices?
  • Yes, the ZD621T can be integrated with mobile devices using Zebra’s Link-OS Mobile SDK and other compatible apps.
  • What is the warranty on the ZD621T?
  • The ZD621T comes with a standard 2-year warranty, with options to purchase extended warranties.
  • How do I update the firmware on the ZD621T?
  • Firmware updates can be done via Zebra’s Printer Setup Utility, Zebra Setup Utilities, or manually through a USB connection.
  • What security features are available on the ZD621T?
  • The ZD621T offers advanced security features, including secure boot, whitelist, and encryption to protect sensitive data and prevent unauthorized access.
