  • Zebra ZD421 TD 203dpi ET BT Printer (ZD4A042-D0EE00EZ, ZD4A042-D01E00EZ) | New
Zebra ZD421 TD 203dpi ET BT Printer (ZD4A042-D0EE00EZ, ZD4A042-D01E00EZ) | New

Zebra ZD421 TD 203dpi ET BT Printer (ZD4A042-D0EE00EZ, ZD4A042-D01E00EZ) | New

SKU: ZD4A042-D0EE00EZ-N
(0)No Reviews yet

🗹 Thermal direct
🗹 Backwards compatible with virtually any existing printer
🗹 Quick printer setup via Bluetooth Low Energy (BLE) using the mobile Zebra app
🗹 Use the included Print Touch tag (NFC) to simply tap to pair and print
🗹 PrintSecure
🗹 The smart chip in the ribbon lets you know when it needs replacing
🗹 Print DNA software tools to remotely manage and optimise printers, track and automate supplies replenishment and ensure security.

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$429.99 $429.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Zebra ZD421 TD 203dpi ET BT Printer (ZD4A042-D0EE00EZ, ZD4A042-D01E00EZ) | New

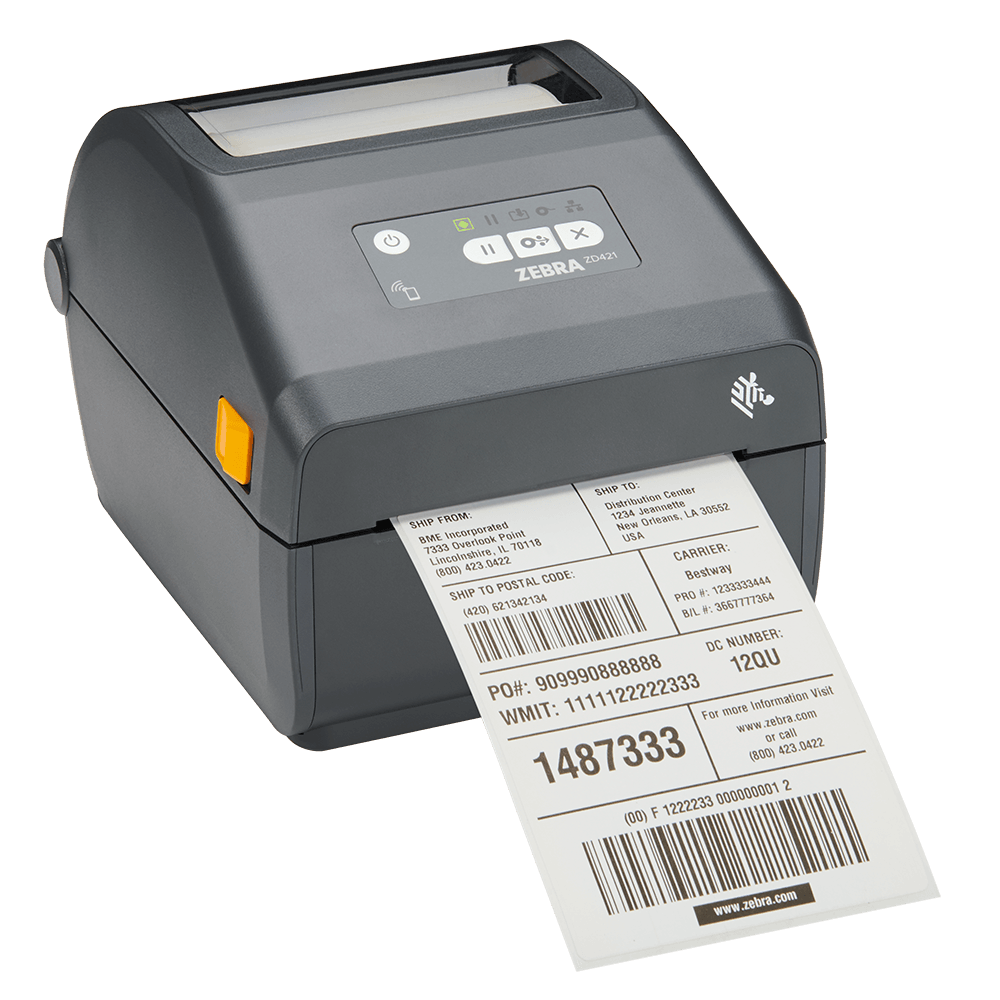

The Zebra ZD421 TD 203dpi ET BT Printer (ZD4A042-D0EE00EZ, ZD4A042-D01E00EZ) is a versatile and efficient desktop thermal direct printer designed for various business applications. This advanced printer combines high-quality output with user-friendly features, making it ideal for retail, healthcare, and light industrial environments. With its 203 dpi resolution, Ethernet, and Bluetooth connectivity, the ZD421 delivers crisp, clear labels quickly and offers flexible connection options. The printer's intuitive interface, compact design, and advanced features ensure seamless integration into existing workflows while providing room for future growth.


Key Features of Zebra ZD421 TD 203dpi ET BT Printer


• 203 dpi print resolution for clear barcodes, text, and graphics

• Direct thermal printing capability for convenient, ribbon-free operation

• Print speeds up to 6 inches per second (152 mm/s) for efficient label production

• Ethernet and Bluetooth connectivity for flexible network and wireless printing options

• User-friendly interface with 5 status icon LEDs and 3-button control

• Compact design suitable for space-constrained environments

• 4.09-inch (104 mm) maximum print width for versatile label sizes

• 512 MB Flash memory and 256 MB SDRAM for smooth data processing

• USB 2.0 and USB Host ports for additional connectivity options

• Zebra PrintDNA software suite for enhanced printer management and security

• OpenACCESS design for easy media loading

• Supports ZPL II, EPL2, XML, and PDF Direct printing languages

• Compatible with Windows, Android, and iOS devices

• ENERGY STAR certified for reduced power consumption

• Field-installable connectivity and media handling options for future upgrades

Specifications

Specifications for Zebra ZD421 TD 203dpi ET BT Printer (ZD4A042-D0EE00EZ, ZD4A042-D01E00EZ) | New

Manufacturer Zebra
Manufacturer Part Number ZD4A042-D0EE00EZ, ZD4A042-D01E00EZ
Product Name Zebra ZD421 TD 203dpi ET BT Printer
Product Type Label Printer
Print Speed
Up to 359.1 inch/min - max speed
Connectivity Technology
Wired
Interface
USB 2.0, LAN, USB host
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL II, EPL2, ZBI, EZPL, Extensible Mark-up Language (XML), PDF Direct
Features
Realtime clock, transmissive/gap sensor, reflective/black mark sensor
Fonts Included
16 x bitmapped ZPL II ¦ 2 x scalable ZPL ¦ 5 x expandable EPL2
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI, UPC-2, UPC-5
RAM Installed (Max)
256 MB
Technology / Form Factor
SDRAM
Flash Memory
512 MB
Media Type
Tag stock, receipt labels, continuous labels, die cut labels, wristband labels, fanfold labels, black mark labels
Max Media Size
Roll (4.25 in)
Min Media Size (Custom)
0.59 in x 0.25 in
Max Media Size (Custom)
4.25 in x 39 in
Media Sizes
Roll (0.6 in - 4.25 in)
Max Printing Width
4.09 in
Media Thickness Range
0.003 in - 0.0075 in
Roll Maximum Outer Diameter
5 in
Roll Core Diameter
1 in, 0.5 in
Media Feeders
1 x manual - 1 roll - Roll (4.25 in)
Networking
Print server
Connections
1 x USB 2.0 - 4 pin USB Type B ¦ 1 x USB host - 4 pin USB Type A ¦ 1 x LAN - RJ-45
Included Accessories
2 core adapters, 1" ribbon take-up core, 0.5" ribbon take-up core
Cables Included
1 x USB cable
Features
Printer setup mobile app via BLE connection
Compliant Standards
FCC Class B certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, SABS, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15.247, CCC, IC, IEC 60950-1, KCC, FCC Part 15.209, S Mark, cTUVus, EN 62311, EN 300 328, RoHS 2011/65/EU, BIS, INMETRO, CU, RSS-247, IEC 62368-1, EN 301 893, EN 55035
Power Device
Power adapter - external
Frequency Required
50/60 Hz
Power Factor Correction
Yes
ENERGY STAR
Yes
Service & Support
Limited warranty - 2 years
Min Operating Temperature
39.9 °F
Max Operating Temperature
105.8 °F
Humidity Range Operating
10 - 90% (non-condensing)
Width
7 in
Depth
8.7 in
Height
5.9 in
Weight
2.98 lbs

User Guides

Zebra ZD421 TD 203dpi ET BT Printer Data Sheet

Frequently Asked Questions

Zebra ZD421 TD 203dpi ET BT Printer (ZD4A042-D0EE00EZ, ZD4A042-D01E00EZ)
Frequently Asked Questions (FAQ's)



What type of labels can the Zebra ZD421 print?
  • The Zebra ZD421 can print a wide variety of label types including paper, synthetic materials, and wristbands.
    • What are the connectivity options for the Zebra ZD421?
  • The ZD421 supports USB, Ethernet, Bluetooth, and Wi-Fi connectivity options.
    • What is the print resolution of the Zebra ZD421?
  • The ZD421 is available in 203 dpi and 300 dpi print resolutions.
    • Can the Zebra ZD421 print barcodes?
  • Yes, the ZD421 can print various types of barcodes including linear and 2D barcodes.
    • What is the maximum print width of the Zebra ZD421?
  • The maximum print width is 4.09 inches (104 mm).
    • Is the Zebra ZD421 compatible with mobile devices?
  • Yes, the ZD421 supports mobile printing through Bluetooth and Wi-Fi.
    • Does the Zebra ZD421 have a peeler and cutter option?
  • Yes, the ZD421 can be equipped with a peeler and a cutter as optional accessories.
    • What operating systems are compatible with the Zebra ZD421?
  • The ZD421 is compatible with Windows, Mac, and Linux operating systems.
    • What software can be used to design and print labels on the Zebra ZD421?
  • ZebraDesigner software, as well as other third-party label design software, can be used to create and print labels.
    • How do I load labels into the Zebra ZD421?

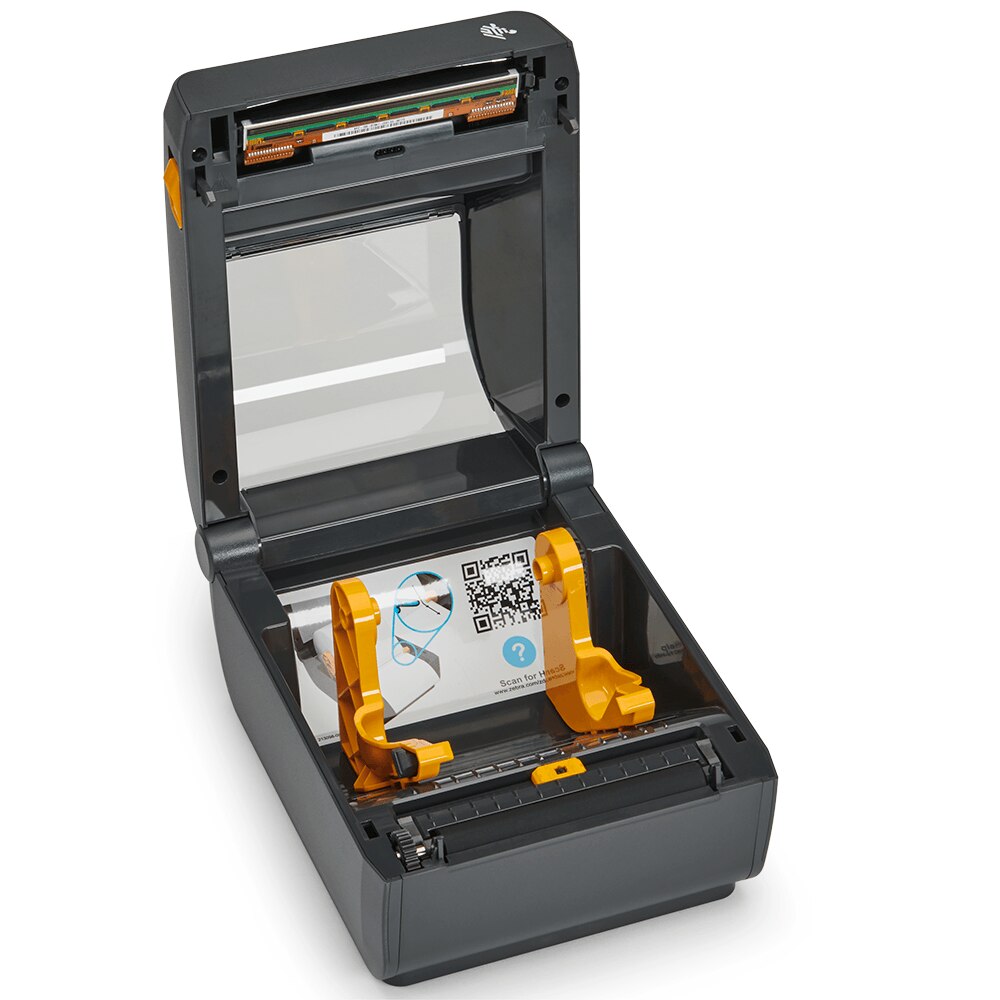

  • Labels can be loaded into the printer by opening the media cover and placing the roll onto the media supply hangers.
    • What is the print speed of the Zebra ZD421?
  • The ZD421 can print up to 6 inches per second (152 mm/s).
    • Does the Zebra ZD421 support RFID printing?
  • No, the ZD421 does not support RFID printing.
    • Can I manage the Zebra ZD421 remotely?
  • Yes, the ZD421 can be managed remotely using Zebra's Printer Profile Manager Enterprise software.
    • Is the Zebra ZD421 energy-efficient?
  • Yes, the ZD421 is ENERGY STAR® certified, ensuring energy efficiency.
    • What is the maximum media roll diameter that the Zebra ZD421 can accommodate?
  • The ZD421 can accommodate media rolls with a maximum diameter of 5 inches (127 mm).
    • How can I update the firmware on the Zebra ZD421?
  • Firmware updates can be performed using Zebra's Printer Setup Utilities or Zebra’s Windows Driver.
    • What types of interfaces are available on the Zebra ZD421?
  • The ZD421 includes USB, Ethernet, Serial, Bluetooth, and Wi-Fi interfaces.
    • Does the Zebra ZD421 support printing from cloud-based applications?
  • Yes, the ZD421 supports printing from cloud-based applications via Zebra's Print DNA suite.
    • What maintenance is required for the Zebra ZD421?
  • Regular maintenance includes cleaning the printhead, platen roller, and media sensors to ensure optimal performance.
