Ubiquiti airMAX NanoStation M2 Wireless Access Point (NSM2) | New

Overview of Ubiquiti airMAX NanoStation M2 Wireless Access Point (NSM2) | New

The Ubiquiti airMAX NanoStation M2 Wireless Access Point (NSM2) is a long-range, high-performance wireless system designed for both indoor and outdoor use. Utilizing 2x2 MIMO technology and a potent 400 MHz Atheros CPU, the NSM2 is perfect for point-to-point (PtP) and point-to-multipoint (PtMP) applications since it offers an amazing range of up to 15 km and true outdoor throughput of up to 150 Mbps. Strong, steady connections are guaranteed by its integrated 10.4–11.2 dBi dual-polarity antenna and the small, weatherproof shell can withstand challenging conditions. Integration with IP cameras and other network devices is made easy by the dual Ethernet connections, which include a secondary connector with PoE passthrough. ISPs, companies and installers rely on the NanoStation M2 for dependable wireless bridging, CPE and backhaul solutions because it is simple to set up and operate using Ubiquiti's user-friendly airOS software.

Key Features of Ubiquiti airMAX NanoStation M2 Wireless Access Point

• 2.4GHz 2x2 MIMO Technology delivers up to 150 Mbps real outdoor throughput for fast, stable wireless connections.

• Integrated 10.4–11.2 dBi Dual-Polarity Antenna that is optimized for long-range, high-gain performance in PtP and PtMP setups.

• Up to 15km+ Range that supports extended wireless links for bridging buildings, campuses or remote sites.

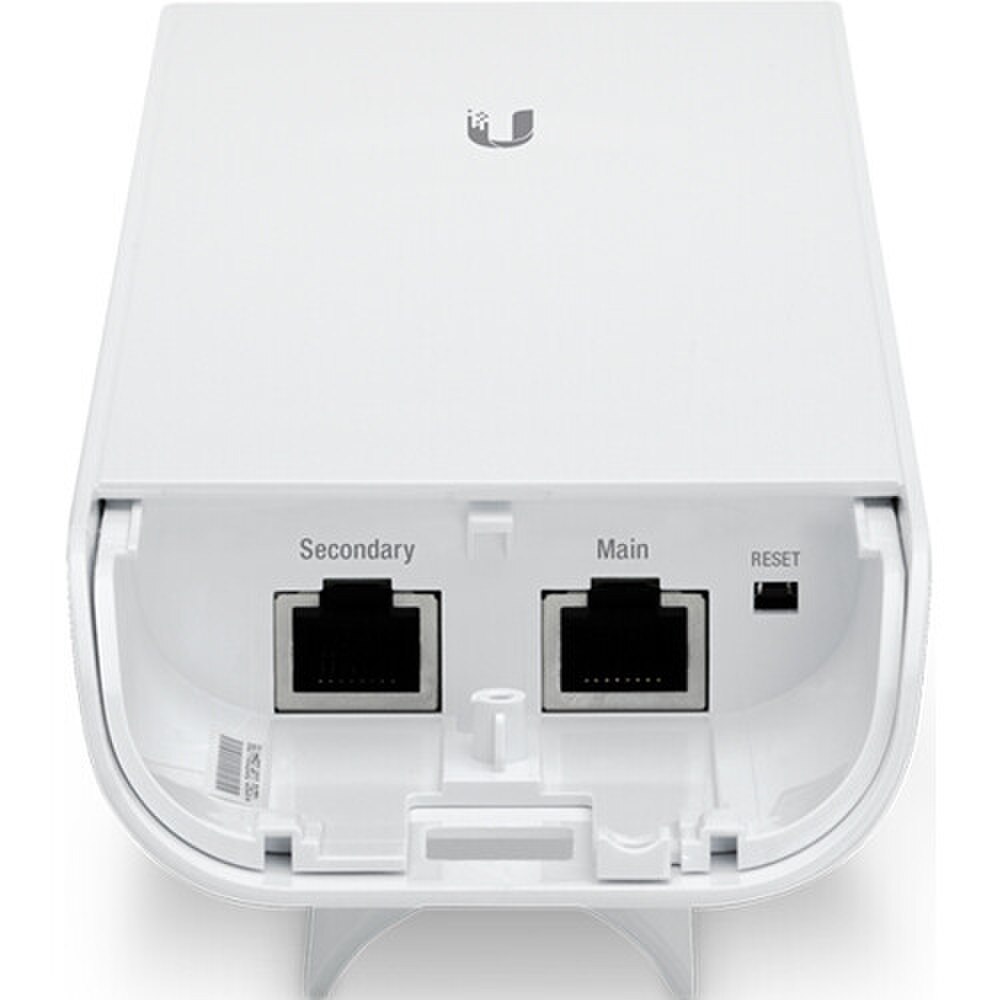

• Dual Ethernet Ports with secondary port with PoE passthrough for powering IP cameras or additional devices.

• Weather-Resistant UV-Stabilized Enclosure that is built for reliable operation in harsh outdoor conditions.

• Powerful 400 MHz Processor & 32MB RAM ensures smooth data handling and responsive performance.

• Passive PoE Support (24V) simplifies installation and reduces cable clutter.

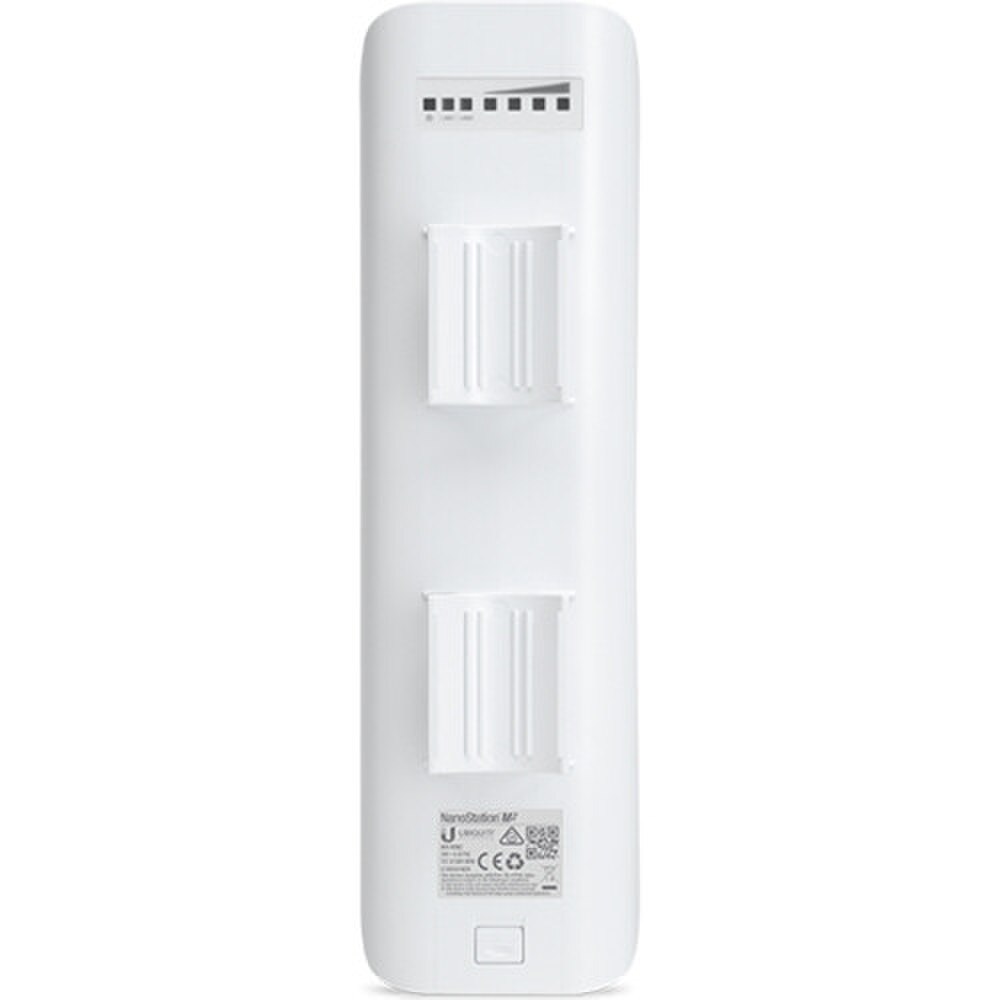

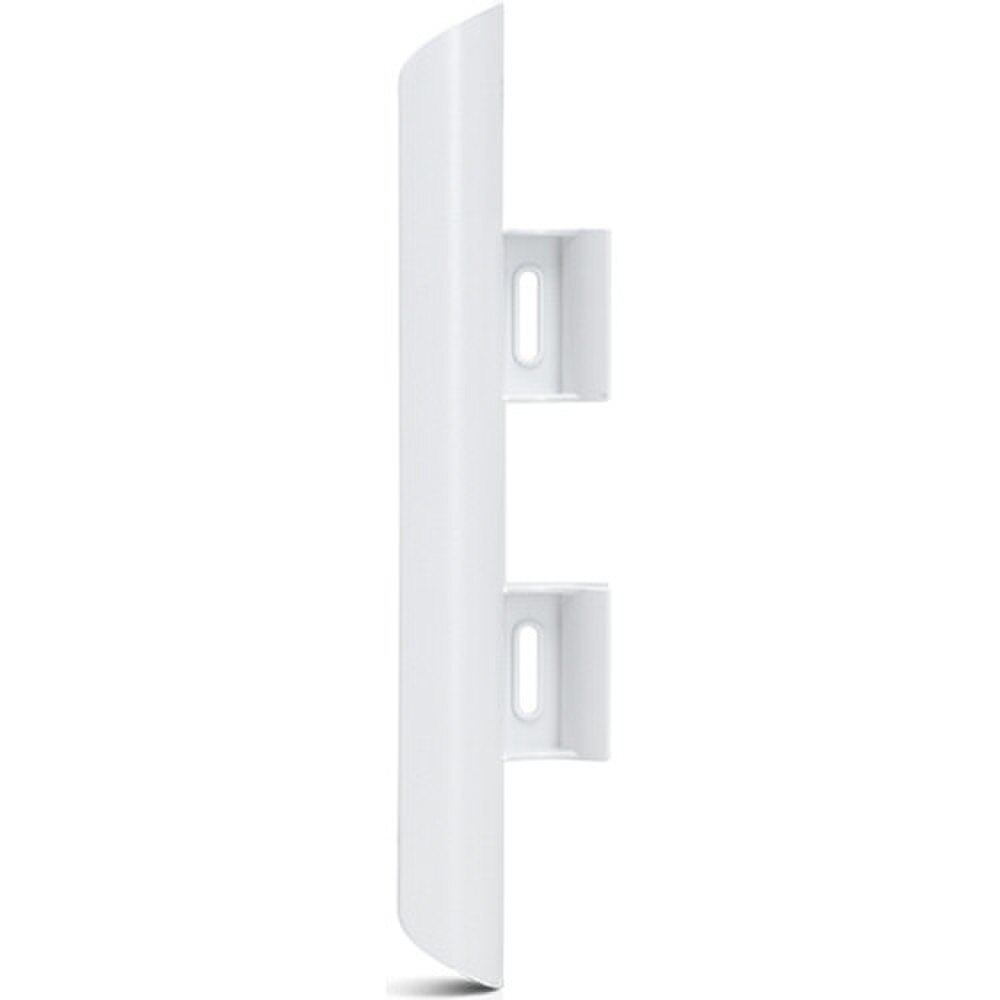

• Easy Mounting that includes pole-mount kit and supports flexible mounting options.

• Intuitive airOS Management with user-friendly interface for configuration, monitoring and firmware updates.

• Low Power Consumption that operates at just 8W for energy-efficient deployments.

Benefits of Ubiquiti airMAX NanoStation M2 Wireless Access Point

🗹 Easily bridge large distances or connect remote sites with high throughput and minimal latency.

🗹 Suitable for ISP CPE, wireless backhaul, surveillance integration and campus networking.

🗹 Dual Ethernet ports with PoE passthrough let you add cameras or devices without extra power lines.

🗹 Lightweight design, included mounting kit and intuitive software make setup fast and hassle-free.

🗹 UV-stabilized, weather-resistant housing ensures years of dependable outdoor or indoor use.

🗹 Supports both point-to-point and point-to-multipoint configurations for growing networks.

🗹 Advanced firmware, cross-polarity isolation and AES encryption protect your data and optimize airtime.

🗹 Proven in the field for ISPs, enterprises and installers seeking robust wireless solutions.

Specifications for Ubiquiti airMAX NanoStation M2 Wireless Access Point (NSM2) | New

Ubiquiti airMAX NanoStation M2 Wireless Access Point (NSM2)
Frequently Asked Questions (FAQ's)
