Ruckus dual-band Wireless Access Point (901-R510-US00) | Recertified
SKU: 901-R510-US00
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview

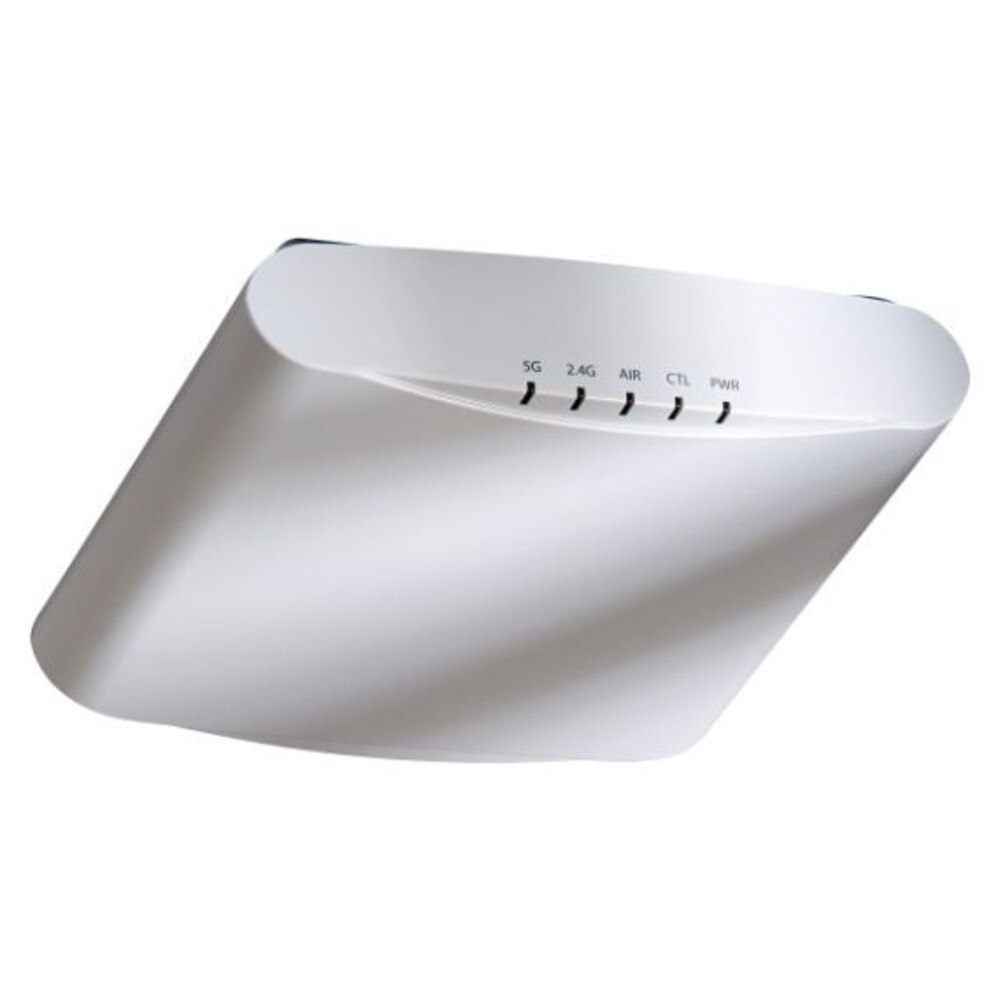

Ruckus Wireless Zoneflex R510
High Performance, 802.11ac Wave 2 Mid-Range Smart Wi-Fi Access Points with Adaptive Antenna Technology The Ruckus ZoneFlex R510 delivers high-performance and reliable 802.11ac wireless networking with MU-MIMO (Multi-User MultipleInput Multiple-Output) capability. MU-MIMO helps boost network throughput by serving multiple clients simultaneously and also benefiting non-Wave 2 clients, thus improving overall network performance.
The R510, through its USB port, also enables IoT readiness for technologies like BLE, which helps drive business efficiencies from both a revenue and cost perspective. It does this with existing 802.3af power, obviating the need for expensive, capital intensive switch upgrades.
Each ZoneFlex R510 integrates Ruckus-patented BeamFlex+, a software- controlled, high gain antenna array that continually forms and directs each Wi-Fi packet over the best performing signal path. Using dual-polarized antennas the R510 adapts in real time to anticipate hand-held device movement and rotation ensuring consistent performance.
Specifications
Product Specs
Miscellaneous
| Compliant Standards | UL 2043, RoHS, WEEE, EN 60601-1-2, EN 50121-4, IEC 61373, EN 50121-1 |
Networking
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI, TR-069 |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Concurrent stations: 512 ¦ Simultaneous VoIP clients: 30 |
| Status Indicators | Power, status |
| Features | Routing, DHCP support, NAT support, power over Ethernet (PoE), load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), security lock slot (cable lock sold separately), BeamFlex+ Smart Antenna Technology, MU-MIMO technology, beamforming technology |
| Encryption Algorithm | AES, WPA2, WPA-PSK |
| Authentication Method | RADIUS, LDAP, Active Directory |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.11ac |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
General
| Device Type | Wireless access point |
| Width | 6.5 in |
| Depth | 6.2 in |
| Height | 1.6 in |
| Weight | 12.34 oz |
| Localization | United States |
Expansion / Connectivity
| Interfaces | 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A |
Power
| Power Over Ethernet (PoE) Supported | PoE |
Antenna
| Antenna | Internal |
Frequently Asked Questions
Ruckus dual-band Wireless Access Point (901-R510-US00)
What is the Ruckus 901-R510-US00? The Ruckus R510 is a dual-band 802.11ac Wave 2 access point built for small to medium-sized enterprises that provides high-performance Wi-Fi and easy scalability.
What wireless standards does the R510 support? It supports 802.11a/b/g/n/ac Wave .
What is the maximum data rate of the Ruckus R510? Up to 1,167 Mbps (300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz).
Is the R510 suitable for outdoor use? No, it is designed for indoor environments.
Can the R510 be managed via a cloud controller? Yes, it can be administered via the Ruckus Cloud or ZoneDirector for centralized control.
Does the R510 support Power over Ethernet (PoE)? Yes, it supports PoE (802.3af) for power and data over a single cable.
What are the mounting options for the R510? It can be ceiling or wall-mounted using the included hardware.
What are the physical dimensions of the R510? 19.5 x 19.5 x 4.2 cm (7.7 x 7.7 x 1.65 inches).
What is the power consumption of the R510? It consumes up to 12.3W when fully loaded.
Does the R510 support MU-MIMO? Yes, it supports 2x2:2 MU-MIMO for simultaneous data streams to multiple devices.
What kind of security features does the R510 provide? It supports WPA-PSK, WPA-TKIP, WPA2-AES, 802.1X, dynamic VLANs, and guest network isolation.
How many simultaneous clients can the R510 handle? It supports up to 512 connected devices.
Does the R510 have beamforming technology? Yes, it employs BeamFlex+ adaptive antenna technology to enhance signal quality.
What is the range of the Ruckus R510? It can cover up to 150 feet indoors, depending on the circumstances.
Can the R510 operate as a standalone AP? Yes, it can function as an independent access point or as part of a controller-managed network.
Is the R510 compatible with third-party switches and routers? Yes, it can integrate with most standard networking hardware.
Does the R510 support mesh networking? Yes, it supports SmartMesh for flexible deployment without an Ethernet backhaul.
What firmware updates are available for the R510? Firmware upgrades are available through Ruckus support, depending on your membership.
Does the R510 support VLAN tagging? Yes, it supports VLAN tagging to segment network traffic effectively.
Does the R510 support band steering? Yes, it can steer clients to the 5 GHz band for better performance.
