Ruckus R350 Indoor Access Point (901-R350-US02) | New

Ruckus R350 Indoor Access Point (901-R350-US02) | New

SKU: 901-R350-WW02-N
1Review

🗹 802.11ax Wi-Fi 6 Access Point
🗹 574 Mbps Throughput at 2.4 GHz
🗹 1.2 Gbps Throughput at 5 GHZ
🗹 Supports 256 concurrent users

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$299.99 $299.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Ruckus R350 Indoor Access Point (901-R350-US02) | New

The Ruckus R350 Indoor Access Point (901-R350-US02) is a strong Wi-Fi 6 solution built for small to medium-sized organizations that need enterprise-grade wireless connection at a reasonable price. This adaptable access point combines cutting-edge Wi-Fi 6 (802.11ax) technology with Ruckus' unique performance optimization capabilities, making it suitable for small offices, retail stores, and restaurants. The R350 uses BeamFlex adaptive antenna technology to provide consistent and dependable wireless networking in tough situations, resulting in enhanced coverage and user experience.


Key Features of Ruckus R350 Indoor Access Point


• Dual-band operation with 2.4 GHz (574 Mbps) and 5 GHz (1200 Mbps) concurrent support45

• Advanced BeamFlex technology with 64 antenna patterns per band5

• Supports up to 256 concurrent users and 16 SSIDs4

• Wi-Fi 6 (802.11ax) technology for improved efficiency and performance3

• Built-in IoT readiness through USB port integration6

• SmartMesh networking for self-forming, self-healing networks6

• Single Gigabit Ethernet port with PoE support5

• Cloud management through RUCKUS Cloud, SmartZone, or Unleashed platforms5

• Compact dimensions: 5.75"(L) x 6.14"(W) x 1.55"(H)5

• Operating temperature range of 0°C to +40°C3

• Advanced security features with WPA3 support4

• ChannelFly dynamic channel selection5

• Quality of Service (QoS) for traffic prioritization4

• Plenum-rated design for various installation environments5

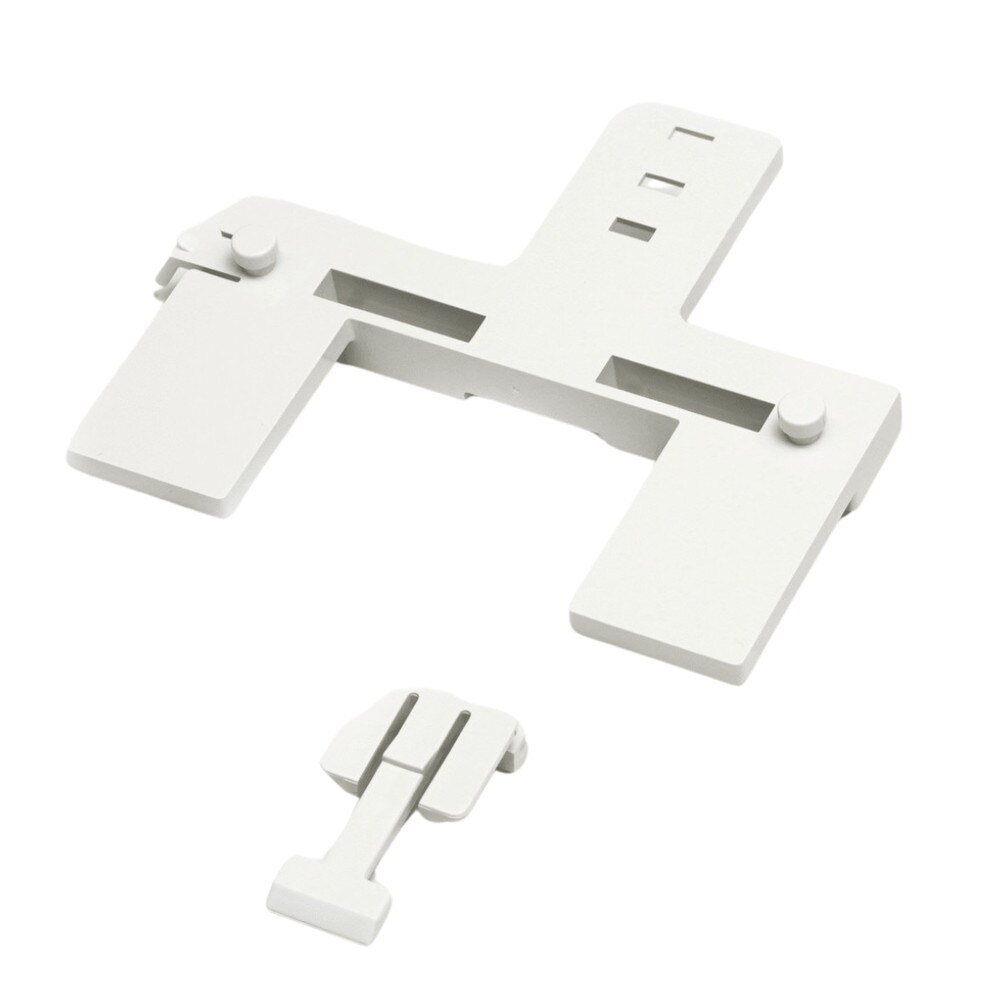

• Includes adjustable acoustic drop ceiling bracket

Specifications

Specifications for Ruckus R350 Indoor Access Point (901-R350-US02) | New

ManufacturerRuckus
Manufacturer Part Number901-R350-US02
Product NameRuckus R350 Indoor Access Point
Product TypeAccess Point
Ruggedized Design
Indoor
Width
6.1 in
Depth
5.7 in
Height
1.5 in
Weight
12.98 oz
Form Factor
Desktop / wall / ceiling mountable
Connectivity Technology
Wireless
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax
Network / Transport Protocol
L2TP
Frequency Band
2.4 GHz, 5 GHz
Performance
Maximum data rate (5 GHz): 1200 Mbps ¦ Maximum data rate (2.4 GHz): 574 Mbps
Capacity
Concurrent users: 256 ¦ Maximum number of configured SSIDs: 16
Features
Load balancing, VLAN support, IPv6 support, wall mountable, Wireless Intrusion Detection System (WIDS), Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, reset button, IPv4 support, Low Density Parity Check (LDPC), Space Time Blocking Code (STBC), ceiling mountable, Wireless Intrusion Prevention System (WIPS), Captive Portal, Hotspot Access Point Capability, Airtime Fairness, 2x2 MU-MIMO technology, STBC support, port-based VLAN, ChannelFly, 2x2 SU-MIMO technology, L2TP support, Airtime-based WLAN Prioritization, HotSpot 2.0, WISPr authentication, WMM Power Save, security slot (Kensington security lock compatible), SmartRoam, SpeedFlex, SmartZone
Encryption Algorithm
AES, TKIP, WPA2, WPA-PSK
Authentication Method
RADIUS, Basic Service Set Identifier (BSSID)
Compliant Standards
IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11n, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ac Wave 2
Antenna
Internal
Gain Level
3 dBi
Interfaces

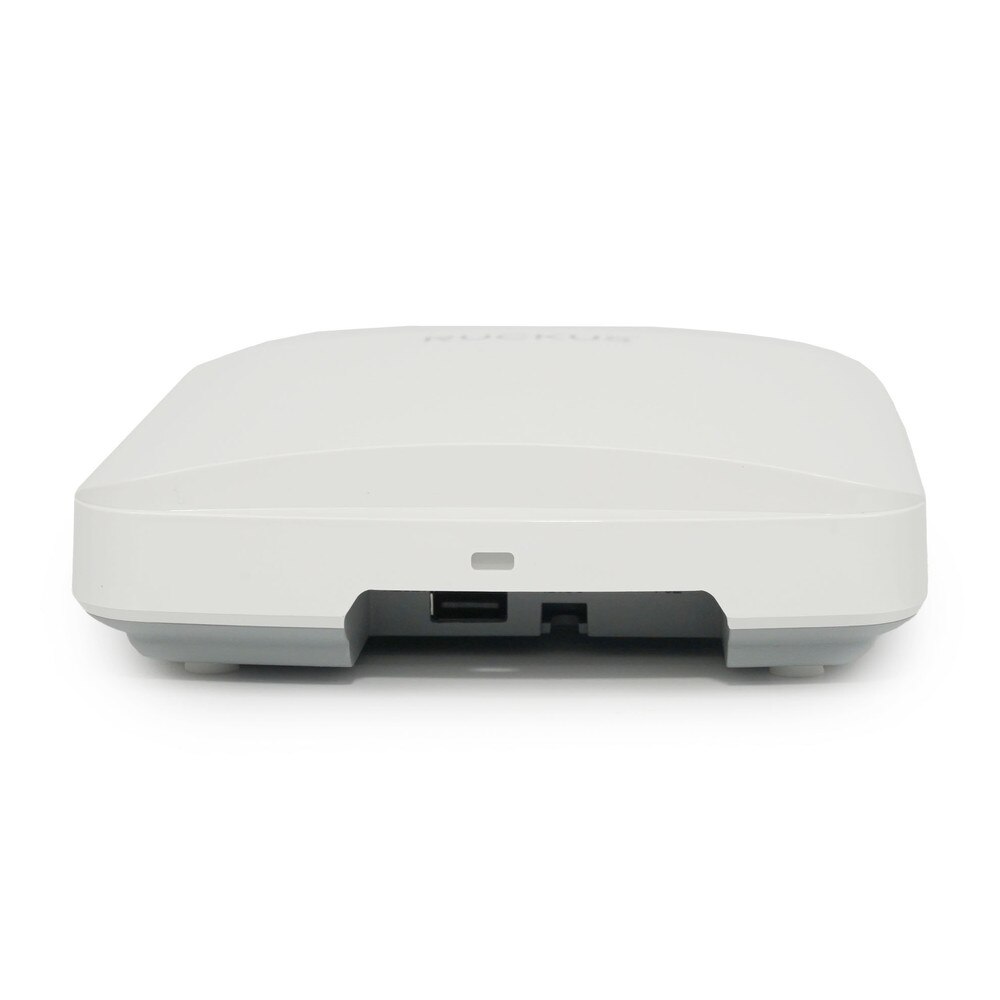

1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x USB 2.0 - Type A
Compliant Standards
EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, UL 2043, RoHS, EN 60950-1, WEEE, EN 60601-1-2, EN 62311, EN 50121-4, IEC 61373, EN 50121-1, ISTA 2A
Power Over Ethernet (PoE) Supported
PoE
Power Consumption Operational
12.62 Watt
Service & Support
Limited warranty - lifetime
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
0 - 95% (non-condensing)

User Guides

Ruckus R350 Indoor Access Point (901-R350-US02) Data Sheet

Frequently Asked Questions

Ruckus R350 Indoor Access Point (901-R350-US02)
Frequently Asked Questions (FAQ's)



What is the Ruckus R350 Indoor WiFi Access Point designed for?
  • The R350 is designed for small to medium-sized businesses and dense indoor environments, offering reliable WiFi 6 (802.11ax) connectivity.
    • What WiFi standards does the R350 support?
  • The R350 supports 802.11a/b/g/n/ac/ax standards, ensuring compatibility with older and newer devices.
    • What is the maximum speed supported by the R350?
  • It supports a maximum aggregate speed of 1.8 Gbps (574 Mbps on 2.4 GHz and 1200 Mbps on 5 GHz).
    • How many devices can the R350 handle simultaneously?
  • The R350 can support up to 256 client devices concurrently, depending on the network setup and application usage.
  • Does it feature MU-MIMO technology?
  • Yes, it supports 2x2:2 MU-MIMO for better multi-device performance.
    • Is the R350 easy to install?
  • Yes, it offers plug-and-play installation and is compatible with Ruckus’ cloud and controller-based management systems.
    • What are the mounting options for the R350?

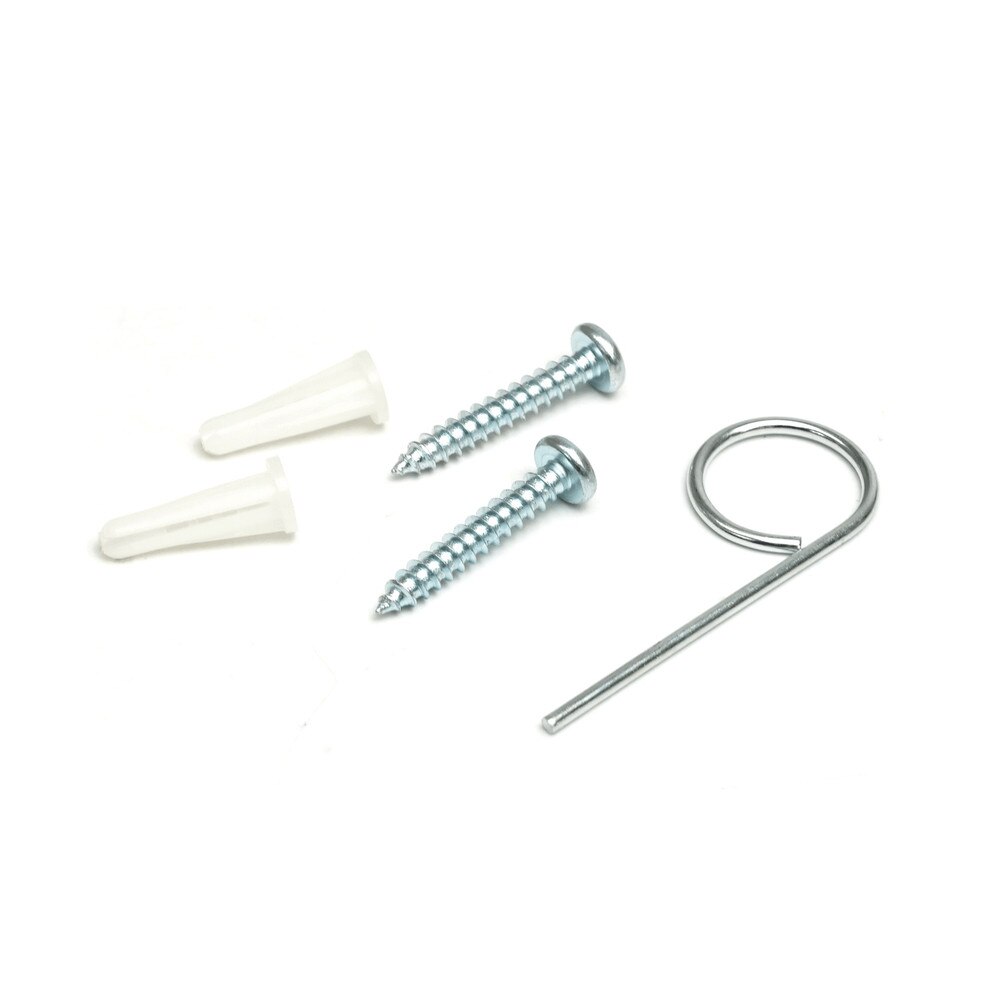

  • It can be mounted on ceilings, walls, or desktops with included mounting kits.
    • Does it support mesh networking?
  • Yes, the R350 supports Ruckus SmartMesh, allowing seamless deployment in areas without Ethernet backhaul.
    • Can the R350 be managed without a controller?
  • Yes, it supports standalone operation but performs optimally when managed through a Ruckus controller or cloud-based system.
    • What type of power supply does the R350 require?
  • It supports Power over Ethernet (PoE) (802.3af) or an optional DC power adapter.
    • Does the R350 support WPA3 security?
  • Yes, the R350 is compatible with WPA3, the latest WiFi security protocol.
    • What is BeamFlex+ technology, and is it included?
  • BeamFlex+ is Ruckus’ patented antenna technology that optimizes signal strength and coverage. The R350 features this technology.
    • Does the R350 support band steering?
  • Yes, it can guide dual-band devices to the 5 GHz band for better performance.
    • Can the R350 prioritize certain types of traffic?
  • Yes, it includes Quality of Service (QoS) to prioritize traffic for applications like video streaming, VoIP, and gaming.
    • Does it support VLAN tagging?
  • Yes, the R350 supports VLAN tagging for network segmentation and traffic management.li>
    • Is the R350 compatible with older WiFi devices?
  • Yes, it is fully backward compatible with WiFi 4 (802.11n) and WiFi 5 (802.11ac) devices.
    • Does it include a mobile app for management?
  • Yes, it can be managed via the Ruckus Cloud app for configuration and monitoring.
    • What management platforms are supported?
  • The R350 works with Ruckus SmartZone, ZoneDirector, and Ruckus Cloud management solutions..
    • Does the R350 support firmware updates?
  • Yes, firmware updates can be done through the management interface or Ruckus Cloud.
    • What operating systems can be used to manage the R350?
  • It can be managed via devices running Windows, macOS, Android, and iOS.
