Overview

Overview of Ruckus R320 Wireless Access Point (901-R320-US02) | Like New

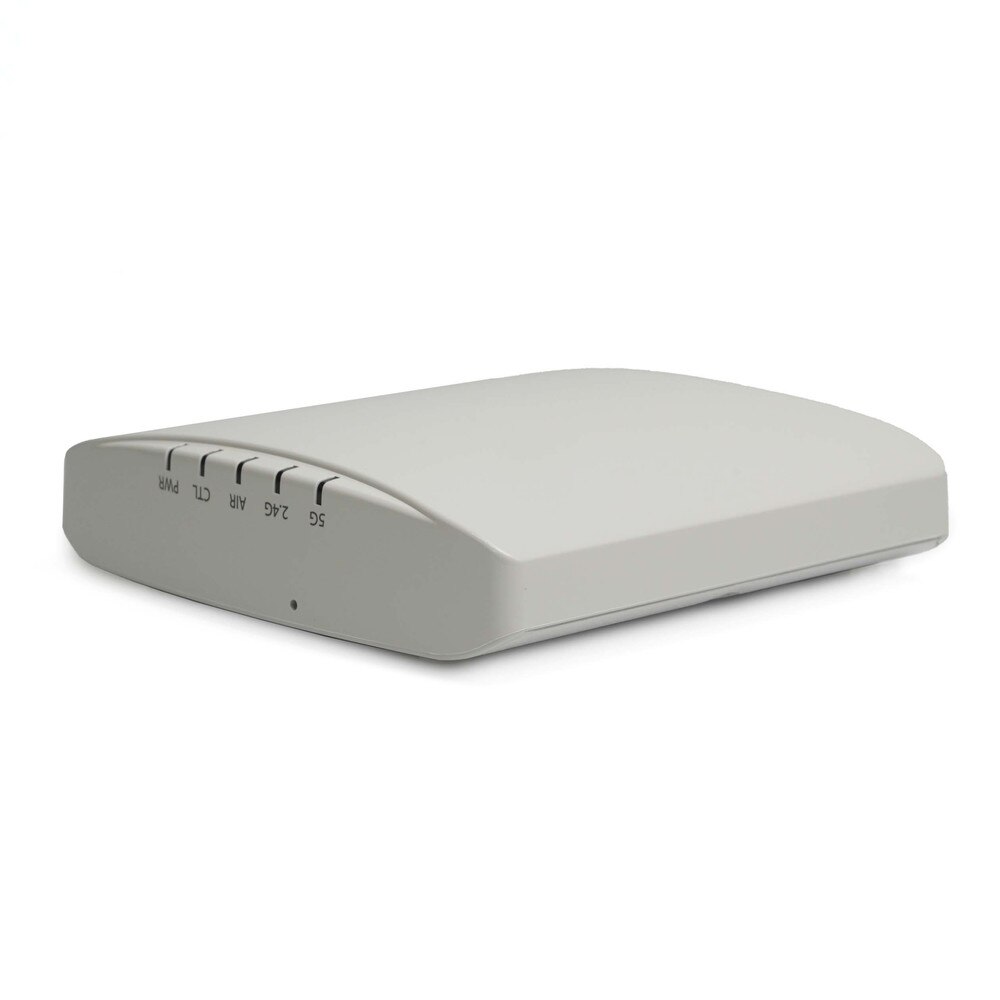

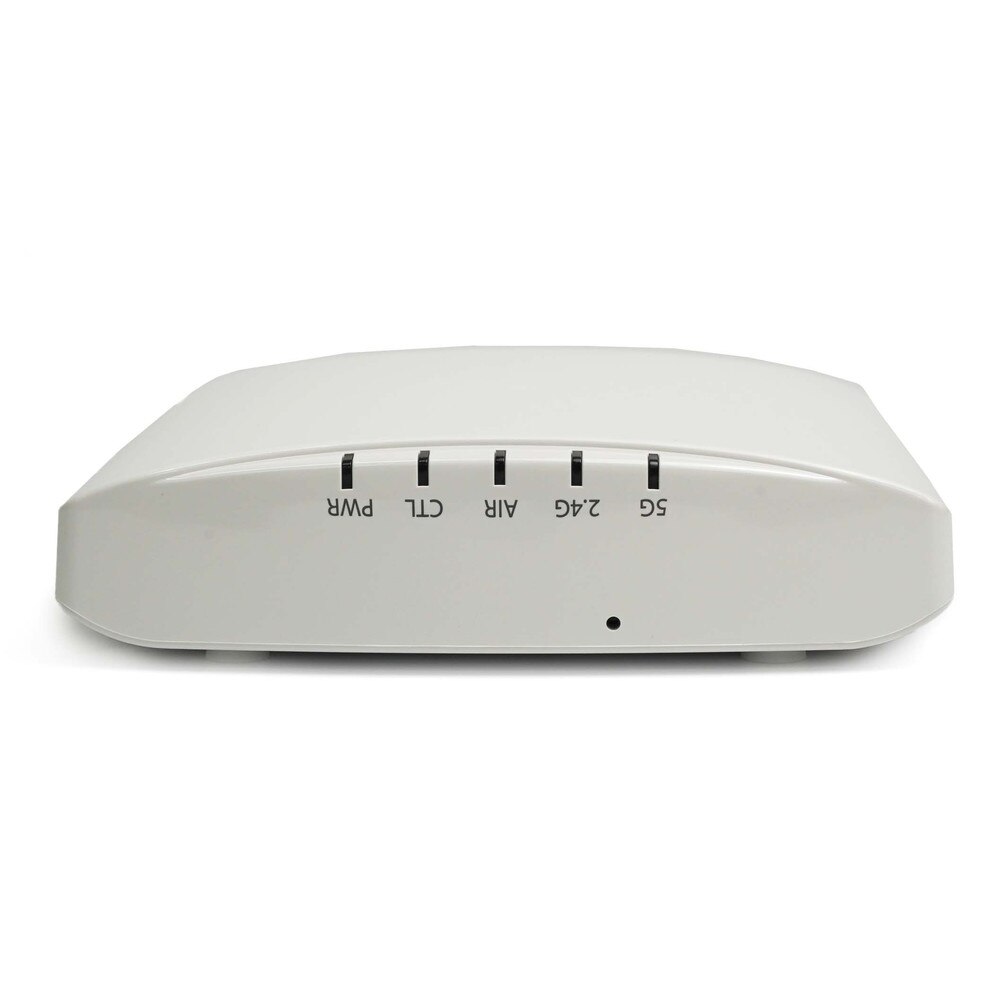

The Ruckus R320 Wireless Access Point (901-R320-US02) provides consistent, dependable 802.11ac Wave 2 wireless networking at a low cost. It incorporates the unique RUCKUS performance optimization and interference avoidance technologies featured in RUCKUS' top access points to provide greater user experiences across longer distances. However, it does it in an ultra-compact form factor designed for small and medium-sized companies as well as low-density hotspot environments.

The Ruckus R320 Wireless Access Point is an outstanding blend of features and performance for smaller environments. It also supports up to 256 clients per access point. Whether you're deploying 10 or ten thousand APs, the R320 is simple to operate with to RUCKUS' appliance, virtual, controller-less, and cloud administration options.

Key Features of Ruckus R320 Wireless Access Point

AFFORDABLE ENTERPRISE PERFORMANCE

The R320 offers excellent performance and a long range at a reasonable price.

KEEP EXISTING SWITCHES AND CABLES

Designed to operate on current PoE switches and CAT 5e cabling to reduce the need for costly upgrades.

MULTIPLE MANAGEMENT OPTIONS

Manage the R320 from the cloud, using physical/virtual appliances on-premises, or without a controller.

STUNNING WI-FI PERFORMANCE

The unique BeamFlex® adaptive antenna technology extends coverage while minimizing interference by utilizing 64 directional antenna patterns.

AUTOMATE OPTIMAL THROUGHPUT

Machine learning is used by ChannelFly® dynamic channel technology to discover the least crowded channels. You always get the maximum throughput that the band can support.

MORE THAN WI-FI

Cloudpath®security and onboarding software, SPoT Wi-Fi locationing engine, and SCI network analytics enable services beyond Wi-Fi.

Specifications

Specifications for Ruckus R320 Wireless Access Point (901-R320-US02) | Like New

ManufacturerRuckus
Manufacturer Part Number901-R320-US02
Product NameRuckus R320 Wireless Access Point
Product TypeAccess Point
Feature/DescriptionEntry level
802.11ac Wave 2 dual-concurrent AP with BeamFlex
Maximum PHY rate867 Mbps (5GHz)
300 Mbps (2.4GHz)
Wi-Fi technology802.11ac (5GHz)
802.11n (2.4GHz)
Concurrent users256
Radio chains: streams2x2:2
Antenna patterns (per band)64
Antenna gainUp to 3dBi
Rx sensitivity (2.4/5GHz)-101dBm
ChannelFlyYes
Ethernet ports1 x 1 GbE
WLAN Control and Management· ZoneDirector
· SmartZone
· Unleashed
· RUCKUS Cloud
Feature/DescriptionEntry level
802.11ac Wave 2 dual-concurrent AP with BeamFlex
Maximum PHY rate867 Mbps (5GHz)
300 Mbps (2.4GHz)
Wi-Fi technology802.11ac (5GHz)
802.11n (2.4GHz)
Concurrent users256
Radio chains: streams2x2:2
Antenna patterns (per band)64
Antenna gainUp to 3dBi
Rx sensitivity (2.4/5GHz)-101dBm
ChannelFlyYes
Ethernet ports1 x 1 GbE
WLAN Control and Management· ZoneDirector
· SmartZone
· Unleashed
· RUCKUS Cloud

User Guides

Frequently Asked Questions

Ruckus R320 Wireless Access Point (901-R320-US02)



What is the Ruckus R320?
  • The R320 is an indoor 2x2:2 802.11ac Wave 2 Wi-Fi access point intended for small and medium-sized companies.
  • What is the maximum throughput of the R320?
  • Up to 867 Mbps on 5 GHz and up to 300 Mbps on 2.4 GHz.
  • What power options does the R320 support?
  • It accepts 802.3af Power over Ethernet (PoE) or 12V DC power.
  • How many Ethernet ports does the R320 have?
  • The R320 has a single Gigabit Ethernet port.
  • What management options are available for the R320?
  • It can be administered using Ruckus Cloud, SmartZone, Unleashed, or ZoneDirector.
  • Does the R320 support MU-MIMO?
  • Yes, it supports 2x2 MU-MIMO.
  • What antenna technology does the R320 use?
  • It uses Ruckus' patented BeamFlex adaptive antenna technology.
  • How many concurrent clients can the R320 support?
  • The R320 can support up to 256 concurrent clients per AP.
  • Is the R320 indoor or outdoor rated?
  • The R320 is designed for indoor use only.
  • What security features does the R320 offer?
  • It supports a variety of security protocols, including WPA.
  • Can the R320 be used in a mesh network?
  • No, the R320 does not support mesh networking.
  • What is the physical size of the R320?
  • The dimensions are 13.2 cm (L) x 13.8 cm (W) x 3.1 cm (H).
  • What is the operating temperature range for the R320?
  • It can operate from 0°C to 40°C (32°F to 104°F).
  • Does the R320 support both 2.4 GHz and 5 GHz bands?
  • Yes, it is a dual-band concurrent access point.
  • What mounting options are available for the R320?
  • It can be mounted on a ceiling, wall, or T-bar.
  • Is the R320 compatible with older 802.11 standards?
  • Yes, it supports 802.11a/b/g/n in addition to 802.11ac.
  • What is the maximum power consumption of the R320?
  • The highest power usage is 12.18W using 802.3af PoE.
  • Does the R320 support Ruckus' ChannelFly technology?
  • Yes, it includes ChannelFly for dynamic channel selection.
  • Is the R320 still in production?
  • No, the R320 is end-of-sale but still supported by Ruckus.
  • Can the R320 be used with Ruckus Unleashed?
  • Yes, the R320 works with Ruckus Unleashed for controller-less deployment.
