Polycom VVX 501 IP Phone (2200-48500-025) | Like New
SKU: 2200-48500-025-LN
This Phone Supports Webex Calling
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview

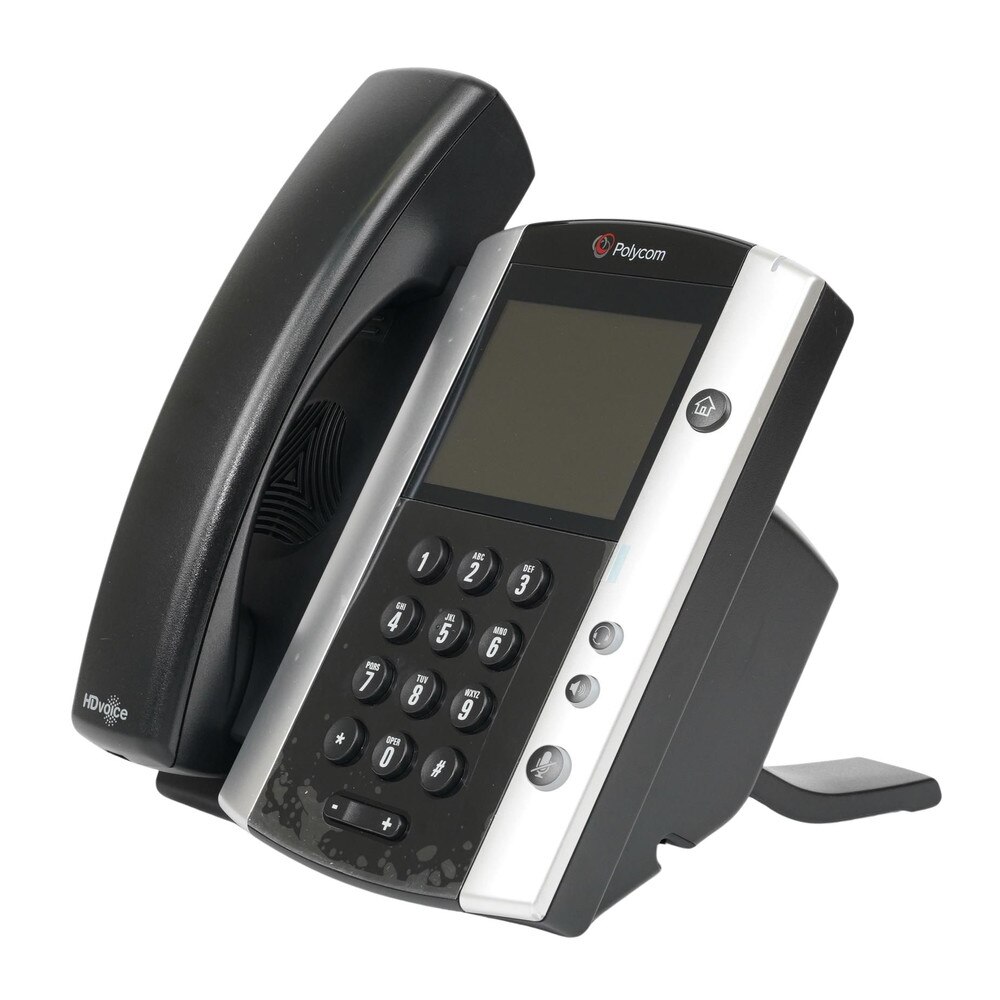

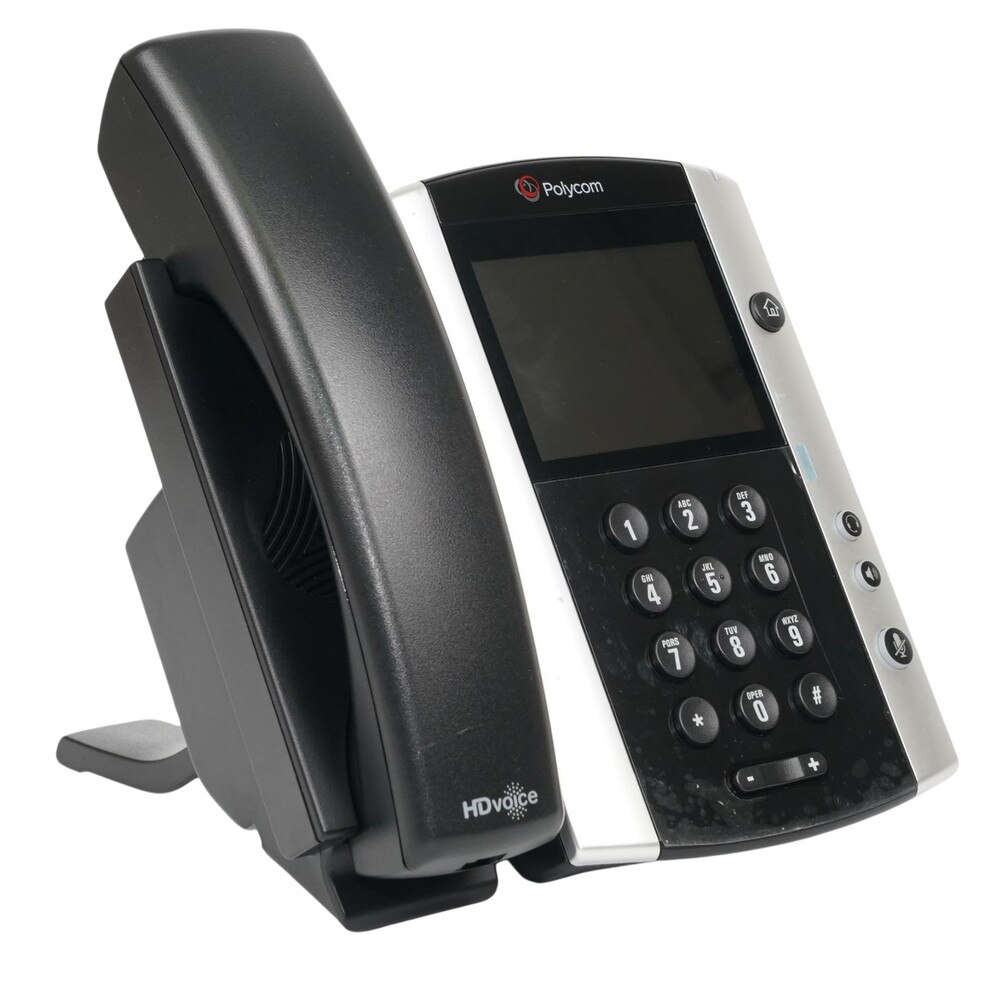

Overview of Polycom VVX 501 IP Phone (2200-48500-025) | Like New
The Polycom VVX 501 IP Phone (2200-48500-025) is a feature-rich VoIP phone that is intended to boost productivity and expedite communication in today's fast-paced business contexts. The VVX 501 is suitable for professionals that need a dependable and efficient communication solution. The Polycom VVX 501 has a 3.5-inch color touchscreen display with a resolution of 320 × 240 pixels, which provides a user-friendly interface for navigating menus and features. This phone offers 12 lines, allowing users to handle many calls at once, making it ideal for busy professionals. The VVX 501 features HD Voice technology, which ensures that conversations are crisp and lifelike. The full-duplex speakerphone improves hands-free communication, making it ideal for conference calls and multitasking.
The phone has two USB ports, which allow users to attach peripherals or charge devices, as well as two Gigabit Ethernet connectors for high-speed network connectivity. In addition, the VVX 501 supports Power over Ethernet (PoE), which simplifies installation by eliminating the need for separate power cords. One of the VVX 501's noteworthy characteristics is its ability to interact with numerous applications, allowing users to use web-based resources directly from their phone. This makes it more than just a communication device, but also an application platform that boosts productivity. The Polycom VVX 501 is a great solution for businesses wishing to upgrade their communication systems with a dependable, feature-rich device that boosts productivity and cooperation.
Key Features of Polycom VVX 501 IP Phone
• 3.5-Inch color touchscreen features intuitive navigation with gesture-based controls.
• 12 Lines support that manage multiple calls efficiently.
• HD Voice technology has exceptional audio quality for clear conversations.
• Full-Duplex speakerphone that deals for hands-free communication.
• Two USB ports connect peripherals or charge devices easily.
• Gigabit ethernet ports with high-speed network connectivity with PoE support.
• Application integration that access web-based tools directly from the phone.
Specifications
Specifications for Polycom VVX 501 IP Phone (2200-48500-025) | Like New
| Manufacturer | Polycom |
| Manufacturer Part Number | 2200-48500-025 |
| Product Name | Polycom VVX 501 IP Phone |
| Product Type | SIP Phone |
Call Services | Voice Mail, Caller ID, Call Waiting, Call Forwarding, Call Transfer, Call Hold |
Dialer Location | Base |
Conference Call Capability | 3-way |
Speakerphone | Yes |
Additional Functions | Call timer, Web browser, call recording |
Main Features | Multiple VoIP protocol support, integrated Ethernet switch |
VoIP | Yes |
VoIP Protocols | SIP, RTCP, RTP, SRTP |
Voice Codecs | G.722, G.729ab, G.711u, G.711a, G.722.1, G.722.1c |
Lines Supported | 12 lines |
Quality of Service | IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p, Type of Service (ToS) |
IP Address Assignment | DHCP, static |
Security | IEEE 802.1X, TLS |
Power Over Ethernet (PoE) Support | Yes |
Network Protocols | IP, TCP, TFTP, UDP, HTTP, DNS, HTTPS, SRTP, Link Layer Discovery Protocol - Media Endpoint Discovery (LLDP-MED), RTCP, RTP, SNTP |
Network Ports Qty | 2 x Ethernet 10Base-T/100Base-TX/1000Base-T |
Voice Features | Comfort noise generation (CNG), voice activity detection (VAD), HD Voice, acoustic echo cancellation (AEC) |
Network Features | Network Address Translation (NAT), Lightweight Directory Access Protocol (LDAP), Class 4 PoE |
Type | LCD display - color |
Display Location | Base |
Diagonal Size | 3.5" |
Display Resolution | 320 x 240 pixels |
Backlit | Yes |
Features | Multi-touch |
Connections | 2 x USB ¦ Headset jack / RJ-9 |
Hearing Aid Compatible | Yes |
Software Certification | Zoom Certified |

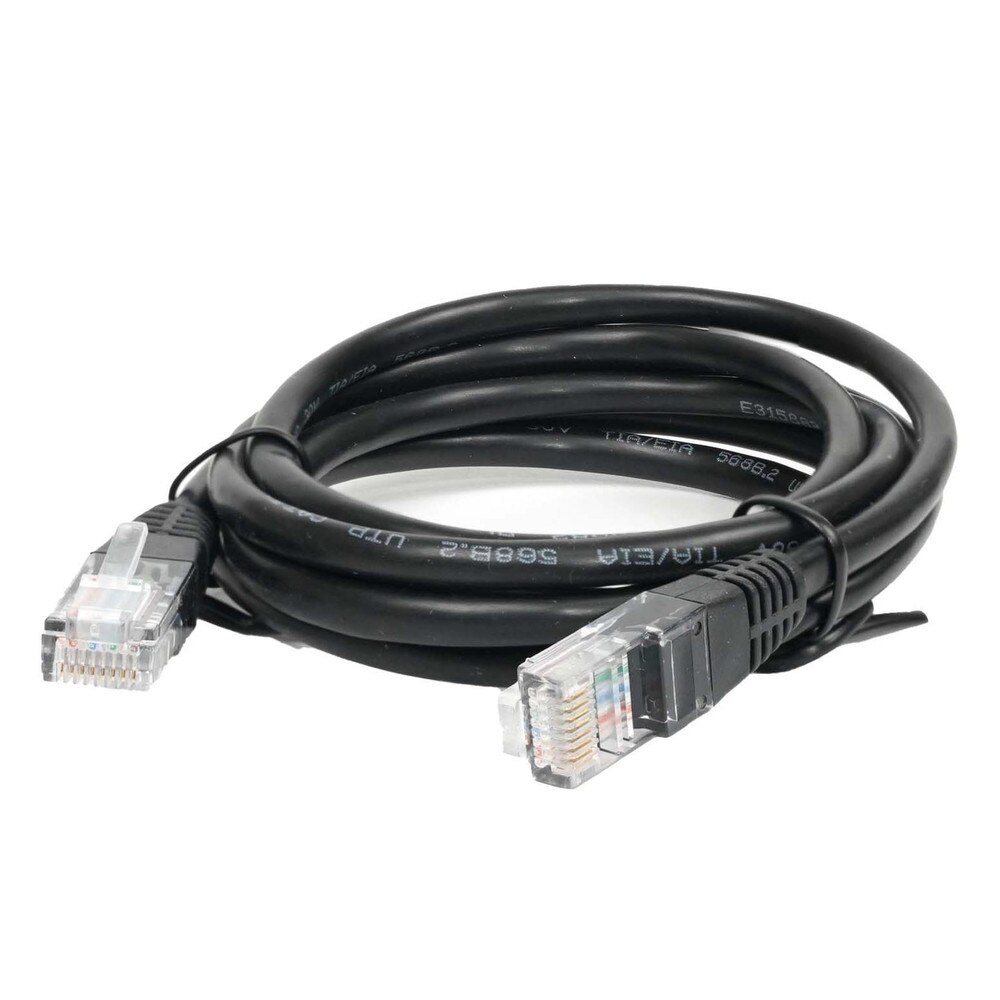

Cables Included | Network cable |
Width | 7.5 in |
Depth | 7.1 in |
Height | 5.9 in |
Weight | 2 lbs |
User Guides
Frequently Asked Questions
Polycom VVX 501 IP Phone 2200-48500-025
Frequently Asked Questions (FAQ's)
How do I set up my Polycom VVX 501 IP phone? Connect the phone to your network using an Ethernet cable and follow the on-screen prompts or instructions provided by your system administrator.
How do I connect a headset to my VVX 501? The VVX 501 has a dedicated headset port. Simply plug in your headset and it should be recognized automatically.
Can I use Wi-Fi with my VVX 501? No, the VVX 501 does not have built-in Wi-Fi. It connects to the network via Ethernet cable.
How do I adjust the ringer volume? Press the up/down volume buttons on the side of the phone while it's ringing, or navigate to Settings > Basic > Ring Type/Volume.
How do I access my voicemail? Press the "Messages" button or dial the voicemail access number provided by your system administrator.
How do I transfer a call? During a call, press the "Transfer" soft key, dial the extension number, and press "Transfer" again.
How do I conference in another caller? During a call, press the "Conference" soft key, dial the extension number, and press "Conference" again.
How do I adjust the display brightness? Navigate to Settings > Basic > Preferences > Backlight Timer/Level.
How do I change the phone's language? Navigate to Settings > Basic > Preferences > Language.
Can I personalize my VVX 501 with different ringtones or wallpapers? No, the VVX 501 has limited customization options.
How do I factory reset my VVX 501? Navigate to Settings > Advanced > Administration Settings > Reset to Factory.
What power supply does the VVX 501 use? It typically uses a 48V PoE (Power over Ethernet) connection.
How do I check the firmware version on my VVX 501? Navigate to Settings > Status > Platform > Application.
Where can I find the user manual for the VVX 501? The user manual can be found here Polycom VVX 501 IP Phone (2200-48500-025) Data Sheet & Polycom VVX 501 IP Phone (2200-48500-025) Quick Start Guide
How do I update the firmware on my VVX 501? Firmware updates are usually handled by your system administrator through the phone system's provisioning server.
Can I use the VVX 501 with a third-party VoIP service? Yes, but you might need to configure settings manually. Check with your VoIP provider for instructions.
Why is my VVX 501 not registering with the network? Check the Ethernet connection, network settings, and contact your system administrator.
Can I wall-mount the VVX 501? Yes, a wall-mount kit is available separately.
