Overview

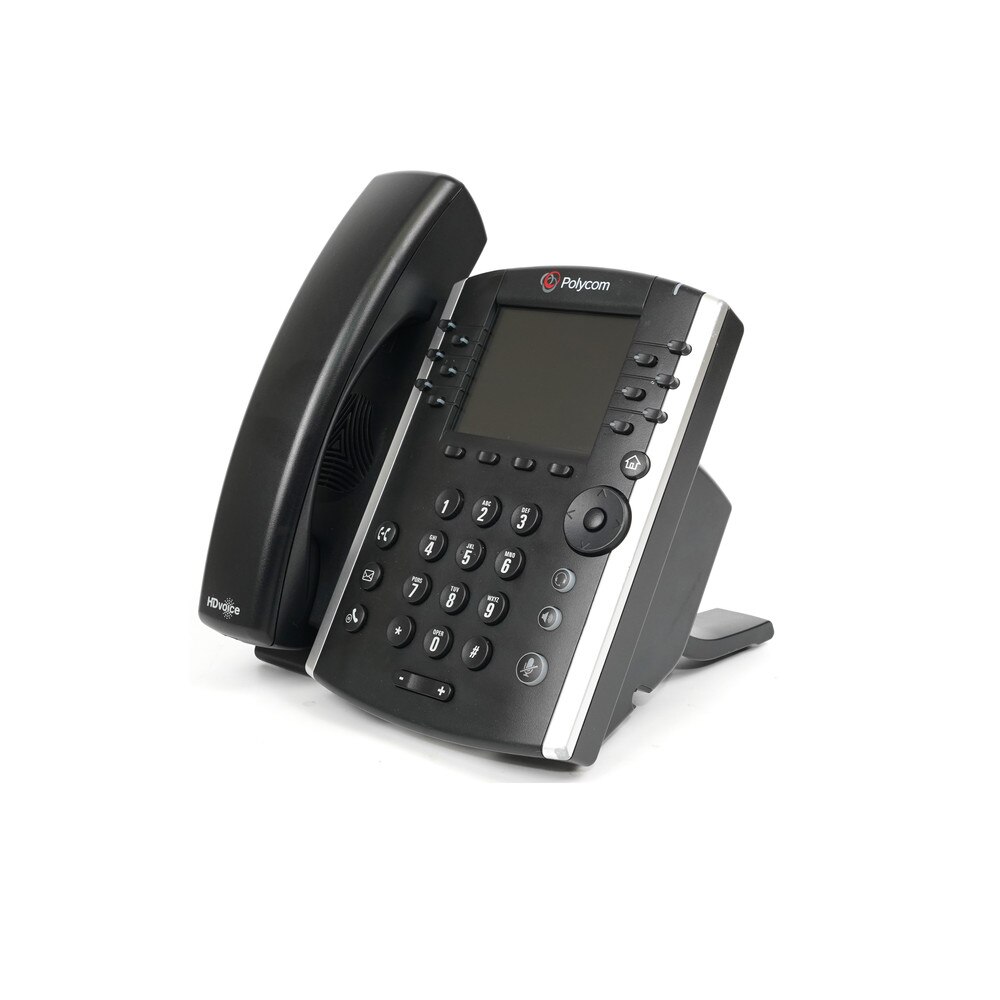

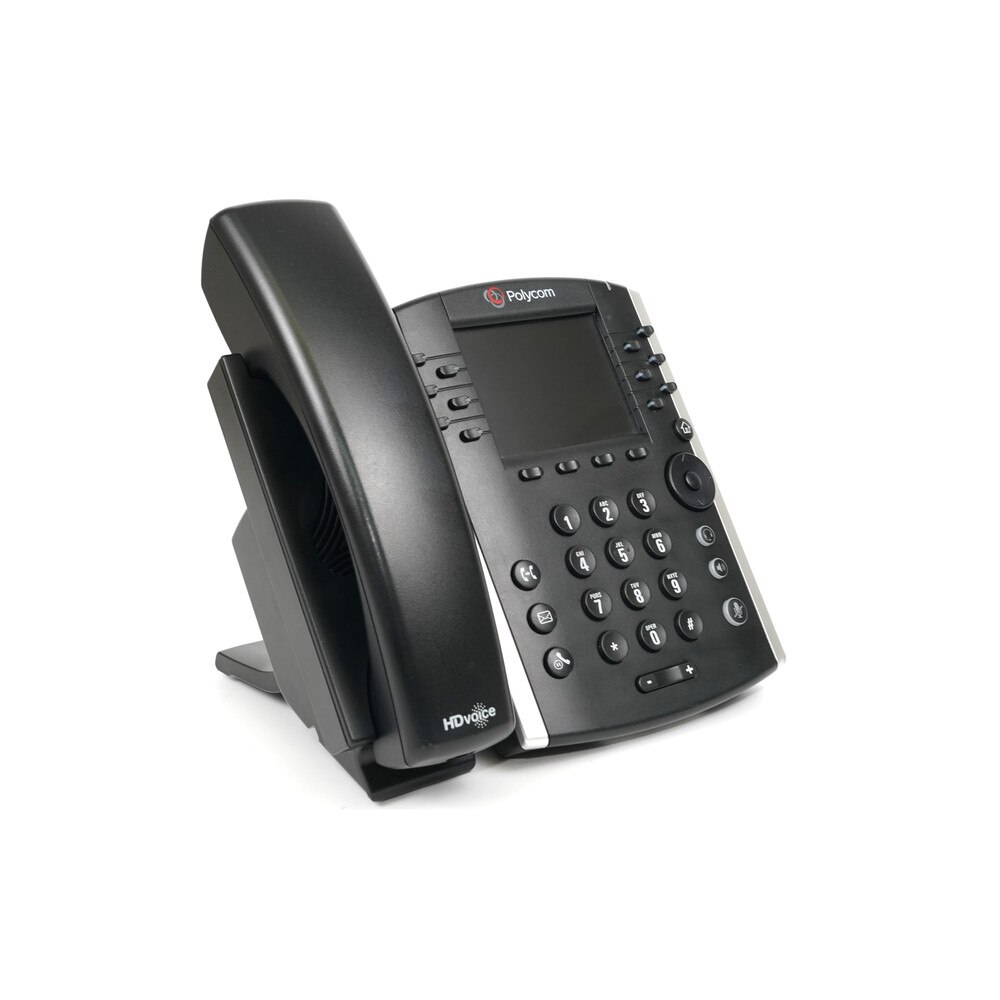

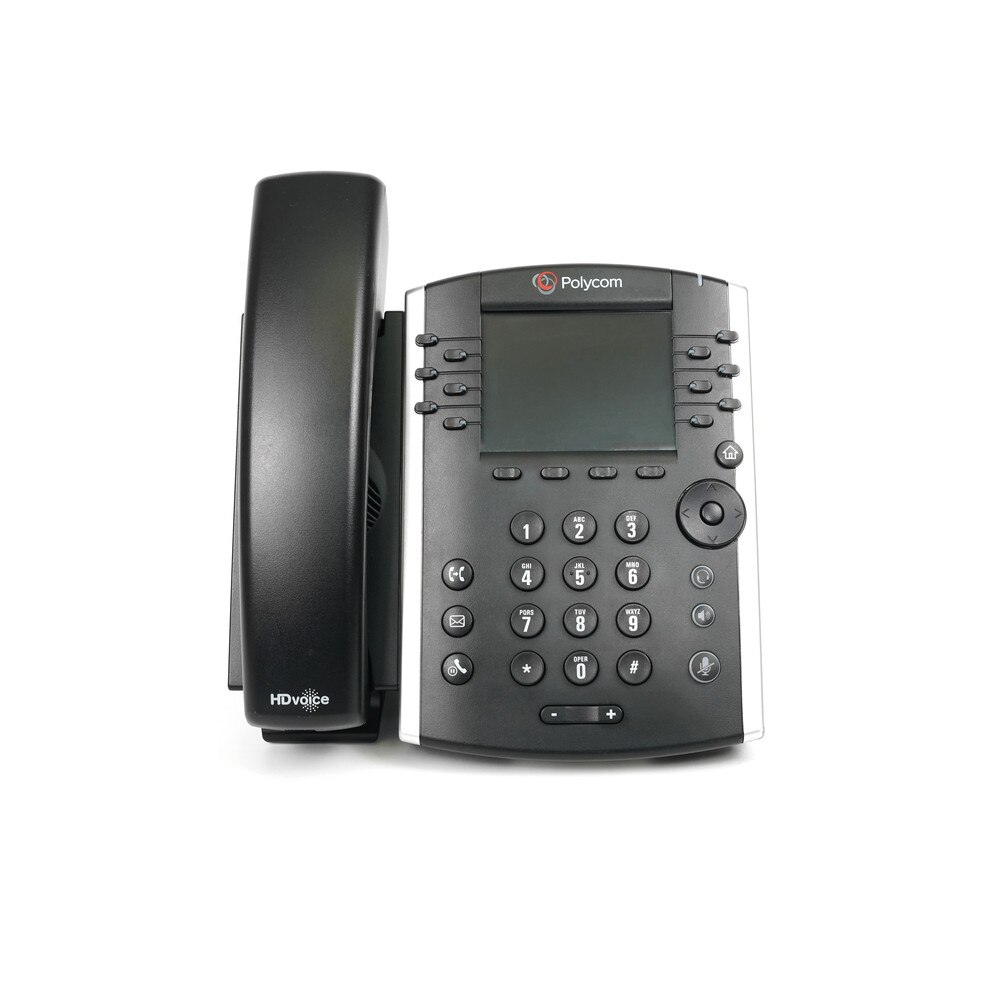

Overview of Polycom VVX 411 IP Phone with Power Supply (2200-48450-001) | New
The Polycom VVX 411 IP Phone with Power Supply (2200-48450-001) includes 12 lines and HD voice1 for enhanced sound quality. Patented acoustic technology ensures clear, echo-free discussions. This phone's Presence feature allows the user to monitor the in-use status of up to 10/50 other users. The user interface is simple to use and navigate, and it requires little training. Its two-port gigabit Ethernet switch enables a single drop to the desktop for high-speed connectivity to both the phone and the computer.
Key Features of Polycom VVX 411 IP Phone with Power Supply
Backlit color LCD display (320 x 240 pixels)
12 programmable line keys
4 context-sensitive soft keys
4-way navigation cluster
Fixed feature buttons include speakerphone, headset, mute, volume up/down, transfer, message, do not disturb
Dual port 10/100/1000 Gigabit Ethernet switch
Dedicated RJ-9 headset port
Single USB 2.0 port for storage and media applications; can also be used with Plantronics Bluetooth wireless headsets equipped with a BT300 or BT600 USB-A Bluetooth dongle
SIP protocol support
HD voice support
Acoustic Clarity Technology provides full-duplex conversations, echo cancellation, and background noise suppression
Easy deployment and administration with Polycom Zero Touch Provisioning and web-based configuration
Powered via Power over Ethernet (802.3af PoE), optional PoE injector, or included 48V power supply
Increased memory and improved processor
Can add up to 3 Polycom VVX Paper Expansion Modules or Polycom VVX Color Expansion Modules
Factory installed device certificate
Compatibility
Can be used with a variety of SIP compatible hosted service providers and SIP compatible IP PBX systems
Check with your hosted provider or IP PBX documentation to confirm system compatibility
Specifications
Specifications for Polycom VVX 411 IP Phone with Power Supply (2200-48450-001) | New
Manufacturer | Polycom |
Manufacturer Part Number | 2200-48450-001 |
Product Name | Polycom VVX 411 IP Phone with Power Supply |
Product Type | SIP Phone |
Lines | 12 lines for calls or use up to 10/504 for presence monitoring |
Display | 3.5 in TFT LCD display at QVGA (320 x 240 pixel) resolution, 4:3 aspect ratio |
Headset and hearing aid compatibility | Dedicated RJ-9 headset port |
Hearing aid compatibility ITU-T P.370 and TIA 504A standards | |
Compliant with ADA Section 508 Subpart B 1194.23 (all) | |
Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids | |
Compatible with commercially-available TTY adapter equipment | |
Audio features | Polycom HD voice technology delivers life-like voice quality for each audio path--handset, the hands-free speakerphone, and the optional headset |
Polycom® Acoustic Clarity™ technology providing full-duplex conversations, acoustic echo cancellation and background noise suppression - Type 1 compliant (IEEE 1329 full duplex) | |
Frequency response – 150 Hz – 7 kHz for handset, optional headset and hands-free speakerphone modes | |
Codecs: G.711 (A-law and µ-law), G.729AB, G.722, G.722.1, iLBC | |
Individual volume settings with visual feedback for each audio path | |
Voice activity detection | |
Comfort noise generation | |
DTMF tone generation (RFC 2833 and in-band) | |
Low-delay audio packet transmission | |
Adaptive jitter buffers | |
Packet loss concealment | |
Call handling features | 12 lines (programmable line keys) |
Busy lamp field (BLF) | |
Shared call/bridged line appearance | |
Flexible line appearance (one or more line keys can be assigned for each line extention) | |
Distinctive incoming call treatment/call waiting | |
Call timer and call waiting | |
Call transfer, hold, forwarding, pickup | |
Called, calling, connected party information | |
Local three-way audio conferencing | |
One-touch speed dial, redial | |
Remote missed call notification | |
Do not disturb function | |
Electronic hook switch capable | |
Local configurable digit map/dial plan | |
Other features | Single USB port (2.0 compliant) for media and storage applications |
Adjustable base height | |
Protocol support | IETF SIP (RFC 3261 and companion RFCs) |
Network and provisioning | SIP protocol support |
SDP | |
IETF SIP (RFC 3261 and companion RFCs) | |
Two-port gigabit Ethernet switch » 10/100/1000 Base-TX across LAN and PC ports » Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment » Conforms to IEEE802.3-2002 (Clause | |
Manual or dynamic host configuration protocol (DHCP) network setup | |
Time and date synchronization using SNTP | |
FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments | |
Provisioning and call server redundancy supported | |
QoS Support – IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DHCP | |
VLAN - CDP, DHCP VLAN discovery, LLDPMED for VLAN discovery » Network address translation (NAT) support for static configuration and “Keep-Alive” SIP signaling | |
RTCP and RTP support | |
Event logging | |
Syslog | |
Hardware diagnostics | |
Status and statistics reporting | |
IPv4 | |
TCP | |
UDP | |
DNS-SRV | |
Power | Built-in auto sensing IEEE 802.3 at power over Ethernet (Class 2) |

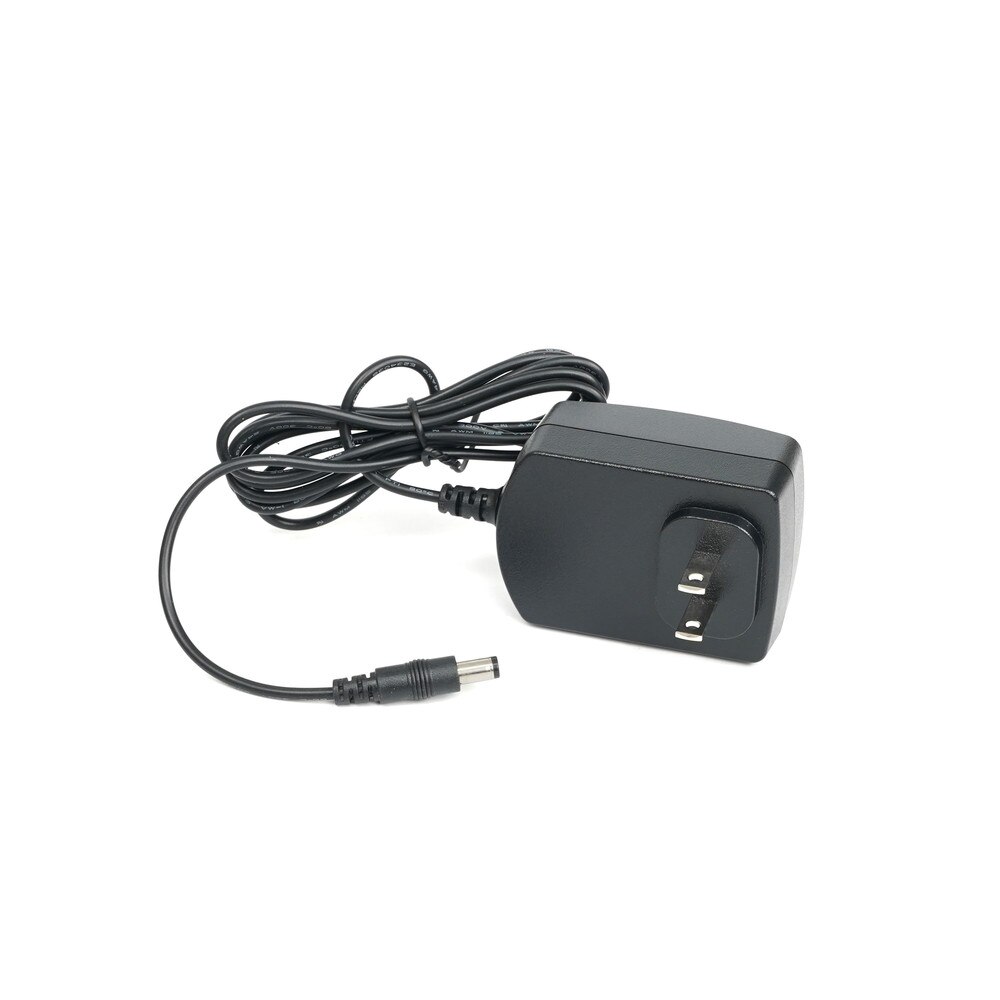

External universal AC adaptor, 48VDC; 12W | |
Approvals | FCC Part 15 (CFR 47) Class B |
ICES-003 Class B | |
EN55022 Class B | |
CISPR22 Class B | |
VCCI Class B | |
EN55024 | |
EN61000-3-2; EN61000-3-3 | |
NZ Telepermit | |
UAE TRA | |
Australia A & C Tick | |
Safety | UL 60950-1 |
CE Mark | |
CAN/CSA-C22.2 No. 60950-1 | |
EN 60950-1 | |
IEC 60950-1 | |
AS/NZS 60950-1 | |
ICASA (add) | |
CITC (add) | |
Operating conditions | Temperature: (+32 to 104°F (0 to 40°C) |
Relative humidity: 5% to 95%, noncondensing | |
Storage temperature | -40 to +160°F (-40 to +70°C) |
Country of origin | China |
