Polycom VVX Color Expansion Module (2200-46350-025) | New
SKU: 2200-46350-025-N
Same Day Shipping Before 4PM EST
Have one to sell? Click here to sell to us
Same Day Shipping Before 4PM EST Overview

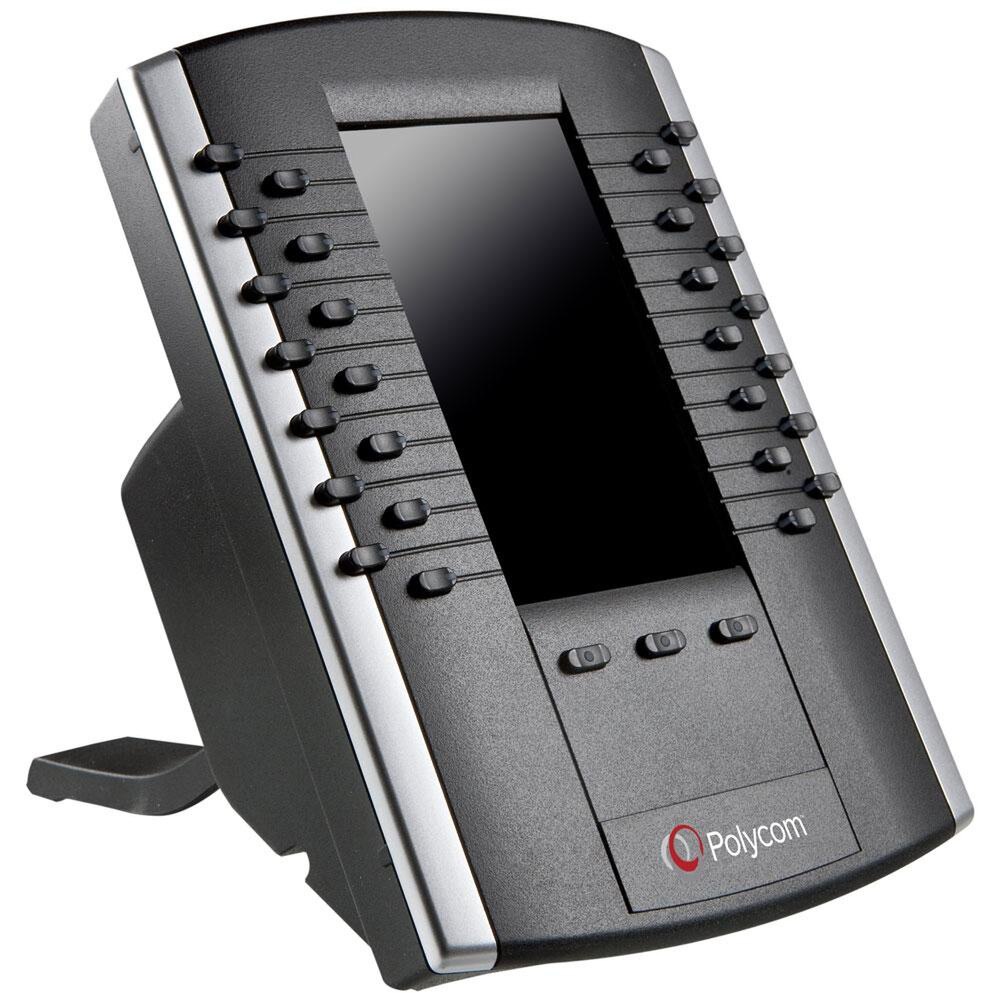

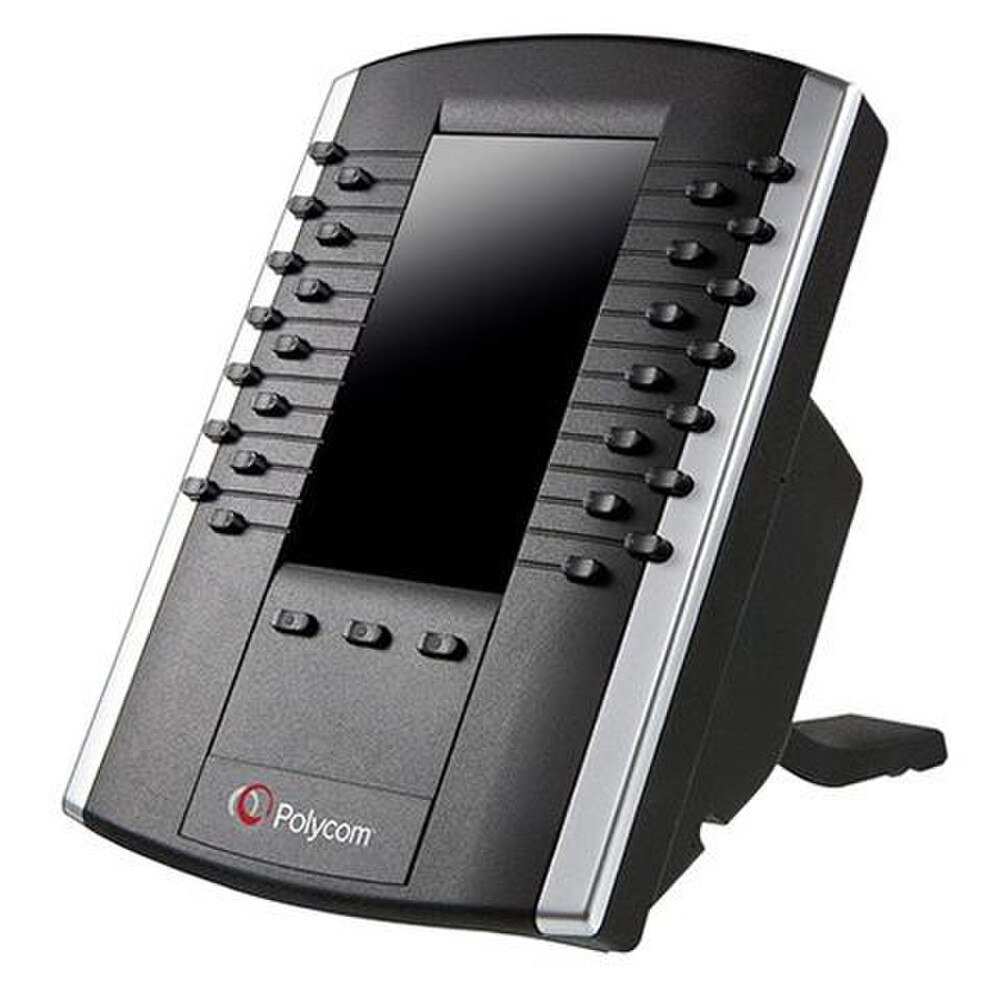

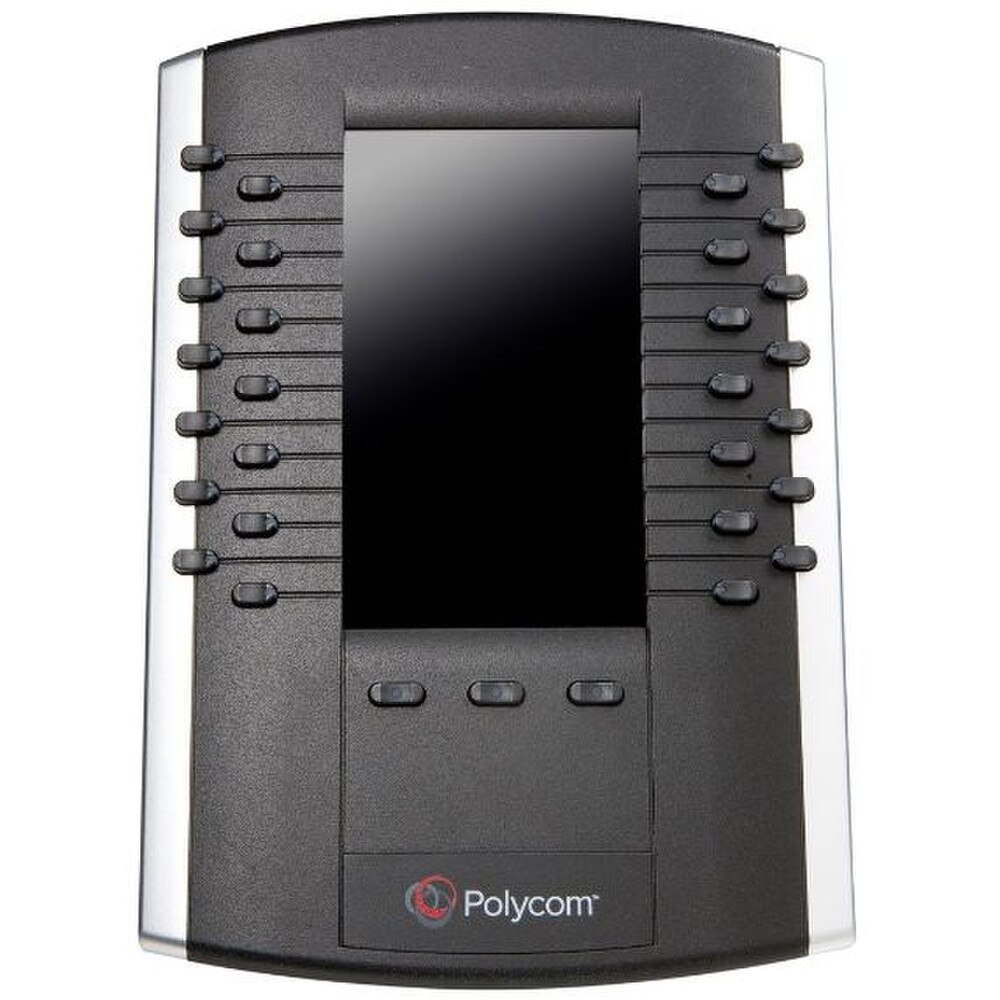

Overview of Polycom VVX Color Expansion Module (2200-46350-025) | New
The Polycom VVX Color Expansion Module (2200-46350-025) is an ideal solution for telephone attendants, including receptionists, administrative assistants, secretaries, and other "power users" who handle multiple simultaneous phone calls on a daily basis.
The Polycom VVX Color Expansion Module expands the functionality of Polycom VVX business media phones by adding multifunctional line keys that can be programmed as line registrations, call appearances, speed dials, direct station select, or busy lamp field keys. The VVX Color Expansion Module complements the appearance and feel of the VVX business media phones.
When fully equipped, the VVX business media phones function as a high-performance attendant console that can accommodate up to three VVX Expansion Modules. Telephone attendants can reduce the number of lost customer calls, shorten transaction times, and improve call routing accuracy by accepting, screening, dispatching, and monitoring calls quickly and efficiently.
The Polycom VVX Color Expansion Module is a true "plug-and-play" device that requires no configuration because power and signaling are supplied by the host VVX business media phone. The Expansion Module operates without the need for any additional cables or power supplies.
The VVX Color Expansion Module, with its intuitive user interface and pleasing call visualization experience similar to that of the VVX business media phone, makes it simple to transition from traditional PBX features and functionality to Voice over IP.
The VVX Color Expansion Module, like all Polycom VoIP products, is standards-compliant and fully compatible with Polycom Partners' IP telephony server solutions. Only Polycom provides the ultimate communications experience with the most comprehensive and deep integration of video, voice, and Web solutions.
Features of the Polycom VVX Color Expansion Module
Increase Productivity
The Polycom VVX Color Expansion Module combines advanced call handling capabilities with an enhanced visual experience, making it easier to monitor contacts and manage a large number of concurrent calls.
Ease of Use
The large, high-resolution LCD, 28 illuminated bi-color programmable line keys, and user-friendly call visualization all contribute to an intuitive user experience.
Ease of Installation and Setup
The host phone provides signaling and powering, so there is virtually no installation or setup required.
Leverage Previous IT Infrastructure Investment
Get the most out of your Polycom VVX business media phones by outfitting them with Expansion Modules, which transform them into fully-fledged personal desktop solutions.
Specifications
Specifications for Polycom VVX Color Expansion Module (2200-46350-025) | New
| Manufacturer | Polycom |
| Manufacturer Part Number | 2200-46350-025 |
| Product Name | Polycom VVX Color Expansion Module |
| Product Type | Expansion Module |
| Display | 4.3in LCD (480x272 pixel) resolution |
| GUI with animation | |
| Feature keys | 28 multifunctional line keys configurable as line registration, call appearance, speed dial, DSS, or BLF |
| Dual-color (red or green) illuminated LEDs for line status information | |
| 3 page keys in total for additional line appearances | |
| Compatible VVX phone models | VVX 300/310 |
| VVX 400/410 | |
| VVX 500 | |
| VVX 600 | |
| Communication with host phone and/or other modules: | 2x Auxiliary ports; SPI bus |
| Expandability | Up to three VVX Expansion Modules can be attached to a host phone |
| Feature support | Shared call appearance, bridged line appearance (Key system emulation) |
| Call Transfer | |
| Busy Lamp Field | |
| Speed Dial | |
| Fully programmable | |
| Multilingual user interface (driven from host phone) encompassing Chinese, Danish, Dutch, English (Canada/US/UK), French, German, Italian, Japanese, Korean, Norwegian, Poilsh, Portuguese, Russian, Slovenian, Spanish and Swedish | |
| Power | Provided by Polycom VVX host phone Host phone powering options: IEEE 802.3(af/at) PoE or through a compatible external AC adapter |
| Powering starts automatically upon auxiliary port connection | |
| No additional power source is required | |
| Approvals | EMC Approvals under host VVX |
| CE Mark | |
| VCCI | |
| KCC under Host VVX | |
| Operating Conditions | Temperature: 0 to 40 degrees C (+32 to 104 degrees F) |
| Relative Humidity: 5% to 95%, noncondensing | |
| Storage temperature | -40 to +70 degrees C |
| (-40 to +160 degrees F) | |
| Dimensions | 5 in x 5 in x 6.5 in x 2.5 in (12.5 cm x 12.5cm x 16 cm x 6 cm) (W x H x D x T) |
