Polycom VVX 301 IP Phone (2200-48300-025) | Like New

Polycom VVX 301 IP Phone (2200-48300-025) | Like New

SKU: 2200-48300-025-LN
(0)No Reviews yet

This Phone Supports Webex Calling

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$22.99 $22.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

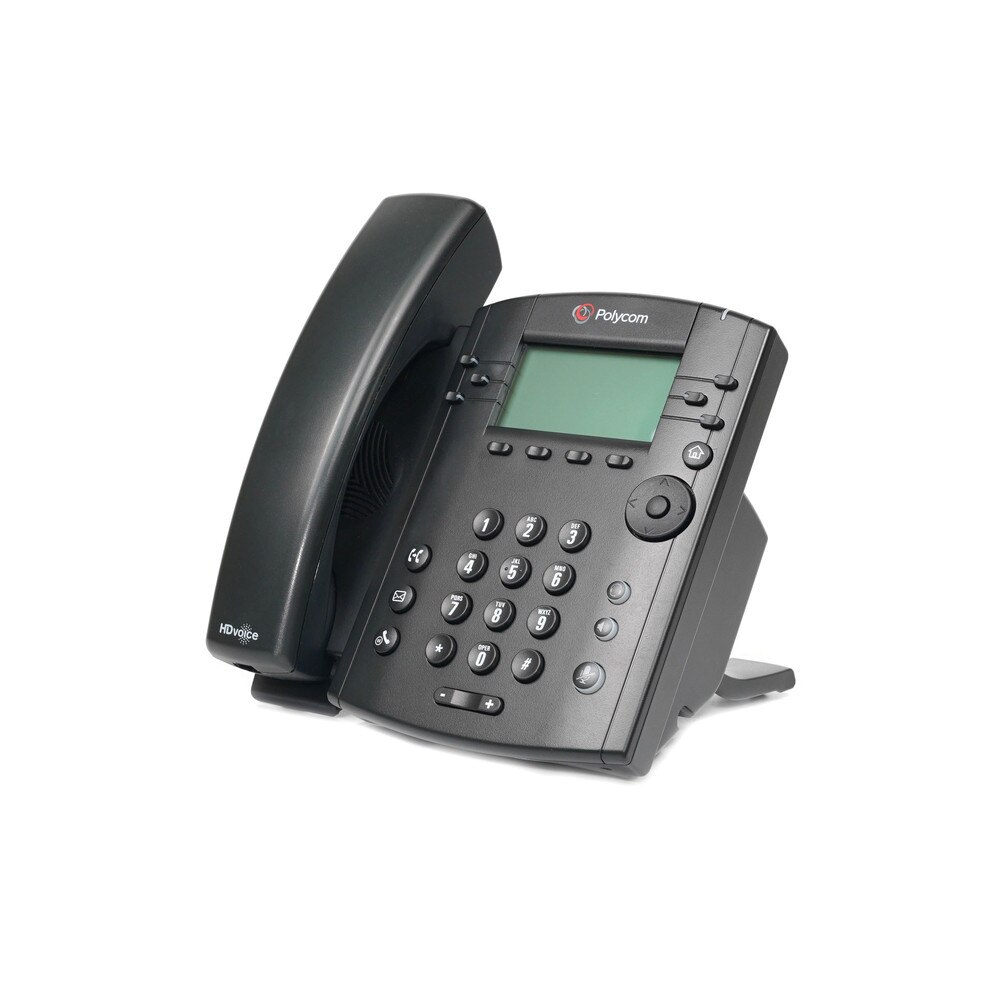

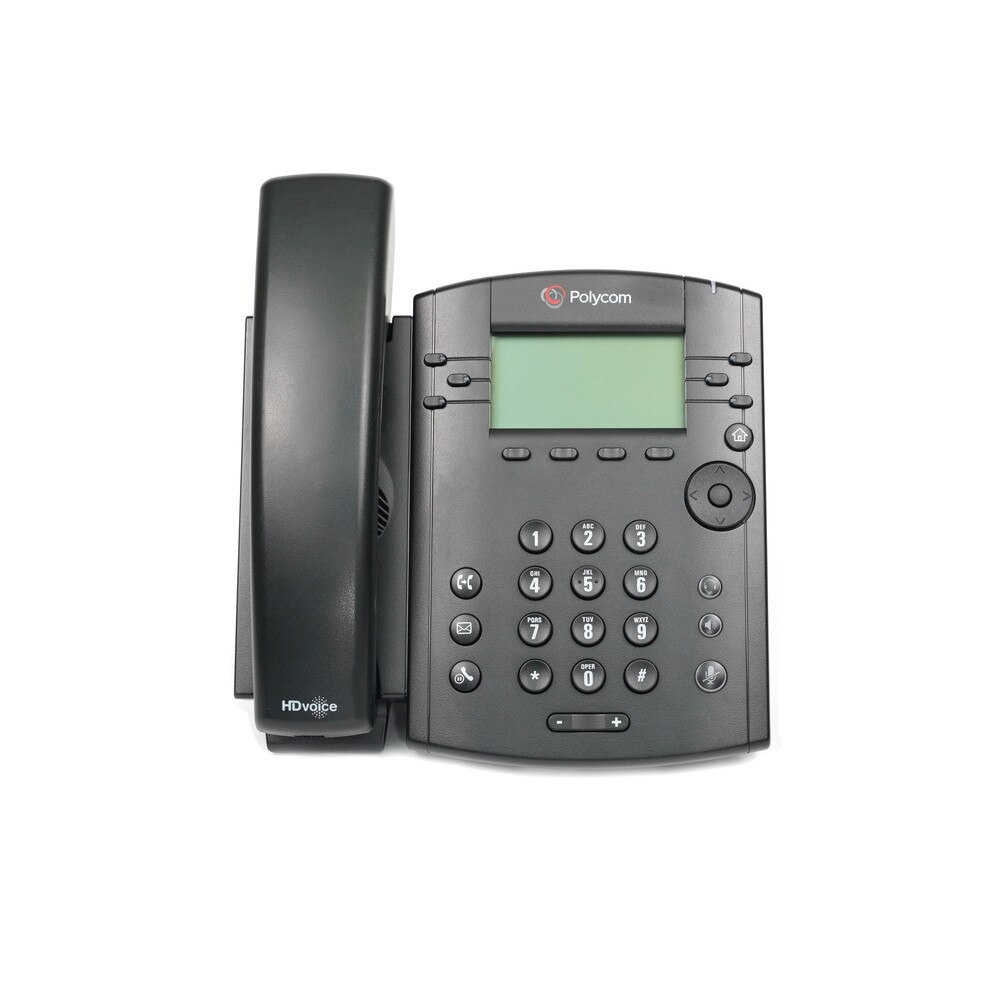

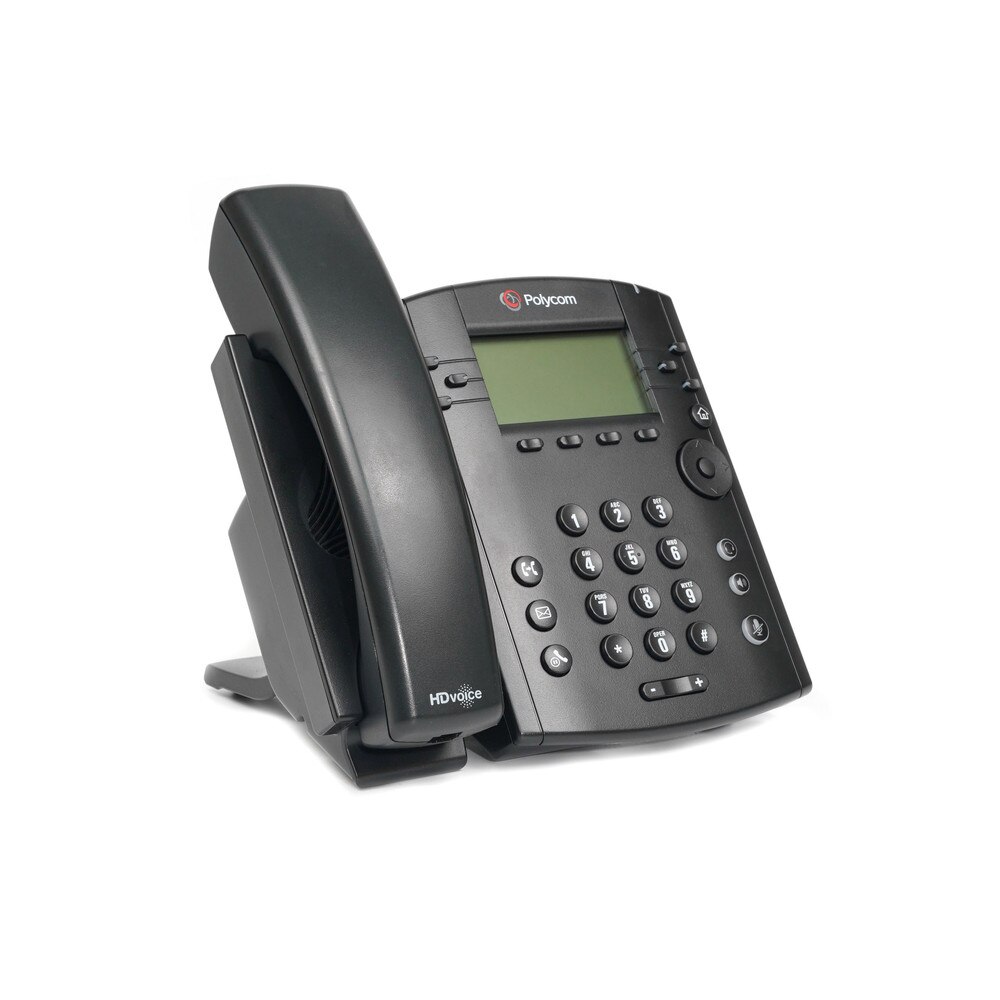

Polycom VVX 301 VoIP Phone

The Polycom VVX 301 is a powerful entry-level business media phone delivering crystal clear communications. It is ideal for today's cubicle workers handling a low to moderate call volume.

The VVX 301 includes all the features and functionality of the VVX 300 and adds improved memory and processor. This allows for better performance as Polycom continues to upgrade VoIP feature set.

Features

  • Backlit 8-level grayscale graphical LCD - 208x104 resolution
  • 6 lines (programmable line keys)
  • 4 context-sensitive soft keys
  • 4-way navigation cluster
  • Fixed feature buttons include speakerphone, headset, mute, volume up/down, transfer, message, do not disturb
  • Dual port 10/100 Ethernet switch
  • Dedicated RJ-9 headset port
  • SIP protocol support
  • HD voice technology delivers life-like voice quality for handset, speakerphone, or optional wideband audio headset
  • Acoustic Clarity technology provides full-duplex conversations, echo cancellation, and background noise suppression
  • Easy deployment and administration with Polycom Zero Touch Provisioning and web-based configuration
  • Powered via Power over Ethernet (802.3af PoE) or optional PoE injector
  • Increased memory and improved processor
  • Requires a minimum firmware version of 5.4.1 or later
  • Can add up to 3 Polycom Expansion Modules or Polycom Color Expansion Modules

Compatibility

  • Can be used with a variety of SIP compatible hosted service providers and SIP compatible IP PBX systems
  • Check with your hosted provider or IP PBX documentation to confirm system compatibility

Specifications

Polycom VVX 301 VoIP Phone Specifications

User Interface Features
  • 3.2 in Backlit 8-level Grayscale graphical LCD (208 x 104) resolution
  • Voicemail support1
  • WebKit-based browser
  • Adjustable base height
  • Unicode UTF-8 character support. Multilingual user interface including Chinese, Danish, Dutch, English (Canada/US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, and Swedish
Audio Features
  • Polycom® HD Voice™ technology delivers lifelike voice quality for each audio pathhandset, the hands-free speakerphone, and the optional headset2
  • Polycom® Acoustic Clarity™ technology providing full-duplex conversations, acoustic echo cancellation and background noise suppression
    • Type 1 compliant (IEEE 1329 full duplex)
  • Frequency response – 150 Hz – 7 kHz for handset, optional headset and handsfree speakerphone modes
  • Codecs: G.711 (A-law and ?-law), G.729AB, G.722, G.722.1, iLBC
  • Individual volume settings with visual feedback for each audio path
  • Voice activity detection
  • Comfort noise generation
  • DTMF tone generation (RFC 2833 and in-band)
  • Low-delay audio packet transmission
  • Adaptive jitter buffers
  • Packet loss concealment
Headset and Handset Compatibility
  • Dedicated RJ-9 headset port
  • Hearing aid compatibility to ITU-T P.370 and TIA 504A standards
  • Compliant with ADA Section 508 Subpart B 1194.23 (all)
  • Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids
  • Compatible with commercially available TTY adapter equipment
Call Handling Features
  • 6 lines (programmable line keys)
  • Shared call/bridged line appearance
  • Busy Lamp Field (BLF)
  • Flexible line appearance (1 or more line keys can be assigned for each line extension)
  • Distinctive incoming call treatment/call waiting
  • Call timer and call waiting
  • Call transfer, hold, divert (forward), pickup
  • Called, calling, connected party information
  • Local 3-way audio conferencing
  • 1-touch speed dial, redial
  • Remote missed call notification
  • Do not disturb function
  • Electronic hook switch capable
  • Local configurable digit map/dial plan
Open Application Platform
  • WebKit-enabled full browser that supports HTML5, CSS, SSL security, and JavaScript
  • Supports Polycom Apps SDK and API for third-party business and personal applications
  • Bundled with Polycom UC Software:
    • Corporate directory access using LDAP Visual Conference Management
Network and Provisioning
  • SIP Protocol Support
  • SDP
  • IETF SIP (RFC 3261 and companion RFCs)
  • Two-port Ethernet switch
    • 10/100Base-TX across LAN and PC ports (VVX 300)
    • 1000Base-TX available on VVX 310
    • Conforms to IEEE802.3-2005 (Clause 40) for hysical media attachment
  • Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation
  • Manual or dynamic host configuration protocol (DHCP) network setup
  • Time and date synchronization using SNTP
  • FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments
  • Provisioning and call server redundancy supported1
  • QoS Support – IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and Diffserv/DSCP
  • VLAN - CDP, DHCP VLAN discovery, LLDP-MED for VLAN discovery
    • Network address translation support
      for static configuration and “keep-alive”
      SIP signaling
  • RTCP and RTP support
  • Event logging
  • Syslog
  • Hardware diagnostics
  • Status and statistics reporting
  • IPv4 and IPv6
  • TCP
  • UDP
  • DNS-SRV
Security
  • 802.1X authentication and EAPOL media encryption via SRTP
  • Transport layer security
  • Encrypted configuration files
  • Digest authentication
  • Password login
  • Support for URL syntax with password for boot server address
  • HTTPS secure provisioning
  • Support for signed software executables
Power
  • Built-in auto sensing IEEE 802.3af Power over Ethernet (Class 2)
  • External Universal AC adapter (optional),
    48VDC 0.3A

Frequently Asked Questions

Polycom VVX 301 IP Phone (2200-48300-025)

Frequently Asked Questions (FAQ's)



What is the Polycom VVX 301 IP Phone?
  • The Polycom VVX 301 is a 6-line entry-level IP phone for small and medium-sized organizations that provides HD voice quality and enterprise-grade functionality.
    • What are the key features of the Polycom VVX 301?
  • It has HD voice, a backlit LCD display, 6-line capability, dual 10/100 Ethernet ports, and is compatible with most VoIP platforms.
    • Does the Polycom VVX 301 support Power over Ethernet (PoE)?
  • Yes, the phone supports PoE. However, if PoE is not accessible, a separate power adaptor is necessary.
    • What type of display does the VVX 301 have?
  • It features a 208 x 104-pixel grayscale backlit LCD display for easy navigation.
    • Can I use a headset with the Polycom VVX 301?
  • Yes, it features an RJ-9 headset port and supports Electronic Hook Switch (EHS) for headsets that are compatible.
    • Does the VVX 301 support Wi-Fi?
  • No, it does not feature built-in Wi-Fi, however you can use a third-party adapter if necessary.
    • What VoIP protocols does the VVX 301 support?
  • It supports SIP (Session Initiation Protocol) for easy interaction with VoIP services.
    • Can the Polycom VVX 301 be used with Microsoft Teams?
  • It is not natively compatible with Microsoft Teams, although it does function with Teams-integrated SIP platforms.
    • How do I reset the Polycom VVX 301 to factory settings?
  • Press and hold the “1”, “3”, and “5” keys during startup, then follow the on-screen instructions.
    • How do I configure the VVX 301 for my VoIP provider?
  • Access the web interface by IP address, log in as an administrator, and enter your VoIP provider's SIP credentials.
    • Does the phone support call forwarding and conferencing?
  • Yes, it allows for call forwarding, three-way conference, call transfer, and call waiting.
    • What is the difference between the VVX 301 and VVX 311?
  • The primary distinction is that the VVX 311 includes Gigabit Ethernet connections, whilst the VVX 301 has 10/100 Mbps ports.
    • How do I update the firmware on the Polycom VVX 301?
  • Firmware updates can be performed via the Polycom web interface or a provisioning server from your VoIP provider.
    • Can I transfer calls between VVX 301 phones?
  • Yes, you can transfer calls utilizing the blind transfer and attended transfer capabilities.
    • How do I adjust the volume on the VVX 301?
  • The volume button on the phone's front can be used to alter the volume of the ringer, handset, speaker, or headset.
    • Is the Polycom VVX 301 easy to set up?
  • Yes, it has an easy-to-use interface, and most VoIP providers offer provisioning to make setup easier.
    • Does the phone support speed dialing?
  • Yes, you may set up speed dial keys using the phone menu or web interface.
    • What type of network cable does the VVX 301 use?
  • It requires a standard Ethernet cable (CAT5e or CAT6 recommended).
    • How do I find the IP address of my Polycom VVX 301?
  • Press the Home button, then go to Settings > Status > Network > TCP/IP Parameters. The IP address will be displayed.
    • Does the VVX 301 support voicemail?
  • Yes, it does support voicemail provided your VoIP provider has enabled it. To access it, click the Messages icon.
