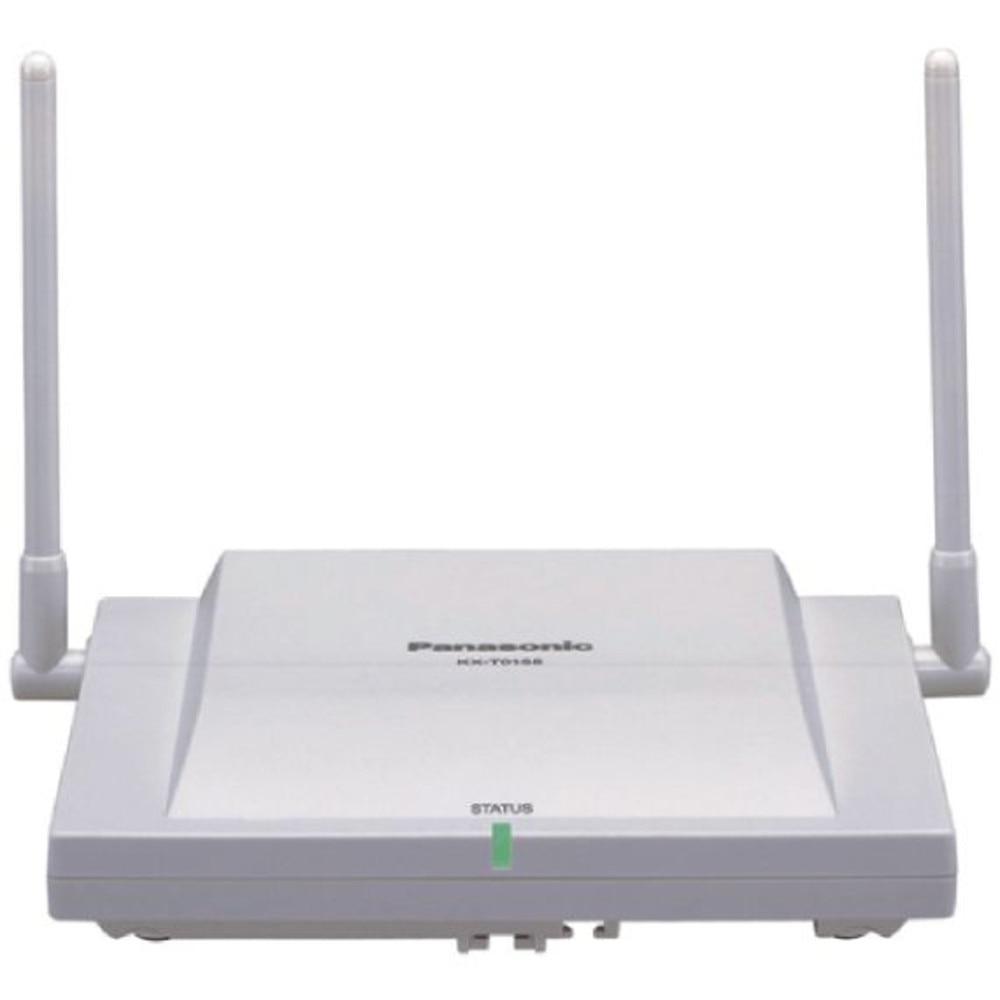

Panasonic KX-T0158 8 Channel DECT Cell Station | New

Panasonic KX-T0158 8 Channel DECT Cell Station | New

SKU: KX-T0158-N
(0)No Reviews yet

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$295.99 $295.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Panasonic KX-T0158 8 Channel DECT Cell Station | New


Compatible with the KX-TAW, KX-TDA, KX-TDE, and KX-NCP IP PBX Panasonic Communications Systems.

KX-T0155 and the KX-T0158 use the use the latest technology from Panasonic designed for less interference with wireless networks systems and other cordless phones. Using a 1.9 MHz frequency, this spectrum has less interference with current 900 MHz, 2.4 GHz and 5.4 GHz bands. The KX-T0155 and the KX-T0158 replaces the KX-T0151 model.

The KX-T0155 provides 2 communication channels for Panasonic handsets. The KX-T0158 provides 8 communication channels for Panasonic handsets. Each cell station can only handle up to 2 or 8 simultaneous phone calls depending on model used. For systems with multiple handsets, we recommend adding additional cell stations for improved performance when answering calls. The cell stations should be positioned at least 10 feet apart. In most setups, cell stations should be placed approx 75 feet from each other creating overlapping cell coverage. One cell station has approx 150 feet in radius coverage.

The cell station are powered by the control unit and do not require an AC adaptor or power supply to work.

Specifications

Specifications for Panasonic KX-T0158 8 Channel DECT Cell Station | New

ManufacturerPanasonic
Radio Access MethodMultiCarrier TDMA-TDD
Frequency Band1920 MHz to 1930 MHz
Number of Carriers5
Carrier Spacing1728 kHz
Bit Rate1152 kbps
Carrier MultiplexTDMA, 24 (Tx12, Rx12) slots per frame
Frame Length10ms
Modulation SchemeGFSK
Roll-off factor0.5 50 % roll-off in the transmitter
Data Coding for ModulatorDifferential Coding
Voice CODEC32 kbps ADPCM (CCITT G.726)


User Guides

Frequently Asked Questions

Panasonic KX-T0158 8 Channel DECT Cell Station



What is the Panasonic KX-T0158?
  • It's a DECT 6.0 8-Channel Cell Station that works with several Panasonic IP PBX systems.
  • Which PBX systems is the KX-T0158 compatible with?
  • It is compatible with Panasonic Communications Systems' IP PBX models KX-TAW, KX-TDA, KX-TDE, and KX-NCP.
  • What frequency does the KX-T0158 use?
  • It uses a 1.9 MHz frequency.
  • How many communication channels does the KX-T0158 provide?
  • It provides 8 communication channels for Panasonic handsets.
  • What is the main advantage of the KX-T0158's frequency?
  • It is meant to cause less interference with wireless network systems and other cordless phones.
  • Which model did the KX-T0158 replace?
  • It replaced the KX-T0151 model.
  • How many simultaneous phone calls can the KX-T0158 handle?
  • It can handle up to 8 simultaneous phone calls.
  • What is the recommended distance between cell stations?
  • Cell stations should be positioned at least 10 feet apart.
  • What is the typical coverage radius of one cell station?
  • One cell station has approximately 150 feet in radius coverage.
  • Does the KX-T0158 require a separate power supply?
  • No, it's powered by the control unit and doesn't require an AC adaptor or power supply.
  • Is the KX-T0158 currently in stock?
  • As of the search results, it was out of stock.
  • What is the main difference between the KX-T0158 and KX-T0155?
  • The KX-T0158 provides 8 communication channels, while the KX-T0155 provides 2 channels.
  • What is the recommended placement for multiple cell stations?
  • In most cases, cell stations should be situated 75 feet apart to provide overlapping cell coverage.
  • Does the KX-T0158 use DECT technology?
  • Yes, it uses DECT 6.0 technology.
  • Is the KX-T0158 designed for commercial or residential use?
  • It's designed for commercial use with Panasonic IP PBX systems.
  • Can the KX-T0158 be used with non-Panasonic handsets?
  • The information provided does not specify, although it is most likely intended for usage with Panasonic handsets.
  • Does the KX-T0158 support encryption?
  • The search results don't provide specific information about encryption support.
  • Are there any specific installation requirements for the KX-T0158?
  • The cell stations should be properly positioned to provide optimal coverage, however the search results do not include particular installation criteria.
  • What is the RF specification of the KX-T0158?
  • It employs MultiCarrier TDMA-TDD, with a frequency range of 1920 MHz to 1930 MHz and five carriers.
  • How do you mount the KX-T0158 on a wall?
  • Follow the wall mounting instructions in the Quick Installation Guide, and ensure the wall can take the unit's weight.
