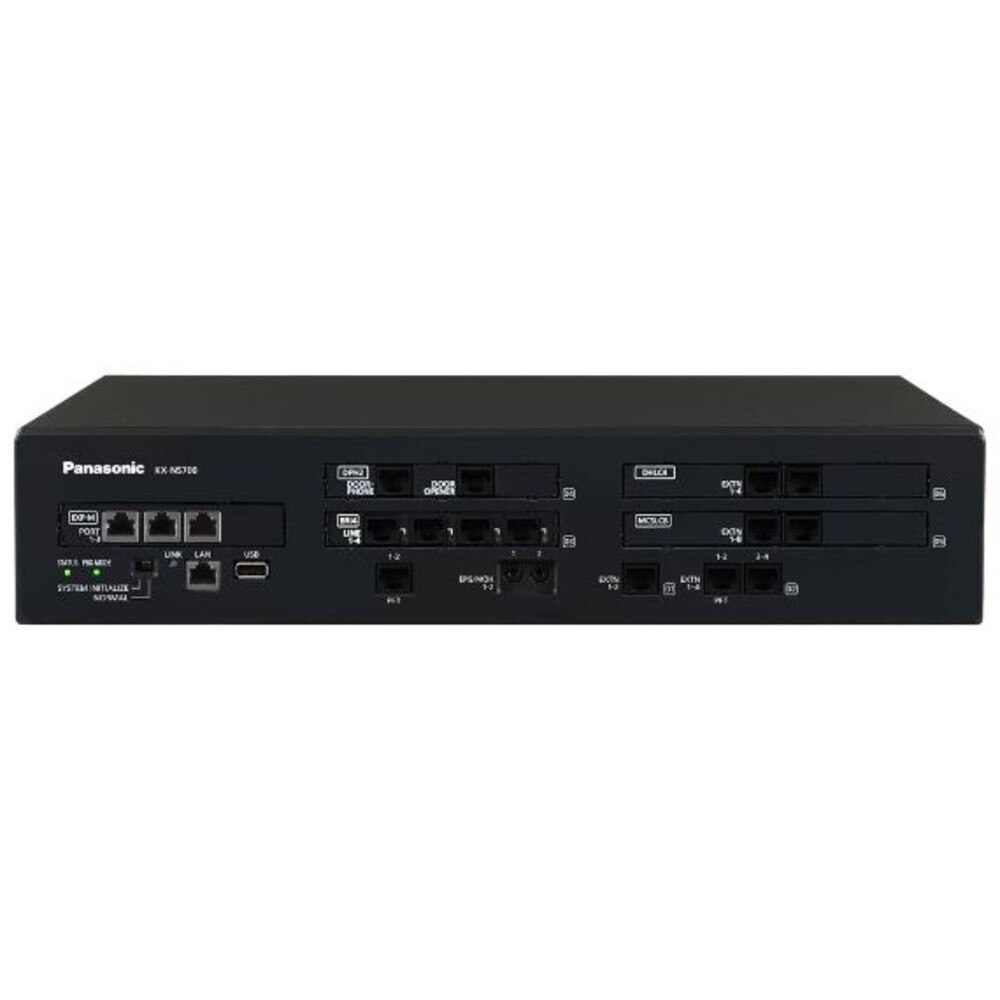

Panasonic KX-NS700 Compact Hybrid Communication System | Like New
SKU: KX-NS700-LN
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Panasonic KX-NS700 Compact Hybrid Communication System | Like New
The Panasonic KX-NS700 Compact Hybrid Communication System has extensive capabilities and can support up to 288 expansions with Expansion Units. It is also a unified communications system with advanced IP features such as mobile linking, integrated voicemail and e-mail, instant messaging (chat), and presence information. It can also employ built-in applications such as a call center solution, mobile solution, and voicemail system to enable more efficient work, greater customer satisfaction, and lower total cost of ownership.
Key Features of Panasonic KX-NS700 Compact Hybrid Communication System
BUILT-IN AUTO ATTENDANT
In call routing with voice assistance, the KX-NS700 can link consumers to the right section or operator based on their question as a standard feature. When the operator is unavailable, it can also prompt clients to leave a voice message.
USE EXISTING RESOURCES
Existing Panasonic analogue and digital PTs can be reused, allowing a system to be replaced at a minimal cost without squandering resources.
ENHANCED VOICEMAIL
The KX-NS700 may be upgraded to a voicemail system that can record up to 24 channels at once and store up to 400 hours. It also sends an email to users when they have new voice messages. Messages can also be received as attached files and forwarded. Email notifications can also be provided for missed calls if the client did not leave a message, allowing users to quickly contact the consumer.
SPECIFICATIONS CALL CENTRE SOLUTION
For small to medium-sized contact centers, the KX-NS700 includes an advanced call routing function. This feature is not dependent on an external CTI server. More efficient phone receiving allows you to make better use of limited resources to improve customer service.
AUTO-RECORDING AND BACKING-UP CONVERSATIONS
The voicemail system function can be used to automatically record customer discussions. When necessary, the recorded voice data can be immediately stored to USB memory or an external server over the internet and listened to. The data can be utilized to better understand customer service issues or opportunities.
COMPATIBLE WITH MODERN, STYLISH PHONES
Panasonic's KX-TCAx85 Series wireless phone, KX-DT5xx Series digital desktop phones, and KX-NT5xx Series IP phones were used. You can also use a variety of additional programs from our third-party software developer partners.
Specifications
Specifications for Panasonic KX-NS700 Compact Hybrid Communication System | Like New
| Manufacturer | Panasonic |
| Manufacturer Part Number | KX-NS700 |
| Product Name | Panasonic KX-NS700 Compact Hybrid Communication System |
| Product Type | Headset |
| Main CPU | Cortex A8 600 MHz |
| Power Input | 100 V AC to 130 V AC: 2.2 A/200 V AC to 240 V AC: 1.3; 50 Hz/60Hz |
| Power Consumption (when fully mounted) | Normal rated power 104 VA |
| Memory Backup Duration | 7 years |
| Dialling | Dial Pulse (DP) 10 pps, 20 pps Tone (DTMF) Dialling |
| Dial Pulse (DP) 10 pps, 20 pps Tone (DTMF) Dialling | |
| Mode Conversion | DP-DTMF, DTMF-DP |
| Ring Frequency | 20 Hz/25 Hz (selectable) |
| Operating Environment | 0 °C to 40 °C |
| 10 % to 90 % (non-condensing) | |
| Conference Call Trunk | 32 party conference call (10 x 3-party conference call, 4 x 8-party conference call, etc.) |
| Music on Hold (MOH) | Internal MOH port: 8 ports (Level Control: -31.5 dB to +31.5 dB per 0.5 dB) |
| External MOH port: 2 ports (Available exclusively with EPG [External Paging]) MOH: Selectable Internal/External Music Source port | |
| External Paging | Maximum 2 ports (Volume Control: -15.5 dB to +15.5 dB per 0.5 dB) |
| (Available exclusively with MOH) | |
| LAN Port | 10BASE-T/100BASE-TX (Auto MDI/MDI-X) |
| Extension Connection Cable | 1-pair wire (T, R) |
| 1-pair wire (D1, D2) | |
| 2-pair wire (T, R, D1, D2) | |
| 1-pair wire (D1, D2) | |
| 4-pair wire (D1, D2) | |
| 1-pair wire (D1, D2) | |
| Air-cooling Method | Fan |
| Dimension | 430 mm (W) x 335 mm (D) x 88 mm (H) |
| Weight (when fully mounted) | Under 5.0 kg (excluding 19'' rack mounting equipment) |
User Guides
Frequently Asked Questions
Panasonic KX-NS700 Compact Hybrid Communication System
Frequently Asked Questions (FAQ's)
What is the Panasonic KX-NS700? The Panasonic KX-NS700 is a compact hybrid communication system designed for small to medium-sized businesses, offering a range of telephony and communication features.
What types of lines does the KX-NS700 support? The KX-NS700 supports both traditional analog lines and digital ISDN lines, as well as SIP trunking for VoIP communications.
How many extensions can the KX-NS700 support? The KX-NS700 can support up to 288 extensions with additional expansion units.
Can the KX-NS700 be integrated with IP phones? Yes, the KX-NS700 supports IP phones, allowing for integration with Panasonic's range of IP telephones.
What are the main features of the KX-NS700? The main features include voicemail, call forwarding, conferencing, auto attendant, call recording, and unified messaging.
Does the KX-NS700 support remote extensions? Yes, the system supports remote extensions, enabling employees to connect from remote locations.
Is it possible to connect the KX-NS700 to mobile devices? Yes, the KX-NS700 offers mobile integration, allowing users to connect their mobile devices and use them as office extensions.
What is the maximum number of SIP trunks the KX-NS700 can handle? The KX-NS700 can handle up to 64 SIP trunks.
Does the KX-NS700 offer any unified communication features? Yes, the system provides unified communication features such as instant messaging, presence, and integration with email.
How can I manage the KX-NS700 system? The KX-NS700 can be managed through a web-based interface, providing easy access for configuration and maintenance.
Is the KX-NS700 scalable? Yes, the system is scalable, allowing businesses to start with a small setup and expand as needed.
What kind of voicemail features does the KX-NS700 offer? The KX-NS700 offers features like voicemail to email, automated attendant, and customizable greetings.
Can the KX-NS700 be used for video conferencing? While the KX-NS700 primarily focuses on voice communications, it can be integrated with third-party video conferencing solutions.
What kind of call center features are available on the KX-NS700? The KX-NS700 includes call center features such as Automatic Call Distribution (ACD), call queue management, and detailed reporting.
How does the KX-NS700 handle call recording? The KX-NS700 can record calls either manually or automatically, with recordings stored on the system's built-in storage or on external devices.
Is the KX-NS700 compatible with DECT wireless phones? Yes, the system is compatible with DECT wireless phones, providing mobility within the office environment.
What security features are included in the KX-NS700? The system includes security features such as encryption for IP communications, password protection, and user authentication.
Can the KX-NS700 be integrated with CRM systems? Yes, the KX-NS700 can be integrated with various CRM systems to enhance customer relationship management.
What are the power requirements for the KX-NS700? The KX-NS700 requires a standard AC power supply and has built-in power backup options to ensure continuity during power outages.
Where can I find support for the KX-NS700? Support for the KX-NS700 can be found through Panasonic's official website, authorized resellers, and certified technical support providers.
