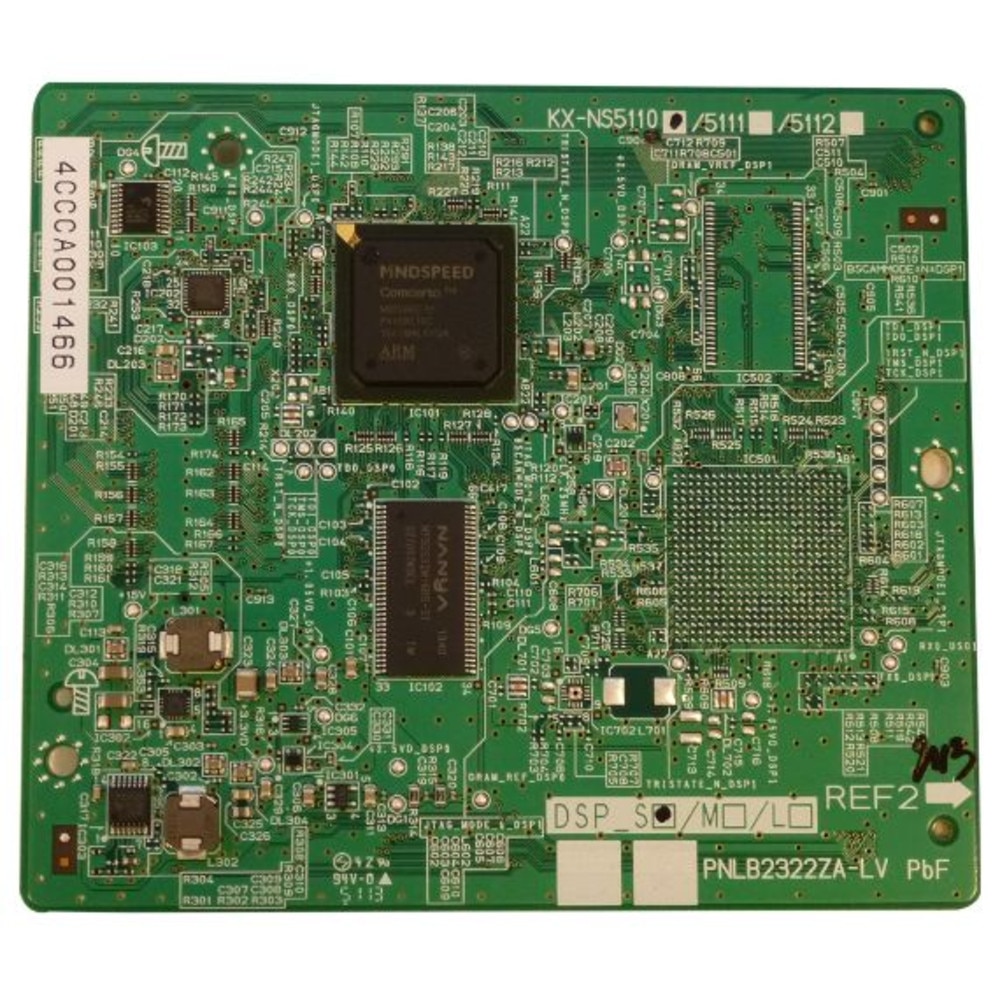

Panasonic KX-NS5110 VoIP DSP Card S Type | New

Panasonic KX-NS5110 VoIP DSP Card S Type | New

SKU: KX-NS5110-N
1Review

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$244.99 $244.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Panasonic KX-NS5110 VoIP DSP Card (S-Type) | New Overview


Panasonic KX-NS5110, A DSP card is a digital signal processor card with DSP resources that can be used for VoIP calls, Conferences, the Unified Messaging feature (Voice-Mail and Auto Attendant), and the DISA/OGM feature. The DSP cards are compliant with ITU-T G.729A and G.711 codec methods.

Depending on the amount of your DSP resource needs, DSP S, DSP M, or DSP L cards can be installed. The number of resources provided by each type of DSP card is as follows:


  • DSP S card: 63
  • DSP M card: 127
  • DSP L card: 254

One of DSP cards can be installed on the motherboard.

Specifications

Panasonic KX-NS5110 VoIP DSP Card (S-Type) | New Specifications

BrandPanasonic
Channels63 Channels VoIP DSP Card
Supported CodecsG.711, G.722 & G.729A
Supported ProtocolsT.38 Fax Transmission Protocol
Conference & Unified MessagingYes
Installed in DSP-Slot Base UnitYes
External Lines of VoIPYes
IP ExtensionsYes
SIP & IP SystemYes
Recording of Telephone ConversationsYes
IP DECT Antenna ConnectionYes
CompatibilityPanasonic KX-NS700


User Guides

Frequently Asked Questions

Panasonic KX-NS5110 VoIP DSP Card S Type
Frequently Asked Questions (FAQ's)

What is the purpose of the Panasonic KX-NS5110 VoIP DSP Card S Type?
  • The KX-NS5110 VoIP DSP Card is designed to provide VoIP (Voice over IP) functionality in Panasonic KX-NS series phone systems, enabling IP-based voice communication.
  • How many VoIP channels does the Panasonic KX-NS5110 support?
  • The KX-NS5110 supports up to 32 VoIP channels for simultaneous IP calls.
  • Can the Panasonic KX-NS5110 be used for SIP trunking?
  • Yes, the KX-NS5110 VoIP DSP Card supports SIP trunking, allowing businesses to connect with VoIP service providers.
  • Is the Panasonic KX-NS5110 compatible with all Panasonic KX-NS series systems?
  • The KX-NS5110 is compatible with various Panasonic KX-NS series systems, including the KX-NS700 and KX-NS1000.
  • Does the Panasonic KX-NS5110 support IP extensions?
  • Yes, the KX-NS5110 VoIP DSP Card enables support for IP extensions within the system.
  • How does the Panasonic KX-NS5110 enhance call quality?
  • The KX-NS5110 utilizes DSP (Digital Signal Processing) to improve voice quality by reducing noise and enhancing clarity during VoIP calls.
  • What types of IP phones can be used with the Panasonic KX-NS5110 VoIP DSP Card?
  • Panasonic IP phones, as well as third-party SIP-compliant phones, can be used with the KX-NS5110 card.
  • How do I install the Panasonic KX-NS5110 VoIP DSP Card into the system?
  • The KX-NS5110 is installed by inserting it into a designated expansion slot within the Panasonic KX-NS series PBX system.
  • Does the Panasonic KX-NS5110 require any additional software?
  • The KX-NS5110 typically requires configuration through the Panasonic KX-NS system software for proper setup and integration.
  • What is the power consumption of the Panasonic KX-NS5110 VoIP DSP Card?
  • The KX-NS5110 has a low power consumption rate, making it an efficient addition to your phone system.
  • How does the KX-NS5110 improve the scalability of my Panasonic phone system?
  • By adding the KX-NS5110, businesses can scale their VoIP capabilities by increasing the number of IP channels and extensions supported.
  • What is the maximum number of SIP trunks supported by the Panasonic KX-NS5110?
  • The KX-NS5110 supports up to 64 SIP trunks when integrated into a fully expanded system.
  • Can I use the Panasonic KX-NS5110 for remote worker connectivity?
  • Yes, the KX-NS5110 enables remote workers to connect to the office phone system using IP phones or softphones over the internet.
  • Is the Panasonic KX-NS5110 VoIP DSP Card compatible with cloud-based phone systems?
  • The KX-NS5110 is designed for on-premises IP phone systems but can work with cloud-based services via SIP trunking.
  • What network infrastructure is required to use the Panasonic KX-NS5110?
  • The KX-NS5110 requires a stable IP network with adequate bandwidth to support VoIP calls and SIP trunks.
  • Can the Panasonic KX-NS5110 be used for video conferencing?
  • While the KX-NS5110 focuses on voice communication, it can integrate with other solutions for video conferencing in some setups.
  • How do I configure SIP trunking on the Panasonic KX-NS5110?
  • SIP trunking can be configured through the Panasonic PBX management interface by entering the necessary SIP provider details.
  • Is the Panasonic KX-NS5110 suitable for small businesses?
  • Yes, the KX-NS5110 is ideal for small to medium-sized businesses looking to enhance their VoIP capabilities with SIP trunking and IP extensions.
  • Does the Panasonic KX-NS5110 require any specific firmware updates?
  • Periodic firmware updates may be necessary for optimal performance and compatibility with newer technologies.
  • How can the Panasonic KX-NS5110 reduce communication costs?
  • By enabling VoIP and SIP trunking, the KX-NS5110 allows businesses to reduce traditional phone line costs and benefit from lower rates on IP calls.
