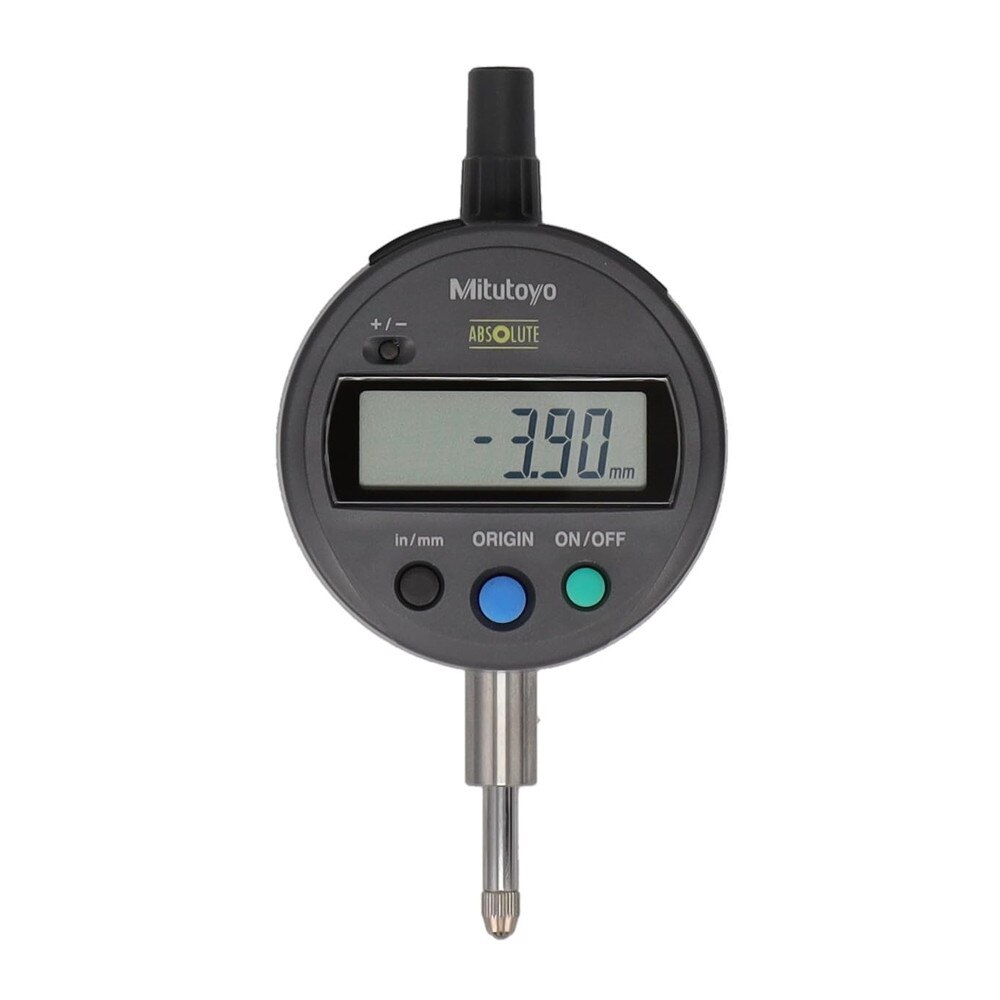

Overview of Mitutoyo 543-783B-10 ABSOLUTE Digimatic Indicator ID-S | New
The Mitutoyo 543-783B-10 ABSOLUTE Digimatic Indicator ID-S is a high-quality measuring instrument intended for precision and dependability in a variety of industrial settings. This advanced indicator incorporates Mitutoyo's innovative ABSOLUTE technology, ensuring precise readings and ease of use for manufacturing, quality control, and engineering professionals. The Mitutoyo ID-S Digimatic Indicator has a clear 6-digit LCD display that is easy to read, even in low-light conditions. This indicator, with a measuring range of 0 to 12.7 mm (0 to 0.5 inches) and a resolution of 0.001 mm (0.00005 inches), is ideal for precise measurements. The ABSOLUTE technology enables instant measurement recall from the origin, eliminating the need for constant zeroing. The Mitutoyo 543-783B-10 is an essential tool for professionals who require precision and durability in their measurement instruments. Its combination of advanced technology, user-friendly design, and high precision makes it a popular choice in the industry.
Key Features of Mitutoyo 543-783B-10 ABSOLUTE Digimatic Indicator ID-S
• The indicator retains its origin point even after powering off, providing instant access to measurements without recalibration.
• With an accuracy of ±0.001 mm (±0.00005 inches), the ID-S ensures precise measurements essential for quality control.
• Built with robust materials, this indicator is designed to withstand the rigors of industrial environments, ensuring longevity and reliability.
• The intuitive controls and clear display make it easy for users to navigate settings and read measurements quickly.
• Ideal for various applications including machining, assembly, and inspection processes in manufacturing settings.
Specifications
Specifications for Mitutoyo 543-783B-10 ABSOLUTE Digimatic Indicator ID-S | New
| Manufacturer | Mitutoyo |
| Manufacturer Part Number | 543-783B-10 |
| Product Name | Mitutoyo 543-783B-10 ABSOLUTE Digimatic Indicator ID-S |
| Product Type | Indicator |
| Measuring Range | 0 to 12.7 mm (0 to 0.5 inches) |
| Resolution | 0.001 mm (0.00005 inches) |
| Accuracy | ±0.001 mm (±0.00005 inches) |
| Display Type | 6-digit LCD |
| Max Response Speed | Unlimited |
| Measuring Force | 1.5 N or less |
| Power Supply | SR44 Battery (1 pc.) |
| Stem Diameter | 3/8 inch (9.53 mm) |
| Stem Thread | #4-48 UNF |

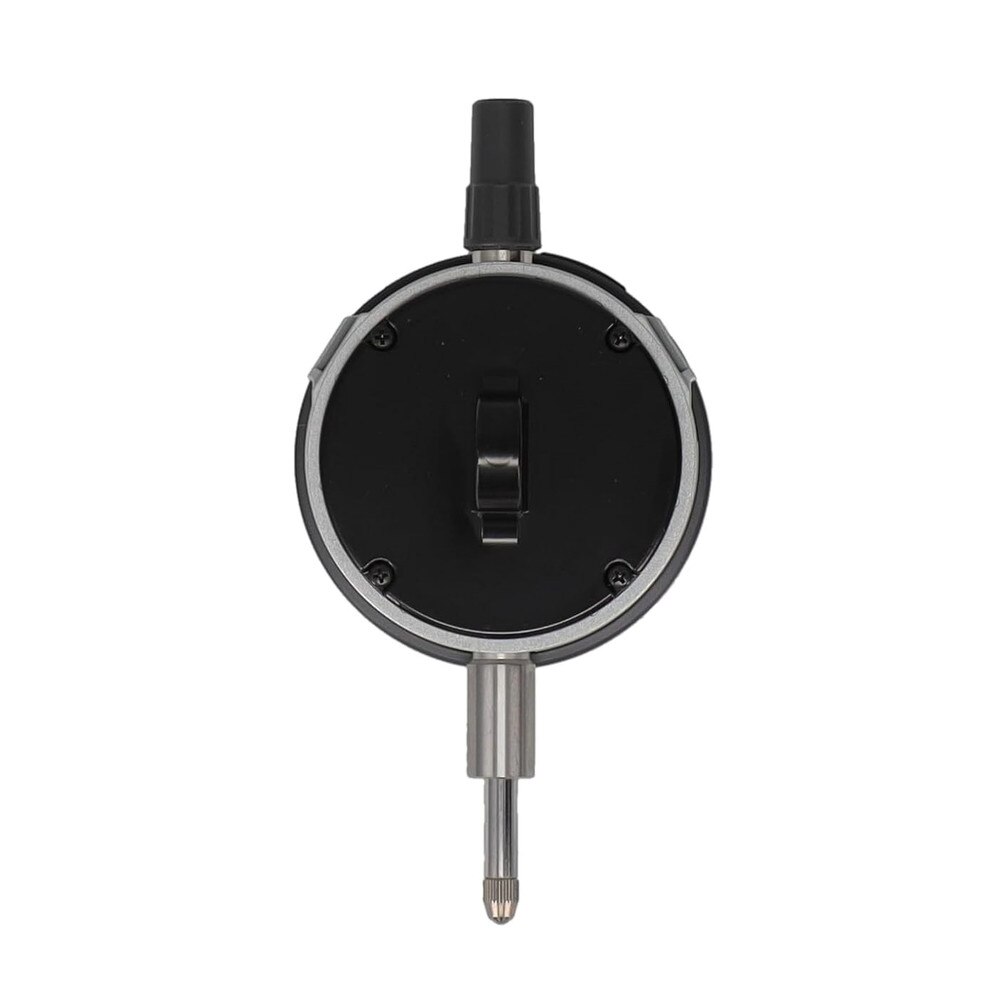

| Back Type | Flat Back |
| Functions | Origin-set, Zeroset, Counting direction switching, Power ON/OFF, Data output |
| Operating Temperature Range | 0 to 40°C (32 to 104°F) |
| Storage Temperature Range | -10 to 60°C (14 to 140°F) |
User Guides
Frequently Asked Questions
Mitutoyo 543-783B-10 ABSOLUTE Digimatic Indicator ID-S
Frequently Asked Questions (FAQ's)
What is the resolution of the Mitutoyo 543-783B-10?The resolution is 0.0005 inches or 0.01 mm.
What is ABSOLUTE sensor technology?It eliminates the need to reset zero after each power-up and maintains a reference point.
Is the Mitutoyo 543-783B-10 waterproof?It has an IP42 rating, which means it provides only limited protection against dust and water.
Can the Mitutoyo 543-783B-10 be used for both metric and imperial measurements?Yes, it can convert between metric and imperial units.
What is the operating temperature range for the Mitutoyo 543-783B-10?The temperature range is 0 to 40°C (32 to 104°F).
Does it have a function for counting in both directions?Yes, it supports both forward and reverse measurement directions.
What materials are used for the construction of the Mitutoyo 543-783B-10?It has a stainless steel spindle and a hard-coated crystal display.
Is the display on the Mitutoyo 543-783B-10 easy to read?Yes, it has a large LCD screen that allows for easy reading of measurements.
How do you reset the zero point?Simply press the zero-set button to return the zero point.
Can the Mitutoyo 543-783B-10 measure displacement?Yes, it measures linear displacement in both directions.
What kind of accuracy does the Mitutoyo 543-783B-10 offer?It offers an accuracy of ±0.001 mm (±0.0001 inches).
Is it compatible with SPC (Statistical Process Control) systems?Yes, it can connect to SPC systems through the Digimatic output.
Can it withstand harsh industrial environments?Yes, it is built with tough materials and IP42 protection for use in harsh environments.
Does the Mitutoyo 543-783B-10 come with a certificate of calibration?It may include a calibration certificate, depending on the vendor.
How do you clean the Mitutoyo 543-783B-10?To ensure its longevity, wipe the exterior with a soft cloth rather than solvents or water.
What is the measuring range of the Mitutoyo 543-783B-10?The measurement range is 0 to 12.7 mm (0.5 inches).
Does the 543-783B-10 have a data output option?Yes, it has a Digimatic data output for sending information to a computer or printer.
What type of battery does the Mitutoyo 543-783B-10 use?It has an SR44 battery.
How long does the battery last?The battery lasts approximately 20,000 hours of continuous use.
Can the Mitutoyo 543-783B-10 be preset to a specific value?Yes, it supports presetting to a specific value.
