Overview of JVC KW-M560BT Digital Multimedia Receiver | New
The JVC KW-M560BT Digital Multimedia Receiver is a powerful entertainment hub for your vehicle, featuring a 6.8" capacitive touchscreen display that puts all the goodness front and center. With Android Auto™ and Apple CarPlay, you can seamlessly integrate your smartphone for music sources, hands-free calling, and serious sound-shaping tools. This receiver offers a variety of music file formats, including high-resolution FLAC and WAV files, to ensure top-notch audio quality. It features a MOSFET amplifier for increased power and cleaner music at higher volumes. A backup camera input adds visibility while reversing.
Key Features of JVC KW-M560BT Digital Multimedia Receiver
Smartphone Integration

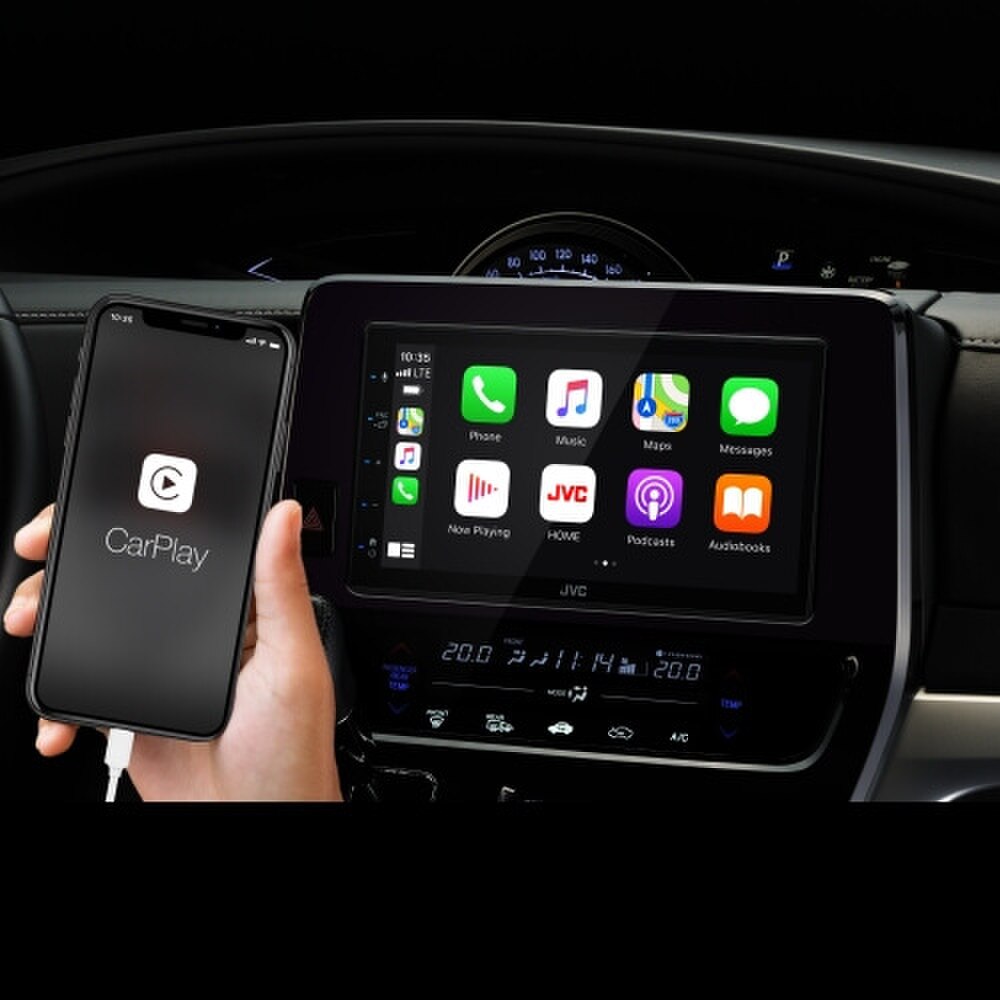

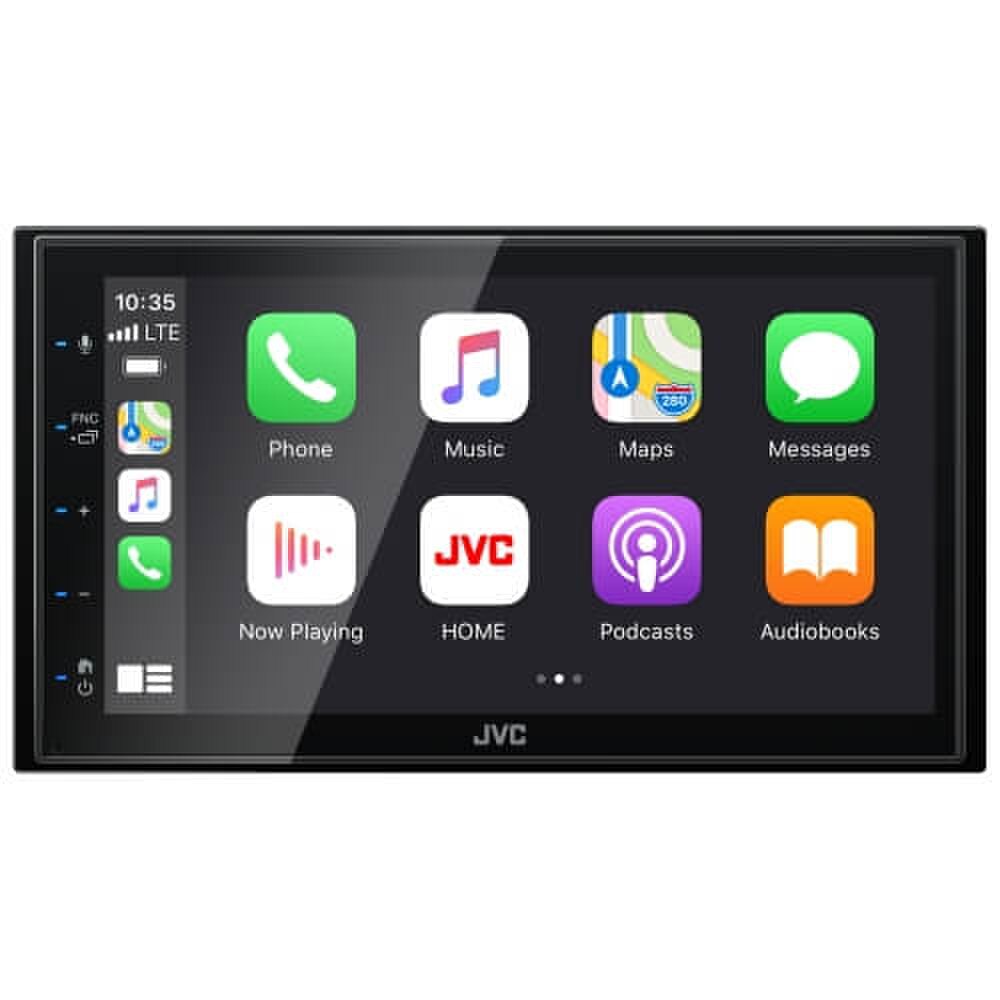

• Apple CarPlay
Hands-free calling, music, navigation (apps like Apple Maps, Waze, Google Maps, and others), and Siri access are all seamlessly integrated.
• Android Auto
Similar integration for Android devices, which allows you to control compatible apps and use Google Assistant.
Audio Features
• 13-Band Graphic Equalizer
Fine-tune your sound by making precise adjustments across multiple frequency bands.
• High-Current 1.5A USB Charging
Charge your smartphone quickly while on the move.
• Rearview Camera Input
Connecting a compatible rearview camera (sold separately) improves visibility and safety while parking or reversing.
• Variety of Playback Formats
Supports MP3, WMA, AAC, WAV, and FLAC audio files, as well as MPEG 1/2/4 video playback.
Connectivity
• Bluetooth
Make hands-free calls and listen to your favorite music wirelessly using your smartphone.
• Steering Wheel Remote Ready
A compatible adapter (sold separately) allows you to control the receiver directly from your steering wheel.
Display & Design

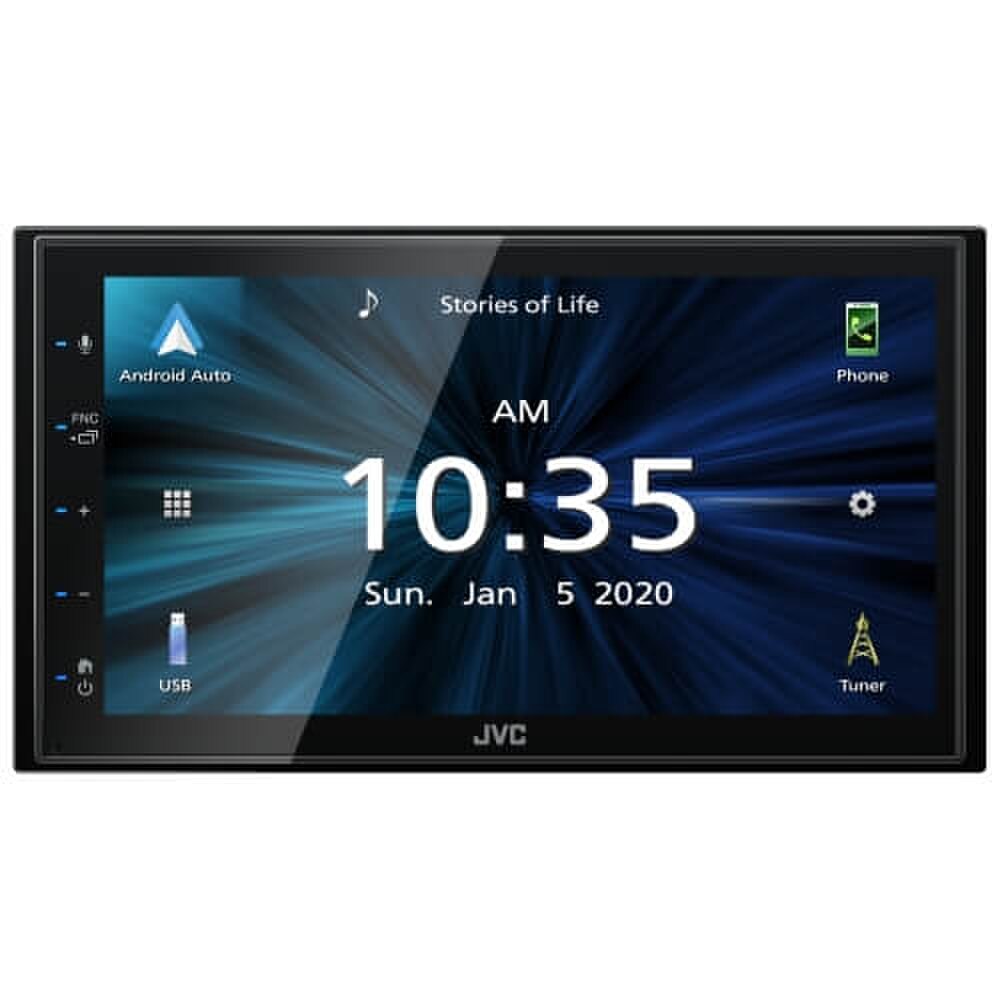

• 6.8" Capacitive Touchscreen
Provides a highly responsive and user-friendly interface with clear visuals.
• Gesture Touch Control
Control functions are accessed through simple finger movements on the screen.

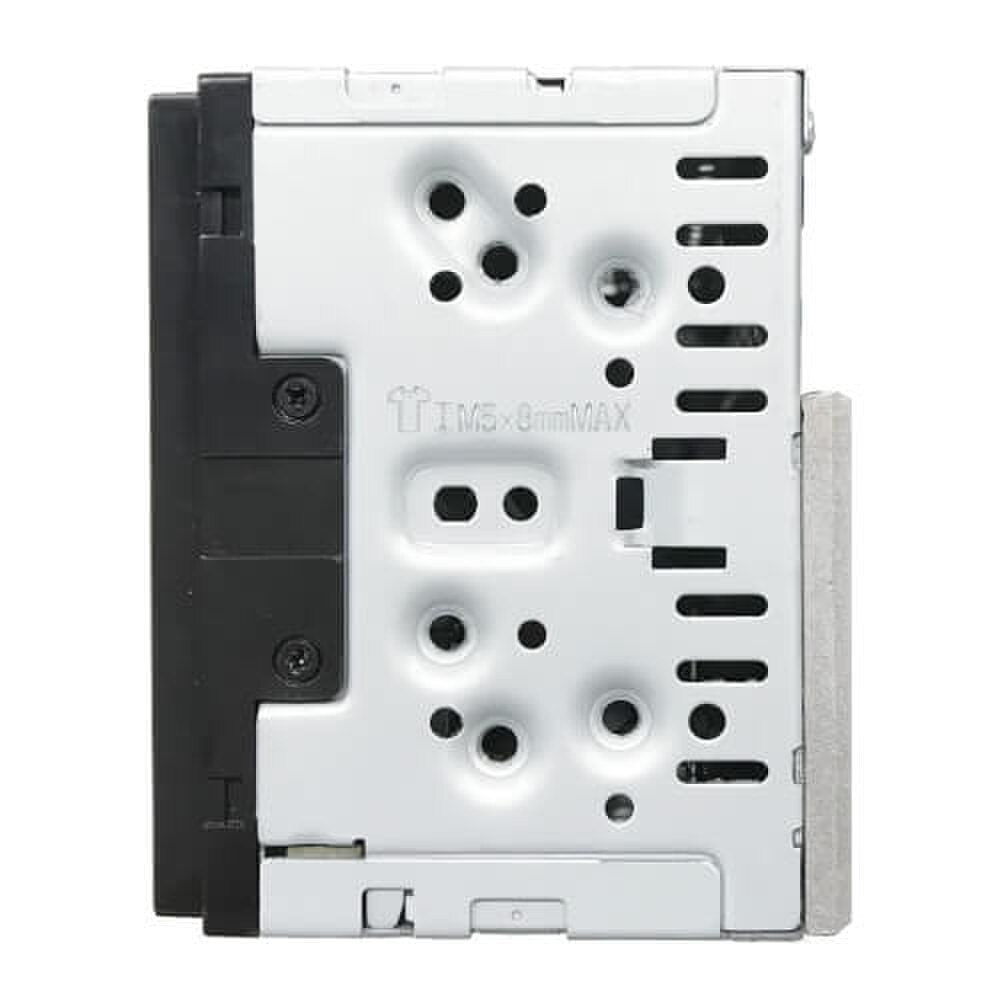

• Shallow Chassis
Designed for easy installation in cars with limited dashboard space.
Specifications
Specifications for JVC KW-M560BT Digital Multimedia Receiver | New
| Manufacturer | JVC |
| Manufacturer Part Number | KW-M560BT |
| Product Name | JVC KW-M560BT Digital Multimedia Receiver |
| Product Type | Multimedia Receiver |
| Monitor | |
| Screen Size | 6.8"W VGA Screen |
| Touch Panel | Capacitive |
| Gesture Touch Control | Yes |
| Customizable GUI | Yes |
| Key Illumination Color | Blue |
| Dimmer | Yes |
| Multilingual Display | Yes[4] |
| Media Playback | |
| MP3 Compatible with Tag | USB |
| WMA Compatible with Tag | USB |
| WAV Compatible with Tag | USB |
| AAC Compatible with Tag | USB |
| FLAC Compatible with Tag | USB |
| H.264 Compatible | USB |
| WMV Compatible | USB |
| MPEG 1/2 Compatible | USB |
| MPEG 4 Compatible | USB |
| AVI/MKV Compatible | USB |
| Bluetooth Control | |
| Built-in Bluetooth[1] | Yes (Wired-Mic included) |
| Hands Free Call | Yes (HFP1.6 Wideband Speech) |
| Audio Streaming & Control (A2DP, AVRCP) | Yes |
| Supported Audio Formats | AAC / SBC |
| Voice Dialing (voice recognition compatible mobile phone required) | Yes |
| Phone Book Access Profile (PBAP) | Yes |
| Alphabetical Search for Phone Book | Yes |
| Auto Pairing for iPhone/Android | Yes (Android only) |
| Android Control | |
| Android Auto[2] | Yes (via USB) |
| Mirroring for Android | Yes (via USB) *Need mirroring App |
| Android Music Playback | Yes (via Bluetooth(R)) |
| iPod/iPhone Control | |
| CarPlay[3] | Yes (via USB) |
| USB | |
| USB Port | x 1 (High Speed) |
| Position | Rear |
| USB Power Supply | Yes (1.5A High Current Charging) |
| Radio Tuner | |
| SiriusXM Ready | Yes |
| Radio Broadcast Data System (RBDS) | Yes |
| Preset Stations | 20(FM:15ch, AM:5ch) |
| Auto Memory Entry | Yes |
| FM | |
| Frequency Range | 87.9 - 107.9MHz |
| AM | |
| Frequency Range | 530-1,700kHz |
| Audio | |
| Maximum Power Output (Front & Rear) | 50Wx4 |
| Full Bandwidth Power (Front & Rear) | 22W x 4 (Full Bandwidth Power, at less than 1% THD) |
| EQ | Yes (13-Band Graphic EQ) |
| Preset EQ | Yes (7Preset + 3user) |
| Bass Boost | Yes |
| High-Pass Filter/Low-Pass Filter | Yes/Yes |
| Time Alignment | Yes |

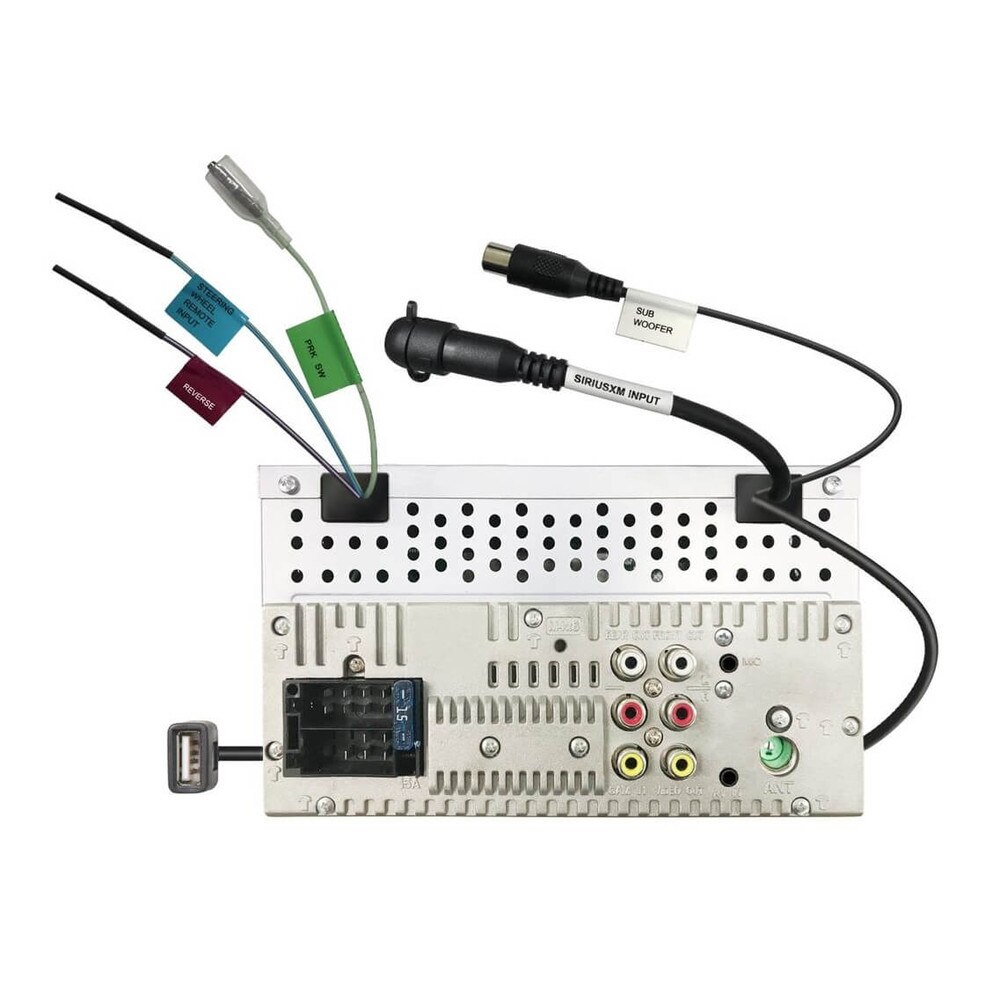

| Inputs and Outputs | |
| AV Input | mini jack |
| Video Out | RCA |
| Rear view camera Input | Yes |
| Line Output Terminals | 2Preouts (Terminal) + Sub WF (Cable) |
| Pre-output Level/Impedance | 2.0V / 10k ohms |
| Subwoofer Output with Level/Frequency Control | Yes |
| General | |
| Back Up Memory | Yes |
| Wireless Remote Control | Ready (RM-RK258 required) |
| Steering Remote Control Ready | Yes |
| ISO Connector | Yes |
| Dimensions (W x H x D) | |
| Installation Size | 7" x 3-15/16" x 2-15/16" (178 x 100 x 75 mm) |
| Weight | 2.8 lbs. (1.3kg) Including Sleeve and Trim plate |
| Unit weight in individual package | 1.8kg |
User Guides
Frequently Asked Questions
JVC KW-M560BT Digital Multimedia Receiver
Frequently Asked Questions (FAQ's)
What is the size of the JVC KW-M560BT Digital Multimedia Receiver? The JVC KW-M560BT Digital Multimedia Receiver has a 6.8" display.
What is the output power of the JVC KW-M560BT Digital Multimedia Receiver? The JVC KW-M560BT Digital Multimedia Receiver has a maximum output power of 50 watts.
What is the connectivity technology of the JVC KW-M560BT Digital Multimedia Receiver? The JVC KW-M560BT Digital Multimedia Receiver features RCA, Bluetooth, and USB connectivity technology.
What is the controller type of the JVC KW-M560BT Digital Multimedia Receiver? The JVC KW-M560BT Digital Multimedia Receiver features Android, Google Assistant, Touchscreen, and Push Button controller types.
What is the audio output type of the JVC KW-M560BT Digital Multimedia Receiver? The JVC KW-M560BT Digital Multimedia Receiver features Speakers audio output type.
What is the model number of the JVC KW-M560BT Digital Multimedia Receiver? The model number of the JVC KW-M560BT Digital Multimedia Receiver is KW-M560BT.
Does the JVC KW-M560BT Digital Multimedia Receiver have a rear-view camera input? Yes, the JVC KW-M560BT Digital Multimedia Receiver has a rear-view camera input.
Does the JVC KW-M560BT Digital Multimedia Receiver have a second camera input? No, the JVC KW-M560BT Digital Multimedia Receiver does not have a second camera input.
Does the JVC KW-M560BT Digital Multimedia Receiver support CarPlay? Yes, the JVC KW-M560BT Digital Multimedia Receiver supports CarPlay.
Does the JVC KW-M560BT Digital Multimedia Receiver support Android Auto? Yes, the JVC KW-M560BT Digital Multimedia Receiver supports Android Auto.
Does the JVC KW-M560BT Digital Multimedia Receiver have Siri control? Yes, the JVC KW-M560BT Digital Multimedia Receiver has Siri control.
Does the JVC KW-M560BT Digital Multimedia Receiver have Alexa voice control? No, the JVC KW-M560BT Digital Multimedia Receiver does not have Alexa voice control.
Does the JVC KW-M560BT Digital Multimedia Receiver have a memory card slot? No, the JVC KW-M560BT Digital Multimedia Receiver does not have a memory card slot.
Does the JVC KW-M560BT Digital Multimedia Receiver have a built-in satellite radio tuner? No, the JVC KW-M560BT Digital Multimedia Receiver does not have a built-in satellite radio tuner.
Does the JVC KW-M560BT Digital Multimedia Receiver support HD Radio? No, the JVC KW-M560BT Digital Multimedia Receiver does not support HD Radio.
Does the JVC KW-M560BT Digital Multimedia Receiver have navigation? Navigation is optional for the JVC KW-M560BT Digital Multimedia Receiver.
Does the JVC KW-M560BT Digital Multimedia Receiver support iPod compatibility? Yes, the JVC KW-M560BT Digital Multimedia Receiver supports iPod compatibility.
Does the JVC KW-M560BT Digital Multimedia Receiver have a touch screen? Yes, the JVC KW-M560BT Digital Multimedia Receiver has a touch screen.
