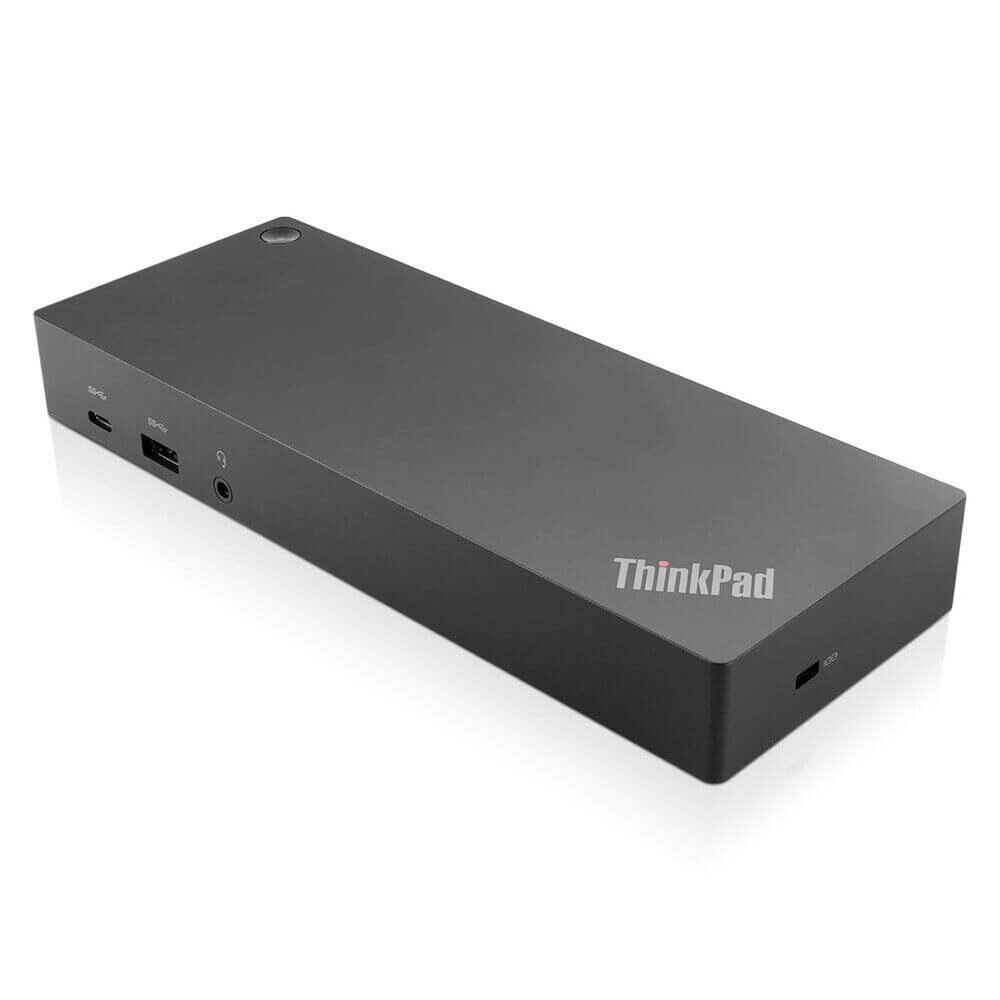

Lenovo ThinkPad Hybrid USB-C with USB-A Dock (40AF0135CN) (40AF0135US) | Like New
SKU: 40AF0135CN-LN
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Lenovo Dock Gen 2 135W Dual UHD 4K Display Capability
Lenovo understands that modern business depends on a wide variety of notebooks and devices from different brands working seamlessly together to meet business needs. To deliver this experience, ThinkPad Thunderbolt 3 Dock Gen 2 is compatible with Lenovo ThinkPad Notebooks as well as notebooks from HP, Dell, Apple and other brands
Lenovo USB-C & Thunderbolt Docks function with notebooks that support industry standard USB-C Alt-Mode or Thunderbolt protocols through their USB-C port and require up to 65W power charging.
Lenovo USB-C and Thunderbolt Docks support additional features, such as MAC address passthrough, WOL and mirrored power button, on most Lenovo ThinkPad notebooks, but such features may not be available on certain other Lenovo notebooks or non-Lenovo branded notebook systems.
Features
- Universal Compatibility: This dock works with Lenovo, ThinkPad and any other brands’ Thunderbolt™ or USB-C™ enabled laptops
- Expand your horizons with 40Gbps transfer rates, 5K video or multi 4K displays, 65W charging and multiple ports for peripherals with single cable connectivity
- Enterprise IT-Friendly: Supports network manageability such as PXE boot, Wake-on-Lan from a variety of modes, and MAC address Pass Through with ThinkPad Laptop
Specifications
Technical Specifications
| General | |
|---|---|
| Product Type | Docking station |
| Width | 8.3 in |
| Depth | 3.1 in |
| Height | 1.2 in |
| Weight | 16.75 oz |
| Localization | United States |
| Networking | |
|---|---|
| Data Link Protocol | Gigabit Ethernet |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 2 x USB 3.1 Gen 2 - 9 pin USB Type A ¦ 1 x USB 3.1 Gen 2 with Always-on charging - 9 pin USB Type A ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ USB 3.1 Gen 2 - 24 pin USB-C ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole |
| Miscellaneous | |
|---|---|

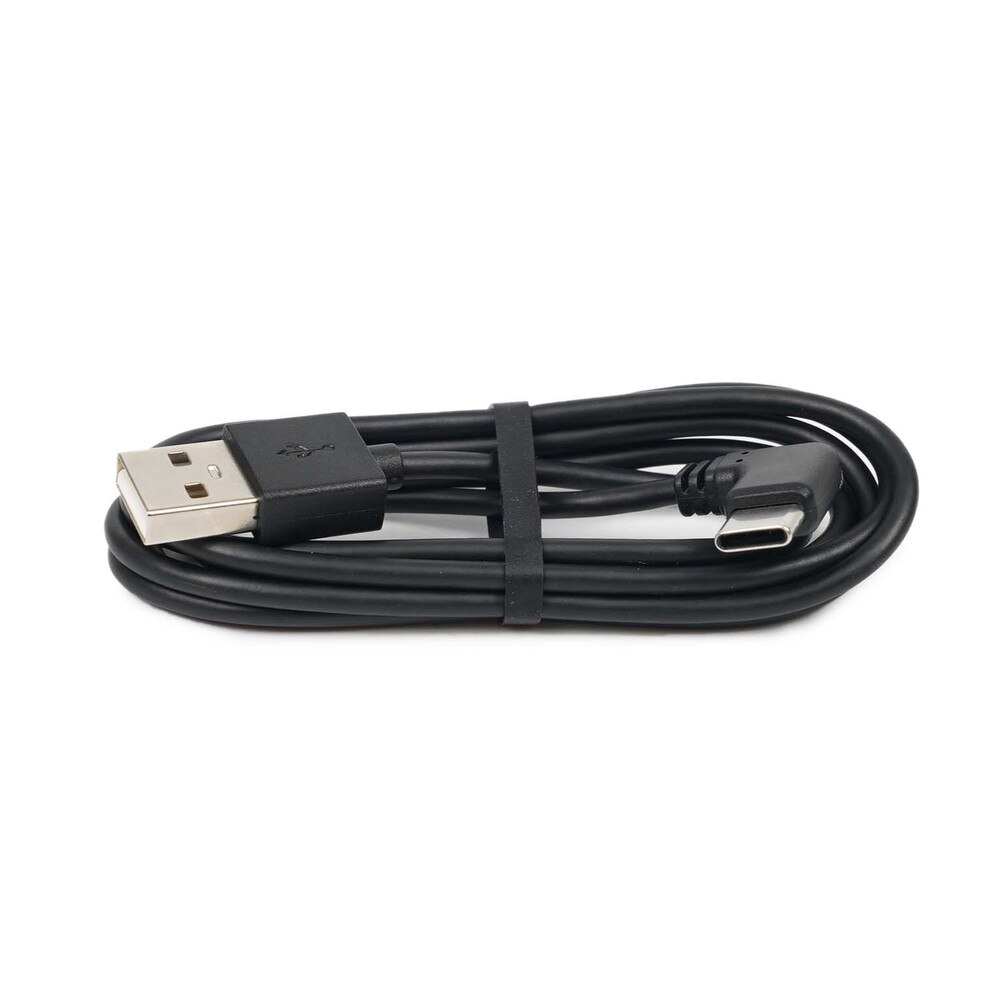

| Cables Included | 1 x USB-C cable with USB-C to USB-A dongle - external |
| Features | Security lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support, MAC address pass-through |
| Compliant Standards | TUV, VCCI, BSMI, NOM, CB, FCC, SII, KCC, ICES, cULus, Kvalitet, EAC, RCM, LoA |
| Power | |
|---|---|

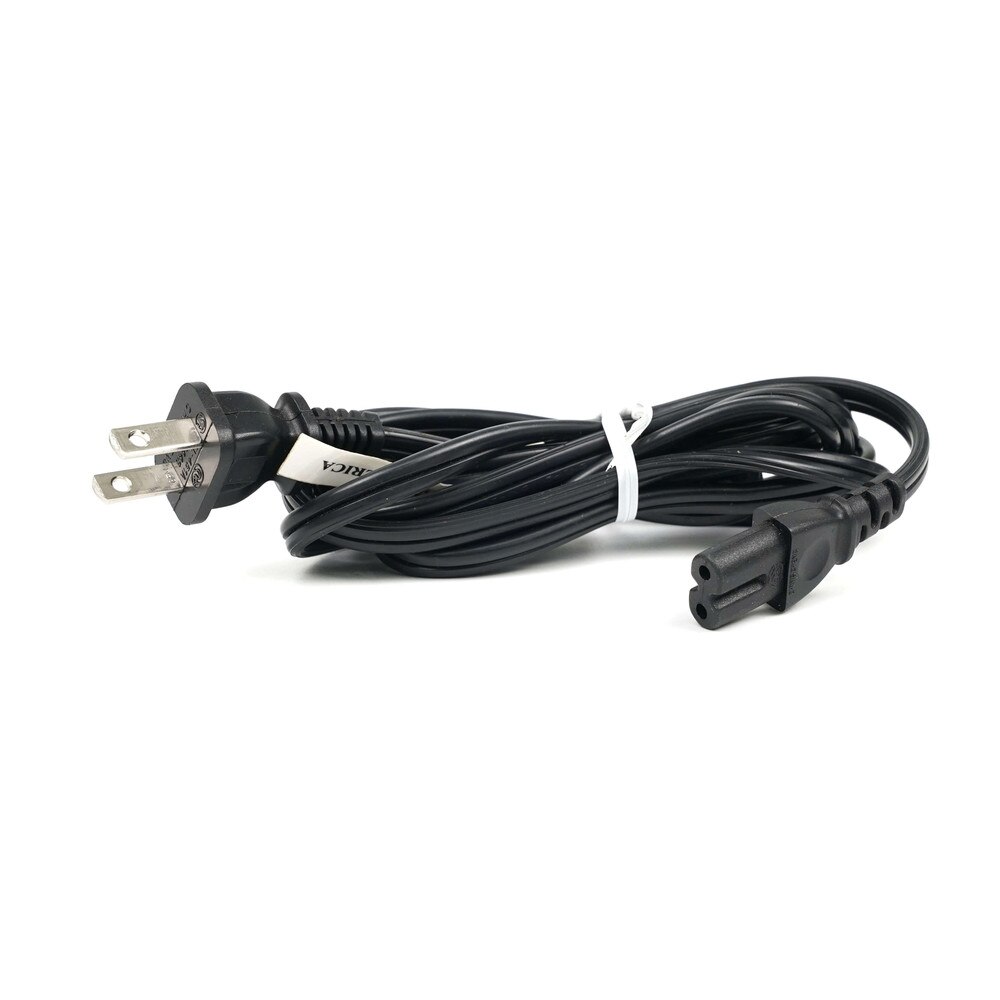

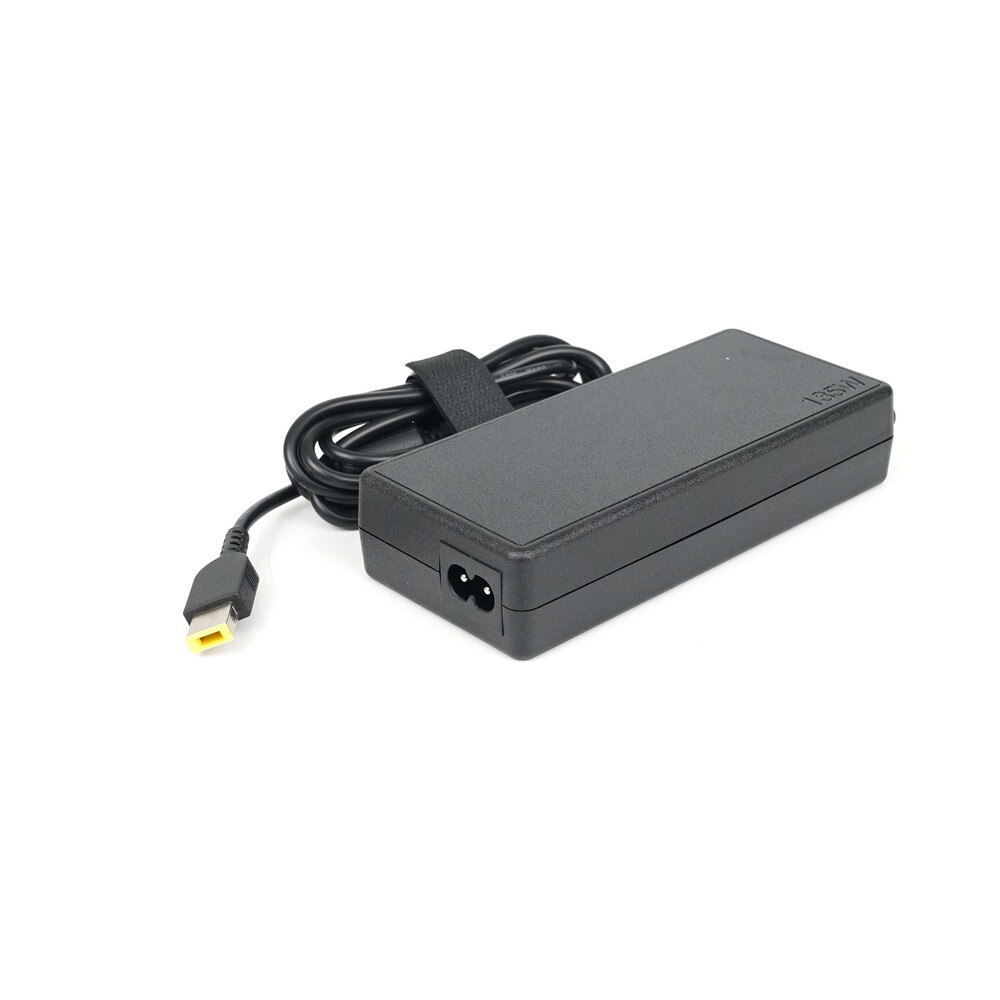

| Power Device | Power adapter |
| Power Provided | 135 Watt |
| System Requirements | |
|---|---|
| OS Required | Windows 10 (32/64 bits) |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight (Shipping) | |
|---|---|
| Shipping Width | 10.6 in |
| Shipping Depth | 6.5 in |
| Shipping Height | 3.5 in |
| Shipping Weight | 2.98 lbs |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Compatibility Information | |
|---|---|
| Designed For | Lenovo 13w Yoga 82S1, 82S2 ¦ Lenovo IdeaPad 1 14IJL7 82LV ¦ Lenovo IdeaPad 1 15IJL7 82LX ¦ Lenovo IdeaPad 3 14ADA6 82KQ ¦ Lenovo IdeaPad 3 15ALC6 82MF ¦ Lenovo IdeaPad 3 15ITL6 82MD ¦ Lenovo IdeaPad 5 14ABA7 82SE ¦ Lenovo IdeaPad 5 14IAL7 82SD ¦ Lenovo IdeaPad Gaming 3 15ARH7 82SB ¦ Lenovo IdeaPad Gaming 3 15IAH7 82S9 ¦ Lenovo IdeaPad Gaming 3 15IHU6 82MG ¦ Lenovo IdeaPad Slim 7 Carbon 14ACN6 82L1 ¦ Lenovo K14 Gen 1 21CU ¦ Lenovo Lenovo Slim 7 14IAP7 82SX ¦ Lenovo ThinkBook 13s G4 IAP 21AR ¦ Lenovo ThinkBook 13x G2 IAP 21AT ¦ Lenovo ThinkBook 14 G4 ABA 21DK ¦ Lenovo ThinkBook 14 G4+ IAP 21CX ¦ Lenovo ThinkBook 15 G4 ABA 21DL ¦ Lenovo ThinkPad E14 Gen 3 20YF ¦ Lenovo ThinkPad E14 Gen 4 21E3, 21E4, 21EB ¦ Lenovo ThinkPad E15 Gen 4 21E6, 21ED ¦ Lenovo ThinkPad L13 Gen 2 21AB, 21AC ¦ Lenovo ThinkPad L13 Gen 3 21B9 ¦ Lenovo ThinkPad L13 Yoga Gen 3 21BB ¦ Lenovo ThinkPad L14 Gen 3 21C1, 21C2, 21C5, 21C6 ¦ Lenovo ThinkPad L15 Gen 3 21C7 ¦ Lenovo ThinkPad P1 Gen 5 21DC ¦ Lenovo ThinkPad P14s Gen 3 21AK ¦ Lenovo ThinkPad P15v Gen 2 21AA ¦ Lenovo ThinkPad P15v Gen 3 21D8, 21D9 ¦ Lenovo ThinkPad T14 Gen 3 21AH ¦ Lenovo ThinkPad T14s Gen 2 20XF, 20XG ¦ Lenovo ThinkPad T14s Gen 3 21BR, 21BS, 21CR ¦ Lenovo ThinkPad T15p Gen 2 21A8 ¦ Lenovo ThinkPad T15p Gen 3 21DA ¦ Lenovo ThinkPad T16 Gen 1 21BV ¦ Lenovo ThinkPad X1 Carbon Gen 10 21CB, 21CC ¦ Lenovo ThinkPad X1 Nano Gen 2 21E8 ¦ Lenovo ThinkPad X1 Yoga Gen 7 21CD, 21CE ¦ Lenovo ThinkPad X13 Gen 2 20XH, 20XJ ¦ Lenovo ThinkPad X13 Gen 3 21BN ¦ Lenovo ThinkPad X13 Yoga Gen 3 21AX ¦ Lenovo ThinkPad Z13 Gen 1 21D3 ¦ Lenovo V14 G2 IJL 82QX ¦ Lenovo V14 G2 ITL 82NM ¦ Lenovo V15 G2 IJL 82QY ¦ Lenovo V15 G2 ITL 82ME ¦ Lenovo V15 IML 82NQ ¦ Lenovo Yoga Duet 7 13ITL6-LTE 82Q7 ¦ Lenovo Yoga Slim 7 Carbon 14ACN6 82L0 ¦ Lenovo Yoga Slim 7 Pro 14ACH5 OD 82NK ¦ Lenovo Yoga Slim 7 Pro 14IAP7 82SV ¦ Lenovo Yoga Slim 7 Pro 16ACH6 82QQ ¦ Lenovo Yoga Slim 9 14IAP7 82T0 |
Frequently Asked Questions
Lenovo ThinkPad Hybrid USB-C with USB-A Dock (40AF0135CN) (40AF0135US)
Frequently Asked Questions (FAQ's)
What is the Lenovo ThinkPad Hybrid USB-C with USB-A Dock? It is a docking station that allows you to connect multiple devices to your laptop or desktop via a single USB-C or USB-A cable.
Does this dock support dual monitors? Yes, it supports dual displays via HDMI and DisplayPort.
Is the dock compatible with all Lenovo ThinkPad models? It is compatible with most Lenovo ThinkPad laptops, as well as other laptops with USB-C or USB-A ports.
Can I charge my laptop with this dock? Yes, it can provide power to compatible laptops through the USB-C connection, supporting up to 65W power delivery.
Does the dock require external power? Yes, the dock requires an external power supply, which is included.
How many USB ports does the dock have? The dock has a total of 3 USB 3.1 Gen 1 ports (2 x USB-A, 1 x USB-C).
What video output options are available on this dock? The dock offers HDMI and DisplayPort outputs to connect to external monitors.
Can I use Ethernet with this dock? Yes, it includes an Ethernet port (Gigabit Ethernet) for wired internet connections.
Does this dock have audio input/output ports? Yes, it features both microphone input and headphone output jacks.
Can I use this dock with a non-Lenovo laptop? Yes, the dock is compatible with any laptop that has a USB-C or USB-A port.
What is the maximum resolution supported by the dock? The dock supports up to 4K resolution (3840 x 2160) at 30Hz through the DisplayPort or HDMI connection.
Is this dock hot-swappable? Yes, the dock supports hot swapping, allowing you to plug and unplug devices without turning off your laptop.
Does the dock support USB-C or USB-A connectivity? The dock supports both USB-C and USB-A connections, making it versatile for different laptop types.
Can I use the dock with a Chromebook or MacBook? Yes, it works with Chromebooks, MacBooks, and other laptops that have USB-C or USB-A ports.
Does the dock support 4K monitors? Yes, it supports 4K monitors when using the DisplayPort or HDMI port.
What is the data transfer speed for the USB ports? The USB 3.1 Gen 1 ports support data transfer speeds up to 5Gbps.
Can I charge my mobile device through the dock? Yes, the USB-C port on the dock can be used to charge mobile devices.
Does the dock support Windows, Mac, and Linux operating systems? Yes, the dock is compatible with Windows, Mac, and Linux operating systems, though full functionality may vary depending on the system.
What is the power supply capacity of the dock? The dock provides up to 65W of power delivery through the USB-C port to charge your laptop.
Is there a warranty for the dock? Yes, the Lenovo ThinkPad Hybrid USB-C with USB-A Dock comes with a one-year limited warranty.
