SKU: 010-01969-00-N
(0)No Reviews yet
  • One amplifier (based on what you select)
  • Four 8-gauge, self-tapping screws
  • 3 mm hex key (for the top cover and power terminals)
  • 2.5 mm hex key (for the speaker terminals)
  • Polishing cloth
  • Spare J1171 compliant 40 A blade-type fuses (not included with 24-Volt Signature Series 6 Channel 1500-Watt amplifier)
  • Spare J1171 compliant 20 A blade-type fuses (only included with 24-Volt Signature Series 6 Channel 1500-Watt amplifier)
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$299.99 $299.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Garmin Fusion Signature Series 4 Channel 1400-Watt Marine Amplifier (010-01969-00) | New

The Garmin Fusion Signature Series 4 Channel 1400-Watt nautical Amplifier (010-01969-00) provides powerful and clean music for your nautical excursions. This high-performance amplifier improves your onboard sound system, ensuring that you get exceptional audio quality even in harsh marine conditions. The Fusion Signature Series amplifier has a powerful 1400-watt output, which will drive your marine speakers with precision and clarity. Its compact and durable design is specifically tailored for the marine environment, with conformal-coated PCBs that protect against salt air and moisture. This amplifier has four channels, so you can connect many speakers and create a dynamic audio arrangement on your boat. The amplifier's Class-D design makes it very efficient, reducing power consumption while increasing output, which is critical for extending battery life during lengthy excursions.

The Garmin Fusion Signature Series 4 Channel is a wonderful alternative for boaters who want to upgrade their onboard music system with powerful, high-quality sound. The Signature Series amplifier works flawlessly with Fusion's DSP-enabled stereos, allowing you to improve sound quality with bespoke audio profiles tailored to your speaker configuration and listening environment. This ensures that each note and beat is conveyed with extreme clarity and depth.


Key Features of Garmin Fusion Signature Series 4 Channel 1400-Watt Marine Amplifier


• 1400-Watt output delivers powerful audio performance for a superior listening experience.

• Four-Channel design supports multiple speakers for a comprehensive sound system.

• Class-D amplification offers high efficiency and reduced power consumption.

• Marine-Grade construction features conformal-coated PCBs protect against salt air and moisture.

• DSP integration works with Fusion DSP-enabled stereos for optimized sound quality.

• Compact design that is easy to install in various locations on your boat.

Specifications

Specifications for Garmin Fusion Signature Series 4 Channel 1400-Watt Marine Amplifier (010-01969-00) | New

ManufacturerGarmin
Manufacturer Part Number010-01969-00
Product NameGarmin Fusion Signature Series 4 Channel 1400-Watt Marine Amplifier
Product TypeAmplifier
Physical dimensions (LxWxH)Monoblock/ and 4/5 channels: 11.81" x 8.27" x 1.97" (300 x 210 x 50 mm)
6/8 channels and 24-Volt 6 channel: 16.54" x 8.27" x 2.24" (420 x 210 x 57 mm)
Amplifier classD
Peak power (Watts)Monoblock: 2250 W
4 channel: 1400 W
5 channel: 1600 W
6 channel/24-Volt 6 channel: 1500 W
8 channel: 2000 W
Total rated power output - 4 Ohm (Watts)Monoblock: 500 W RMS x 1 @ 14.4 V input - 4 Ohm < 1% THD
4 channel: 150 W RMS x 4 @ 14.4 V input - 4 Ohm < 1% THD
5 channel: 80 W RMS x 4 + 250 W RMS x 1 @ 14.4 V input - 4 Ohm < 1% THD
6 channel: 100 W RMS x 6 @ 14.4 V input - 4 Ohm < 1% THD
8 channel: 100 W RMS x 8 @ 14.4 V input - 4 Ohm < 1% THD
24-Volt 6 channel: 100 W RMS x 6 @ 28.8 V input - 4 Ohm < 1% THD
Total rated power output - 2 Ohm (Watts)Monoblock: 850 W RMS x 1 @ 14.4 V input - 2 Ohm < 1% THD
4 channel: 220 W RMS x 4 @ 14.4 V input - 2 Ohm < 1% THD
5 channel: 130 W RMS x 4 + 330 W RMS x 1 @ 14.4 V input - 2 Ohm < 1% THD
6 channel: 140 W RMS x 6 @ 14.4 V input - 2 Ohm < 1% THD
8 channel: 140 W RMS x 8 @ 14.4 V input - 2 Ohm < 1% THD
24-Volt 6 channel: 140 W RMS x 6 @ 28.8 V input - 2 Ohm < 1% THD
Total rated power output (Watts)Monoblock: 1100 W RMS x 1 @ 14.4 V input - 1 Ohm < 1% THD
4 channel: 440 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD
5 channel: 250 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD + 250 W RMS x 1 @ 14.4 V input - 4 Ohm < 1% THD
6 channel: 280 W RMS x 3 @ 14.4 V input - 4 Ohm Bridged < 1% THD
8 channel: 280 W RMS x 4 @ 14.4 V input - 4 Ohm Bridged < 1% THD
24-Volt 6 channel: 280 W RMS x 3 @ 28.8 V input - 4 Ohm Bridged < 1% THD
Frequency responseMonoblock Amplifier: 10 Hz - 320 Hz (-3 dB, dB @ 4 Ohm rated power) - subwoofer only
4/5 channels: 10 Hz - 50 kHz (-3dB, dB @ 4 Ohm rated power)
6/8 channels: 10 Hz - 40 kHz (-3dB, dB @ 4 Ohm rated power)
6/8 channels and 24-Volt 6 channel: 10 Hz - 40 kHz (-3dB, dB @ 4 Ohm rated power)
Input sensitivity0.3 V - 8 V RMS (user adjustable)
Input impedanceMonoblock/5 channel: 4k Ohm nominal
4/6/8 channels and 24-Volt 6 channel: 7k Ohm nominal
High-pass/low-pass full range filteryes (user selectable)
HP variable crossover frequencyMonoblock: 10 Hz - 80 Hz (subwoofer)
4/5/6/8 channels and 24-Volt 6 channel: 32 Hz - 320 Hz
LP variable crossover frequencyMonoblock: 32 Hz - 320 Hz (subwoofer)
4/5/6/8 channels and 24-Volt 6 channel: 32 Hz - 320 Hz
Bass boost0 dB - 9 dB, user adjustable (zone 3 only)
Operating voltageMonoblock and 4/5/6/8 channels: 10.8 V - 16 V DC
24-Volt 6 channel: 21.6 V - 32 V DC
Current consumption (StandBy)Monoblock and 4/5/6/8 channels: < 1 mA @ 14.4 V input
24-Volt 6 channel: < 1 mA @ 28.8 V input
Current consumption (Idle)Monoblock and 4/5/6/8 channels: < 2.5 A @ 14.4 V input
24-Volt 6 channel: < 1.25 A @ 28.8 V input
Current consumption (Max)Monoblock: 120 A
4/5 channels: 80 A
6 channel: 75 A
8 channel: 100 A
24-Volt 6 channel: 35 A
Fuse ratingMonoblock/6 channel: 3 x 40 A ATC blade-type (SAE J1171 compliant)
4/5 channels: 2 x 40 A ATC blade-type (SAE J1171 compliant)
8 channel: 4 x 40 A ATC blade-type (SAE J1171 compliant)
24-Volt 6 channel: 3 x 20 A ATC blade-type (SAE J1171 compliant)
Operating temperature range32° to 122° F (0° to 50° C)

User Guides

Garmin Fusion Signature Series 4 Channel 1400-Watt Marine Amplifier (010-01969-00) Manual

Frequently Asked Questions

Garmin Fusion Signature Series 4 Channel 1400-Watt Marine Amplifier (010-01969-00)
Frequently Asked Questions (FAQ's)



What is the power output of the Garmin Fusion Signature Series Marine Amplifier?
  • The amplifier produces a peak power output of 1400 watts.
    • Does the amplifier support Bluetooth connectivity?
  • No, the amplifier itself does not support Bluetooth. You can connect it to a Fusion marine stereo with Bluetooth for wireless audio streaming.
    • Is the amplifier compatible with Fusion marine speakers?
  • Yes, it is specifically built to work with the Fusion Signature Series marine speakers.
    • Can the amplifier be used in a saltwater environment?
  • Yes, it is saltwater-resistant, making it appropriate for usage in maritime areas.
    • Does the amplifier have built-in protection features?
  • Yes, it has incorporated protection circuitry to prevent overload, short circuits, and overheating.
    • What type of thermal management does the amplifier use?
  • It has advanced thermal management, including a heat sink design, to prevent overheating.
    • Can I use this amplifier to power a subwoofer?
  • Yes, the amplifier may be set up to power a subwoofer among other speakers.
    • What is the recommended installation setup for this amplifier?
  • To ensure peak performance and lifespan, place the amplifier in a dry, well-ventilated area.
    • How does the amplifier handle voltage fluctuations on a boat?
  • The amplifier is intended to manage common voltage swings in a marine environment and accepts 10.8 to 16V DC power sources.
    • Does the amplifier include a remote control?
  • No, this amplifier does not include a remote control, but it can be linked to a Fusion maritime audio system for centralized control.
    • Is the Garmin Fusion Signature Series amplifier easy to install?
  • Yes, it includes an installation instruction and the essential hardware for a simple installation.
    • What is the signal-to-noise ratio (SNR) of the amplifier?
  • This amplifier has a signal-to-noise ratio of 80 dB, delivering high-quality audio with little distortion.
    • Can I bridge the channels on the amplifier?
  • Yes, the four channels can be combined to create more versatile audio arrangements.
    • Does this amplifier have marine-grade certifications?
  • Yes, it is designed to meet marine-grade standards, including resistance to water, salt, and UV radiation.
    • What kind of speakers can be used with the amplifier?
  • The amplifier can be used with any appropriate marine speakers, although Fusion Signature Series speakers are recommended for best results.
    • Is the Garmin Fusion Signature Series Marine Amplifier waterproof?
  • While it is intended to endure marine conditions, including moisture and salt exposure, it is not completely waterproof and should not be submerged.
    • Can the amplifier be used for both indoor and outdoor applications?
  • While intended for marine applications, it can also be used in outdoor or moist locations such as patios
    • What is the maximum operating temperature for the amplifier?
  • The amplifier's optimal operating temperature range is -20°C to 50°C (-4°F to 122°F).
    • What kind of input connections does the amplifier support?

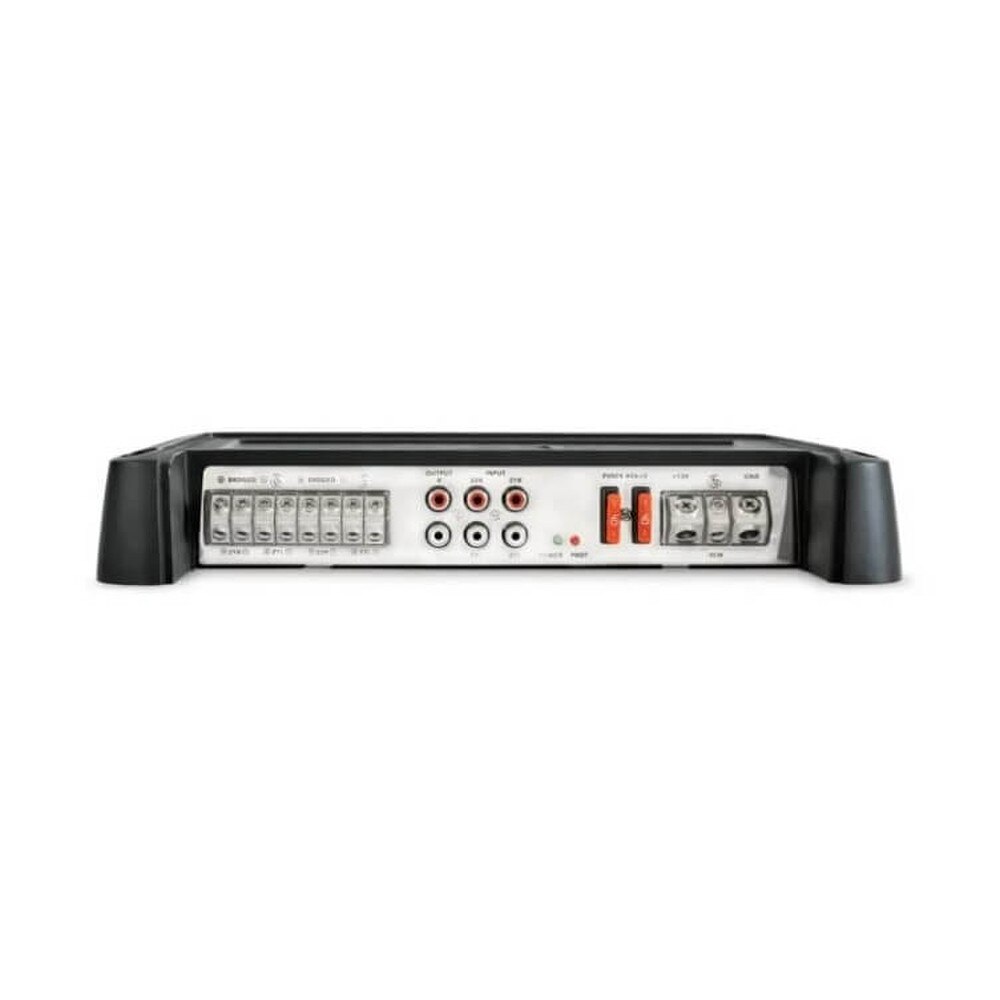

  • The amplifier has RCA line inputs for convenient connecting to your maritime audio system.
    • Can I use this amplifier with a non-Fusion audio system?
  • Yes, it is compatible with various maritime audio systems, albeit it is best suited for usage with Fusion products.
