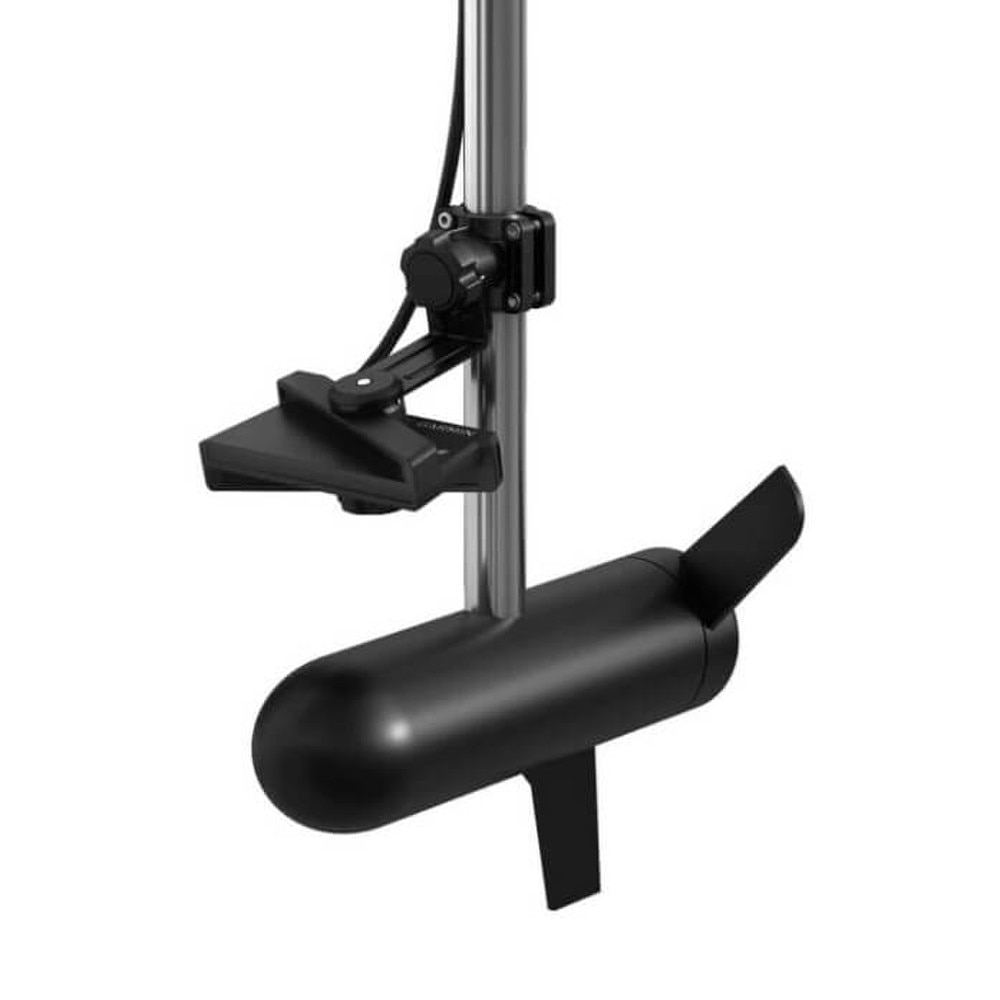

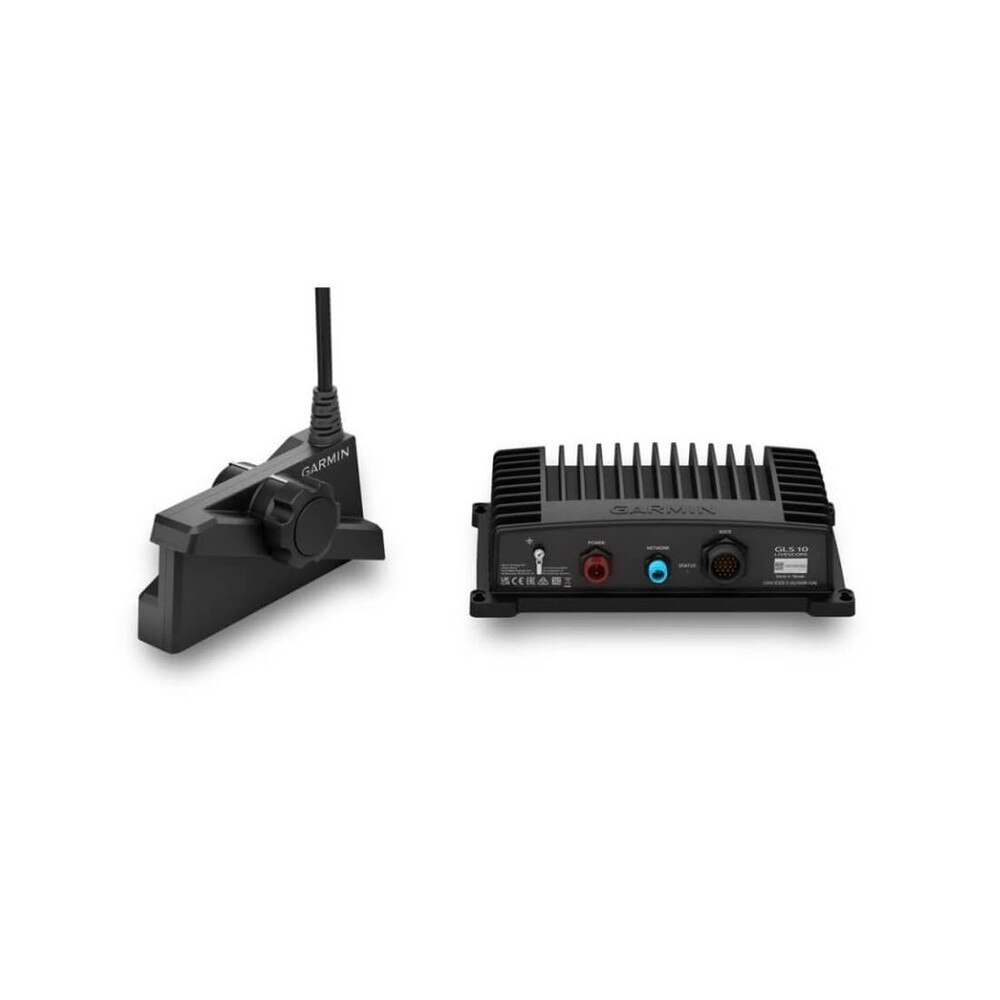

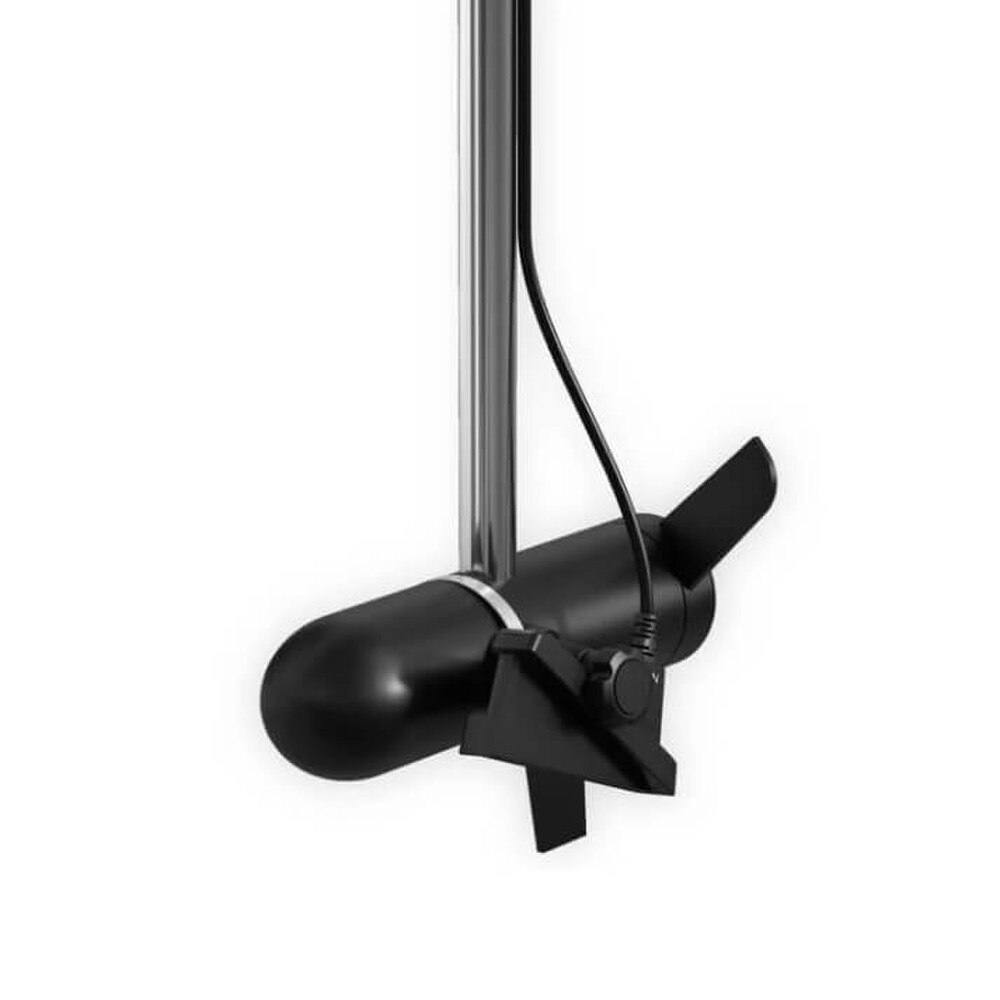

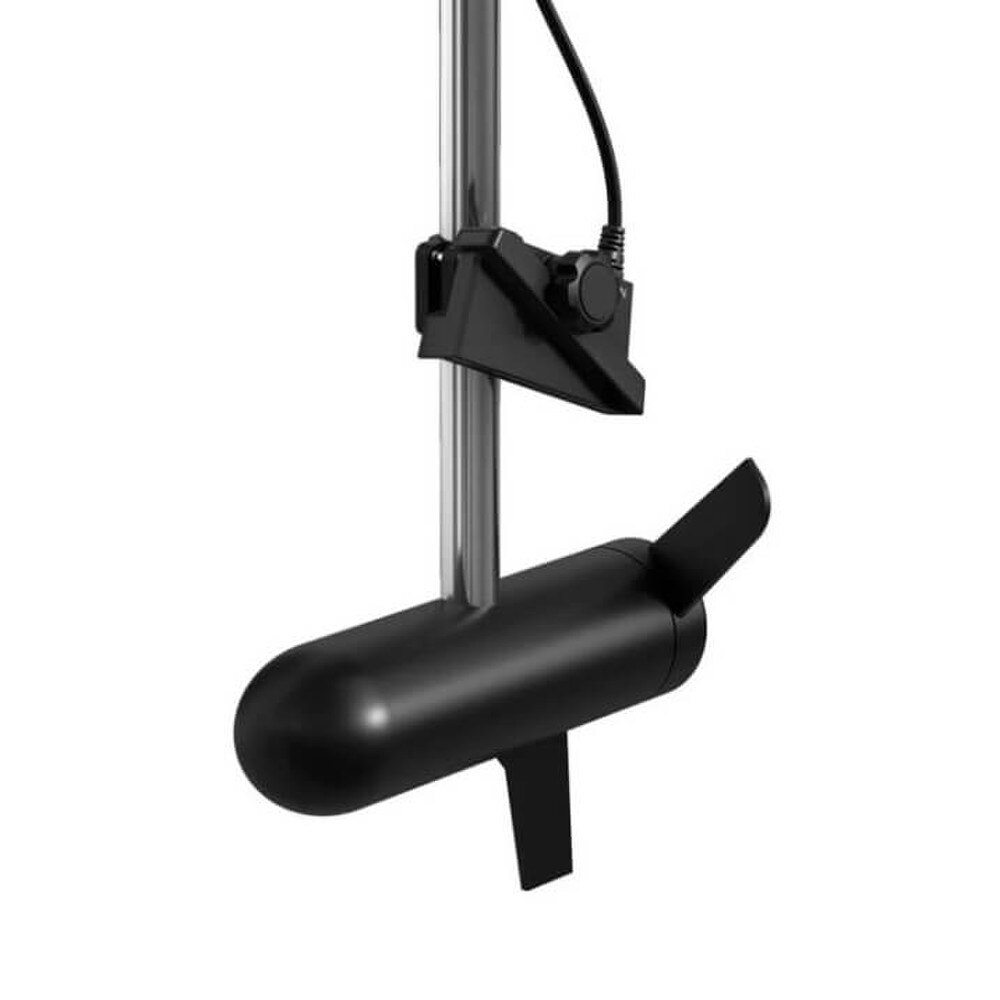

The Garmin LiveScope Plus System with GLS 10 and LVS34 Transducer (010-02706-00) is a cutting-edge sonar system that will alter your fishing experiences. This cutting-edge technology generates real-time, high-resolution underwater pictures, allowing anglers to see fish and structure with incredible clarity and detail. The LiveScope Plus System combines the powerful GLS 10 sonar module and the LVS34 transducer to provide improved imaging capabilities. This system significantly improves on earlier models in terms of resolution, noise reduction, and target separation. The LiveScope Plus System, which has numerous viewing modes such as Forward, Down, and Perspective, adjusts to a variety of fishing circumstances. Real-time sonar ensures that your live photos are as accurate as possible, even in the most trying conditions. A built-in stabilization technology ensures that the sonar image on your compatible Garmin chartplotter remains stable regardless of the water conditions.
The Garmin LiveScope Plus System is a vital tool for professional fishermen wishing to improve their fishing skills with cutting-edge sonar technology. The system features seven vibrant color palettes, including Aqua, Caribbean, and Lava, so you may tailor your viewing experience for optimal contrast and clarity. This function is very useful for detecting fish and structures in various water conditions.
• Enhanced resolution improved screen clarity and transducer sensitivity for sharper images.
• Multiple viewing modes like forward, down, and perspective modes with necessary mounts included.
• Real-Time imaging provides the most accurate live underwater views available.
• Noise reduction advanced technology for clearer views with fewer sonar artifacts.
• Customizable color palettes seven vivid options for optimal contrast and clarity.
• Image stabilization maintains steady sonar imaging even in rough conditions.
• Easy integration that is compatible with a wide range of Garmin chartplotters.
| Manufacturer | Garmin |
| Manufacturer Part Number | 010-02706-00 |
| Product Name | Garmin LiveScope Plus System with GLS 10 and LVS34 Transducer |
| Product Type | Fish Finder |
| Transducer beamwidth | 20° x 135° |
| Transducer cable length | 20 ft |
| Transducer number of pins | 21 |
| Dimension | GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); |
| LVS34 transducer: 6.4” x 3.1” x 1.9” (16.2 x 7.8 x 4.8 cm) | |
| Weight | GLS 10 sonar black box: 4.3 lbs (2.0 kg) |
| LVS34 transducer: 2.25 lbs (1.02 kg) | |
| Water rating | IPX7 |
| Temperature range | GLS 10 Black Box: Operating: -15 C to 70 C |
| Panoptix LiveScope LVS34 Transducer: Operating: 0 C to 40 C | |
| Power input | 10-32 V |
| Power usage | 21 W typical, 58 W max |
| Fuse | 7.5 A |
| Compass-safe distance | 4" (0.1 m) |
| Frequency | 530 - 1,100 kHz |
| Transmit power | 500 W |
| Maximum depth | Down and Forward: 200’ (61.0 m) |
| Sonar Type | Live |
| Target Separation @100' | 14" |
| Perspective Mode Mount Included | Yes |
| Garmin Marine Network Ports | 1 (small connector) |
