Name: FLIR C3-X Compact Thermal Camera | New
SKU: C3-X-N
Price: 499.99 USD
Availability: InStock

FLIR C3-X Compact Thermal Camera | New

SKU: C3-X-N

(0)No Reviews yet

Same Day Shipping - Arrives in 3-5 Business Days

30-day Returns

All orders will ship on January 5, 2026

$499.99 $499.99

Quantity discounts available

Quantity	Price

Available Quantity:

For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of FLIR C3-X Compact Thermal Camera | New

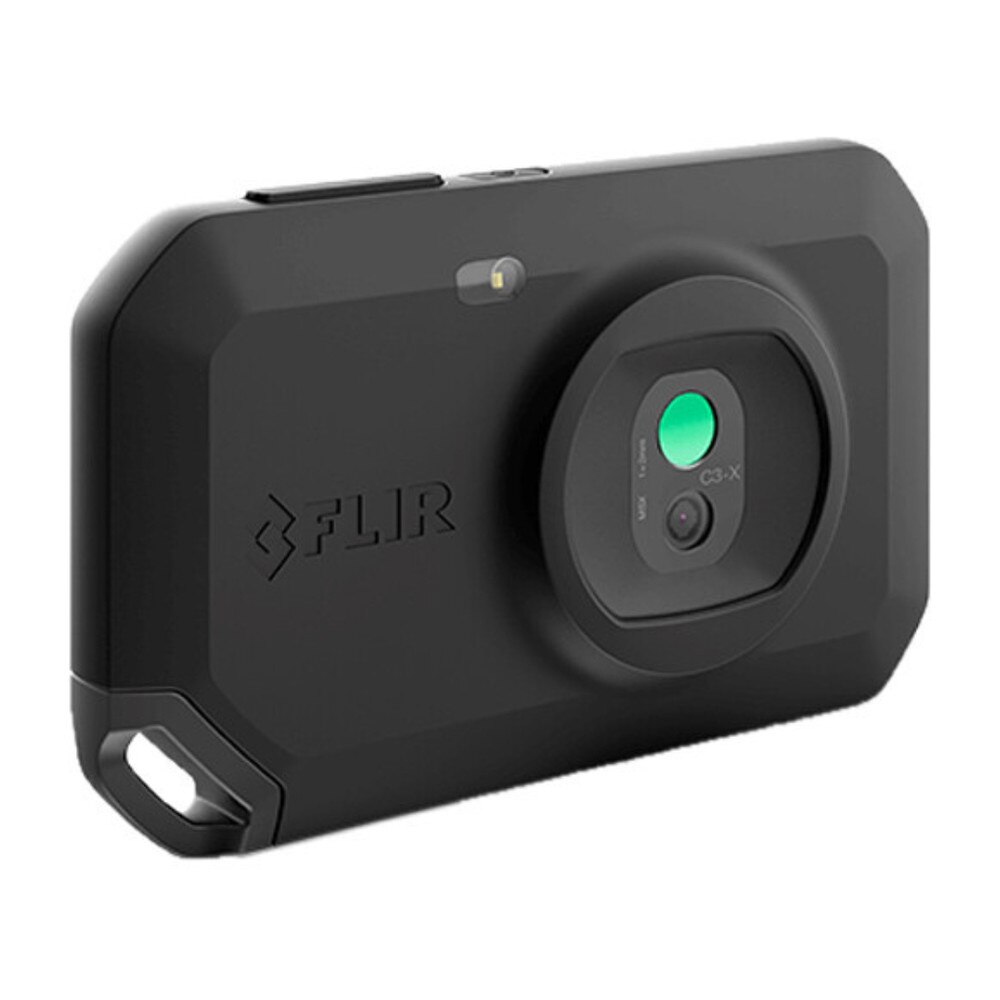

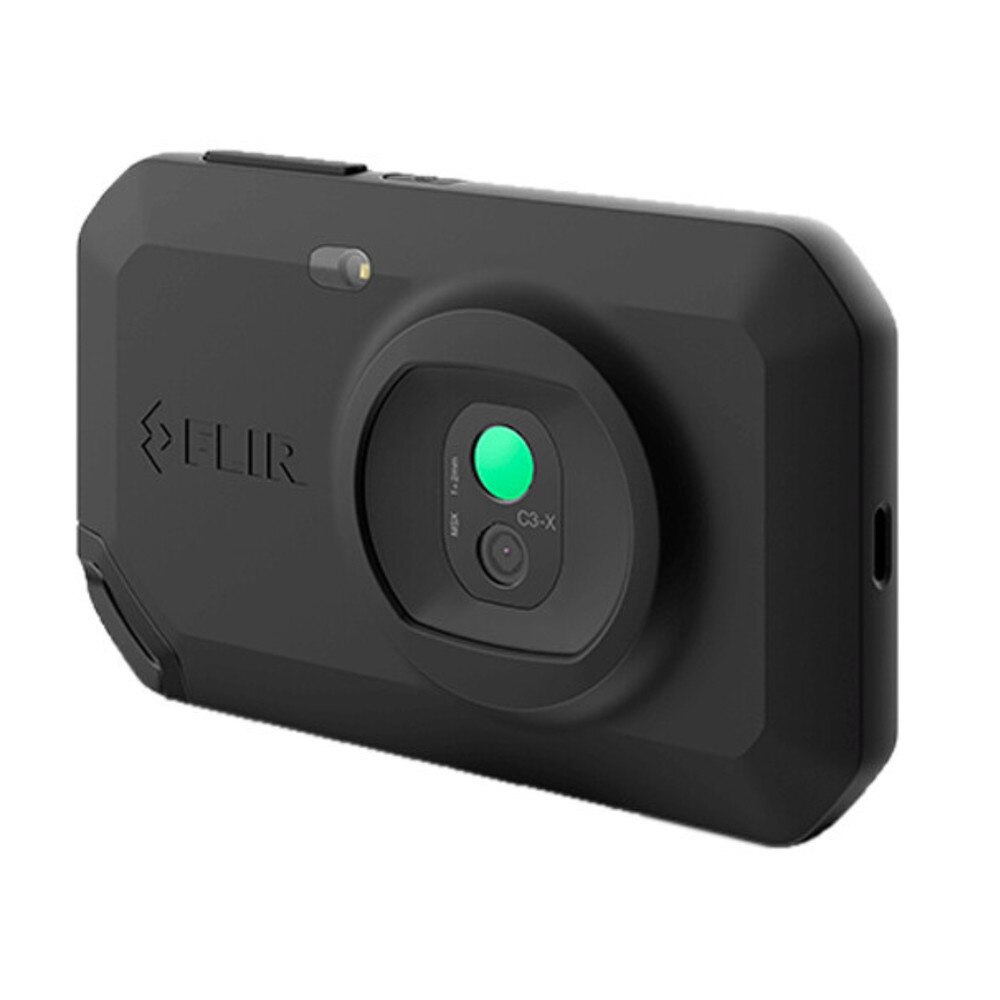

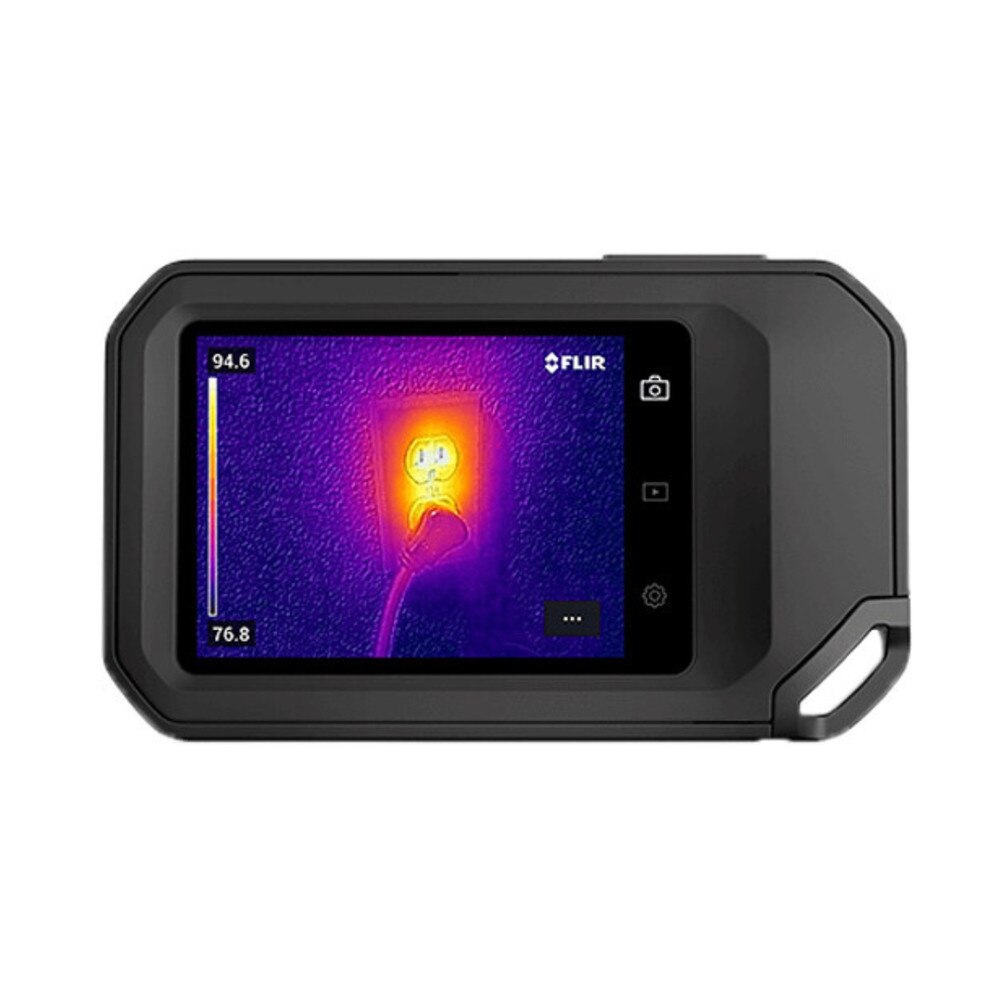

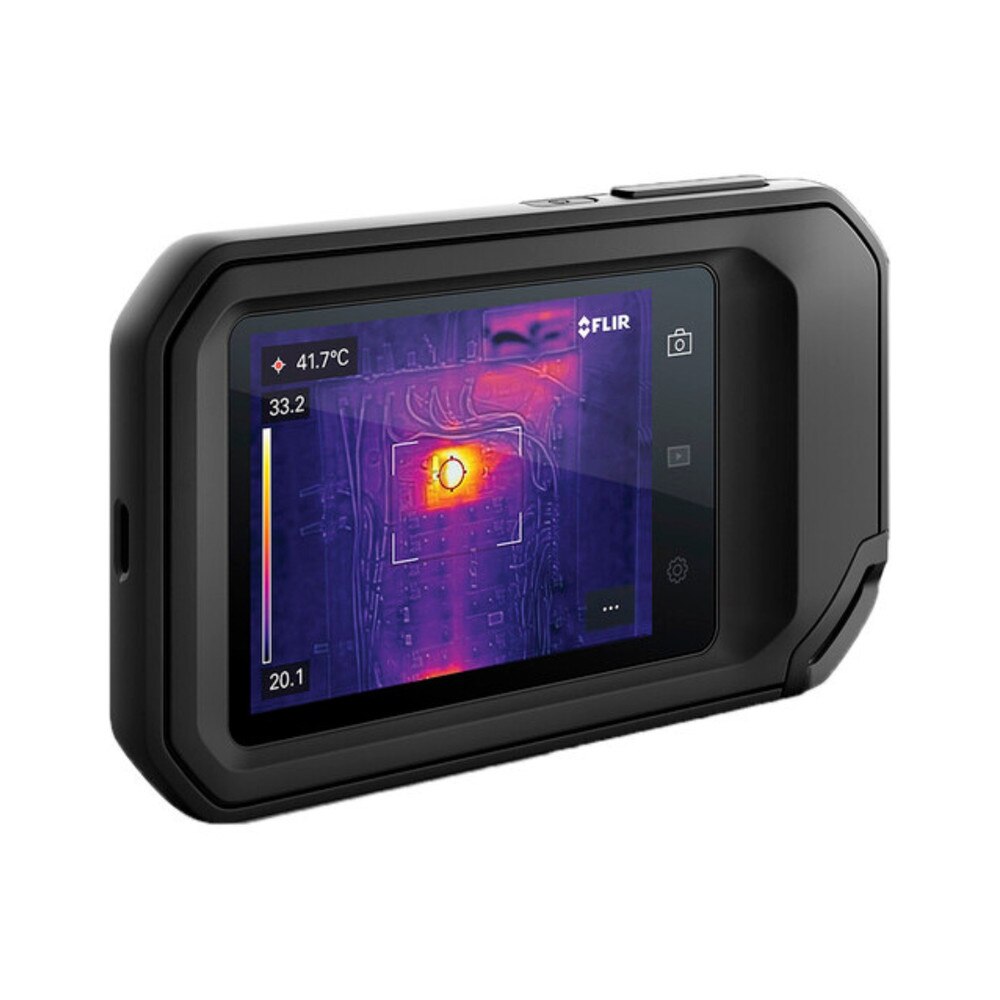

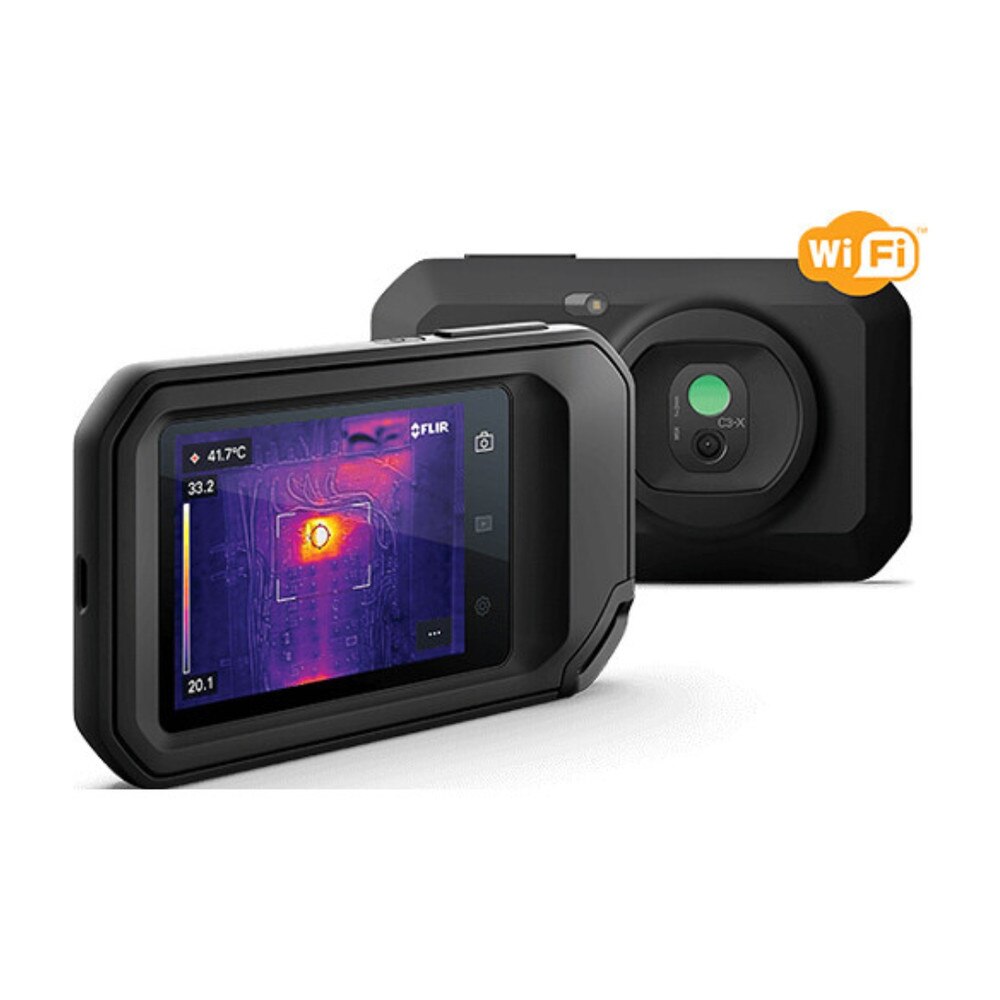

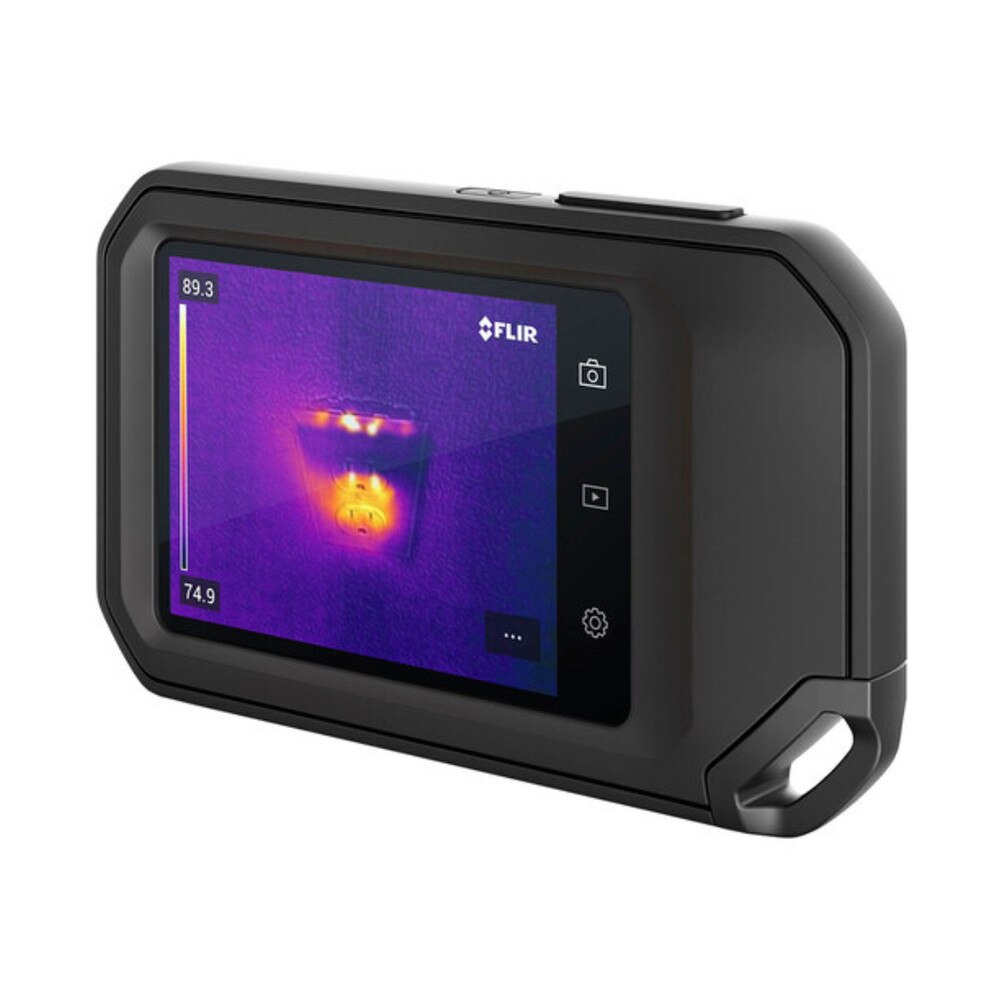

The FLIR C3-X Compact Thermal Camera is a portable, entry-level thermal imaging camera designed for quick and convenient inspections. It features a 128 × 96 pixel thermal sensor, 5 MP visual camera, MSX® (Multi-Spectral Dynamic Imaging), and a built-in LED flashlight. It is suitable for detecting electrical, mechanical, and building problems, and allows easy documentation and sharing of findings via Wi-Fi and FLIR Ignite cloud storage. With a rugged, drop-tested design and an intuitive touchscreen interface, the C3-X is made for on-the-go professionals in maintenance, electrical, HVAC, and building inspection fields.

FLIR C3-X Compact Thermal Camera Features:

128 × 96 px thermal resolution (12,288 pixels)
MSX® (Multi-Spectral Dynamic Imaging) technology for clearer images
5-megapixel visual camera
3.5-inch IPS touchscreen display
Wi-Fi and Bluetooth connectivity
Automatic image backup to FLIR Ignite cloud
Rugged design: Drop-tested to 2 meters, IP54 rated for dust and water resistance
LED flashlight
Tripod mount (UNC ¼"-20)
Rechargeable built-in lithium-ion battery (4-hour operating time)
Lightweight: Approx. 190 grams

Best Uses for FLIR C3-X Compact Thermal Camera:

Electrical and Mechanical Inspection: Quickly spot overheating components, potential faults, and energy losses.
Building Inspection: Detect hidden leaks, insulation issues, air leaks, and moisture problems.
General Maintenance: Document repairs and findings for clients or records.
HVAC Diagnostics: Identify system inefficiencies or blockages.
On-site Troubleshooting: Portable size makes it easy to carry and use anywhere.

Specifications

Specifications for FLIR C3-X Compact Thermal Camera | New

Manufacturer	FLIR
Manufacturer Part Number	C3-X
Product Name	FLIR C3-X Compact Thermal Camera
Product Type	Thermal Camera
IR Resolution	128 × 96 pixels
Thermal Sensitivity (NETD)	<70 mK
Temperature Range	-20°C to 300°C (-4°F to 572°F)
Accuracy	±3°C (±5.5°F) or ±3%
Field of View (FOV)	53.6°
Digital Camera	5 MP
Display Size	3.5-inch IPS touchscreen
Image Modes	Infrared, Visual, MSX, Picture-in-Picture
Storage	Internal, FLIR Ignite Cloud (Wi-Fi)
Battery Type	Built-in Lithium-ion, 4 hr run time
Drop Test	2 m (6.56 ft)
Protection Rating	IP54 (dust & water)
Size	138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in)
Weight	~190 g
Minimum Focus Distance	Thermal: 0.1 m, MSX: 0.3 m
Video Lamp	Yes
Tripod Mount	UNC ¼"-20
Operating Temp. Range	-10°C to 50°C (14°F to 122°F)
Storage Temp. Range	-40°C to 70°C (-40°F to 158°F)
Languages Supported	Multiple (see detailed specs)
Charging Connector	USB-C (1 A)

User Guides

FLIR C3-X Compact Thermal Camera Data Sheet

Frequently Asked Questions

FLIR C3-X Compact Thermal Camera
Frequently Asked Questions (FAQ's)

What is the FLIR C3-X Compact Thermal Camera used for?

The FLIR C3-X is used to detect heat patterns and temperature anomalies in electrical, mechanical, and building systems, making it ideal for inspections, troubleshooting, and maintenance tasks.

Does the FLIR C3-X display both thermal and visual images?

Yes, it features FLIR’s MSX® image enhancement, which overlays visible light details onto thermal images for improved clarity and context.

What temperature range can the FLIR C3-X detect?

The C3-X can measure temperatures from -20°C to 300°C (-4°F to 572°F), suitable for a wide range of inspection applications.

Is the FLIR C3-X suitable for home energy audits?

Yes, it’s perfect for identifying insulation gaps, air leaks, and moisture issues in residential buildings.

Can the FLIR C3-X detect water damage?

While it doesn’t detect water directly, it can identify temperature differences caused by moisture intrusion, making it useful for spotting potential water damage.

How compact is the FLIR C3-X camera?

The C3-X is pocket-sized and lightweight, making it easy to carry during inspections without the need for bulky equipment.

Does the FLIR C3-X include internal storage?

Yes, it comes with built-in memory capable of storing thousands of radiometric JPEG images for later analysis and reporting.

Is Wi-Fi connectivity available on the FLIR C3-X?

Yes, the camera features Wi-Fi for quick image sharing and transfer via the FLIR Ignite™ cloud platform.

What type of display does the FLIR C3-X have?

It includes a 3.5-inch touchscreen with intuitive navigation, providing a clear and responsive user interface.

Can the FLIR C3-X be used outdoors?

Yes, the camera is IP54-rated, offering protection against dust and water splashes, making it suitable for rugged environments.

Is the FLIR C3-X easy to operate for beginners?

Absolutely, its user-friendly interface and automatic thermal tuning make it ideal for both professionals and beginners.

Does the FLIR C3-X support image annotations?

Yes, users can add notes directly on the touchscreen to document inspection results in the field.

Can I transfer images from the FLIR C3-X to a computer?

Yes, image transfer is available via USB or Wi-Fi connection using the FLIR Ignite™ cloud storage.

Is the FLIR C3-X useful for automotive diagnostics?

Yes, it helps detect overheating components, electrical faults, and cooling system issues in automotive inspections.

What is MSX® image enhancement on the FLIR C3-X?

MSX® (Multi-Spectral Dynamic Imaging) fuses visible and thermal images to create a sharper, more detailed picture.

How accurate is the temperature reading on the FLIR C3-X?

It offers ±3°C (±5.4°F) or ±5% typical accuracy, depending on the environment and target temperature.
