🗹 Add Thermal Imaging to Your Phone
🗹 Catch Potential Problems Early
🗹 Detects Temps from -4°F to 248°F
🗹 Save as Stills, Video, or Time Lapse
🗹 Up to 4mm Connector Works with Cases
🗹 Rugged Design Withstands Drops from 5.9'
🗹 Works with FLIR One & Tools Mobile Apps
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us

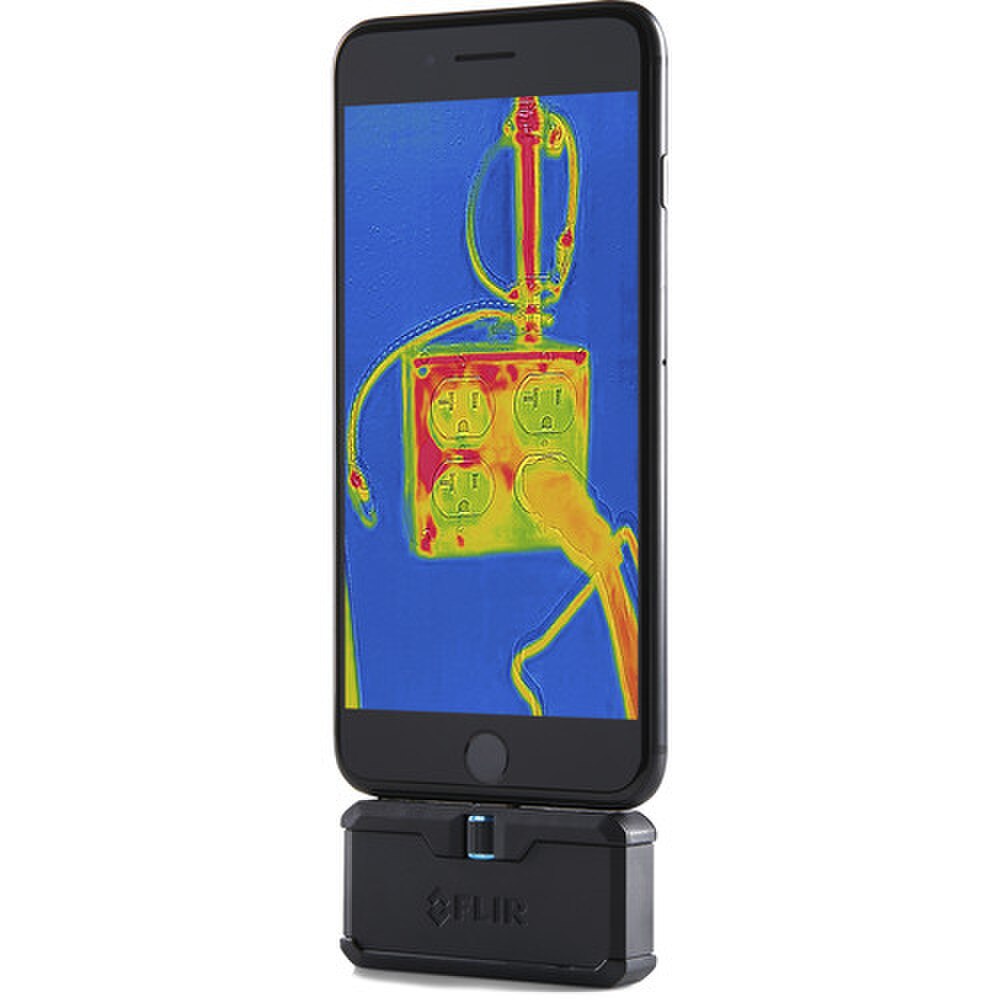

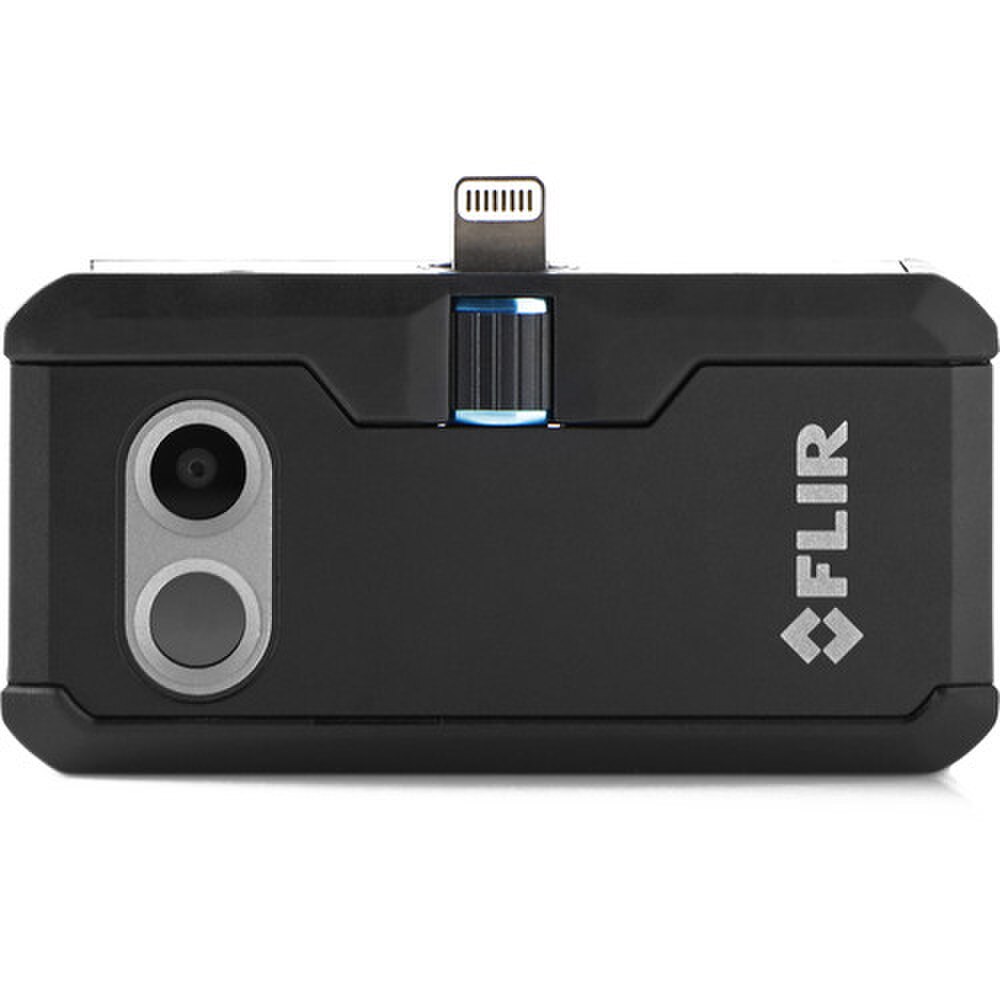

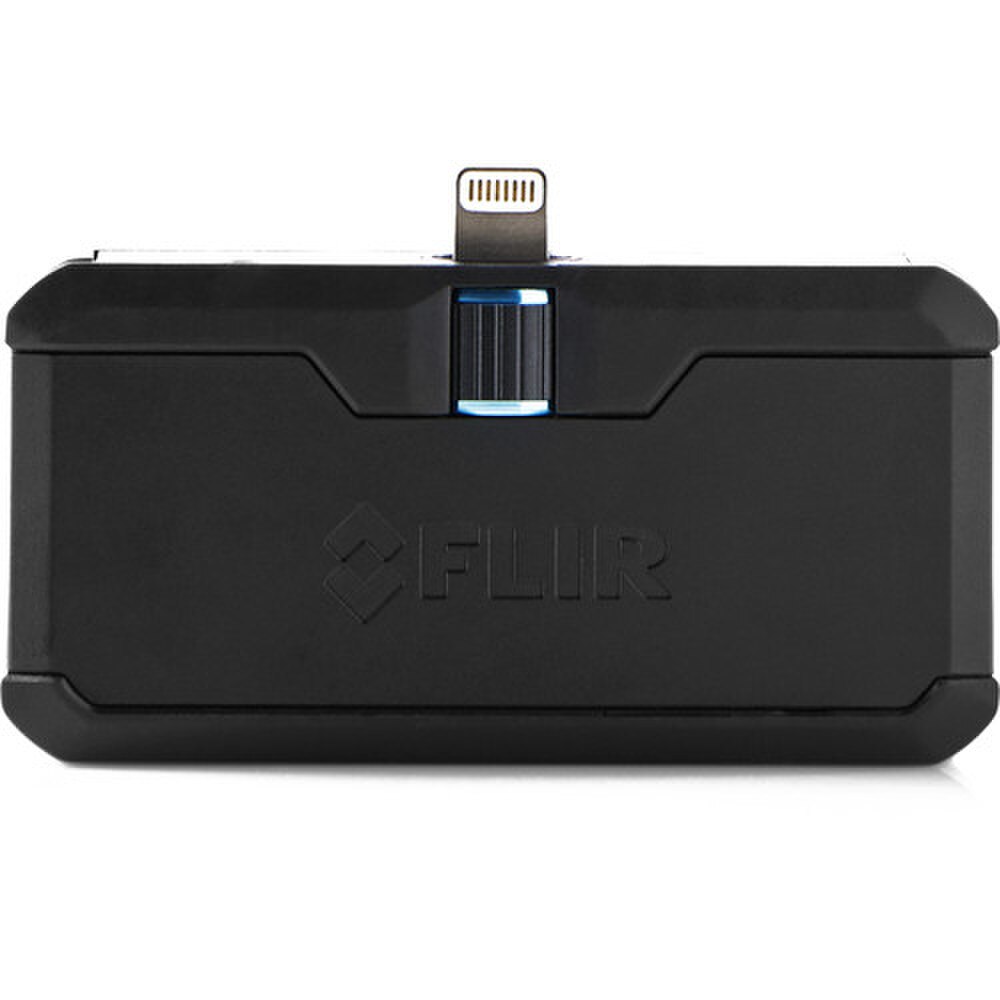

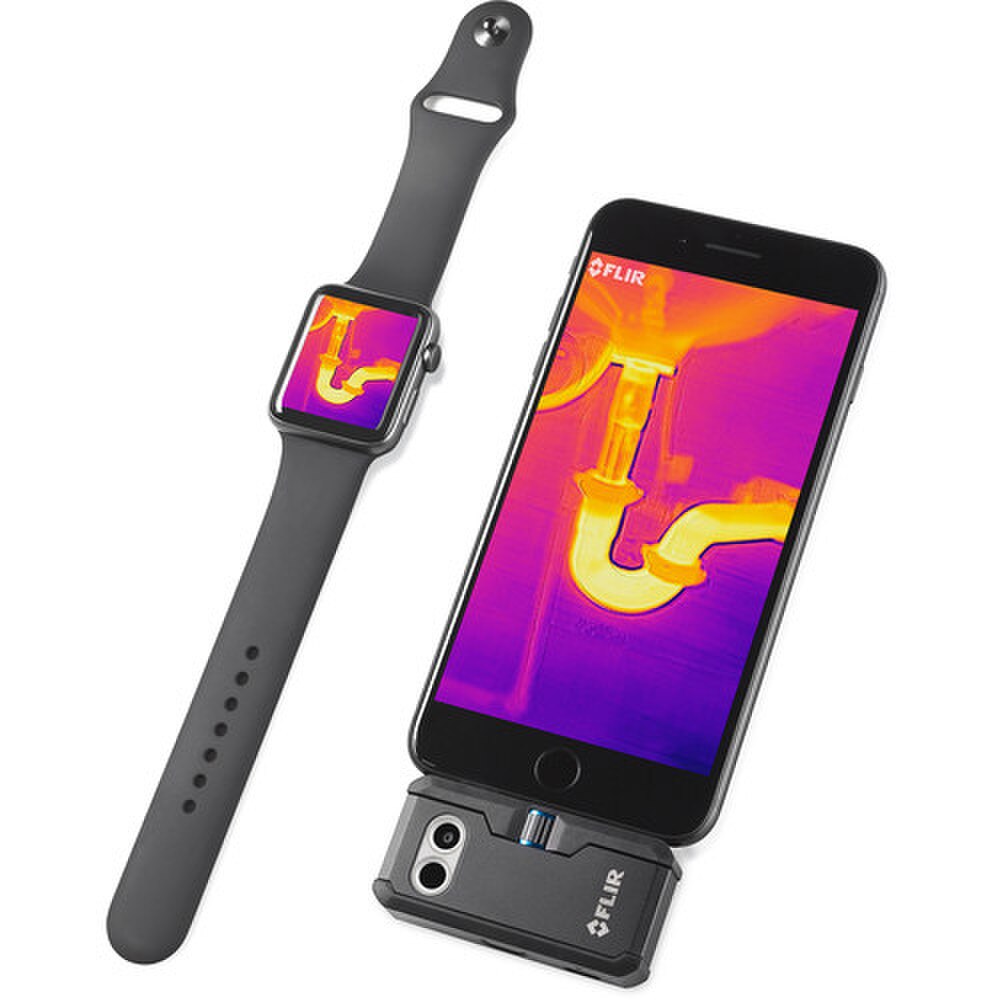

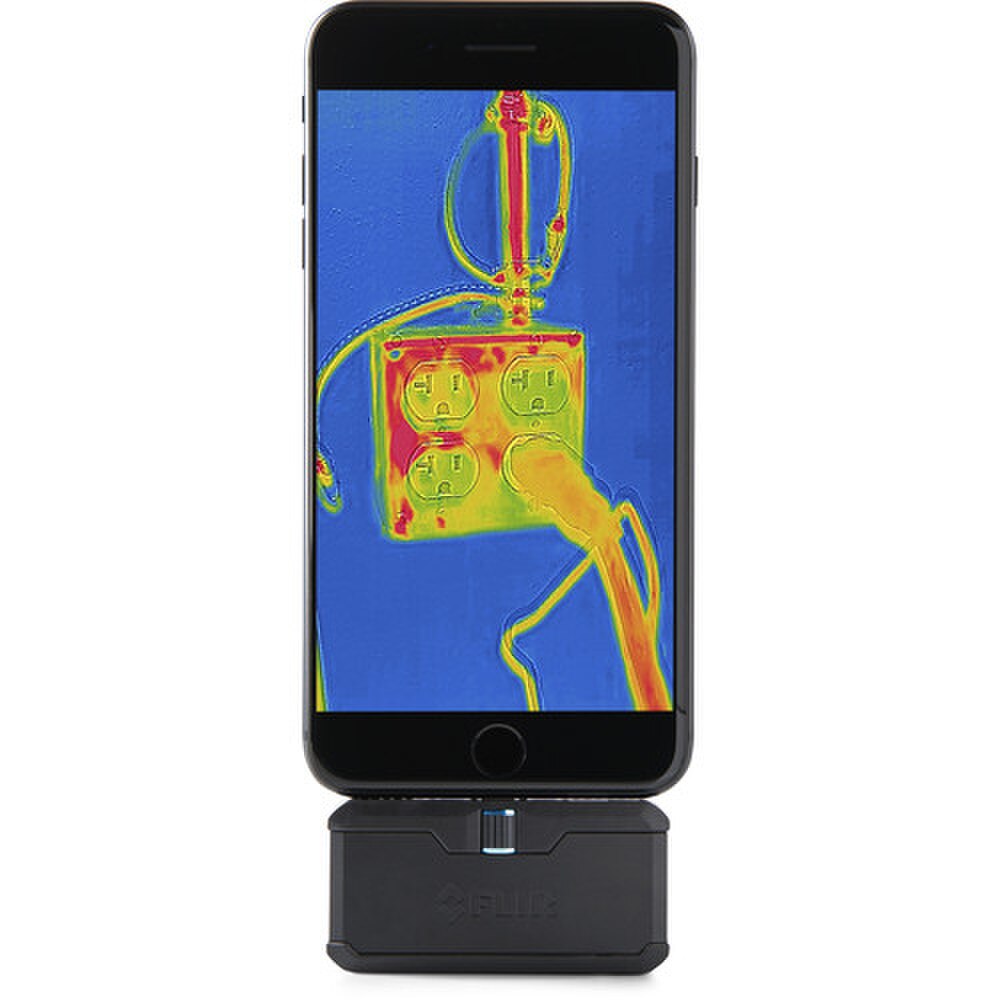

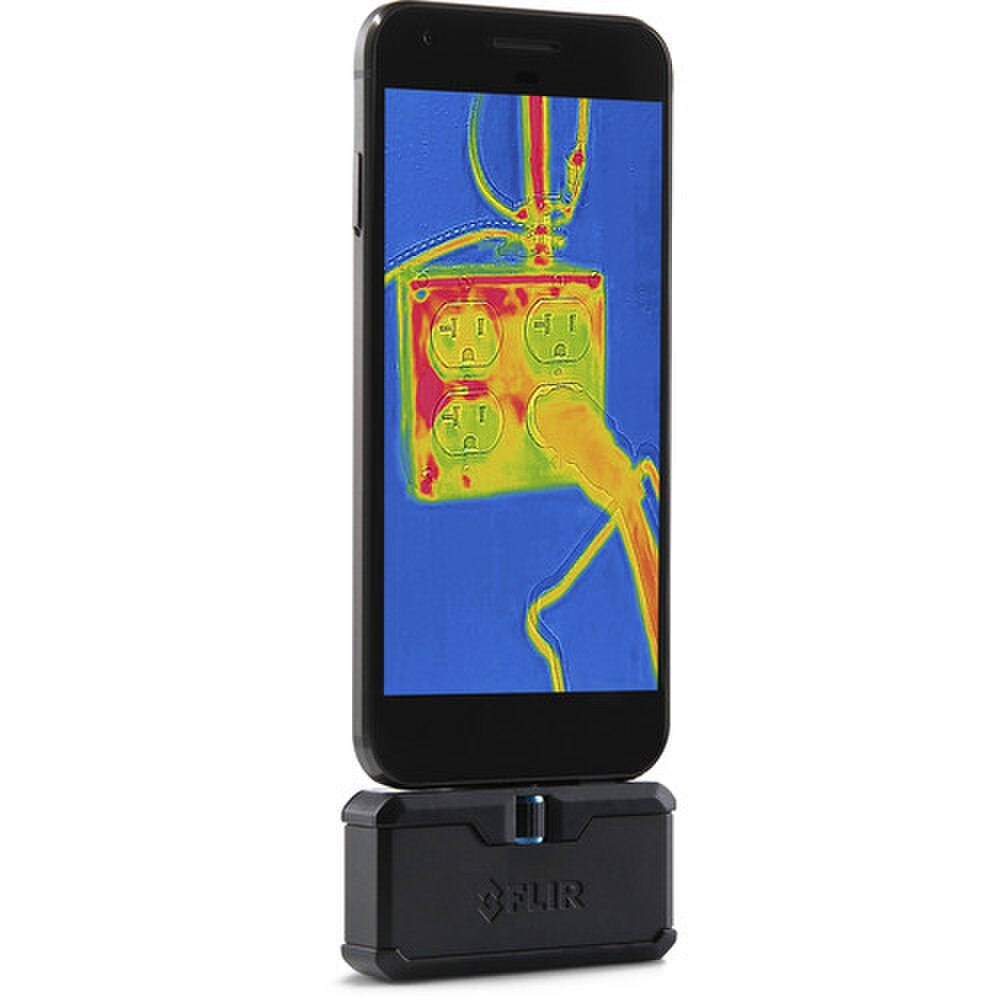

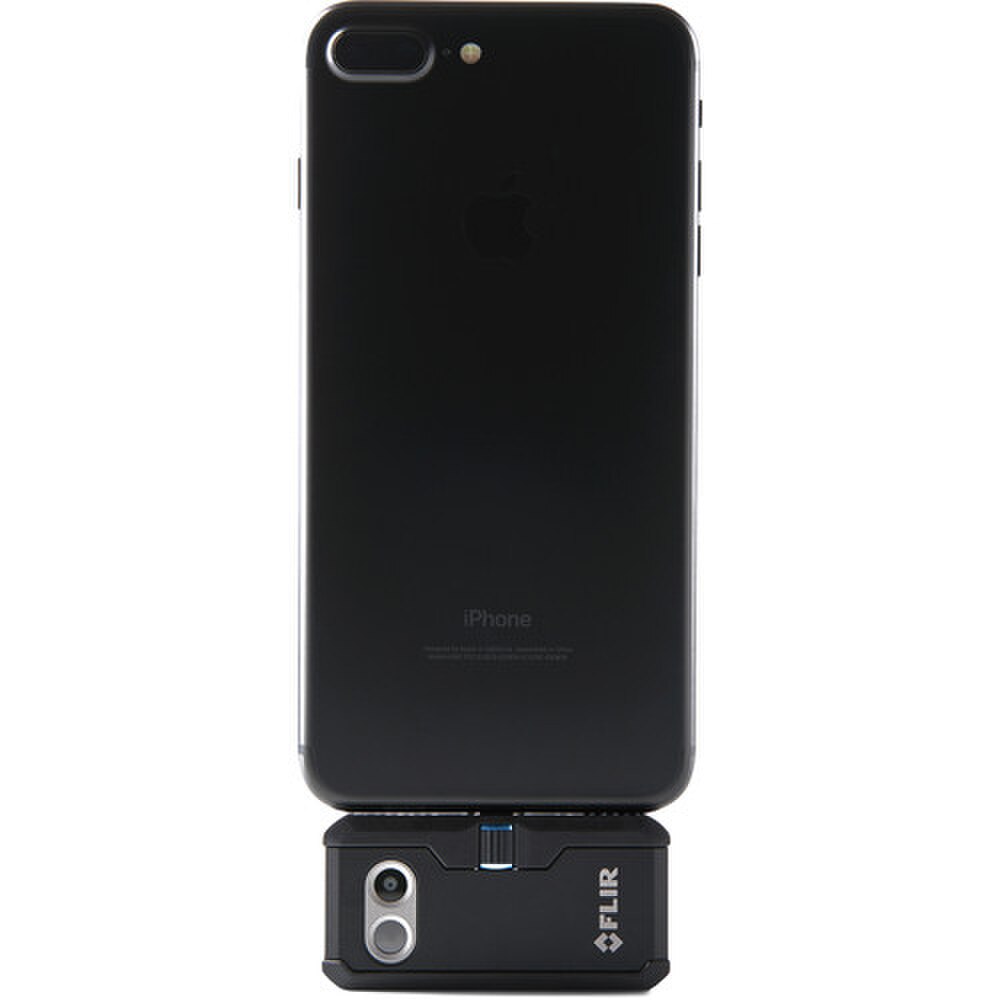

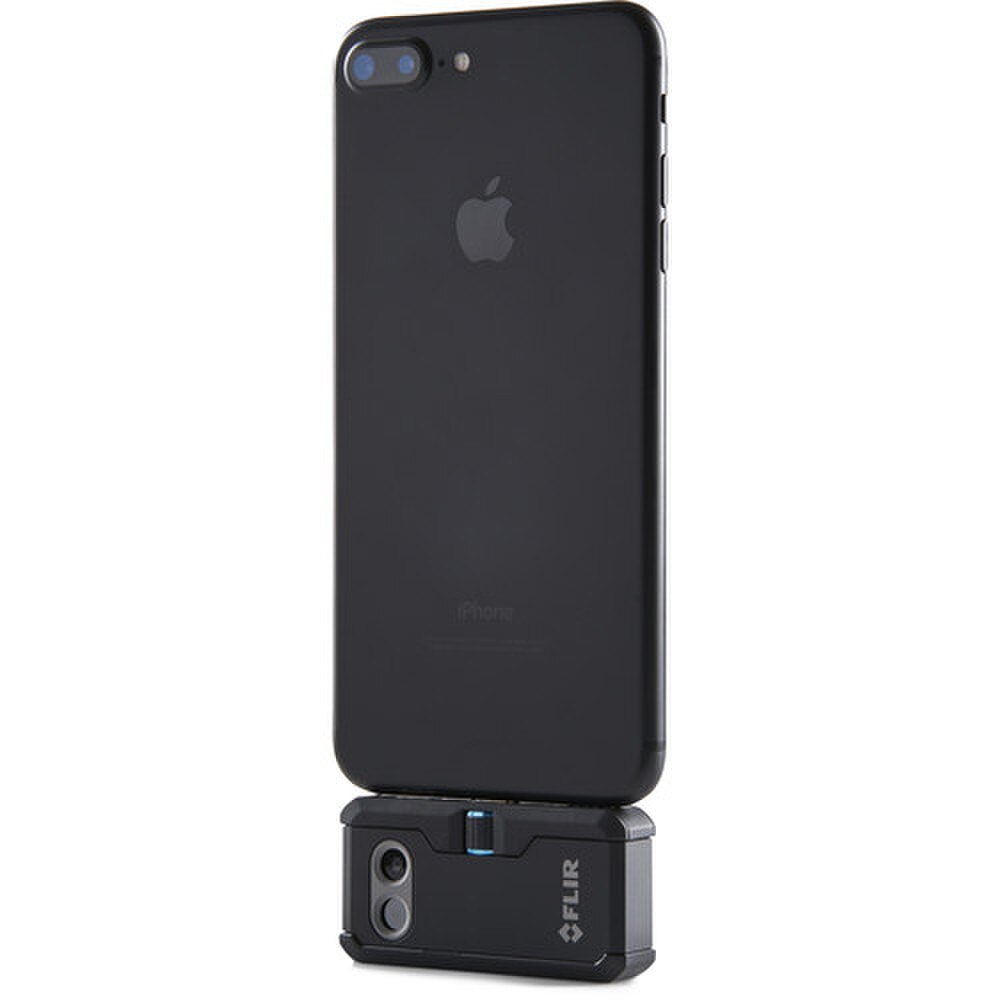

The FLIR One Pro LT Pro-Grade Thermal Camera for Smartphones (435-0012-03) is a powerful and versatile thermal imaging solution designed for professionals and enthusiasts alike. The FLIR One Pro LT transforms your smartphone into a high-performance thermal camera, offering advanced thermal imaging capabilities in a compact, easy-to-use package. This device is ideal for various applications, including home inspections, electrical troubleshooting, HVAC diagnostics, and DIY projects. With its adjustable OneFit connector, the FLIR One Pro LT is compatible with a wide range of smartphones, making it a versatile tool for professionals on the go. The FLIR One Pro LT is an essential tool for professionals and DIY enthusiasts seeking a reliable, high-quality thermal imaging solution that integrates seamlessly with their mobile devices.
• High-Resolution Thermal Sensor with 80 x 60 thermal resolution for detailed heat signatures.
• VividIR Image Enhancement provides clearer thermal images with improved detail.
• MSX Technology combines thermal and visible light images for enhanced clarity.
• Wide Temperature Range detects temperatures from -20°C to 120°C (-4°F to 248°F).
• Adjustable OneFit Connector that is compatible with various smartphone models and cases.
• FLIR Tools Mobile App offers advanced reporting and analysis features.
• Spot Meter and Region of Interest with precise temperature measurements in specific areas.
• Video and Still Image Capture records thermal footage and snapshots for documentation.
• Rugged Design that is drop-tested to 1.8 meters for durability in tough environments.
• USB-C Charging with convenient charging option with reversible connector.
• 3-Year Warranty that includes 2-year coverage for the thermal camera and 10-year coverage for the thermal sensor.
• Multiple Color Palettes allows to choose from various color options for different visualization needs.
• Radiometric Image Capture allows for post-capture temperature analysis.
• Compact and Lightweight with easily portable for on-site inspections and fieldwork.
• Professional-Grade Sensitivity detects temperature differences as small as 0.1°C.
| Manufacturer | FLIR |
| Manufacturer Part Number | 435-0012-03 |
| Product Name | FLIR One Pro LT Pro-Grade Thermal Camera for Smartphones |
| Product Type | Imaging Camera |
| Thermal Resolution | 160 × 120 |
| Battery Life | Approximately 1 hr |
| Object Temperature Range | -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F) |
| Phone | iOS |
| Accuracy | ±3°C or ±5%, typical Percent of the difference between ambient and scene temperature. Applicable 60 sec after start-up when the unit is within 15°C — 35°C and the scene is within 5°C — 120°C. |
| Operating Temperature | 0°C — 35°C (32°F — 95°F) , battery charging 0°C — 30°C (32°F — 86°F) |
| Spot Meter | Hottest, Coldest and 3 spot measurement |
| Imaging & Optical | |
| Adjustable MSX distance | 0.3 m — Infinity |
| FLIR Screen-EST Mode | No |
| Focus | Fixed 15 cm — Infinity |
| Frame Rate | 8.7 Hz |
| General Description | Thermal and Visual Cameras with MSX |
| HFOV/VFOV | 50° ±1° / 43° ±1° |
| Palette | Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel |
| Shutter | Automatic/Manual |
| Thermal Resolution | 160 × 120 |
| Thermal Sensitivity/NETD | 70 mK |
| Thermal Sensor | Pixel size 12 µm, 8 — 14 µm spectral range |
| Video and Still Image Display/Capture | Saved as 1440 × 1080 |
| Visual Resolution | 1440 × 1080 |
| Power | |
| Battery charge time | 40 min |
| Battery Life | Approximately 1 hr |
| Measurement & Analysis | |
| Accuracy | ±3°C or ±5%, typical Percent of the difference between ambient and scene temperature. Applicable 60 sec after start-up when the unit is within 15°C — 35°C and the scene is within 5°C — 120°C. |
| Object Temperature Range | -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F) |
| Spot Meter | Hottest, Coldest and 3 spot measurement |
| General | |
| Battery charge monitor | 0 — 100% |
| Dimensions (H x W x D) | 68 × 34 × 14 mm (2.7 × 1.3 × 0.6 in) |
| Phone | iOS |
| Weight | 36.5 g |
| Environmental & Certifications | |
| Certifications | MFi (iOS version), RoHS, CE/FCC, CEC-BC, EN61233 |
| Drop test | Drop from 1.5m |
| Emissivity Settings | Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30% |
| Non-Operating Temperature | -20°C — 60°C (-4°F — 140°F) |
| Operating Temperature | 0°C — 35°C (32°F — 95°F) , battery charging 0°C — 30°C (32°F — 86°F) |
| Communication & Data Storage | |
| Capture modes | Video, Still image |
| Charging | Female USB-C (5V/1A) |
| Connector | OneFit™ connector, adjustable height |
| File Formats | Radiometric JPG, MPEG-4 (file format MOV) |

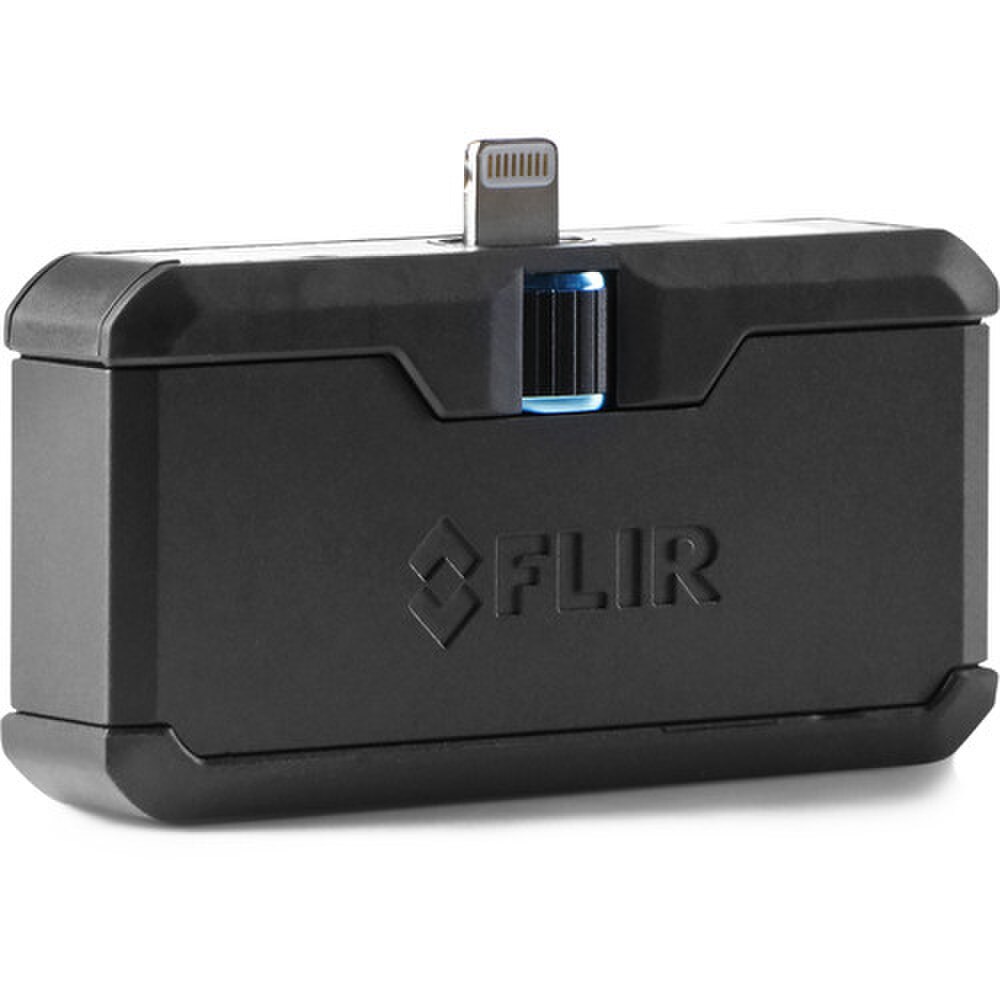

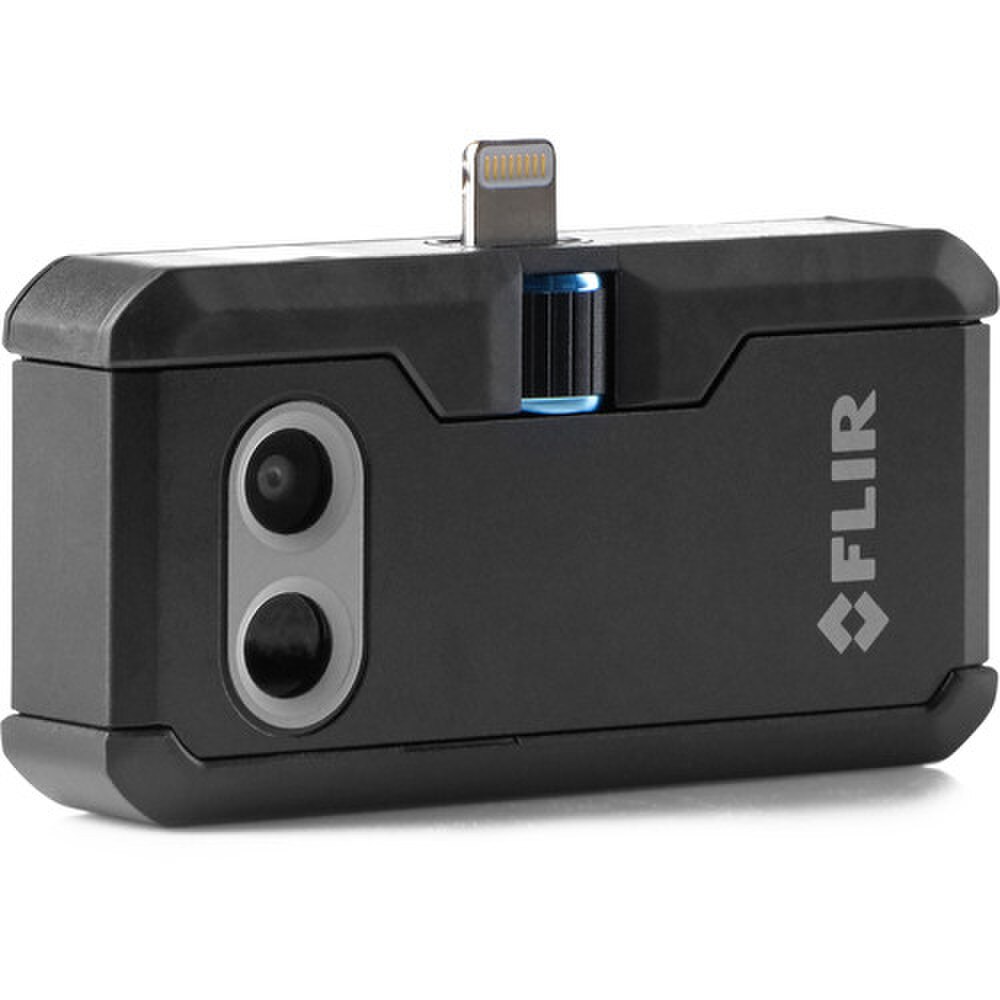

| Video | Male Lightning |
