Epson DS-770 II Color Duplex Document Scanner (B11B262201) | New
SKU: B11B262201-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview

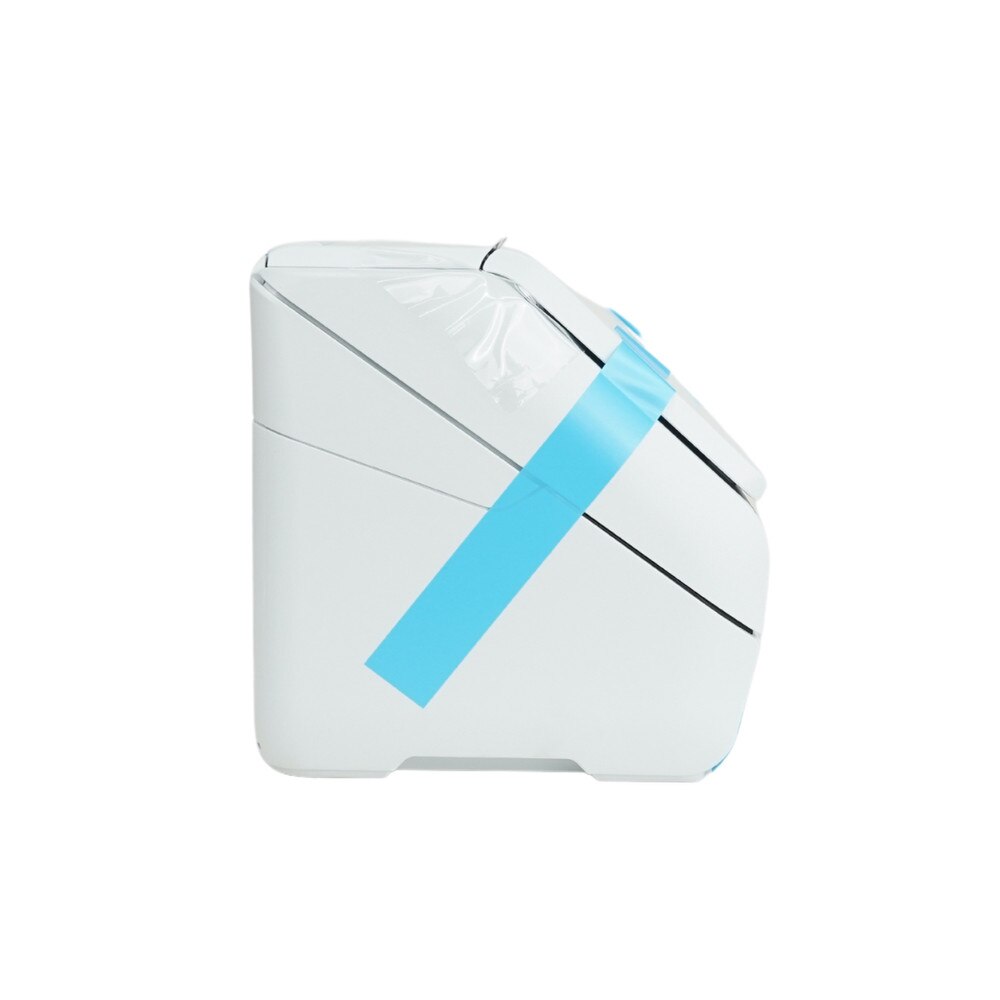

Overview of Epson DS-770 II Color Duplex Document Scanner (B11B262201) | New
The Epson DS-770 II is a fast, accurate, and versatile desktop document scanner well-suited for busy home or small office environments that require high-volume, high-quality scanning capabilities.
Epson DS-770 II Color Duplex Document Scanner (B11B262201):
- Scan Speed and Efficiency: The DS-770 II can scan up to 45 pages per minute (ppm) or 90 images per minute (ipm) in duplex mode at 200/300 dpi resolution.
- Image Quality and Resolution: The scanner has a high optical resolution of 600 dpi and can output scans at resolutions from 50 to 1200 dpi. It uses a color CIS sensor and RGB LED light source to capture detailed, high-quality images.
- Versatile Scanning Capabilities: The DS-770 II supports a wide range of document sizes from 50.8 x 50.8 mm up to 215.9 x 6096 mm, and can handle paper weights from 27 to 413 g/m2. It can scan to various file formats including JPEG, TIFF, PDF, and editable Office document formats.
- Software and Connectivity: The scanner includes TWAIN and ISIS drivers for easy integration with document management software. It also comes bundled with Epson's Document Capture Pro software for managing scan workflows. However, it lacks built-in networking or mobile scanning capabilities.
- Durability and Reliability: Epson rates the DS-770 II for a daily duty cycle of up to 7,000 pages. It includes ultrasonic and length detection to prevent multi-feed errors. Epson also offers extended service plans for added peace of mind.
Specifications
Specifications for Epson DS-770 II Color Duplex Document Scanner (B11B262201) | New
| Manufacturer | Epson |
| Manufacturer Part Number | B11B262201 |
| Product Name | Epson DS-770 II Color Duplex Document Scanner |
| Product Type | Document Scanner |
| Scanner Type | Automatic Document Feeder |
| Scanner Maximum Resolution | 600 dpi |
| Scanner Color Depth | 30-Bit Internal, 24-Bit External |

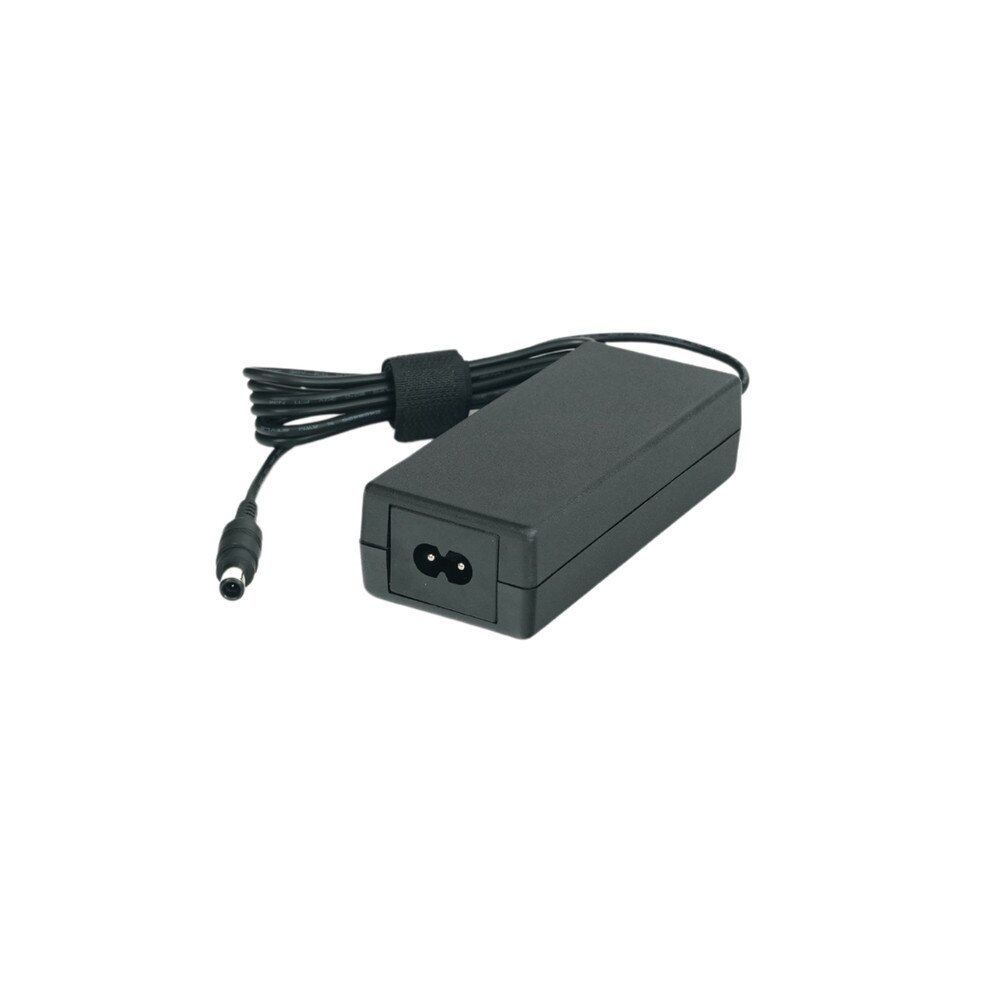

| Power Source | AC Adapter |
| Scan Modes | Color, Grayscale, Monochrome |
| Scanner Color Depth | 30-Bit Internal, 24-Bit External |
| Grayscale Depth | 30-Bit Internal, 24-Bit External |
| Light Source | LED |
| Image Sensor | 1x Contact Image Sensor |
| Duplex Scanning | Yes |
| Single Pass Duplex | Yes |
| Scan Speed | 45 ppm at 300 dpi in Color/Grayscale/Black & White90 ipm at 300 dpi in Color/Grayscale/Black & White |
| Automatic Image Corrections | Yes |
| Scan Sizes | Minimum 2 x 2" / 5.1 x 5.1 cm, Maximum 8.5 x 240" / 21.6 x 609.6 cm |
| Media Thickness | ADF Up to 47.2 mil / 1.2 mm |
| Paper Capacity | ADF 100x Sheet |
| Multi-Feed Detection | Yes |
| Media Weight | 27 to 413 gsm / 50 to 105 lb |
| Daily Duty Cycle | 7000 Scans |
| Special Media Support | Business Card, Check, Credit Card, Envelope, ID Card, Index Card |

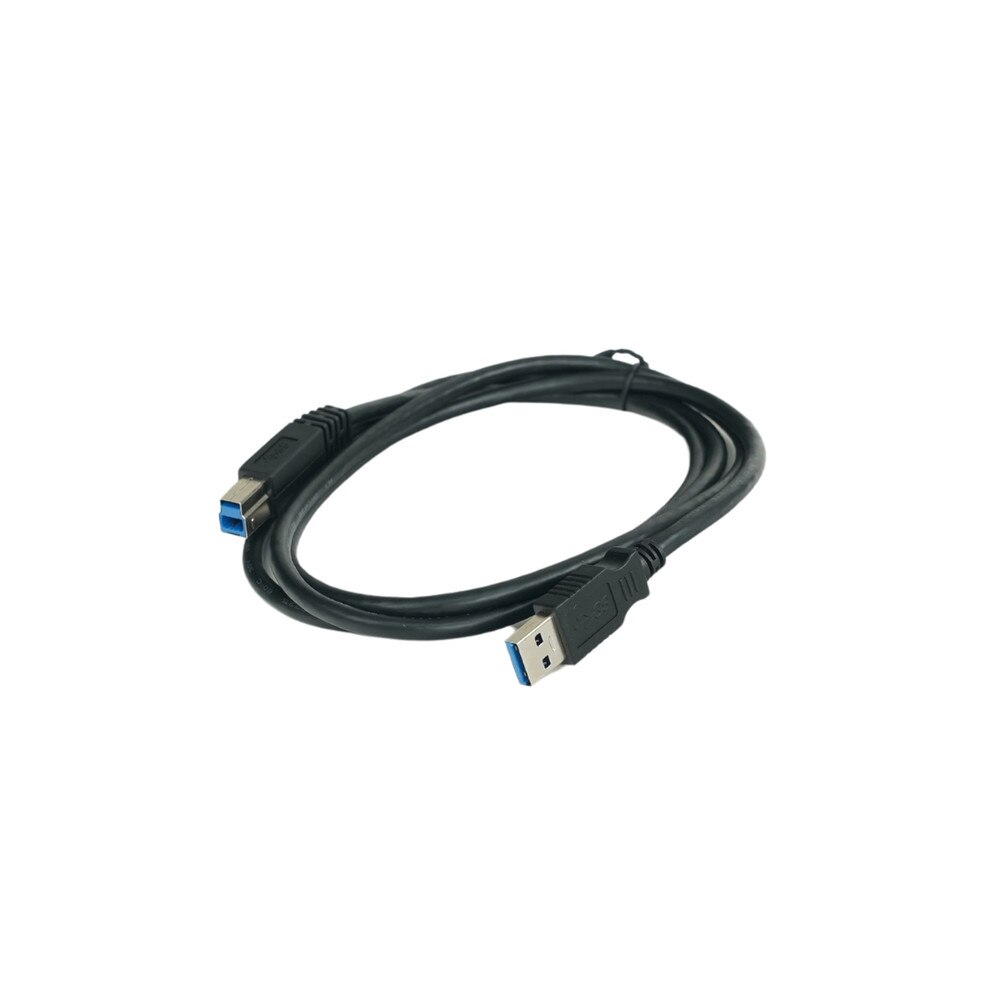

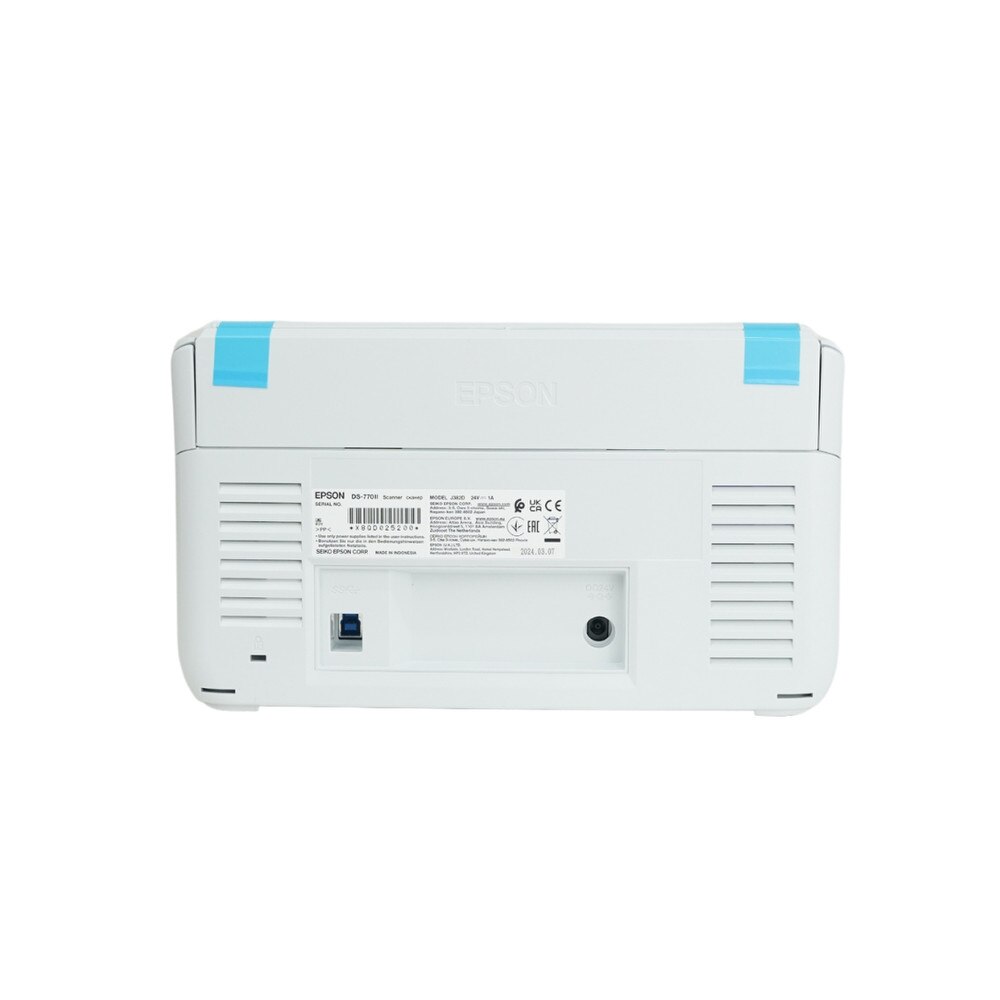

| Inputs/Outputs | USB-B 3.0 / 3.1/3.2 Gen 1 |
| Scanner Drivers | TWAIN, ISIS |
| OS Compatibility | Windows, macOS |
| Operating Temperature | 41 to 95°F / 5 to 35°C |
| Operating Humidity | 10 to 80% |
| Storage Temperature | -13 to 140°F / -25 to 60°C |
| Battery | No |
| Input Power | 100 to 240 VAC, 50 / 60 Hz at 1 A |
| Dimensions | 11.7 x 12.5 x 7.7" / 29.7 x 31.8 x 19.6 cm |
| Weight | 8.1 lb / 3.7 kg |
| Package Weight | 10 lb |
| Box Dimensions | 16 x 11.3 x 9.7 |
User Guides
Frequently Asked Questions
Epson DS-770 II Color Duplex Document Scanner (B11B262201)
Frequently Asked Questions (FAQ's)
What are the main features of the Epson DS-770 II Color Duplex Document Scanner? The main features include fast scan speeds of up to 45 ppm/90 ipm, advanced paper-feeding technology, TWAIN and ISIS drivers, automatic document feeder (ADF) with a 100-sheet capacity, and a built-in Nuance OCR software.
What is the maximum scanning resolution of the Epson DS-770 II? The maximum optical resolution is 600 dpi.
Is the Epson DS-770 II compatible with both Windows and Mac operating systems? Yes, it is compatible with both Windows and Mac OS.
Can the Epson DS-770 II scan both sides of a document simultaneously? Yes, it features duplex scanning, which scans both sides of a document in one pass.
What types of documents can the Epson DS-770 II scan? It can scan a variety of documents including paper, card stock, business cards, and ID cards.

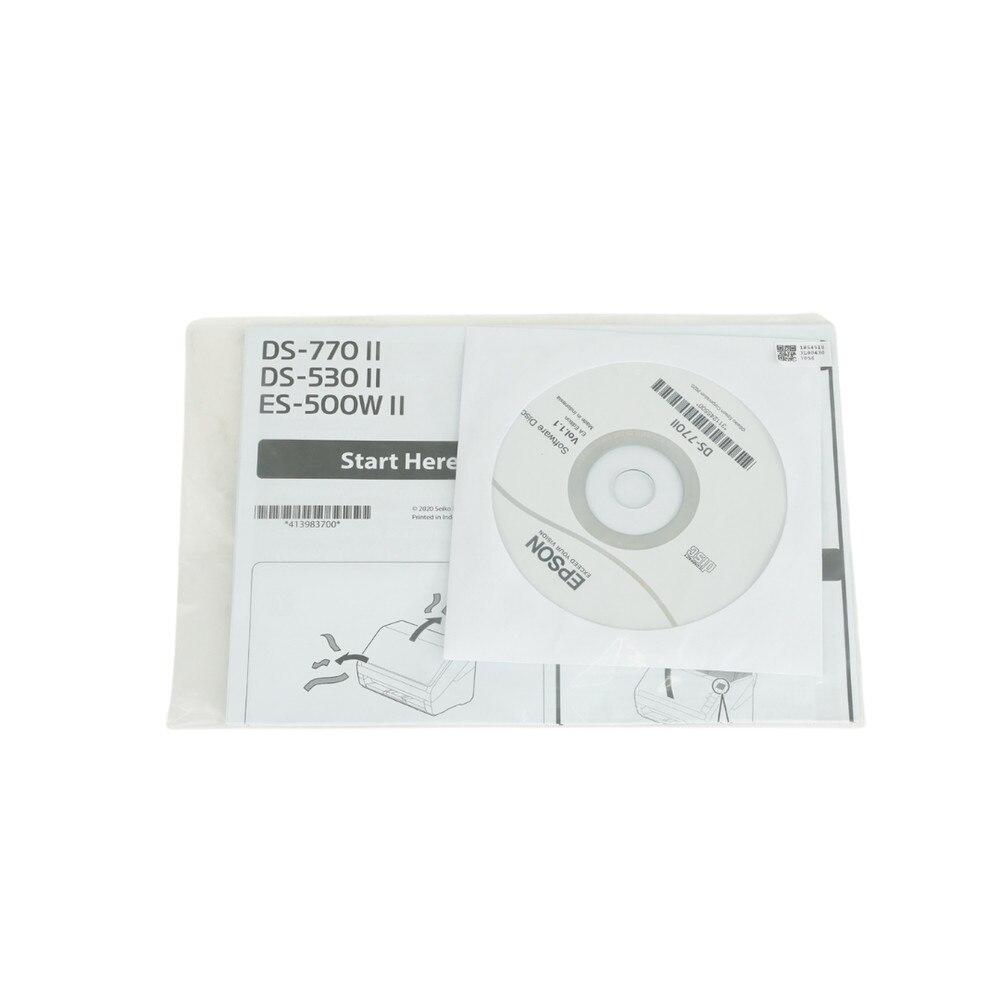

Does the scanner come with any software? Yes, it includes Epson Scan 2, Document Capture Pro, ABBYY FineReader Sprint, and NewSoft Presto! BizCard.
What is the daily duty cycle of the Epson DS-770 II? The recommended daily duty cycle is up to 7,000 sheets.
Can the Epson DS-770 II scanner handle long documents? Yes, it can scan documents up to 240 inches long.
What connectivity options are available for the Epson DS-770 II? It offers USB 3.0 connectivity.
How large is the automatic document feeder (ADF) capacity? The ADF can hold up to 100 sheets.
Does the Epson DS-770 II support network scanning? Yes, with an optional network interface unit, it can support network scanning.
Can the Epson DS-770 II detect and skip blank pages? Yes, it has an auto-detection feature to skip blank pages.
Does the scanner have OCR (Optical Character Recognition) capabilities? Yes, it includes OCR software for converting scanned documents into editable text.
Is it possible to scan to cloud services with the Epson DS-770 II? Yes, it supports scanning to cloud services like Google Drive, Dropbox, and OneDrive through the included Document Capture Pro software.
What are the dimensions of the Epson DS-770 II? The dimensions are 11.7 x 6.6 x 6.3 inches (W x D x H).
How much does the Epson DS-770 II weigh? It weighs approximately 8.1 pounds.
Can the Epson DS-770 II scan in color? Yes, it can scan in color, grayscale, and monochrome.
What is the minimum and maximum paper size that the Epson DS-770 II can handle? It can handle paper sizes from 2 x 2 inches up to 8.5 x 240 inches.
Does the Epson DS-770 II have any advanced document handling features? Yes, it includes features like double-feed detection, dynamic skew correction, and paper protection to ensure reliable and accurate scanning.
