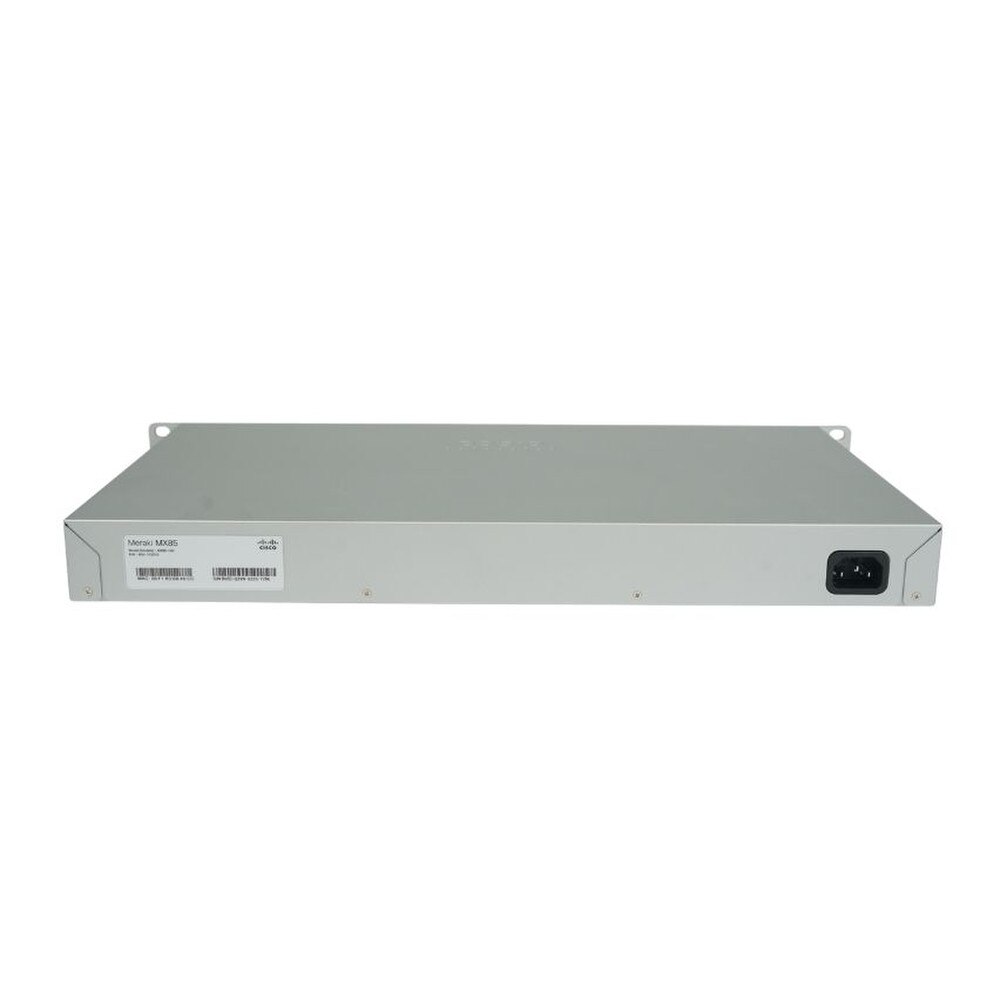

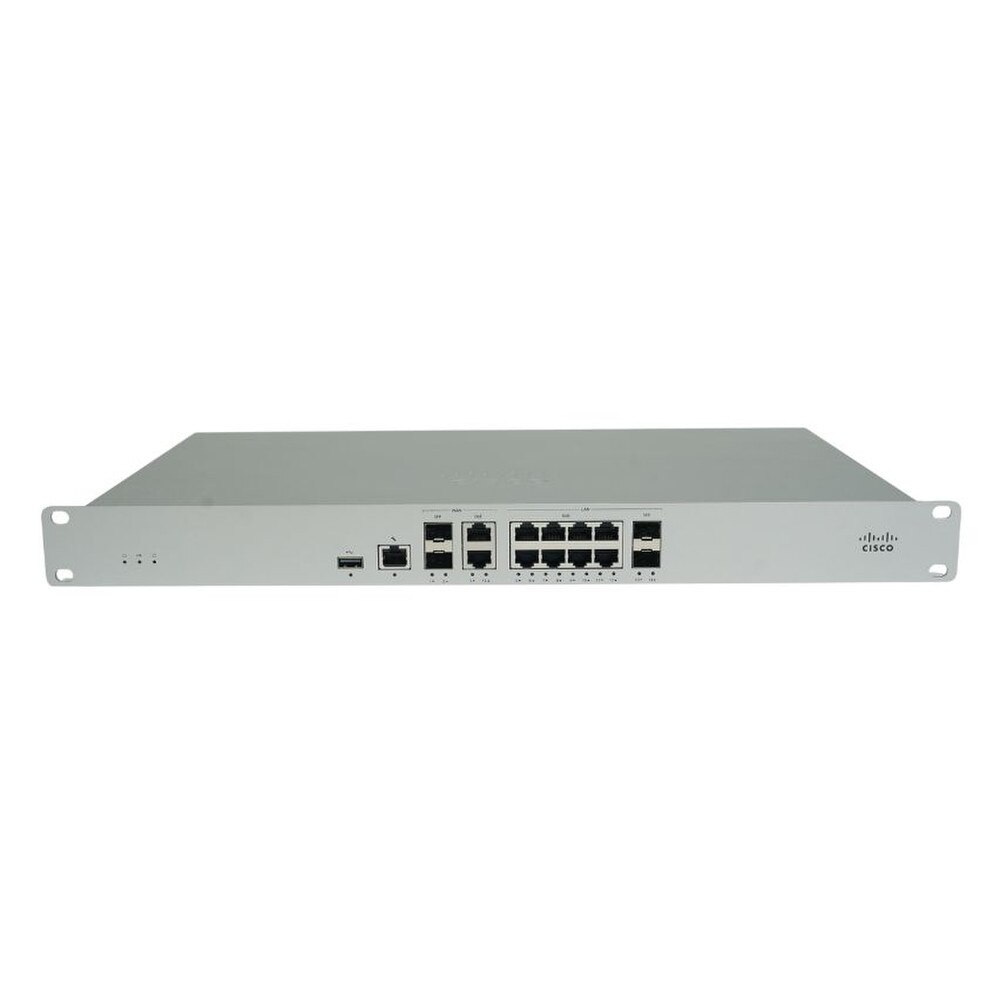

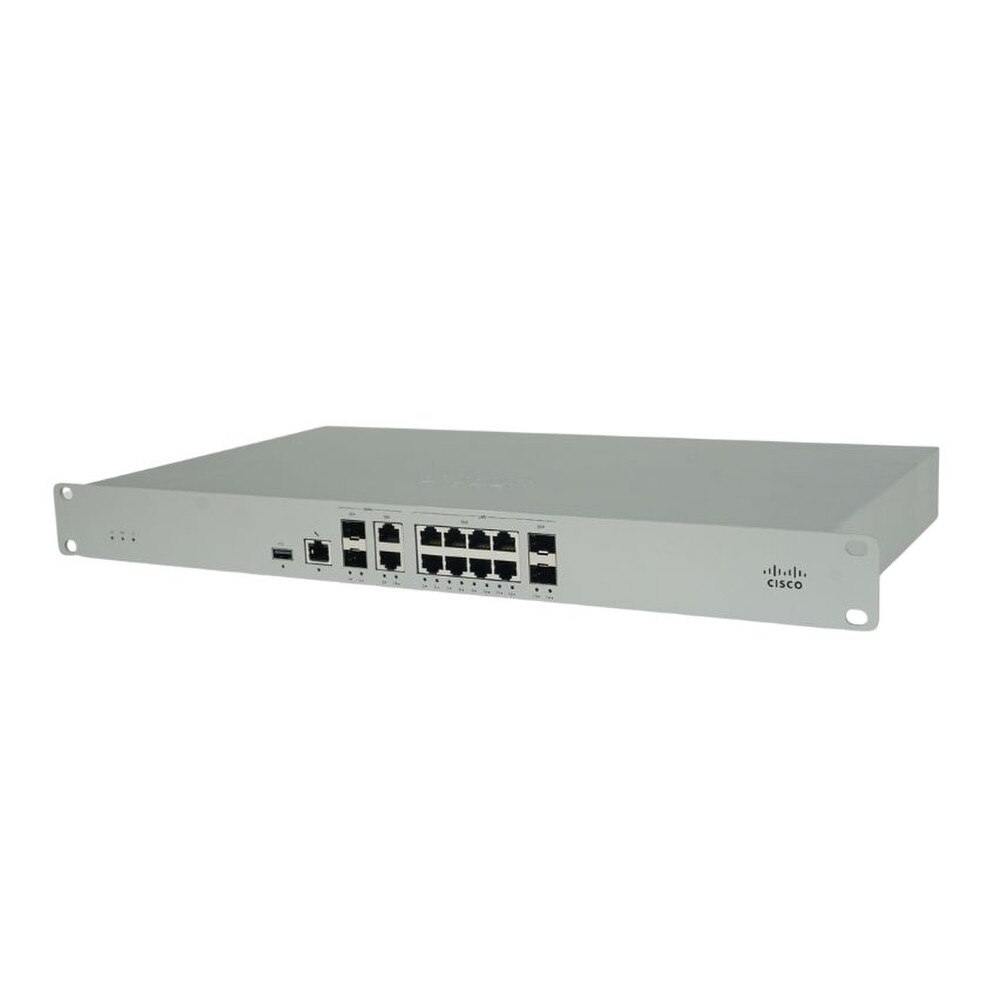

Cisco Meraki MX85 Network Security/Firewall Appliance (MX85-HW) (Unclaimed) | New
SKU: MX85-HW-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Cisco Meraki MX85 Network Security/Firewall Appliance (MX85-HW) | New
The Cisco Meraki MX85 Network Security/Firewall Appliance (MX85-HW) is the best cloud-managed option for distributed environments or small to medium-sized branch offices. This next-generation security appliance uses the user-friendly Meraki Dashboard to coordinate intelligent SD-WAN, high-speed connectivity and unified threat prevention. The MX85 integrates firewalling, content filtering, malware defense, intrusion prevention, AutoVPN and advanced traffic analytics, enabling IT teams to identify threats, optimize application experience and implement zero-touch updates remotely. Its powerful hardware feature set supports up to 250 users and it has four dedicated WAN uplinks, a 1 Gbps firewall throughput and future-ready PoE+ support.
Key Features of Cisco Meraki MX85 Network Security/Firewall Appliance
• Cloud-managed, zero-touch deployment that instantly deploy, monitor and update security at scale with Cisco Meraki Dashboard.
• 1 Gbps stateful firewall throughput delivers robust perimeter protection for up to 250 devices while maintaining high network speeds.
• Integrated SD-WAN with advanced traffic shaping, dual WAN uplink support, automatic failover and dynamic path selection for superior reliability.
• Comprehensive threat protection that includes built-in intrusion detection & prevention (IDS/IPS), Advanced Malware Protection (AMP), content filtering, SSL decryption and geo-based firewall rules.
• Auto VPN™ and client VPN endpoint with effortless site-to-site connections plus secure remote access for distributed and mobile workforces.
• 8 x 1G LAN RJ45 + 2 x 1G SFP interfaces with flexible, high-performance LAN for branch operations or hybrid cloud edge.
• 4 WAN uplinks (2 RJ45, 2 SFP) with flexible, redundant ISP and uplink options ensure business continuity.
• PoE+ enabled port that power Cisco devices or IP phones efficiently right from the appliance.
• Active Directory/802.1x integration supports identity-based policy management and access control.
• Intelligent monitoring, analytics & traffic shaping with real-time network health, app usage stats and custom prioritization boost productivity.
Benefits of Cisco Meraki MX85 Network Security/Firewall Appliance
🗹 Protect business and data with unified firewall, anti-malware and web filtering block the latest cyber threats and keep compliance simple.
🗹 Empower distributed teams with zero-touch, cloud-based control lets IT remotely secure, manage and update multiple sites—no on-site visits needed.
🗹 Maximize application uptime with SD-WAN technology seamlessly balances WAN traffic, ensuring the best path for critical applications and executive communications.
🗹 Accelerate network modernization with all-in-one solution combines firewall, VPN, PoE+ and SD-WAN to reduce rack clutter and TCO.
🗹 Enhance branch flexibility with multi-gig uplinks, LAN expansion options and PoE+ support enable rapid branch rollouts and remote work adoption.
🗹 Boost regulatory peace of mind with layered defense and granular policy management help organizations meet modern compliance requirements with confidence.
🗹 Actionable insights with analytics empower smarter network optimization and help IT anticipate and resolve issues faster.
Specifications
Specifications for Cisco Meraki MX85 Network Security/Firewall Appliance (MX85-HW) | New
| Manufacturer | Cisco |
| Manufacturer Part Number | MX85-HW |
| Product Name | Cisco Meraki MX85-HW Network Security/Firewall Appliance |
| Product Type | Security and Firewall |
Form Factor | External |
Connectivity Technology | Wired |
Network / Transport Protocol | IPSec, DHCP |
Routing Protocol | Static IP routing |
Remote Management Protocol | HTTP, DHCP |
Cloud-Managed | Yes |
Performance | Firewall throughput: 1 Gbps ¦ Advanced security throughput: 750 Mbps ¦ VPN throughput (site to site): 500 Mbps |
Capacity | Recommended users: 250 ¦ VPN tunnels (site-to-site): 200 |
Features | Firewall protection, NAT support, VPN support, VLAN support, firmware upgradable, 3G/4G USB Dongle Support, DMZ support |
Authentication Method | Active Directory |
Interfaces | 1 x 1000Base-T - RJ-45 (WAN) ¦ 1 x 1000Base-T (PoE+) - RJ-45 (WAN) ¦ 2 x 1000Base-X - SFP (WAN) ¦ 1 x USB 2.0 ¦ 8 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-X - SFP |
Power Over Ethernet (PoE) Supported | PoE+ |
Power Device | Internal power supply |
Installed Qty | 1 |
Voltage Required | AC 100-127/200-240 V |
Power Consumption Operational | 55 Watt |
Power Provided | 100 Watt |
Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next day |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 5 - 95% |
Height (Rack Units) | 1U |
Width | 19.1 in |
Depth | 9.8 in |
Height | 1.7 in |
Weight | 8.16 lbs |
User Guides
Frequently Asked Questions
Cisco Meraki MX85 Network Security/Firewall Appliance (MX85-HW)
Frequently Asked Questions (FAQ's)
What is the maximum throughput of the Cisco Meraki MX85? The MX85 can handle up to 1 Gbps of throughput.
Does the Cisco Meraki MX85 support SD-WAN? Yes, the MX85 includes integrated SD-WAN capabilities to improve traffic management.
What types of security features does the Cisco Meraki MX85 provide? The MX85 provides advanced security features such as intrusion prevention, malware protection, and content filtering.
Can the Cisco Meraki MX85 be managed remotely? Yes, it is remotely managed using the Meraki cloud-based dashboard.
How many devices can the Cisco Meraki MX85 support? The MX85 is intended to support small to medium-sized businesses and can typically handle up to 500 devices.
What types of VPNs are supported by the Cisco Meraki MX85? The MX85 allows for secure remote access via site-to-site VPNs, client VPNs, and Auto VPN.
Is the Cisco Meraki MX85 compatible with other Meraki devices? Yes, the MX85 integrates seamlessly with other Meraki devices to provide unified network management.
How is the Cisco Meraki MX85 licensed? The MX85 requires a Meraki license, which gives you access to cloud management and security capabilities.
Does the Cisco Meraki MX85 offer content filtering? Yes, it has robust content filtering to prevent unwanted web content.
What is the power consumption of the Cisco Meraki MX85? The MX85 typically consumes 30 watts of power.
Does the Cisco Meraki MX85 support dual WAN connectivity? Yes, it does support dual WAN for redundancy and load balancing.
What ports are available on the Cisco Meraki MX85? The MX85 has ten Gigabit Ethernet ports, which include two WAN ports and eight LAN ports.
Can the Cisco Meraki MX85 be rack-mounted? Yes, the MX85 is rack-mountable and includes rack-mounting hardware.
How does the Cisco Meraki MX85 handle firmware updates? The Meraki cloud automatically manages and deploys firmware updates.
Can the Cisco Meraki MX85 perform application traffic shaping? Yes, it has traffic shaping and QoS (Quality of Service) features to help prioritize critical applications.
Does the Cisco Meraki MX85 support 3G/4G failover? Yes, it does support USB cellular failover for 3G/4G connectivity.
How does the Cisco Meraki MX85 assist with compliance requirements? To help meet compliance standards, the MX85 includes detailed logging, audit trails, and reporting capabilities.
Can the Cisco Meraki MX85 be used for guest Wi-Fi management? Yes, it can manage guest Wi-Fi access and offer network segmentation to ensure secure guest access.
What kind of analytics does the Cisco Meraki MX85 provide? It provides real-time analytics, such as network usage, security events, and traffic patterns, via the Meraki dashboard.
Is technical support available for the Cisco Meraki MX85? Yes, with a valid license, Meraki's support team provides 24/7 technical support.
