Cisco Meraki MX68 Cloud Managed Router Security Appliance (MX68-HW) (Unclaimed) | New

Cisco Meraki MX68 Cloud Managed Router Security Appliance (MX68-HW) (Unclaimed) | New

SKU: MX68-HW-N
(0)No Reviews yet

No Power Cord included

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$449.99 $449.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco Meraki MX68 Cloud Managed Router Security Appliance (MX68-HW) | New

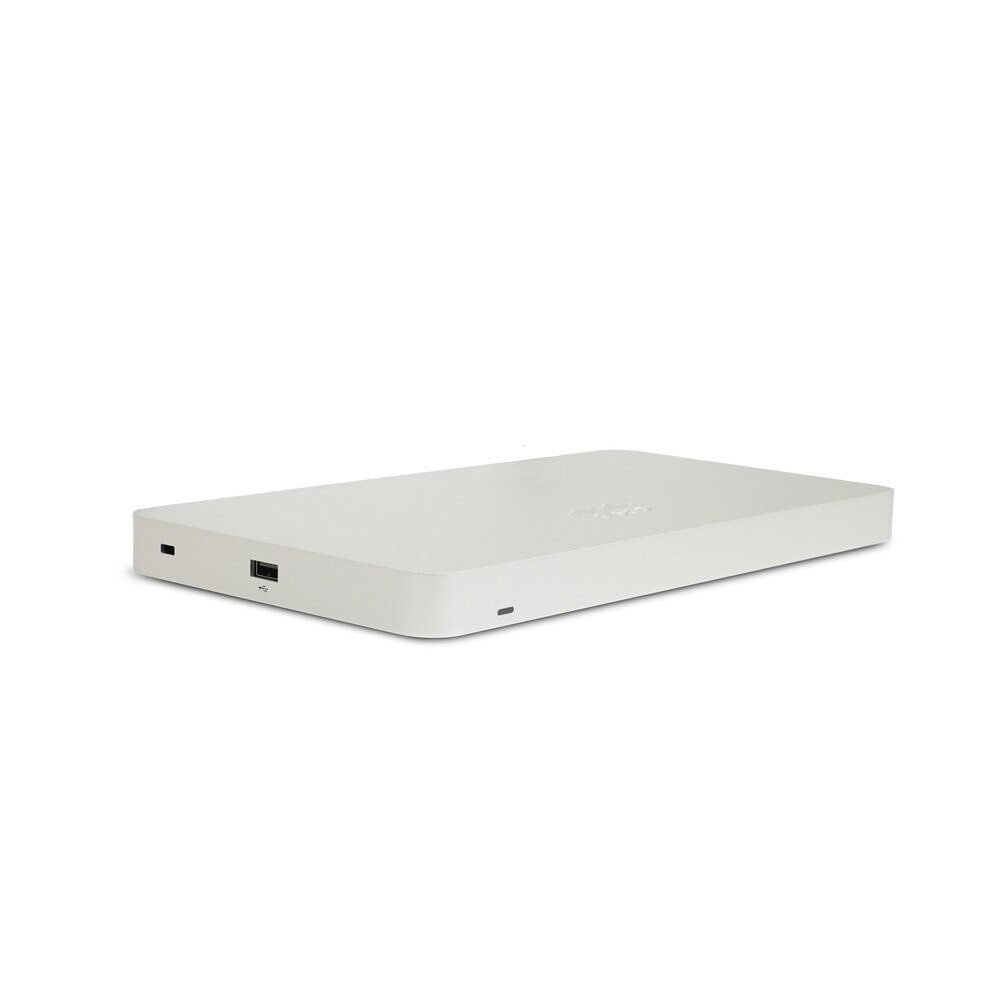

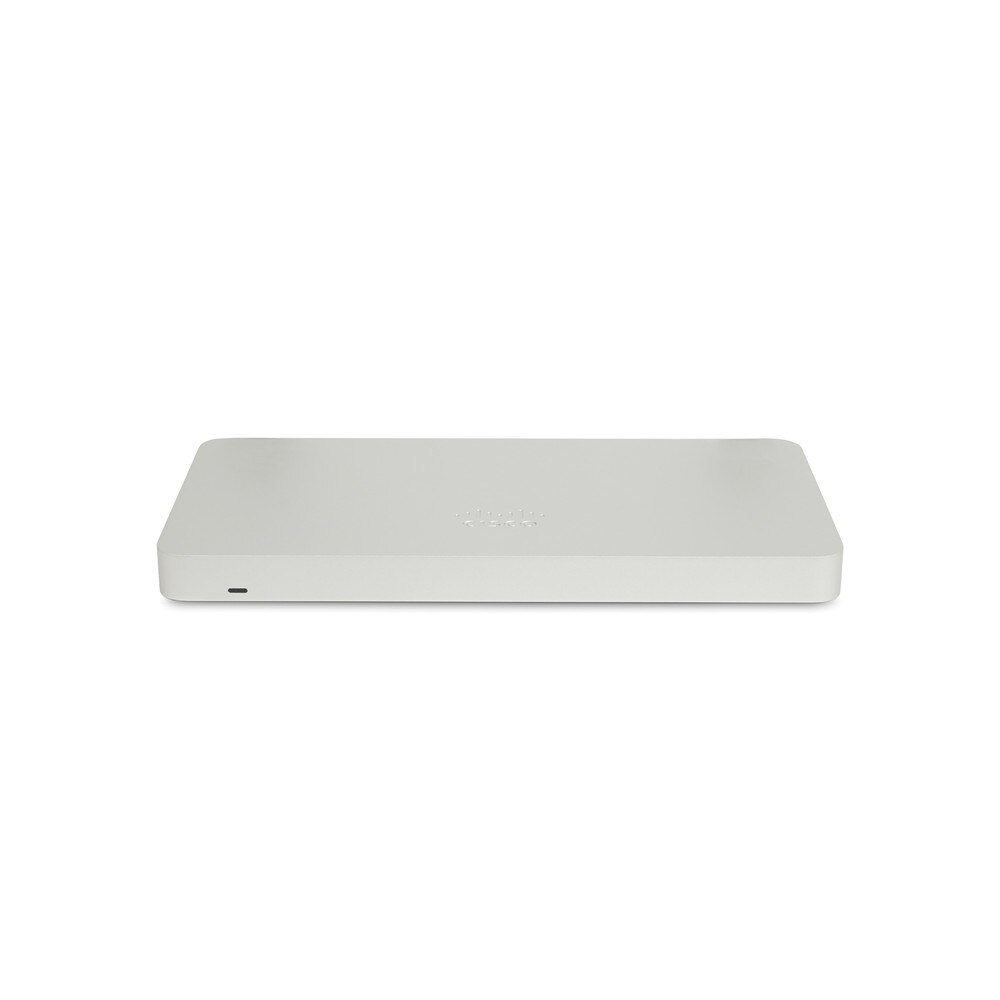

The Cisco Meraki MX68 Cloud Managed Router Security Appliance (MX68-HW) is a robust, cloud-based security solution for small to medium-sized branch networks. This flexible device combines powerful security features with SD-WAN capabilities, making it an excellent solution for businesses that require comprehensive network protection and efficient management. The MX68-HW provides comprehensive security and networking capabilities in a small package. With a stateful firewall throughput of up to 450 Mbps and up to 50 concurrent users, it's ideal for small branch offices. The appliance has 12 Gigabit Ethernet ports, two of which are PoE+, allowing versatile connectivity choices for a variety of applications.


Key Features of Cisco Meraki MX68 Cloud Managed Router Security Appliance


• 100% cloud-managed through the intuitive Meraki dashboard, enabling zero-touch provisioning and simplified administration.

• Includes content filtering, intrusion detection and prevention (IDS/IPS), and Cisco Advanced Malware Protection (AMP).

• Supports intelligent site-to-site VPN connectivity and dynamic path selection.

• Up to 450 Mbps stateful firewall throughput and 300 Mbps advanced security throughput.

• 10 Gigabit Ethernet LAN ports, 2 Gigabit Ethernet WAN ports, and 2 PoE+ ports.

• Enables traffic shaping and prioritization for optimal network performance.

• Self-configuring site-to-site VPN for secure connectivity between branches.

• USB port supports 3G/4G connectivity for backup internet access.

• Ensures safe browsing and compliance with organizational policies.

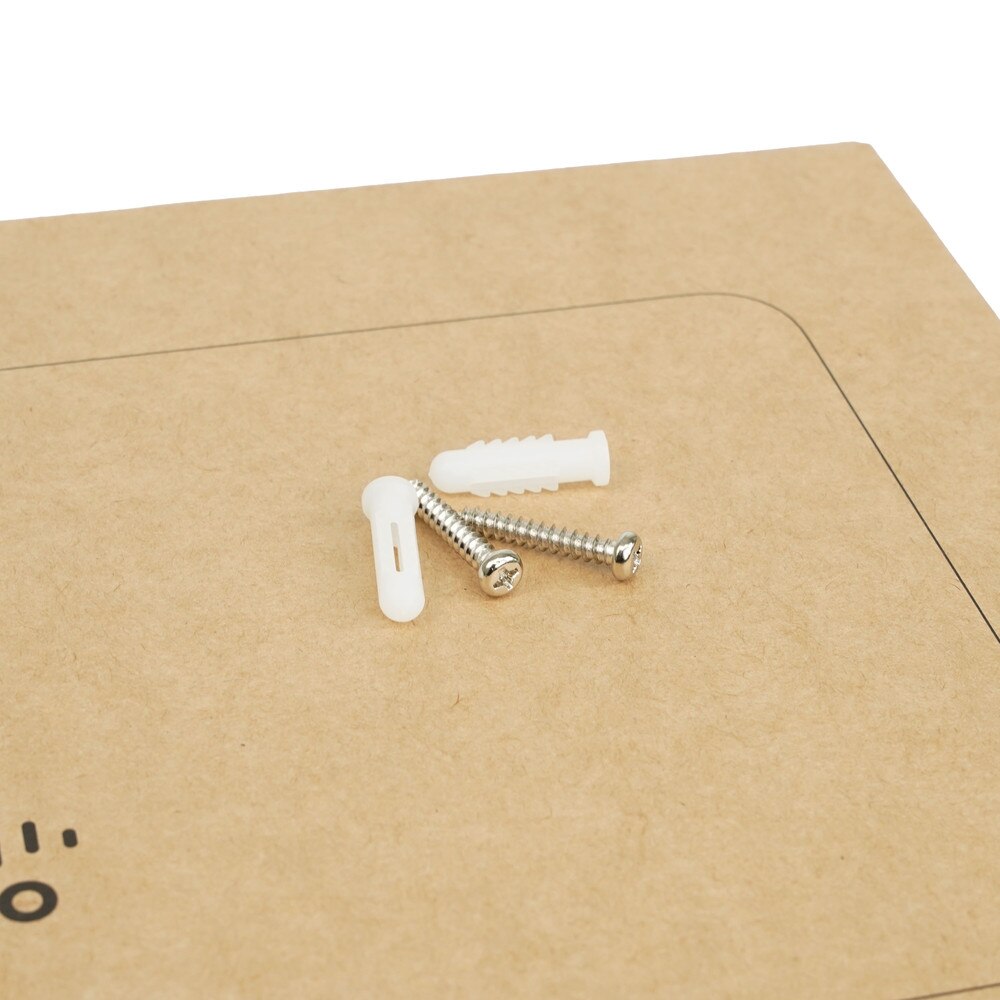

• Small form factor suitable for desktop or wall mounting

Specifications

Specification for Cisco Meraki MX68 Cloud Managed Router Security Appliance (MX68-HW) | New

Manufacturer Cisco
Manufacturer Part Number MX68-HW
Product Name Cisco Meraki MX68 Cloud Managed Router Security Appliance
Product Type Security and Firewall
Device Type Security appliance
Width 28.4 cm
Depth 14.8 cm
Height 2.7 cm
Weight 1.12 kg
Form Factor Desktop
Ports Qty 10
Connectivity Technology Wireless, wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol L2TP, IPSec, PPPoE, DHCP
Routing Protocol Static IP routing, MPLS
Performance Firewall throughput: 450 Mbps ¦ VPN throughput: 200 Mbps ¦ Advanced security throughput: 300 Mbps
Capacity Maximum number of users: 50
Features Firewall protection, DHCP support, NAT support, load balancing, layer 7 switching, VLAN support, traffic shaping, content filtering, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), firmware upgradable, wall mountable, IPSec Virtual Private Network (VPN), Quality of Service (QoS), MPLS VPN, 3G/4G USB Dongle Support, static routing, 802.1x authentication, Link Aggregation, VPN client, IP Security (IPSec) support, DMZ support

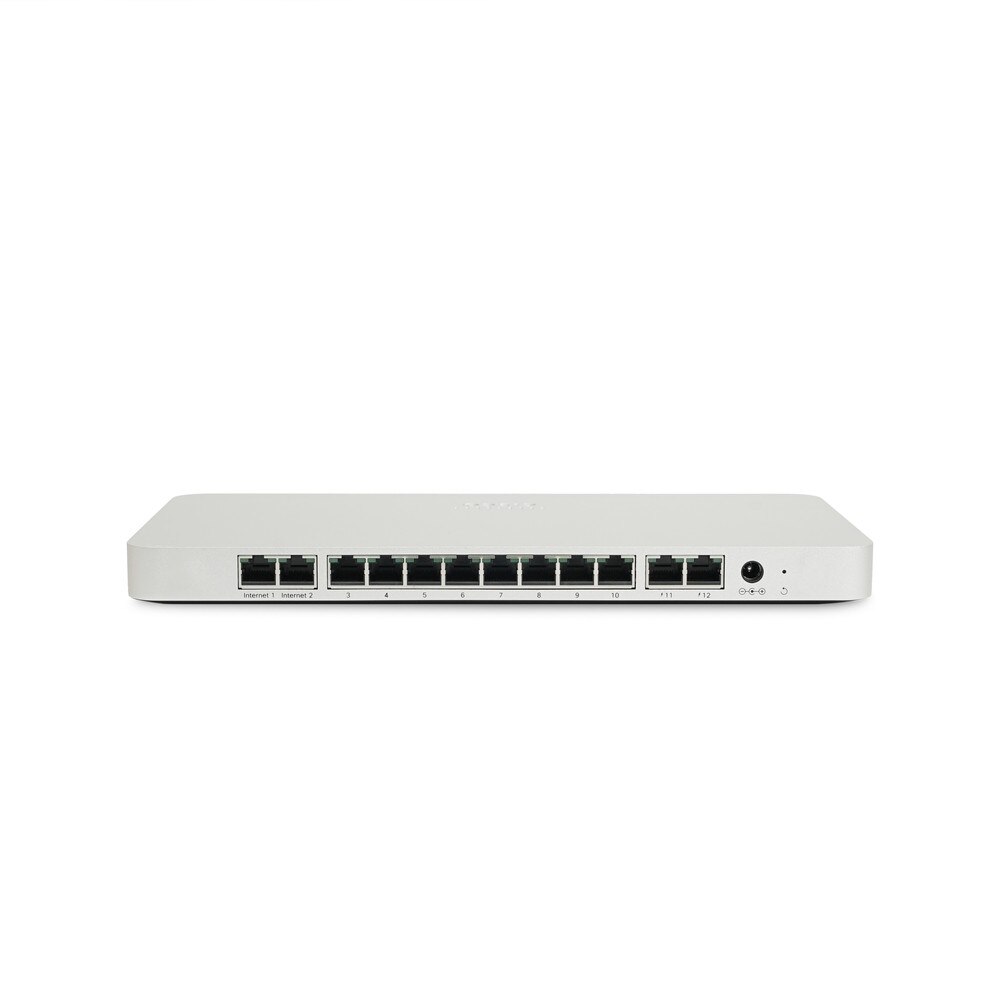

Interfaces 2 x 1000Base-T - RJ-45 (WAN) ¦ 8 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x USB 2.0 - Type A
Power Over Ethernet (PoE) Supported PoE+

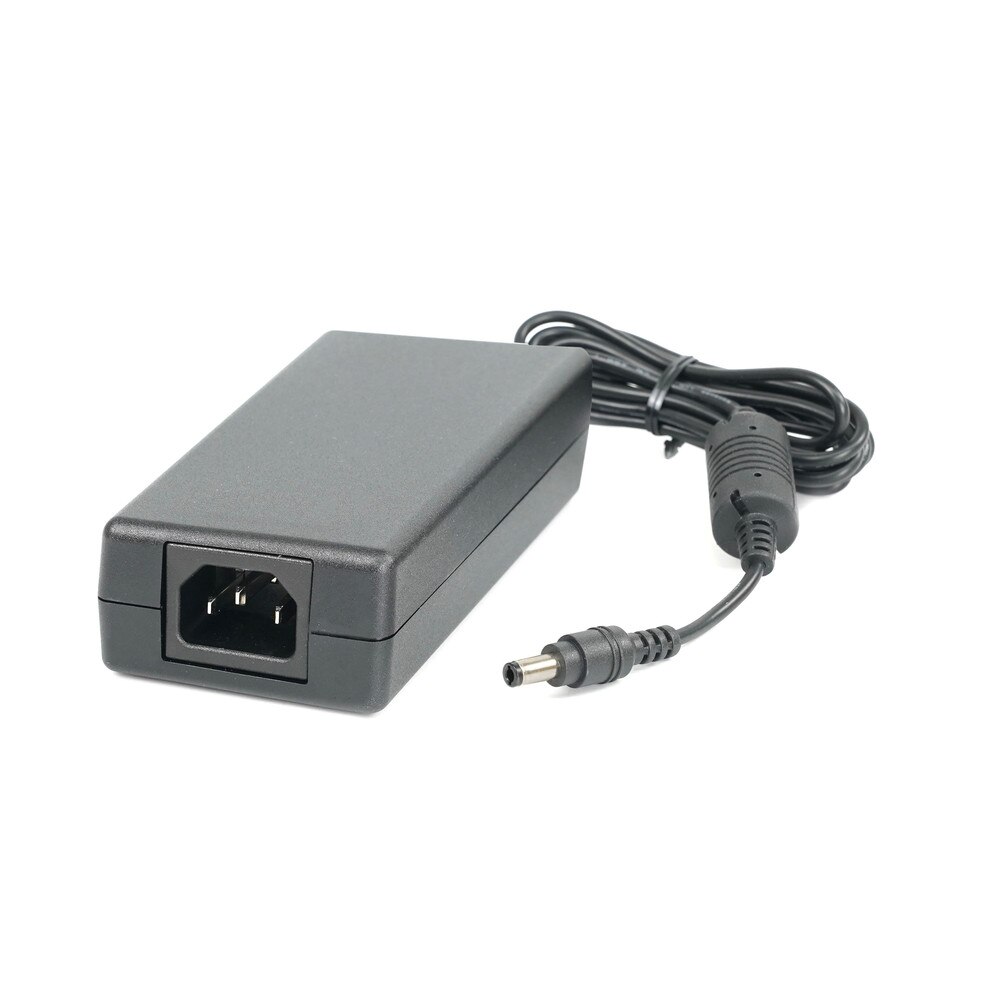

Power Device External power adapter
Installed Qty 1
Max Supported Qty 1
Power Provided 100 Watt
Service & Support Limited warranty - advance hardware replacement - lifetime - response time: next day
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 5 - 95% (non-condensing)

User Guides

Cisco Meraki MX68 Cloud Managed Router Security Appliance (MX68-HW) Data Sheet

Frequently Asked Questions

Cisco Meraki MX68 Cloud Managed Router Security Appliance (MX68-HW)
Frequently Asked Questions (FAQ's)



What is the primary function of the Cisco Meraki MX68?
  • The MX68 is a cloud-managed security appliance designed for network security, SD-WAN, and routing for small to medium-sized businesses.
    • How many WAN ports does the MX68 have?
  • The MX68 has 2 WAN ports, allowing for link redundancy and load balancing.
    • How many LAN ports are available on the MX68?
  • The appliance features 10 LAN ports, of which 2 are Power over Ethernet (PoE) enabled.
    • Does the MX68 support wireless connectivity?
  • No, the MX68 is a wired-only device. Wireless capabilities would require a separate Meraki access point.
    • What PoE standards are supported by the MX68?
  • The PoE ports support 802.3af and 802.3at standards.
    • Can the MX68 act as a DHCP server?
  • Yes, the MX68 can function as a DHCP server to allocate IP addresses on your network.
    • What is the maximum throughput of the Cisco Meraki MX68?
  • The MX68 has a firewall throughput of 450 Mbps.
    • Does the MX68 include built-in content filtering?
  • Yes, the MX68 includes content filtering capabilities that can be managed through the Meraki dashboard.
    • Is the MX68 suitable for SD-WAN deployments?
  • Yes, the MX68 supports SD-WAN functionality, including traffic shaping and VPN failover.
    • What security features does the MX68 offer?
  • The MX68 provides firewall protection, advanced malware detection (AMP), intrusion detection and prevention (IDS/IPS), and web filtering.
    • How is the MX68 managed?
  • The MX68 is managed entirely through the Cisco Meraki cloud dashboard, providing centralized management from anywhere.
    • What is the recommended number of users for the MX68?
  • The MX68 is designed for up to 50 users in a typical environment.
    • Does the MX68 support VPN connections?
  • Yes, the MX68 supports site-to-site VPN and client VPN configurations.
    • Is there an additional license required to use the MX68?
  • Yes, the MX68 requires a Meraki license, available in Enterprise or Advanced Security options.
    • What are the dimensions of the Cisco Meraki MX68?
  • The dimensions are 9.4 x 5.9 x 1.3 inches (240 x 150 x 32 mm).
    • Does the MX68 have redundancy options?
  • Yes, the dual WAN ports support link redundancy, and you can configure failover mechanisms.
    • Can I connect third-party devices to the MX68?
  • Yes, the MX68 can integrate with non-Meraki devices for basic networking, but advanced features are optimized for Meraki components.
    • What is the power consumption of the MX68?
  • The MX68 has a maximum power consumption of 50W when using the PoE ports.
    • Can the MX68 be rack-mounted?
  • No, the MX68 is a desktop device and does not have a rack-mountable form factor.
    • Does the MX68 support IPv6?
  • The MX68 supports IPv6 passthrough, but full IPv6 functionality may depend on the Meraki roadmap.
