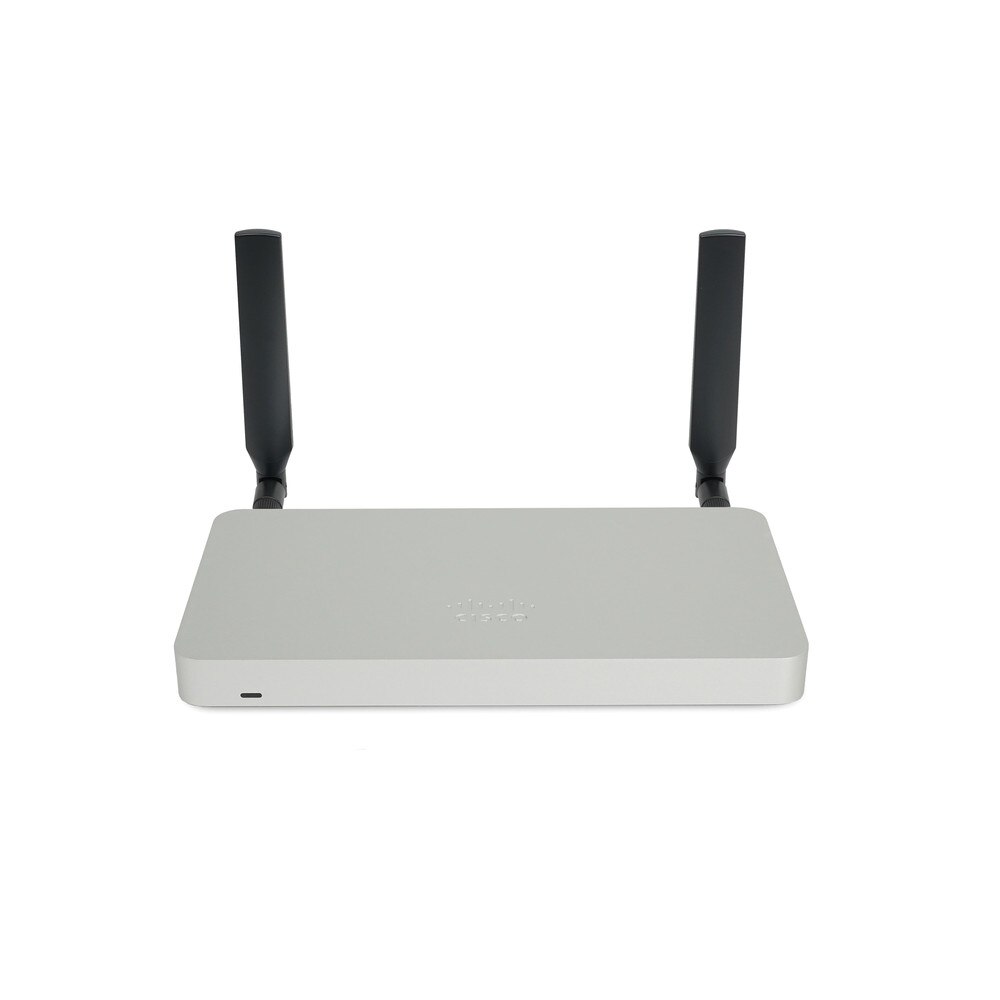

Cisco Meraki MX67C Cloud Managed Security Appliance (MX67C-HW-NA) (Unclaimed) | New
SKU: MX67C-HW-NA-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Cisco Meraki MX67C Cloud Managed Security Appliance (MX67C-HW-NA) | New
The Cisco Meraki MX67C Cloud Managed Security Appliance (MX67C-HW-NA) includes a CAT 6 LTE modem for always-on connectivity. This device, which is ideal for small retail locations or clinics, can typically accommodate up to 50 users and has a stateful firewall throughput of up to 450 Mbps. It supports up to 50 simultaneous VPN sessions for completely secure data transfer and has five Gigabit Ethernet connections for connecting a range of devices.
Installation and remote management are straightforward because the MX is completely cloud managed. The MX provides a full set of security and network services, including threat management and SD-WAN features, removing the need for several appliances. Without having to travel, your company can set up its retail locations or clinics in a central area. Template-based multi-network management enables you to quickly set up profiles and settings across thousands of devices while ensuring easy scaling. Monitoring and reporting tools ensure that you receive email warnings about utilization data, and detailed changelogs make tracing changes quite fast.
Secure your network quickly with an intelligent WAN that incorporates policy-based routing and dynamic VPN path selection, as well as a choice of application-layer protocols and systems that ensure only authorized visitors gain access. For optimal protection, threat management solutions include content filtering, intrusion prevention via a PCI-compliant IPS sensor, identity-based policies, and Cisco Advanced Malware Protection. This Cisco Meraki cloud-managed security & SD-WAN appliance can process all information passing through it quickly thanks to an improved CPU and plenty of RAM.
Key Features of Cisco Meraki MX67C Cloud Managed Security Appliance
SD-branch cloud platform
Unified management for security, SD-WAN, Wi-Fi, switching, MDM, and IoT
Centralized management via web-based dashboard or API
True zero-touch provisioning
Smartphone-like firmware updates
Unified threat management
Next-generation layer 7 firewall and content filtering
Advanced Malware Protection (AMP) with Cisco Threat Grid
Intrusion detection and prevention (IDS/IPS)
Visibility of security events through an elegant security center GUI
Cloud security
Built-in SD-WAN connectivity to Cisco Umbrella global data centers
Application prioritization
SSL decryption/inspection, data loss prevention (DLP), CASB
Remote browser isolation, granular app control, SaaS tenant restrictions
Connectivity
Layer 7 application optimization over self-healing Auto VPN (SD-WAN fabric)
Extension of SD-WAN fabric to hybrid clouds and Cisco Umbrella
Support for native IPsec or Cisco AnyConnect remote client VPN
Instant wired failover with added 3G/4G failover via USB modem
Advanced analytics with ML
Automatically applied Smart Thresholds to identify true app degradation
At-a-glance performance of apps across the LAN, WAN, and app server
Instant root-cause analysis of degradation with intelligent recommendations
Status of multi-site uplinks in one view, including cellular
Specifications
Specification for Cisco Meraki MX67C Cloud Managed Security Appliance (MX67C-HW-NA) | New
| Manufacturer | Cisco |
| Manufacturer Part Number | MX67C-HW-NA |
| Product Name | Cisco Meraki MX67C Cloud Managed Security Appliance |
| Product Type | Security and Firewall |
Device Type | Security appliance |
Built-in Devices | Modem |
Width | 9.4 in |
Depth | 6.9 in |
Height | 1.1 in |
Weight | 29.98 oz |
Localization | North America |
Form Factor | Desktop |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Network / Transport Protocol | DHCP |
Routing Protocol | Static IP routing |
Cloud-Managed | Yes |
Performance | Stateful throughput: 450 Mbps ¦ VPN throughput: 200 Mbps ¦ Secure traffic throughput: 300 Mbps |
Capacity | Concurrent users: 50 ¦ VPN tunnels: 50 |
Features | Firewall protection, DHCP support, NAT support, VLAN support, content filtering, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), firmware upgradable, wall mountable, IPSec Virtual Private Network (VPN), anti-malware protection, 3G/4G USB Dongle Support, Link Aggregation, VPN client, IP Security (IPSec) support, DMZ support |
Cellular Protocol | LTE |
Expansion Slots | 1 SIM card |

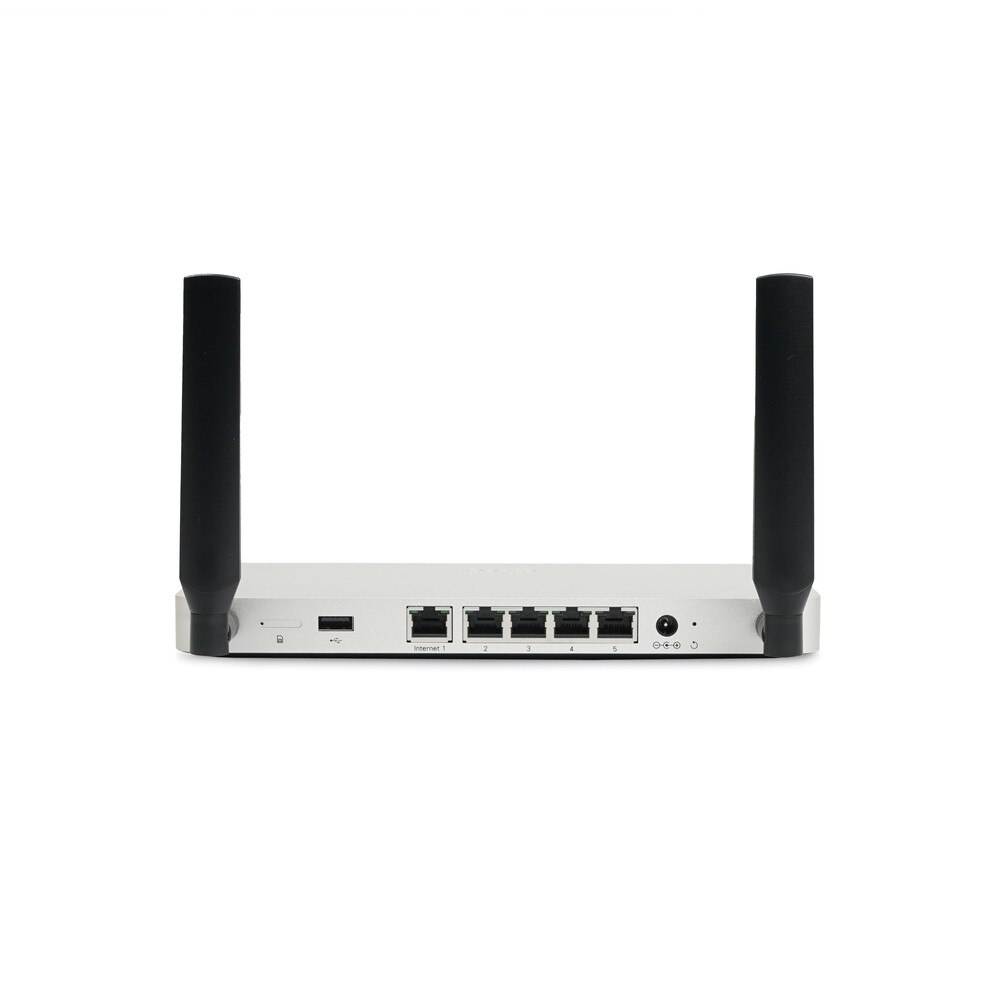

Interfaces | 4 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T - RJ-45 (WAN) ¦ 1 x USB 2.0 - Type A ¦ 1 x modem |
Power Device | External power adapter |
Power Provided | 30 Watt |
Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next day |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 113 °F |
Humidity Range Operating | 5 - 95% (non-condensing) |
User Guides
Frequently Asked Questions
Cisco Meraki MX67C Cloud Managed Security Appliance (MX67C-HW-NA)
Frequently Asked Questions (FAQ's)
What is the Cisco Meraki MX67C? The Cisco Meraki MX67C is a cloud-managed security appliance designed for small to medium-sized businesses, providing network security, content filtering, and SD-WAN capabilities.
What are the key features of the MX67C? It offers enterprise-grade security, auto VPN, traffic shaping, content filtering, LTE failover, and cloud-based centralized management through the Meraki Dashboard.
Does the MX67C support cellular connectivity? Yes, the MX67C includes a built-in LTE modem for cellular failover, ensuring uninterrupted internet access in case of primary WAN failure.
What internet speeds can the MX67C handle? The MX67C supports up to 450 Mbps of maximum throughput, ideal for branch office deployments.
How many devices can the MX67C support? It is recommended for up to 50 concurrent users, depending on network traffic and usage patterns.
What types of VPN does the MX67C support? The MX67C supports Auto VPN, client VPN, and site-to-site VPN, making secure remote access simple and scalable.
Is the MX67C easy to deploy? Yes, it features zero-touch provisioning through the Cisco Meraki Dashboard, allowing for easy setup and configuration from anywhere.
What ports are available on the MX67C? It includes 4 LAN ports, 2 WAN ports, and an integrated LTE modem port.
Does the MX67C offer traffic management? Yes, it supports traffic shaping, bandwidth management, and QoS for better network performance.
Is the MX67C suitable for remote work setups? Yes, it supports secure remote access through client VPN and Auto VPN, making it ideal for remote workers.
What security features are built into the MX67C? It includes advanced security features such as firewall protection, intrusion detection and prevention, antivirus scanning, and content filtering.
How is the MX67C managed? Management is done through the Cisco Meraki cloud-based dashboard, accessible from any web browser or mobile app.
Does the MX67C support dual WAN failover? Yes, the MX67C supports dual WAN connections and automatic failover for continuous network availability.
Can the MX67C be used in a multi-site deployment? Yes, it is designed for multi-site deployments with centralized management and scalable VPN configurations.
Is there a mobile app for managing the MX67C? Yes, the Meraki mobile app allows for remote management, monitoring, and troubleshooting.
What type of firewall does the MX67C use? It uses a stateful Layer 7 firewall with application visibility and control.
Does the MX67C support content filtering? Yes, it supports web content filtering and safe search enforcement for improved security.
Is the MX67C compatible with other Meraki devices? Yes, it integrates seamlessly with other Meraki devices like access points, switches, and security cameras.
What reporting features does the MX67C offer? It provides detailed network analytics, traffic summaries, and security alerts through the Meraki Dashboard.
What power options are available for the MX67C? The device supports AC power and includes an external power adapter in the package.
