Cisco Meraki MS150‑48FP‑4X Cloud‑Managed 48‑Port Gigabit PoE+ Switch | New

Cisco Meraki MS150‑48FP‑4X Cloud‑Managed 48‑Port Gigabit PoE+ Switch | New

SKU: MS150-48FP-4X-N
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$2,699.99 $2,699.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

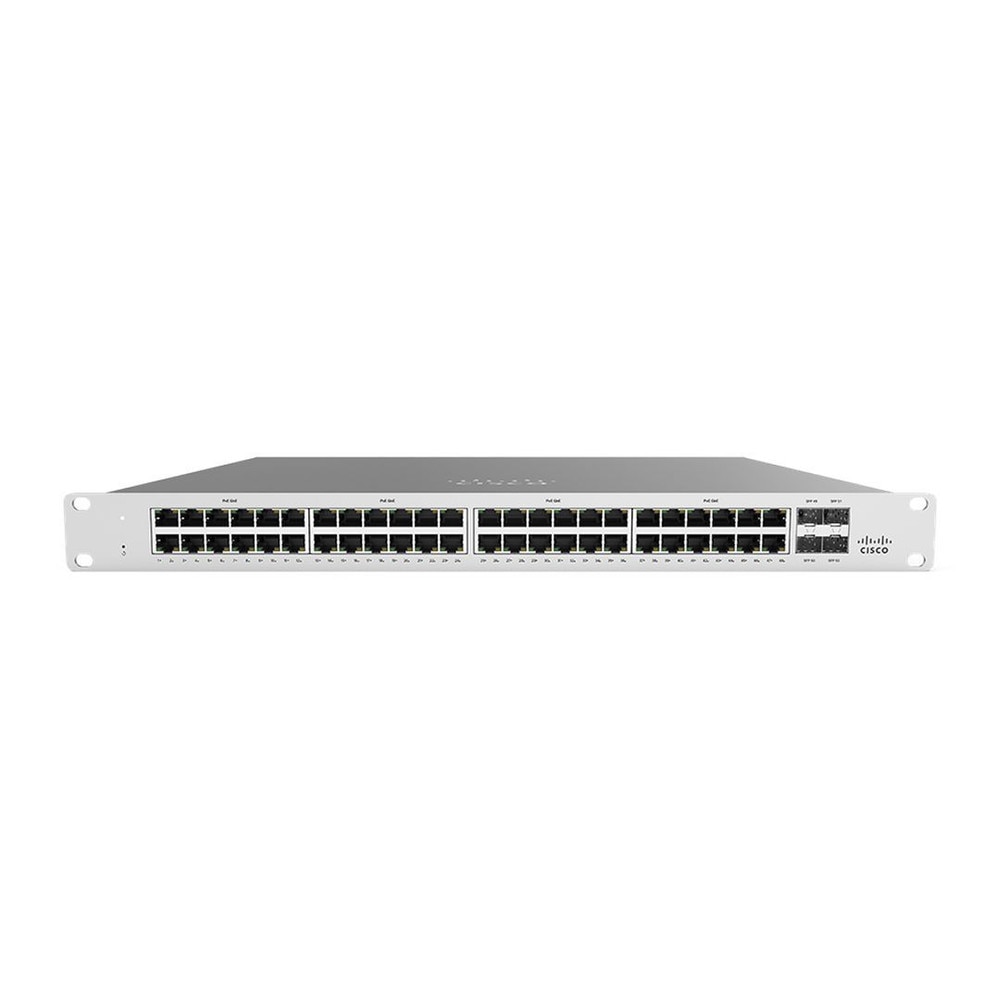

Overview of Cisco Meraki MS150‑48FP‑4X Cloud‑Managed 48‑Port Gigabit PoE+ Switch | New

The Cisco Meraki MS150‑48FP‑4X Cloud‑Managed 48‑Port Gigabit PoE+ Switch is a high-capacity, enterprise-grade solution with outstanding usability and sophisticated network automation. Designed for Wi-Fi 6/7, IoT and high-density contemporary deployments, this switch has four 10G SFP+ fiber uplinks for seamless high-speed expansion and 48 PoE+ (802.3bt) gigabit ports that provide a significant 740W power budget. With the help of the straightforward yet effective Meraki cloud dashboard, you can take advantage of zero-touch provisioning, stable Layer 2 access switching, static routing, two 80Gbps stacking ports and adaptive security controls for real plug-and-play scalability and resilience.


Key Features of Cisco Meraki MS150‑48FP‑4X Cloud‑Managed 48‑Port Gigabit PoE+ Switch


• 48 x 10/100/1000 PoE+ ports distribute up to 30W per port, totaling 740W for high-density APs, cameras and VoIP devices.

• 4 x 10G SFP+ uplinks with high-capacity fiber ports remove bottlenecks and enable stacked deployments up to eight switches.

• Cloud-managed Meraki Dashboard that instantly configure, monitor, troubleshoot and schedule remote firmware updates and automation from anywhere.

• 176Gbps switching & 80Gbps stacking bandwidth with non-blocking performance for uninterrupted voice, video and data traffic, even at scale.

• Layer 2/3 features with VLAN, static routing, traffic shaping, broadcast storm control and granular segmentation for performance and compliance.

• Robust security with 802.1X auth, ACLs, Dynamic ARP Inspection, DHCP snooping, Adaptive Policy and per-port analytics.

• Perpetual PoE and adaptive power that devices stay powered even during switch reboots/updates, minimizing downtime for critical endpoints.

• Enterprise reliability with MTBF over 1 million hours, integrated 1U rackmount and comprehensive SNMP/Syslog monitoring.

• Energy efficient with Energy Star-rated, with efficient power use and cooling for lower TCO and sustainable IT.


Benefits of Cisco Meraki MS150‑48FP‑4X Cloud‑Managed 48‑Port Gigabit PoE+ Switch


🗹 Scalable network backbone that easily deploy, upgrade and scale with dual 80Gbps stacking, up to eight switches—perfect for rapid growth.

🗹 Centralized device power with 48 PoE+ ports support campus-wide APs, VoIP, cameras and IoT devices, simplifying wiring and remote device management.

🗹 Always-on critical services with perpetual PoE and hot-swappable stacking keep essential equipment live during upgrades or failures.

🗹 Effortless cloud management with Meraki Dashboard’s zero-touch provisioning, security automation and performance analytics reduce IT workload and speed up response.

🗹 Lower operating costs with efficient energy use, automated firmware and cloud operations cut maintenance, bills and downtime in every deployment.

🗹 Enterprise-class secure networking with dynamic segmentation, access control and real-time monitoring safeguard users, devices and sensitive data at every port.

Specifications

Specifications for Cisco Meraki MS150‑48FP‑4X Cloud‑Managed 48‑Port Gigabit PoE+ Switch | New

ManufacturerCisco
Manufacturer Part NumberMS150‑48FP‑4X
Product NameCisco Meraki MS150‑48FP‑4X Cloud‑Managed 48‑Port Gigabit PoE+ Switch
Product TypeSwitch
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 (PoE+) + 4 x 10Gb Ethernet SFP+
Power Over Ethernet (PoE)
PoE+
PoE Budget
740 W
Performance
Stacking bandwidth: 80 Gbps ¦ Switching capacity: 176 Gbps
Remote Management Protocol
SNMP, Syslog
Features
Static routing, auto firmware update, ACL support, VLAN Tagging, Broadcast Storm Control, adaptive policy, DAI, DHCP snooping, cloud managed
Compliant Standards
IEEE 802.1Q, IEEE 802.1x, IEEE 802.3bt
Status Indicators
Power, link/activity, status
Interfaces
48 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 10GBase-X SFP+ uplink ¦ 1 x management ¦ 2 x network stack device
Power Device
Internal power supply
Voltage Required
AC 100-240 V
Rack Mounting Kit
Included
MTBF
1,029,618 hours
Width
19 in
Depth
13.4 in
Height
1.7 in
Weight
11.9 lbs
Min Operating Temperature
32 °F
Max Operating Temperature
113 °F
Humidity Range Operating
5 - 95%
Min Storage Temperature
-4 °F
Max Storage Temperature
158 °F
Designed For
P/N: MA-CBL-100G-1M, MA-CBL-100G-3M, MA-CBL-100G-50CM, MA-SFP-10GB-ER, MA-SFP-10GB-LR, MA-SFP-10GB-SR, MA-SFP-10GB-ZR, MA-SFP-1GB-LX10, MA-SFP-1GB-SX, MA-SFP-1GB-TX

User Guides

Cisco Meraki MS150‑48FP‑4X Cloud‑Managed 48‑Port Gigabit PoE+ Switch Data Sheet

Frequently Asked Questions

Cisco Meraki MS150‑48FP‑4X Cloud‑Managed 48‑Port Gigabit PoE+ Switch
Frequently Asked Questions (FAQ's)



What is the Cisco Meraki MS150-48FP-4X switch?
  • The Cisco Meraki MS150-48FP-4X is a 48-port Gigabit Ethernet switch with PoE+ capabilities, designed for scalable, high-performance network deployments.
    • Does the Cisco Meraki MS150-48FP-4X support PoE+?
  • Yes, it provides PoE+ (802.3at) power across all 48 ports, ideal for powering access points, cameras, and VoIP phones.
    • How many uplink ports are available on the MS150-48FP-4X?
  • The MS150-48FP-4X includes four 10G SFP+ uplink ports for high-speed fiber connectivity.
    • Is the Cisco Meraki MS150-48FP-4X suitable for enterprise use?
  • Absolutely, it is engineered for medium to large-scale enterprise environments requiring robust performance and centralized management.
    • What is the maximum PoE power budget for the MS150-48FP-4X?
  • The switch supports a high PoE budget, delivering up to 740W of total PoE power for connected devices.
    • Does the MS150-48FP-4X support Layer 3 routing?
  • Yes, it includes Layer 3 routing features such as static routing, OSPF routing, and DHCP server capabilities.
    • How is the Cisco Meraki MS150-48FP-4X managed?
  • The switch is managed through the Meraki cloud platform, offering remote monitoring, configuration, and troubleshooting.
    • Can the MS150-48FP-4X be integrated with other Cisco Meraki products?
  • Yes, it integrates seamlessly with other Meraki solutions like wireless access points, security appliances, and endpoint management tools.
    • What types of security features does the MS150-48FP-4X offer?
  • It supports advanced security features such as port security, 802.1X authentication, and MAC whitelisting.
    • Does the MS150-48FP-4X support Zero-Touch Provisioning?
  • Yes, it supports Zero-Touch Provisioning, allowing quick and easy deployment without manual configuration.
    • What kind of mounting options does the Cisco Meraki MS150-48FP-4X offer?
  • The switch is rack-mountable, designed to fit in standard 19-inch server racks.
    • Is the MS150-48FP-4X energy efficient?
  • Yes, it includes energy-saving features like intelligent power management and low-power idle modes.
    • What is the switching capacity of the MS150-48FP-4X?
  • It offers a high switching capacity, capable of handling large volumes of traffic without bottlenecks.
    • Can the Cisco Meraki MS150-48FP-4X handle VoIP traffic efficiently?
  • Yes, its QoS features prioritize voice traffic, ensuring crystal-clear VoIP communications.
    • How is firmware updated on the MS150-48FP-4X?
  • Firmware updates are automatically delivered and managed via the Cisco Meraki cloud, ensuring security and feature updates without downtime.
    • What kind of monitoring tools come with the MS150-48FP-4X?
  • Real-time metrics, network-wide visibility, and detailed event logging are accessible through the Meraki dashboard.
    • Does the Cisco Meraki MS150-48FP-4X support VLANs?
  • Yes, it fully supports VLAN tagging, VLAN routing, and dynamic VLAN assignment.
    • What redundancy features are available with the MS150-48FP-4X?
  • It supports features like spanning-tree protocol (STP), redundant power options, and link aggregation for maximum uptime.
    • Is the MS150-48FP-4X compliant with industry standards?
  • Yes, it complies with IEEE standards for Ethernet switching, PoE, and network security.
    • Can the Cisco Meraki MS150-48FP-4X operate in harsh environments?
  • While primarily designed for indoor use, it offers wide operating temperature ranges suitable for demanding indoor conditions.
