Cisco Meraki MS150‑24MP‑4X Cloud‑Managed 24‑Port mGig PoE+ Switch | New

Cisco Meraki MS150‑24MP‑4X Cloud‑Managed 24‑Port mGig PoE+ Switch | New

SKU: MS150-24MP-4X-N
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

All orders will ship on January 5, 2026

$2,799.99 $2,799.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco Meraki MS150‑24MP‑4X Cloud‑Managed 24‑Port mGig PoE+ Switch | New

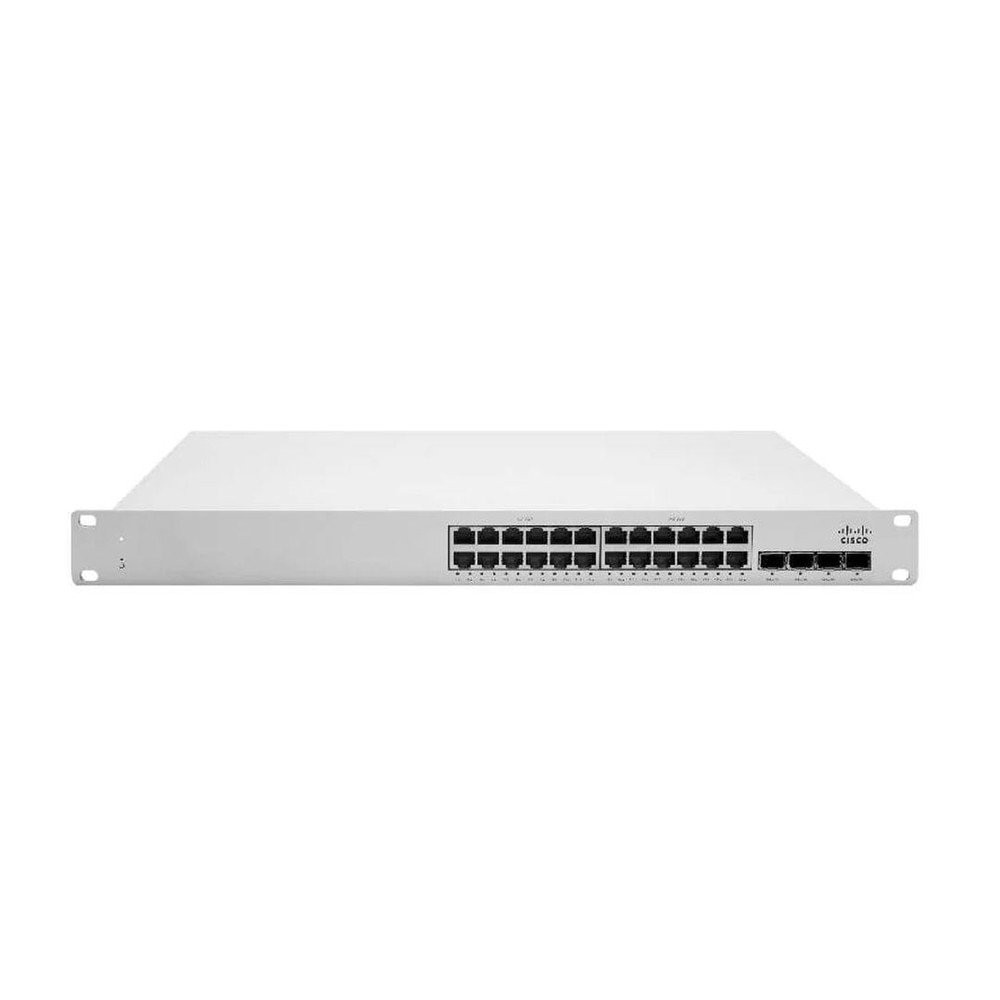

The Cisco Meraki MS150‑24MP‑4X Cloud‑Managed 24‑Port mGig PoE+ Switch was designed for enterprise, branch, and campus deployments that require centralized control and outstanding performance. With 24 1G PoE+ RJ45 ports and 4 10G SFP+ uplinks, this cutting-edge stackable switch can support APs, VoIP, cameras, and smart IoT devices with a total PoE budget of 370W. Use the Meraki cloud dashboard to manage Layer 2 access switching, static routing, and 128Gbps of switching capacity for secure, always-on automatic firmware upgrades, zero-touch provisioning, and diagnostics. For enterprises prepared for the future, two dedicated 80Gb stacking ports guarantee immediate scale-out and continuous dependability.


Key Features of Cisco Meraki MS150‑24MP‑4X Cloud‑Managed 24‑Port mGig PoE+ Switch


• 24 x 10/100/1000 PoE+ ports delivers up to 30W per port, totaling a 370W PoE+ power budget for dense device environments.

• 4 x 10G SFP+ uplinks with high-speed fiber expansion for WAN, server or stacking—eliminates bottlenecks in demanding networks.

• Cloud-managed Meraki Dashboard enables instant remote configuration, diagnostics, SNMP/syslog integration, automatic firmware and adaptive policy automation.

• 128Gbps switching capacity & 80Gbps stacking with true wire-speed throughput and seamless chain expansion for up to 8 switches.

• Layer 2 switching with static routing with efficient VLAN segmentation, traffic management and flexible design to fit campus or multi-site rollouts.

• Enterprise security with 802.1X authentication, ACLs, DHCP snooping, Dynamic ARP Inspection, Broadcast Storm Control, IPv4/6 support.

• Perpetual PoE & adaptive policy maintains device power during reboots/upgrades, enforces security and compliance seamlessly.

• 1U rack-mountable design with compact, robust for streamlined server rooms or data closets.

• Auto firmware & logging with security patches and performance optimizations install automatically, reducing IT workload and risk.

• Energy-efficient operation with green power consumption for sustainable infrastructure.


Benefits of Cisco Meraki MS150‑24MP‑4X Cloud‑Managed 24‑Port mGig PoE+ Switch


🗹 Centralize power and simplify installs what one switch powers dense deployments of wireless, cameras and phones, reducing cabling and outlet requirements.

🗹 Seamless network scalability that add uplink capacity and instantly stack up to eight units for zero-disruption expansion.

🗹 Effortless remote management that minimize deployment time and troubleshooting with Meraki’s cloud dashboard and remote diagnostics.

🗹 Maximum uptime/resilience with perpetual PoE, stacking and robust switching keep business-critical devices and services running 24/7.

🗹 Boost security and compliance with advanced policy, authentication and network segmentation protect users, data and assets anywhere.

🗹 Lower total cost of ownership with automated firmware, energy savings and cloud tools streamline IT, reduce maintenance and support green initiatives.

Specifications

Specifications for Cisco Meraki MS150‑24MP‑4X Cloud‑Managed 24‑Port mGig PoE+ Switch | New

ManufacturerCisco
Manufacturer Part NumberMS150‑24MP‑4X
Product NameCisco Meraki MS150‑24MP‑4X Cloud‑Managed 24‑Port mGig PoE+ Switch
Product TypeSwitch
Enclosure Type
Rack-mountable 1U
Subtype
5 Gigabit Ethernet / Gigabit Ethernet
Ports
16 x 10/100/1000 + 8 x 5GBase-T + 4 x 10Gb Ethernet SFP+
Power Over Ethernet (PoE)
PoE++
PoE Budget
370 W
Performance
Stacking bandwidth: 80 Gbps ¦ Switching capacity: 192 Gbps
Remote Management Protocol
SNMP, Syslog
Features
Static routing, auto firmware update, ACL support, VLAN Tagging, Broadcast Storm Control, adaptive policy, DAI, DHCP snooping, cloud managed
Compliant Standards
IEEE 802.3bt, IEEE 802.1Q, IEEE 802.1x
Status Indicators
Power, link/activity, status
Interfaces
16 x 1000Base-T RJ-45 PoE+ ¦ 8 x 5GBase-T RJ-45 PoE++ - 60 W ¦ 4 x 10GBase-X SFP+ uplink ¦ 1 x management ¦ 2 x network stack device
Power Device
Internal power supply
Voltage Required
AC 100-240 V
Rack Mounting Kit
Included
MTBF
1,420,309 hours
Width
19 in
Depth
9.8 in
Height
1.7 in
Weight
12.13 lbs
Min Operating Temperature
32 °F
Max Operating Temperature
113 °F
Humidity Range Operating
5 - 95%
Min Storage Temperature
-4 °F
Max Storage Temperature
158 °F
Designed For
P/N: MA-CBL-100G-1M, MA-CBL-100G-3M, MA-CBL-100G-50CM, MA-SFP-10GB-ER, MA-SFP-10GB-LR, MA-SFP-10GB-SR, MA-SFP-10GB-ZR, MA-SFP-1GB-LX10, MA-SFP-1GB-SX, MA-SFP-1GB-TX

User Guides

Cisco Meraki MS150‑24MP‑4X Cloud‑Managed 24‑Port mGig PoE+ Switch Data Sheet

Frequently Asked Questions

Cisco Meraki MS150‑24MP‑4X Cloud‑Managed 24‑Port mGig PoE+ Switch
Frequently Asked Questions (FAQ's)



What is the Cisco Meraki MS150-24MP-4X used for?
  • The Cisco Meraki MS150-24MP-4X is designed to provide high-speed Gigabit connectivity with Power over Ethernet Plus (PoE+) support, ideal for powering devices like IP cameras, phones, and wireless access points in enterprise networks.
    • Does the Cisco Meraki MS150-24MP-4X support PoE+ on all ports?
  • Yes, the MS150-24MP-4X offers PoE+ across all 24 ports, delivering up to 30W per port to power connected devices.
    • How many uplink ports does the MS150-24MP-4X have?
  • The MS150-24MP-4X includes four 10G SFP+ uplink ports for high-speed fiber connections to core or distribution switches.
    • What is the maximum PoE power budget of the Cisco Meraki MS150-24MP-4X?
  • The Cisco Meraki MS150-24MP-4X has a PoE power budget of up to 740W, allowing multiple high-powered devices to be connected simultaneously.
    • Is the Cisco Meraki MS150-24MP-4X stackable?
  • No, the MS150-24MP-4X is a standalone switch but offers robust uplink options for scalable network expansion.
    • What management platform does the MS150-24MP-4X use?
  • The MS150-24MP-4X is managed through the Meraki Dashboard, a cloud-based platform that provides centralized visibility and control.
    • Can the MS150-24MP-4X be used in a small business network?
  • Yes, the MS150-24MP-4X is ideal for small to medium-sized businesses needing reliable, high-capacity network switching with simple management.
    • What type of mounting options are available for the Cisco Meraki MS150-24MP-4X?
  • The MS150-24MP-4X is designed for rack-mount installation, fitting easily into standard server racks for organized deployment.
    • Does the MS150-24MP-4X support Layer 3 routing?
  • The Cisco Meraki MS150-24MP-4X supports basic Layer 3 routing features such as static routing and DHCP server functionality.
    • What are the dimensions of the Cisco Meraki MS150-24MP-4X switch?
  • The switch measures approximately 1.73 x 17.32 x 15.75 inches (44 x 440 x 400 mm), allowing for compact, efficient installation.
    • What types of devices can the MS150-24MP-4X power?
  • The MS150-24MP-4X can power a range of PoE-enabled devices such as wireless access points, IP cameras, IP phones, and other networked peripherals.
    • Is the MS150-24MP-4X energy efficient?
  • Yes, the MS150-24MP-4X features energy-efficient technologies that help reduce power consumption without sacrificing performance.
    • Does the Cisco Meraki MS150-24MP-4X include security features?
  • Yes, the MS150-24MP-4X includes security features like 802.1X authentication, DHCP snooping, and dynamic ARP inspection to help protect your network.
    • Can the MS150-24MP-4X be remotely configured?
  • Yes, using the Meraki Dashboard, you can remotely configure, monitor, and troubleshoot the MS150-24MP-4X from anywhere with internet access.
    • How does the MS150-24MP-4X ensure network reliability?
  • The MS150-24MP-4X offers features like link aggregation, rapid spanning tree protocol (RSTP), and redundant uplink paths for enhanced network reliability.
    • What is the switching capacity of the Cisco Meraki MS150-24MP-4X?
  • The MS150-24MP-4X provides a switching capacity of up to 176 Gbps, ensuring fast data transfer and reduced network congestion.
    • Does the MS150-24MP-4X support VLANs?
  • Yes, the Cisco Meraki MS150-24MP-4X fully supports VLAN segmentation to organize and secure your network traffic efficiently.
    • Is there a fan in the MS150-24MP-4X for cooling?
  • Yes, the MS150-24MP-4X is equipped with internal fans designed for optimal cooling and quiet operation.
    • What software updates are available for the MS150-24MP-4X?
  • Cisco Meraki offers automatic cloud-based firmware updates to ensure that the MS150-24MP-4X always has the latest features and security patches.
    • Can the MS150-24MP-4X prioritize network traffic?
  • Yes, the switch supports quality of service (QoS) settings to prioritize critical traffic like voice and video over less important data streams.
