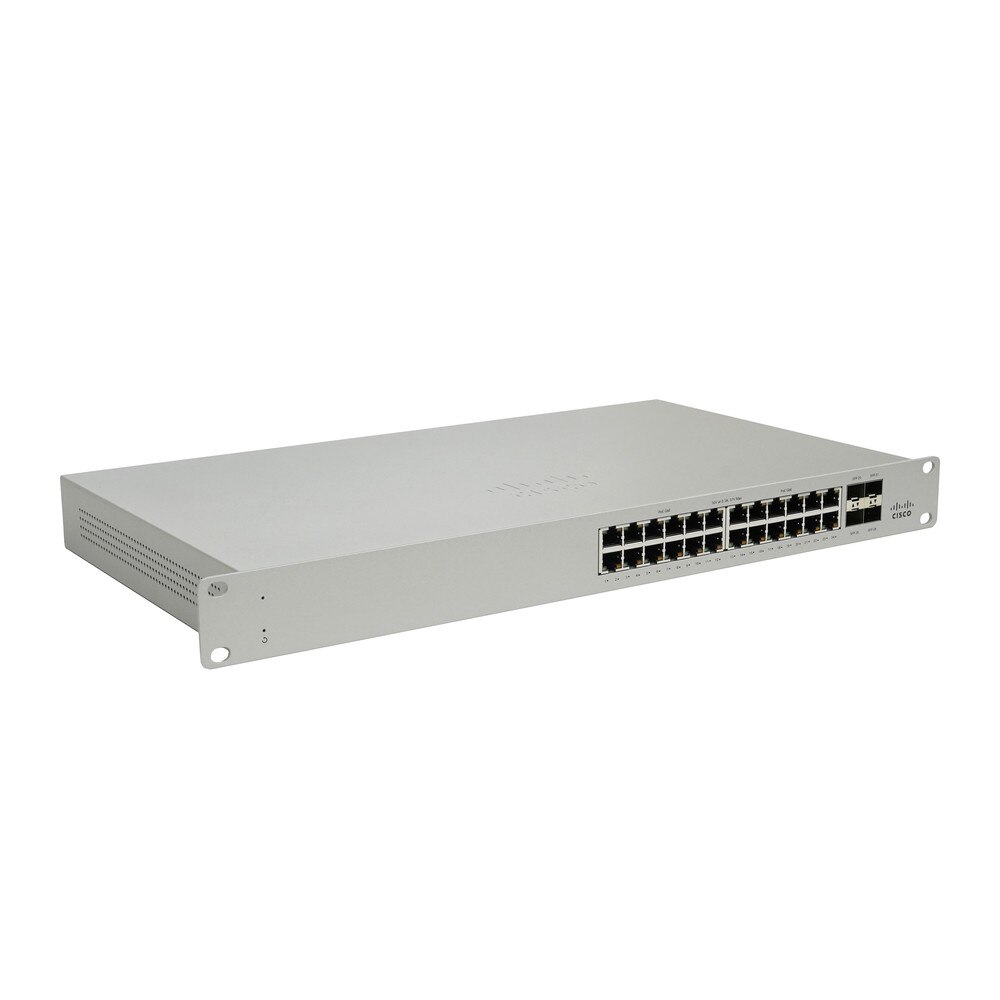

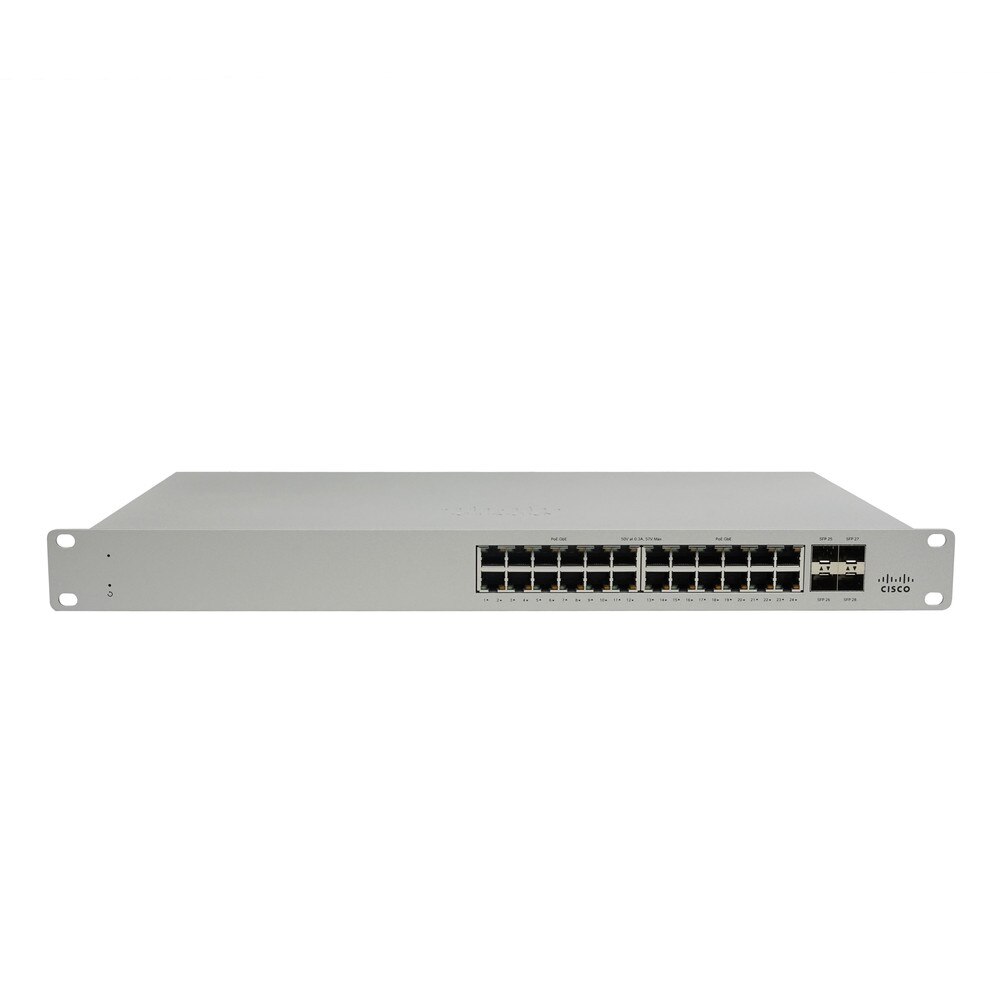

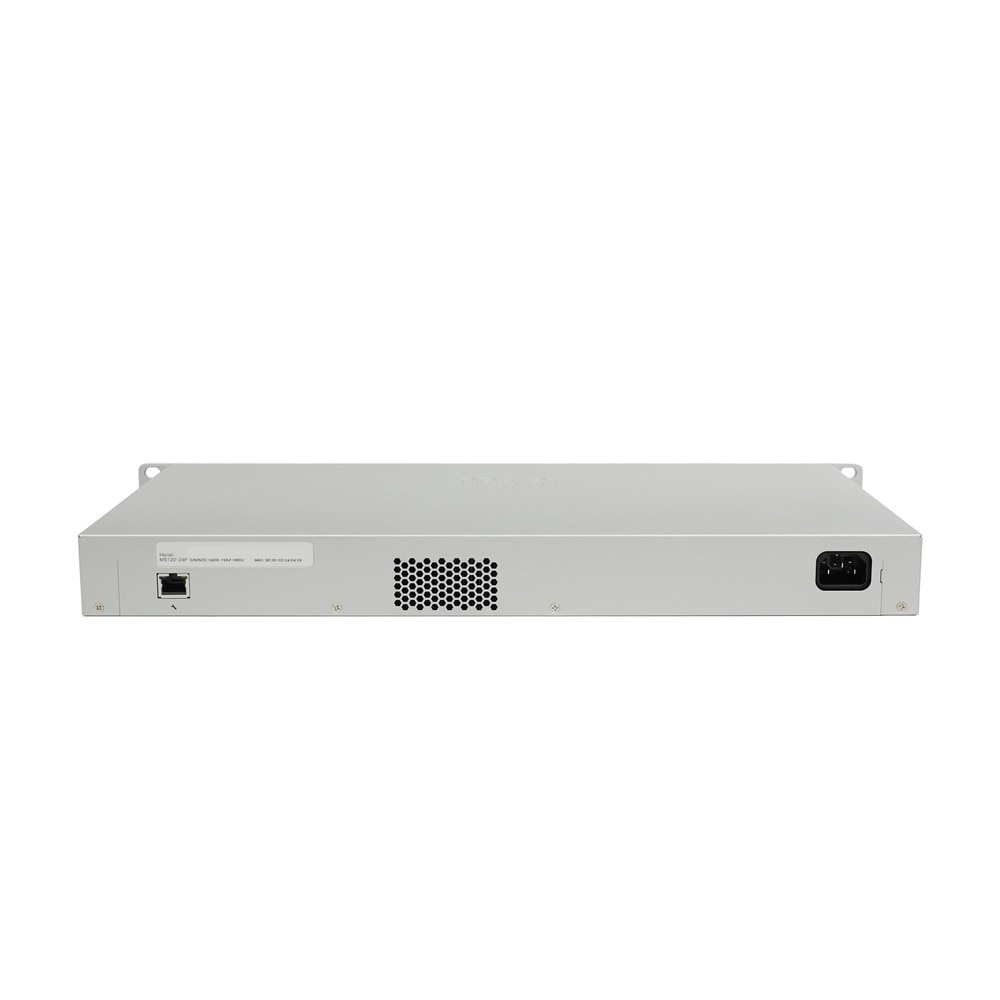

Cisco Meraki MS120-24P 24-Port Access Switch (MS120-24P-HW) (Unclaimed) | New
SKU: MS120-24P-HW-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Cisco Meraki MS120-24P 24-Port Access Switch (MS120-24P-HW) | New
The Cisco Meraki MS120-24P 24-Port Access Switch (MS120-24P-HW) is a robust cloud-managed switch built for small and medium-sized organizations. This switch's broad feature set and user-friendly interface make network management easier while also providing reliable performance and flexibility. The MS120-24P has 24 Gigabit Ethernet ports that support Power over Ethernet Plus (PoE+), resulting in a total power budget of 370W. This feature enables you to power devices such as IP cameras, wireless access points, and VoIP phones directly via Ethernet cable, eliminating the need for extra power sources and simplifying installation. With four SFP uplink connections, the switch offers numerous possibilities for high-speed network expansion. With a non-blocking switching capacity of 56 Gbps and a forwarding rate of 41.67 million packets per second (mpps), the MS120-24P provides uninterrupted data transmission across all connected devices.
One of the Cisco Meraki MS120 series' notable characteristics is its user-friendly cloud administration interface. Administrators may quickly setup and manage the switch using the Meraki Dashboard, which supports zero-touch provisioning, automatic firmware updates, and thorough use data. This integrated control streamlines network operations and improves visibility across all devices. Security is a primary priority, with features like 802.1X authentication, DHCP snooping, and complex Quality of Service (QoS) settings that prioritize phone and video traffic. The fanless design provides quiet operation, making it ideal for use in noise-sensitive situations. The Cisco Meraki MS120-24P is a fantastic alternative for enterprises seeking to improve their networking capabilities with a dependable, easy-to-manage solution that allows for future expansion.
Key Features of Cisco Meraki MS120-24P 24-Port Access Switch
• 24 Gigabit ethernet ports provides reliable connectivity with PoE+ support.
• 370W poE dudget powers connected devices directly through Ethernet cables.
• 4 SFP uplink ports has flexible options for high-speed network expansion.
• 56 Gbps switching capacity ensures efficient data handling even under heavy loads.
• Cloud management features intuitive Meraki Dashboard for easy configuration and monitoring.
• Advanced security features that supports 802.1X authentication, DHCP snooping, and QoS.
• Fanless design with quiet operation suitable for office environments.
Specifications
Specification for Cisco Meraki MS120-24P 24-Port Access Switch (MS120-24P-HW) | New
| Manufacturer | Cisco |
| Manufacturer Part Number | MS120-24P-HW |
| Product Name | Cisco Meraki MS120-24P 24-Port Access Switch |
| Product Type | Networking Switch |
Enclosure Type | Desktop, rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 + 4 x Gigabit SFP |
Power Over Ethernet (PoE) | PoE |
PoE Budget | 370 W |
Performance | Switching capacity: 56 Gbps ¦ Forwarding rate: 41.67 Mpps |
Capacity | VLANs supported: 4094 ¦ MAC forwarding entries: 16000 |
Jumbo Frame Support | 9578 bytes |
Remote Management Protocol | SNMP |
Authentication Method | RADIUS |
Features | Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), SMS alert, STP Root Guard, fanless, DHCP client, crossover detection, Single Sign-On (SSO) support, Role-Based Access Control (RBAC), Cisco Discovery Protocol, STP BPDU Guard, Zero-touch provisioning (ZTP), DSCP to CoS Mutation |
Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP) |
Interfaces | 24 x 1000Base-T RJ-45 ¦ 4 x 1000Base-T SFP |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (47 - 63 Hz) |

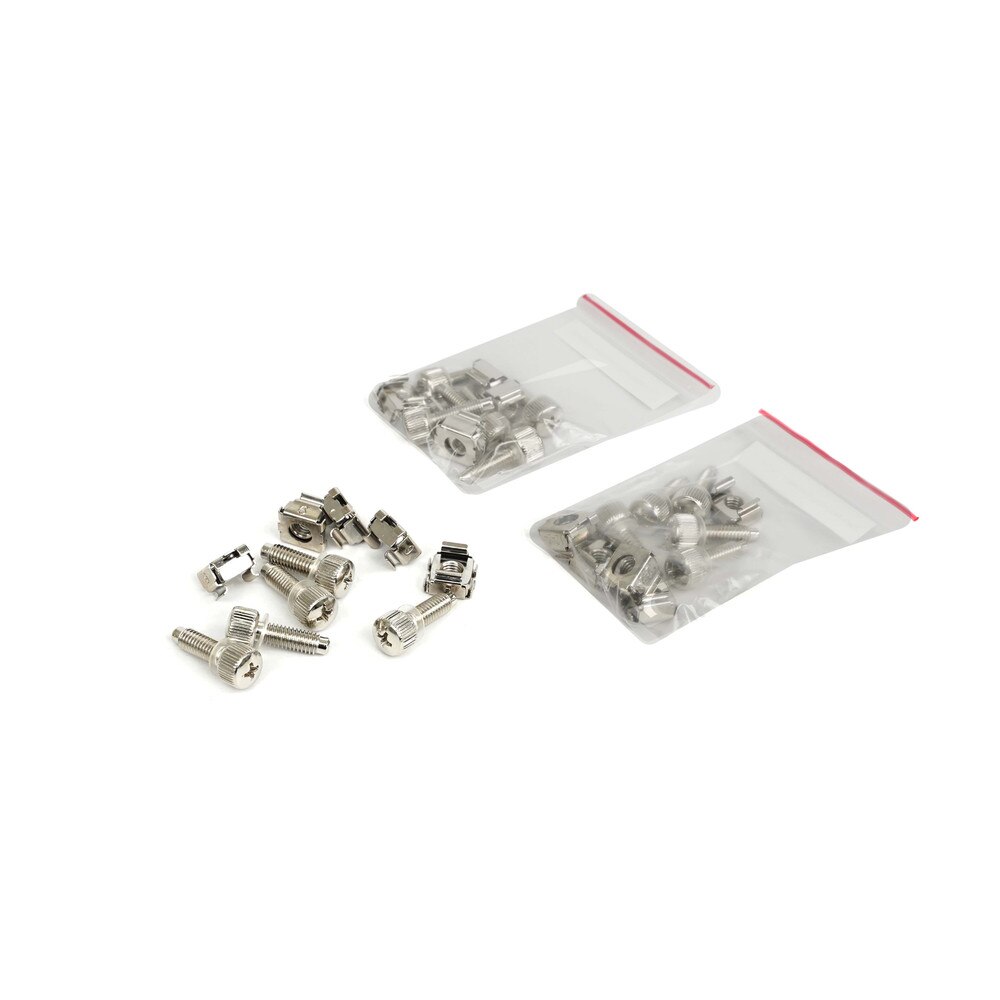

Rack Mounting Kit | Included |
MTBF | 1,700,716 hours |
Compliant Standards | CSA, IC, FCC, RoHS, RCM |
Width | 17.3 in |
Depth | 9.8 in |
Height | 1.7 in |
Weight | 8.18 lbs |
Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 5 - 95% (non-condensing) |
User Guides
Frequently Asked Questions
Cisco Meraki MS120-24P 24-Port Access Switch (MS120-24P-HW)
Frequently Asked Questions (FAQ's)
What is the Cisco Meraki MS120-24P? The Cisco Meraki MS120-24P is a 24-port Gigabit Ethernet switch with PoE+ capabilities that is ideal for small and medium-sized businesses, offering reliable network performance and cloud-based management.
Does the MS120-24P support Power over Ethernet (PoE)? Yes, it supports PoE+ with a power budget of up to 370 watts.
What is the maximum power output per port on the MS120-24P? PoE+ allows each port to deliver up to 30W of power.
Can the MS120-24P be managed remotely? Yes, it can be managed remotely using the Meraki cloud dashboard.
What Layer 2 features does the MS120-24P support? It supports VLANs, QoS, link aggregation, and port mirroring.
Is there any built-in security in the MS120-24P? Yes, it supports port security, DHCP snooping, and access control lists (ACLs).
Does the MS120-24P have a fan for cooling? No, it has a fanless design to ensure silent operation.
How many SFP ports are available on the MS120-24P? It features four SFP ports for uplinks.
What kind of warranty does the MS120-24P come with? It typically has a limited lifetime warranty.
Can the MS120-24P switch be stacked with other switches? No, the MS120-24P does not support physical stacking, but it can be managed alongside other Meraki switches using the dashboard.
What are the dimensions of the MS120-24P? The switch measures about 17.3 x 10.6 x 1.8 inches.
How is firmware updated on the MS120-24P? Firmware updates are managed and deployed automatically via the Meraki cloud dashboard.
Is the MS120-24P suitable for use in a data center? Its design and feature set make it better suited for small to medium-sized business environments than large data centers.
Can the MS120-24P be mounted in a rack? Yes, it is intended for rack installation and includes mounting brackets.
Does the MS120-24P support IPv6? Yes, it supports IPv6 for modern networking requirements.
What type of power supply does the MS120-24P use? It has an internal AC power supply.
Does the MS120-24P support SNMP? Yes, it supports network monitoring using the Simple Network Management Protocol (SNMP).
Can I prioritize traffic on the MS120-24P? Yes, you can use Quality of Service (QoS) features to prioritize traffic and ensure critical applications receive adequate bandwidth.
What management features are available on the Meraki dashboard for the MS120-24P? Meraki's dashboard includes features like device configuration, monitoring, alerts, reporting, and remote troubleshooting.
Is there a mobile app to manage the MS120-24P? Yes, the Meraki dashboard is accessible via a mobile app for iOS and Android devices, allowing for management while on the go.
