Cisco Meraki MR36H Wireless Access Point (MR36H-HW) | New

Cisco Meraki MR36H Wireless Access Point (MR36H-HW) | New

SKU: MR36H-HW-N
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$169.99 $169.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco Meraki MR36H Wireless Access Point (MR36H-HW) | New


The Cisco Meraki MR36H is a Dual-band, 802.11ax (Wi-Fi 6) access point designed for indoor use, particularly in environments like offices, hotels, and dormitories. It offers a 2x2:2 MU-MIMO configuration, providing robust wireless connectivity with a maximum aggregate frame rate of 1.5 to 1.7 Gbps, depending on the source, across its concurrent 2.4 GHz and 5 GHz radios

Cisco Meraki MR36H Wireless Access Point (MR36H-HW) Features:

  • Dual-Band Capability: Supports both 2.4 GHz and 5 GHz frequencies for better performance and reduced interference.
  • MU-MIMO Technology: Enhances network efficiency by allowing multiple devices to be served simultaneously.
  • Multiple Radios: Includes a dedicated third radio for real-time WIDS/WIPS (Wireless Intrusion Detection and Prevention Systems) with automated RF optimization, and a fourth radio for Bluetooth Low Energy (BLE) scanning and beaconing, as well as IoT solutions.
  • Cloud Management: Managed through the Meraki cloud, offering easy deployment, real-time monitoring, and automatic firmware updates.

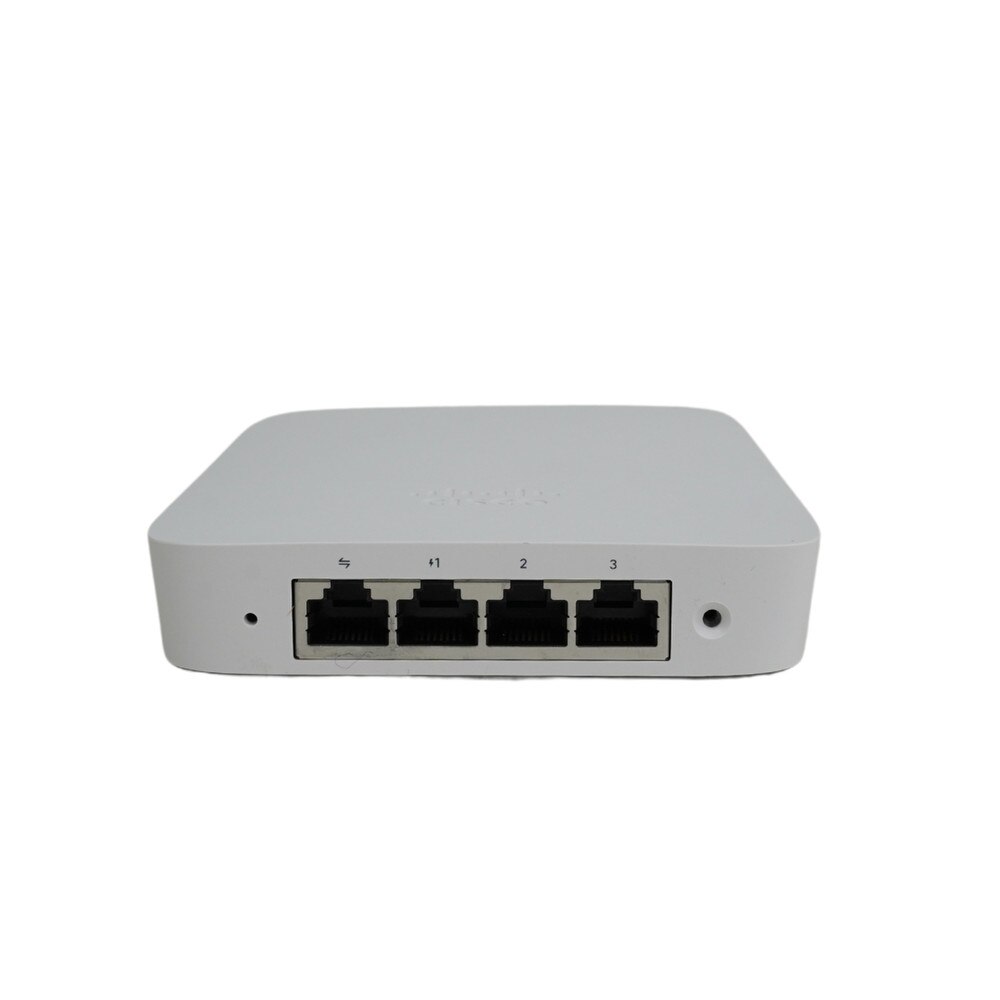

  • Wired Access Ports: Features three wired access ports and a passthrough port, providing connectivity options for devices without wireless capabilities.
  • Security Features: Includes enterprise-grade security with WIPS, VPN tunneling, and granular guest network access control.
  • Application-Aware Traffic Shaping: Allows prioritization of mission-critical applications like VoIP and video streaming

Best Uses for Cisco Meraki MR36H Wireless Access Point (MR36H-HW):

  • High-Density Deployments: Suitable for environments with many devices, such as large offices or public venues.
  • Bandwidth-Intensive Applications: Supports high-definition video streaming and voice applications with its robust data rates.
  • Hotel and Dormitory Deployments: Its compact wall-plate design makes it perfect for in-room installations where space is limited.
  • Industries Requiring Secure and Efficient Network Management: Such as hospitality, education, and retail, where centralized management and real-time monitoring are crucial

Specifications

Specifications for Cisco Meraki MR36H Wireless Access Point (MR36H-HW) | New


ManufacturerCisco
Manufacturer Part NumberMR36H-HW
Product NameCisco Meraki MR36H Wireless Access Point (MR36H-HW)
Product TypeAccess Point
Connectivity TechnologyWireless
Data Transfer Rate1.7 GBps
Form FactorExternal
Network Band2.4 GHz, 5 GHz
Power Over Ethernet (PoE)PoE+
Product TypeWireless access point
Status IndicatorsBoot state, Firmware, Power
Wireless LAN802.11a/b/g/n/ac/ax
Power Consumption Operational30 watt
Antenna Form FactorInternal
Line Coding Format1024 QAM, OFDMA
Max Operating Temperature104 degree Fahrenheit
Min Operating Temperature32 degree Fahrenheit
Operating Humidity5 - 95% (non-condensing)
Height1.4 inch
Weight17.35 ounce
Width9.8 inch
Depth4.7 inch
Color CategoryWhite
ENERGY STAR CertifiedNo
EPEAT CompliantNo
TCO CertifiedNo
Compliant StandardsIEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Features2x2
Interface Provided1 x 1000Base-T (PoE+) - RJ-45, 1 x 1000Base-T (uplink) - RJ-45, 1 x pass-through, 2 x 1000Base-T - RJ-45
EncryptionAES, EAP-SIM, TKIP, TLS, TTLS, WEP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3-Enhanced Open, WPA3-Enterprise, WPA3-Personal
Authentication MethodExtensible Authentication Protocol (EAP), MS-CHAP v.2
Network DeviceMaximum data rate (2.4 GHz)
Compliant StandardsAS/NZS 2772, AS/NZS 4268, CB 60950, CB 62368, CISPR 22, CSA, EN 300 328, EN 301 489-1-17, EN 301 893, EN 50385, EN 55032, EN 62311, EN 62479, EN55024, FCC CFR47 Part 15 C, FCC Part 15 B, FCC Part 15 E, FCC Part 2, ICES-003, IFT, NCC LP0002, NOM-208, RoHS, RSS-102, RSS-247, UL 2043, VCCI

User Guides

Cisco Meraki MR36H Wireless Access Point (MR36H-HW) Data Sheet

Frequently Asked Questions

Cisco Meraki MR36H Wireless Access Point (MR36H-HW)
Frequently Asked Questions (FAQ's)



What are the key features of the Cisco Meraki MR36H Wireless Access Point?
  • The Cisco Meraki MR36H offers high-performance Wi-Fi 6 (802.11ax) connectivity with 2x2 MIMO, integrated Bluetooth Low Energy (BLE) support, and multiple Ethernet ports for secure and efficient network management.
    • Is the MR36H suitable for hotel or hospitality environments?
  • Yes, the MR36H is specifically designed for hospitality and multi-dwelling environments with built-in wall-plate mounting and four Gigabit Ethernet ports for easy connectivity.
    • Does the Cisco Meraki MR36H support PoE?
  • Yes, the MR36H supports Power over Ethernet (PoE) for both data and power delivery, reducing cable clutter and simplifying installation.
    • Can the MR36H Wireless Access Point be managed remotely?
  • Absolutely. It is managed through the Cisco Meraki cloud-based dashboard, providing real-time monitoring, analytics, and remote troubleshooting.
    • What Wi-Fi speeds can the Cisco Meraki MR36H achieve?
  • The MR36H supports combined speeds of up to 1.7 Gbps, ensuring fast and reliable wireless connectivity for high-demand applications.
    • Does the MR36H support guest Wi-Fi networks?
  • Yes, the MR36H enables guest Wi-Fi access with customizable splash pages and authentication options to ensure secure, managed connections.
    • What is the coverage range of the MR36H Wireless Access Point?
  • While coverage can vary based on environmental factors, the MR36H typically offers excellent coverage for medium-sized spaces like hotel rooms, dormitories, and small offices.
    • How many devices can connect to the MR36H simultaneously?
  • The MR36H can efficiently manage multiple devices, supporting up to hundreds of concurrent connections without compromising performance.
    • Is the Cisco Meraki MR36H easy to install?
  • Yes, it features a wall-plate mounting design, and with PoE support, it’s simple to install without requiring additional electrical outlets.
    • Can I configure VLANs on the MR36H?
  • Yes, VLAN support is available, allowing you to segment networks for enhanced security and traffic management.
    • Does the MR36H include any security features?
  • Yes, it offers enterprise-grade security with WPA3 encryption, secure authentication options, and integrated threat detection through Cisco Meraki’s security solutions.
    • What is the difference between the MR36 and the MR36H?
  • The MR36H is designed with hospitality-focused features like additional Ethernet ports for wired connections and wall-plate mounting, whereas the MR36 is a more general-purpose model.
    • Can the MR36H handle video conferencing and streaming?
  • Yes, with Wi-Fi 6 technology and traffic management capabilities, it provides smooth performance for video conferencing, streaming, and other bandwidth-intensive tasks.
    • Does the MR36H support mesh networking?
  • Yes, Cisco Meraki supports mesh networking, allowing multiple access points to work together for seamless coverage across larger areas.
    • What management features are available in the Cisco Meraki Dashboard?
  • The dashboard offers comprehensive management features, including network monitoring, traffic analysis, device management, and advanced troubleshooting.
    • Is the MR36H compatible with other Meraki devices?
  • Yes, the MR36H seamlessly integrates with other Cisco Meraki products, including security appliances, switches, and cameras.
    • Can I create custom SSIDs with the MR36H?
  • Yes, you can create multiple SSIDs for different user groups, providing separate networks for guests, employees, or IoT devices.
    • Does the MR36H support Bluetooth connectivity?
  • Yes, it includes an integrated Bluetooth Low Energy (BLE) radio for location-based services and IoT device management.
    • How often does Cisco Meraki provide firmware updates for the MR36H?
  • Cisco Meraki provides automatic firmware updates to ensure your MR36H remains secure and up-to-date with the latest features.
    • Is the MR36H suitable for use in educational institutions?
  • Yes, the MR36H is ideal for classrooms, dormitories, and administrative offices, offering reliable connectivity and easy network management for educational settings.
