Overview of Cisco IE-4010-4S24P Industrial Ethernet 4010 Series Switch | Refresh

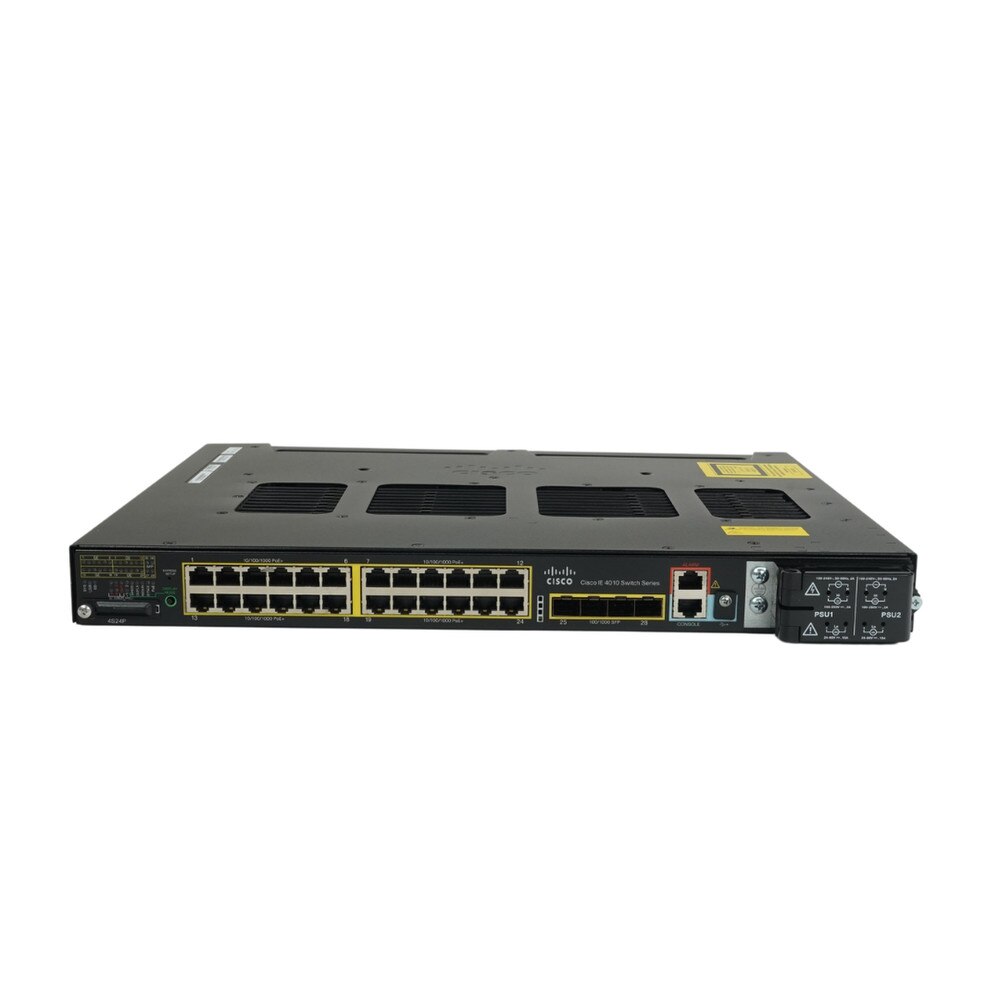

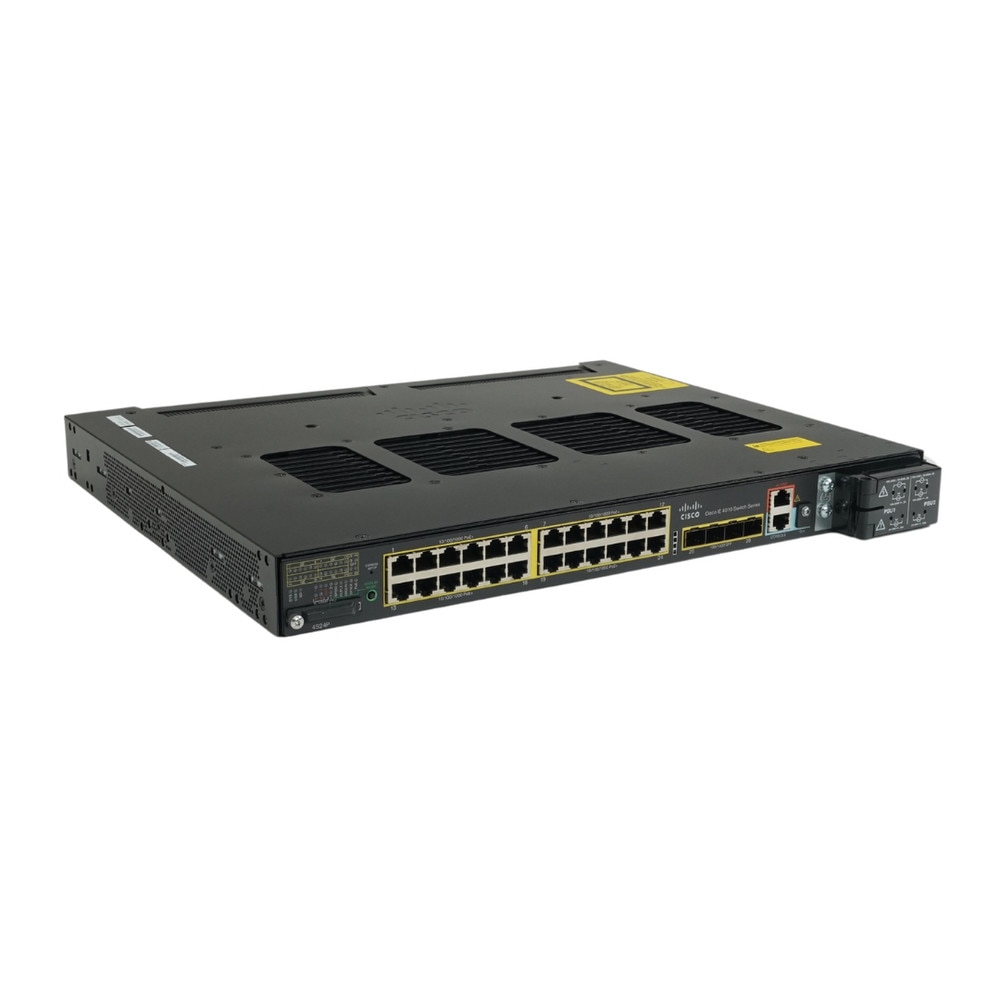

The Cisco IE-4010-4S24P Industrial Ethernet 4010 Series Switch is a robust managed switch with high performance capabilities, intended for outdoor and industrial networks where mission-critical operations take place. This switch, designed to endure extreme temperatures, vibration and electrical noise, offers 24 Gigabit PoE+ Ethernet ports and 4 Gigabit SFP uplink ports. It provides robust high-density connectivity and up to 385W of PoE power for IP cameras, VoIP phones, wireless access points and other industrial devices. The IE-4010-4S24P provides dependable, high-speed network performance in demanding conditions like manufacturing facilities, utility substations, transport centers and smart cities, thanks to its 56 Gbps switching capacity and advanced Layer 2/3 features. Constructed for operational resilience, this switch accommodates dual redundant power supplies, features a fanless design for silent operation and incorporates extensive security features from Cisco IOS Software. It provides smooth integration with IT and OT systems, zero-touch deployment and centralized management through Cisco Catalyst Center or web-based tools. With advanced redundancy protocols and precise time synchronization (IEEE 1588 PTPv2), it is ideal for applications where uptime and data accuracy are crucial. For organizations in search of secure, scalable and high-availability industrial networking, the IE-4010-4S24P is a future-ready option.
Key Features of Cisco IE-4010-4S24P Industrial Ethernet 4010 Series Switch
• 24 x Gigabit PoE+ Ethernet Ports delivers up to 30W per port for powering IP cameras, phones and wireless APs.
• 4 x Gigabit SFP Uplink Ports provides high-speed fiber connectivity for network backbone integration and redundancy.
• Up to 385W PoE Power Budget that supports a wide range of PoE/PoE+ devices with flexible power supply options.
• Rugged, Hardened Design that operates from -40°C to +75°C (-40°F to +167°F) and resists shocks, vibration and electrical noise.
• 56 Gbps Switching Capacity & 41.67 Mpps Forwarding Rate ensures non-blocking, high-throughput performance.
• Advanced Layer 2/3 Features with VLANs, QoS, IGMP snooping, static IPv4 routing and more for efficient traffic management.
• Comprehensive Security with Cisco TrustSec, 802.1x authentication, ACLs, network segmentation and FIPS 140-2 encryption.
• High Availability & Redundancy with dual power supply bays, ring protocols (REP, PRP, MRP, HSR) and zero-touch replacement.
• Precision Time Protocol with IEEE 1588 PTPv2 and 802.1AS for accurate time synchronization in automation and control systems.
• Easy Management with Cisco Catalyst Center, web-based utility and Cisco ONE software for streamlined configuration and monitoring.
Benefits of Cisco IE-4010-4S24P Industrial Ethernet 4010 Series Switch
🗹 Industrial-grade build and redundant power ensure continuous operation even in extreme conditions.
🗹 High PoE+ density powers multiple devices directly, reducing cabling and installation complexity.
🗹 Advanced access controls, segmentation, and encryption protect critical infrastructure from cyber threats.
🗹 High port density and flexible uplinks accommodate network growth and evolving industrial needs.
🗹 Centralized tools and zero-touch deployment minimize IT workload and speed up troubleshooting.
🗹 Time synchronization and robust traffic management support real-time control and monitoring applications.
🗹 Fanless, energy-efficient design and Cisco’s proven reliability lower maintenance and operational costs.
Specifications
Specifications for Cisco IE-4010-4S24P Industrial Ethernet 4010 Series Switch | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | IE-4010-4S24P-RF |
| Product Name | Cisco IE-4010-4S24P Industrial Ethernet 4010 Series Switch |
| Product Type | Networking Switch |
Enclosure Type | DIN rail mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 4 x 10/100/1000/SFP (uplink) |
Performance | Forwarding bandwidth: 28 Gbps ¦ Switching bandwidth: 56 Gbps |
Capacity | Virtual interfaces (VLANs): 1000 ¦ IGMP groups: 1000 ¦ NAT translations: 128 |
MAC Address Table Size | 16K entries |
Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing |
Remote Management Protocol | SNMP 1, SNMP 2, RMON 2, SNMP, RMON, Telnet, SNMP 3, HTTP, SSH, CLI, SCP |
Encryption Algorithm | FIPS 140-2 |
Authentication Method | RADIUS, TACACS |
Features | NAT support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunneling, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), LLDP support, MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), dynamic ARP protection, Class of Service (CoS), 802.1x authentication, Precision Time Protocol (PTP), IGMP filtering, Storm Control, PROFINET v2, EtherNet/IP CIP Messaging, IP source guard, Flex Link support, Resilient Ethernet Protocol (REP), SmartPort technology, Parallel Redundancy Protocol (PRP), Bridge protocol data unit (BPDU), CIP Sync (IEEE 1588) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.11ac, IEEE 1588v2, IEEE 1613 |
RAM | 1 GB |
Flash Memory | 128 MB |
Interfaces | 24 x 1000Base-T RJ-45 ¦ 4 x SFP uplink ¦ 1 x console RJ-45 ¦ 1 x mini-USB Type B |
Expansion Slots | 1 (total) / 0 (free) x SD Memory Card |
Included Accessories | 1 GB SD card |
MTBF | 429,620 hours |
Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN55024, EN55022 Class A, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, FIPS 140-2, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, UL 508, IEC 60529 IP30, CSA 22.2 No. 142, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, EN50155, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-52, IEC 60068-2-60, EN 50121-4, NOM-019-SCFI-1998, VCCI Class A, KN22, China RoHS, EN 50121-3-2, EN 61326, IEC 61163, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, IEC/UL/CSA/EN 60950-1, IEC 60068-2-3, EN 61373, ISO 9223 |
TAA Compliant | Yes |
Software Included | Cisco IOS LAN Base |
Width | 17.5 in |
Depth | 14 in |
Height | 1.8 in |
Weight | 12.04 lbs |
Service & Support | Limited warranty - advance parts replacement - 5 years - response time: 10 days |
Min Operating Temperature | -40 °F |
Max Operating Temperature | 167 °F |
Humidity Range Operating | 5 - 95% (non-condensing) |
Min Storage Temperature | -40 °F |
Max Storage Temperature | 185 °F |
User Guides
Frequently Asked Questions
Cisco IE-4010-4S24P Industrial Ethernet 4010 Series Switch
Frequently Asked Questions (FAQ's)
What is the Cisco IE-4010-4S24P? It is a ruggedized Layer 2/3 industrial Ethernet switch with 28 Gigabit Ethernet ports and Power-over-Ethernet (PoE) features.
What are the main features of the IE-4010-4S24P? Key features include high-performance non-blocking switching, 24 PoE ports, twin ring resilience protocols, and compatibility for industrial automation protocols like as EtherNet/IP and Profinet.
What is the operating temperature range for the IE-4010-4S24P? The switch functions in a wide temperature range, from -40°C to 75°C, making it suited for harsh settings.
How many ports does the IE-4010-4S24P have? It has a total of 28 ports, including 24 copper PoE ports and 4 SFP uplink ports.
What is the power budget for PoE on this switch? The Cisco IE-4010-4S24P delivers up to 385W of PoE power budget.
Does the switch support redundancy? Yes, it supports multiple redundancy protocols, including Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP), and High Availability Seamless Redundancy (HSR).
What management interfaces are available for the switch? It supports a GUI-based web user interface and Cisco Catalyst Center for management.
Is there support for zero-touch deployment? Yes, it features zero-touch deployment capabilities for simplified installation.
Can the switch be used outdoors? Yes, its tough construction makes it suitable for outdoor use in difficult settings.
What security features does the IE-4010-4S24P offer? It has advanced security features like Cisco IOS Software security and built-in software image verification.
How is the switch powered? The switch can be powered by two field-replaceable AC or DC power supply.
What types of devices can be connected to this switch? It can connect IP cameras, access points, IP phones, and other industrial devices requiring PoE.
What protocols does the switch support for industrial automation? It supports EtherNet/IP (CIP) and Profinet protocols among others.
How does the switch handle software upgrades? It provides a streamlined software upgrading path using universal images to aid with updating.
What are the dimensions of the IE-4010-4S24P? Specific measurements are not supplied in the search results, however it is intended to suit common rack mounts.
Can I manage this switch remotely? Yes, remote management is supported through its web interface and compatible management tools.
What is the typical installation process for this switch? Installation involves mounting the switch in a suitable enclosure, connecting power supplies, and configuring network settings via the GUI or CLI.
Does this model have any specific certifications? While the search results may not indicate specific certifications, Cisco devices typically meet a variety of industry safety and performance criteria.
Where can I find additional resources or documentation for this switch? Additional resources such as installation guides and configuration manuals can be found on Cisco's official website under their support section
Does the IE-4010-4S24P support network management tools? Yes, it supports Cisco Industrial Network Director and other management tools to facilitate network management.
