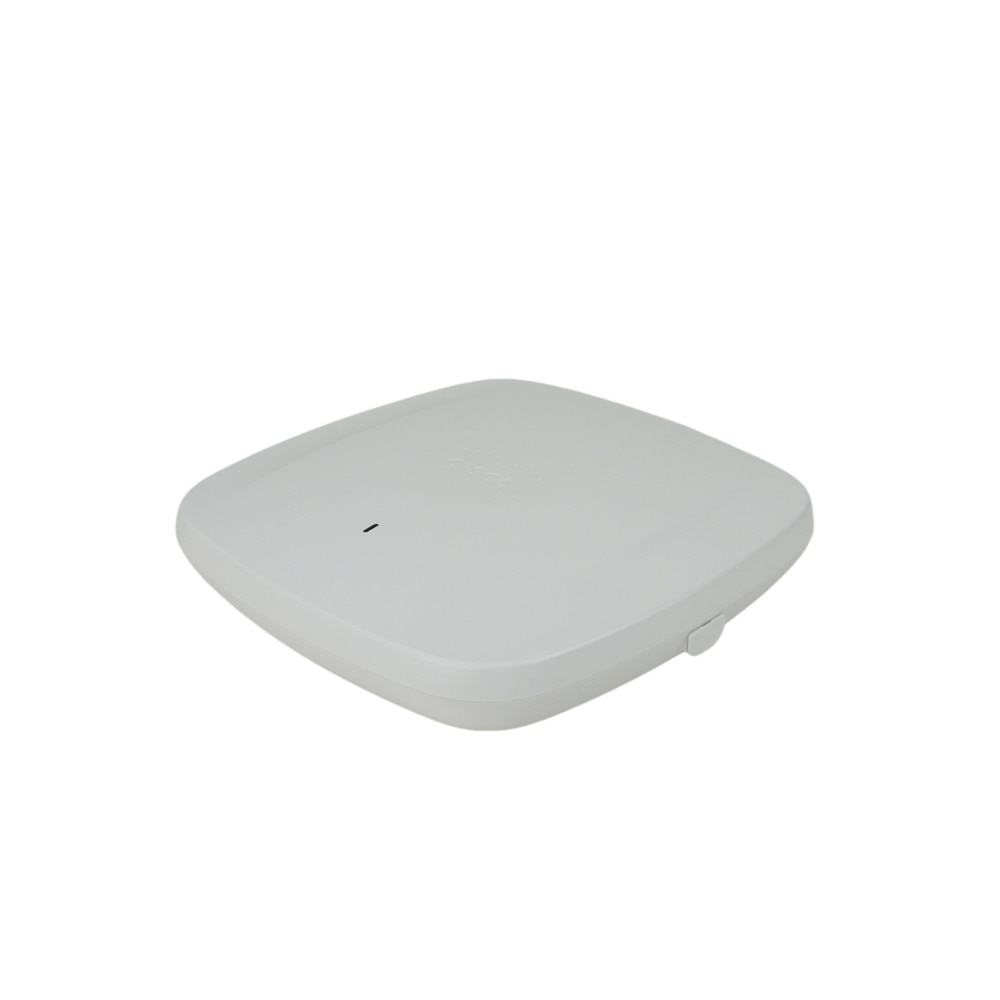

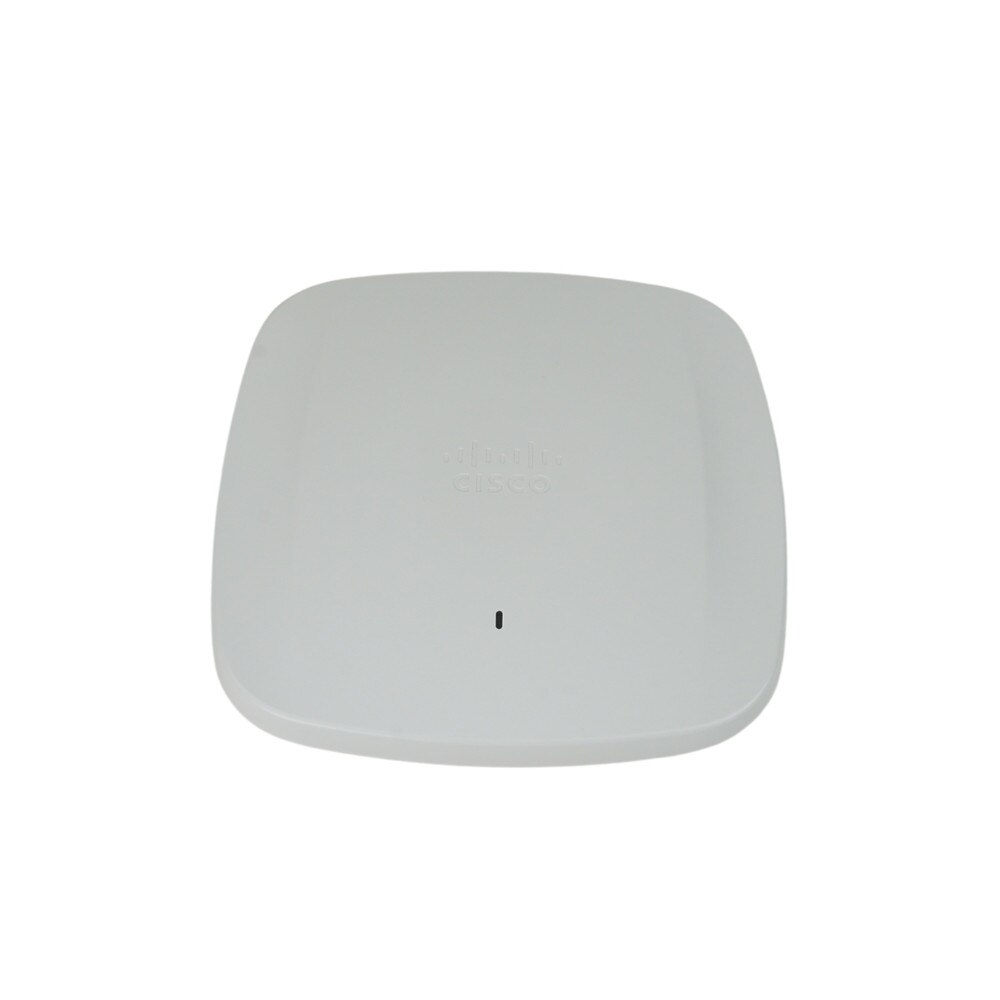

Overview of Cisco Catalyst Wireless 9166I Wi-Fi 6E Access Point (CW9166I-ROW-RF) | Refresh
The Cisco Catalyst Wireless 9166I Wi-Fi 6E Access Point (CW9166I-ROW-RF) is an advanced, enterprise-class tri-band access point designed for high-performance wireless networking. This next-generation device supports the most recent Wi-Fi 6E standard, which delivers unrivaled speed, capacity, and dependability for mission-critical applications. The CW9166I-ROW excels in demanding environments such as large corporations, educational institutions, healthcare facilities, and densely populated public spaces. Its ability to operate in the 6 GHz band allows for more reliable connections, faster data rates, and reduced network congestion.
This access point also works seamlessly with existing Cisco networking infrastructure, making it an excellent choice for businesses looking to improve their wireless capabilities without completely overhauling their network. With its robust feature set and future-proof design, the Cisco Catalyst Wireless 9166I Wi-Fi 6E Access Point (CW9166I-ROW) provides an unparalleled wireless experience, ensuring that your network can meet the growing demands of today's connected environments.
Key Features of Cisco Catalyst Wireless 9166I Wi-Fi 6E Access Point
• Tri-band operation supporting 2.4 GHz, 5 GHz, and 6 GHz frequencies for maximum flexibility and performance
• Three 4x4 radios providing high-density coverage and increased throughput
• Wi-Fi 6E technology enabling operation in the 6 GHz band for improved reliability, security, and reduced interference
• Integrated environmental sensors for temperature, air quality (TVOC), and humidity monitoring
• Built-in IoT radio (2.4 GHz BLE) for expanded connectivity options
• Flexible management options: on-premises (Cisco Catalyst Center) or cloud-based (Meraki)
• Compatibility with Cisco Catalyst 9800 Series Wireless Controllers
• Support for Wi-Fi Protected Access 3 (WPA3) for enhanced security
• Multiple interface options including 5GbE port, USB 2.0, and console port
• Advanced features like MU-MIMO, OFDMA scheduling, and 802.11ac beamforming
• Integrated omnidirectional antennas for 2.4 GHz, 5 GHz, and 6 GHz bands
• Dedicated scanning radio for Cisco CleanAir Pro technology
Specifications
Specifications for Cisco Catalyst Wireless 9166I Wi-Fi 6E Access Point (CW9166I-ROW-RF) | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | CW9166I-ROW-RF |
| Product Name | Cisco Catalyst Wireless 9166I Wi-Fi 6E Access Point |
| Product Type | Access Point |
Ruggedized Design | Indoor |
Width | 9.5 in |
Depth | 9.5 in |
Height | 2.2 in |
Weight | 3.53 lbs |
Localization | Mexico, United Kingdom |
RAM | 2 GB |
Flash Memory | 1 GB |
Form Factor | External |
Connectivity Technology | Wireless |
Data Transfer Rate | 7.78 Gbps |
Line Coding Format | OFDMA |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.1 LE, IEEE 802.11ax (Wi-Fi 6E) |
Spread Spectrum Method | OFDMA |
Remote Management Protocol | HTTP |
Cloud-Managed | Yes |
Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
Status Indicators | Status |
Features | DFS support, WLAN controller mode, LLDP support, Maximum Ratio Combining (MRC), universal power over Ethernet (UPOE), cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, band steering, Tri-Band, Dynamic Frequency Selection (DFS), secure boot, 4x4:4 MU-MIMO technology, image signing, Cisco Trust Anchor module, BSS Coloring, Target Wake Time (TWT) |
Encryption Algorithm | AES, PEAP, WPA2-Enterprise, EAP-SIM, WPA3-Enterprise, WPA3-Personal, EAP-FAST, WPA3-Enhanced Open, WPA2-Personal, EAP-TLS, EAP-TTLS, MSCHAPv2, EAP-GTC, PEAPv1 |
Authentication Method | MS-CHAP, MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM |
Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6E |
Antenna | Internal |
Directivity | Omni-directional |
Internet of Things (IoT) Compatible | Yes |
Communications Technology | Bluetooth Low Energy (LE) |

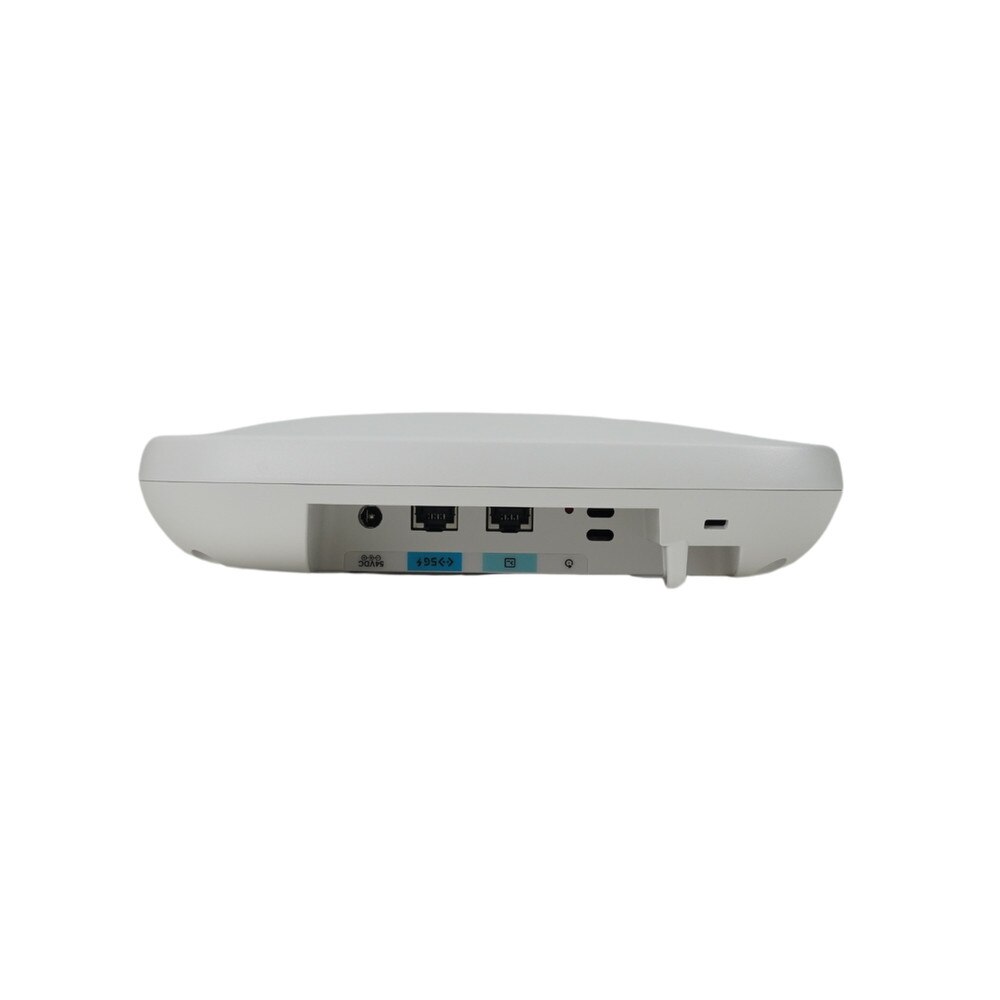

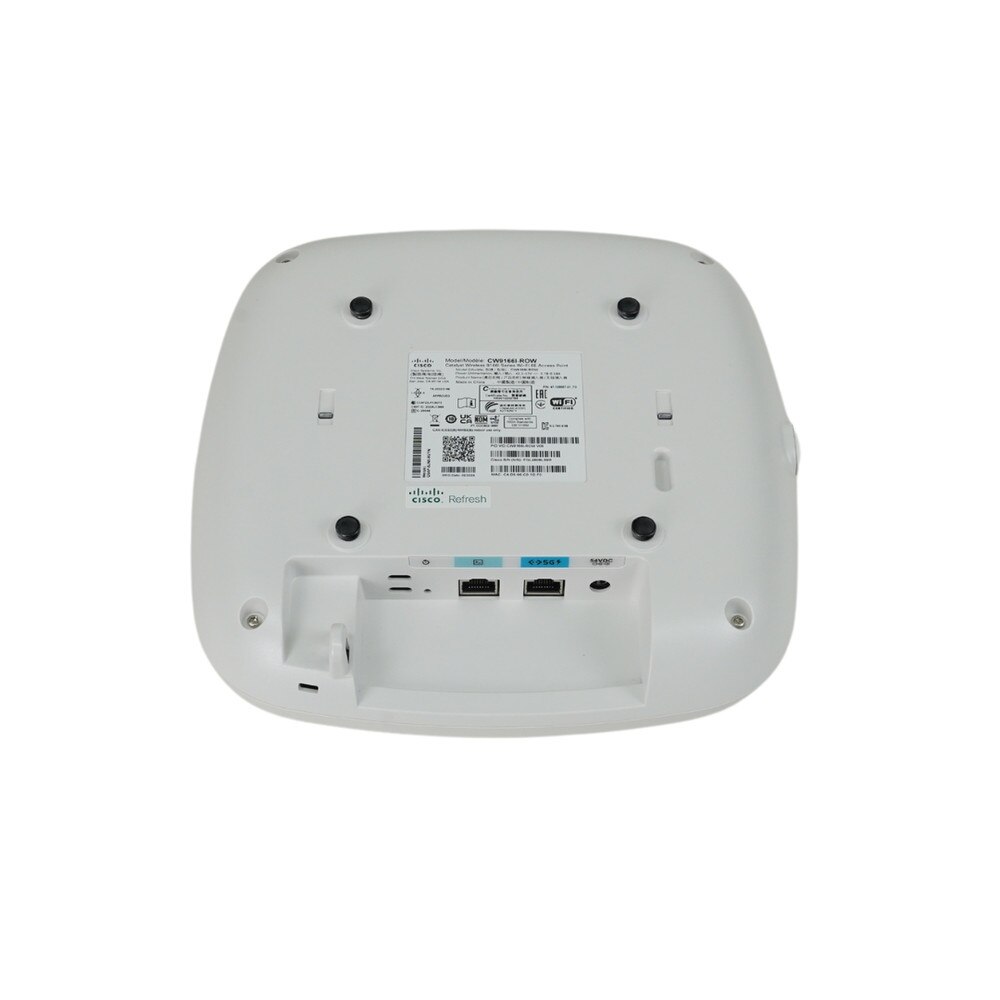

Interfaces | 1 x 100M/1G/2.5/5 Gigabit Ethernet (UPOE) - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x USB 2.0 |
Compliant Standards | FCC Part 15.247, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.407, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, UL Class III, CNS13438:2006, RSS-247, AS/NZS 2772.2, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016, RSP-100, RSS-GEN, EN 301 893 V2.1.1, AS/NZS 4268:2017, EN 300 328 V2.2.2, EN 50385:2017, 47 CFR Part 2.1091, QCVN 112:2017, Japan Std. 66, Japan Std. 71, EN 55032:2015/A11:2020, EN 61000-3-3:2013+A1:2019, IEC 61000-3-2:2019, CAN/CSA-C22.2 No. 62368-1 Third Edition, UL 62368-1 Third Edition, EN 62368-1 Third Edition, IEC 62368-1 Third Edition, EN 301 489-17 V3.2.4 (2020-09), EN 301 489-1 V2.2.3 (2019-11), KS C 9832, EN 62311:2020, KS X 3124:2020, KS X 3126:2020, EN 61000-6-1:2019, Draft EN 303 687 V0.0.14, EN55035:2017+A11:2020, AS/NZS 62368-1 Third Edition, CISPR 32:2015+AMD1:2019, AS/NZS CISPR32:2015+AMD1:2020, ICES-003 issue 7 Class B, KS C 9835:2019, LP002 |
Power Over Ethernet (PoE) Supported | UPOE |
Software Included | CAPWAP Software Image |
OS Required | Cisco IOS XE 17.9.1 or later |
Service & Support | Limited warranty - advance hardware replacement - lifetime - response time: 5 days |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
User Guides
Frequently Asked Questions
Cisco Catalyst Wireless 9166I Wi-Fi 6E Access Point (CW9166I-ROW-RF)
Frequently Asked Questions (FAQ's)
What is the Cisco Catalyst Wireless 9166I Wi-Fi 6E Access Point? It is an advanced wireless access point that uses Wi-Fi 6E technology to improve performance and connectivity.
What does Wi-Fi 6E technology mean? Wi-Fi 6E extends Wi-Fi 6 into the 6 GHz band, increasing spectrum, reducing congestion, and improving performance.
What are the key features of the CW9166I-ROW? Support for the 6 GHz band, MU-MIMO, OFDMA, BSS coloring, and strong security protocols are among the main features.
What is the advantage of the 6 GHz band? The 6 GHz band provides more spectrum, less interference, and higher capacity, resulting in improved connectivity and performance.
Is the CW9166I-ROW suitable for high-density environments? Yes, it is intended to work well in high-density settings like large campuses and office buildings.
What kind of security features does the CW9166I-ROW offer? It provides advanced security protocols to ensure secure and reliable wireless communication.
How does the CW9166I-ROW enhance network efficiency? It optimizes network efficiency and throughput with technologies such as MU-MIMO, OFDMA, and BSS coloring.
Can the CW9166I-ROW be integrated with Cisco's DNA Center? Yes, it supports Cisco DNA Center, which simplifies network management and automation.
What is MU-MIMO? MU-MIMO (Multi-User Multiple Input Multiple Output) technology enables multiple devices to connect at the same time, improving network efficiency.
What is OFDMA? OFDMA (Orthogonal Frequency Division Multiple Access) increases efficiency by allowing multiple devices to share a single channel at the same time.
What is BSS coloring? BSS coloring is a technique for reducing interference from neighboring networks, which improves overall performance.
How easy is it to install the CW9166I-ROW? Its sleek, low-profile design facilitates installation and integration into existing network infrastructures.
Is the CW9166I-ROW scalable for growing networks? Yes, it is designed to be scalable, making it suitable for network expansion.
What environments are best suited for the CW9166I-ROW? It is ideal for large campuses, densely populated office environments, and other enterprise settings.
How does the CW9166I-ROW handle network congestion? It reduces congestion and improves performance by leveraging the additional 6 GHz spectrum and advanced features such as MU-MIMO and OFDMA.
What devices are compatible with the CW9166I-ROW? It is compatible with a large number of Wi-Fi 6 and Wi-Fi 6E devices.
What are the deployment options for the CW9166I-ROW? It can be used in a variety of scenarios, including indoor enterprise settings, educational institutions, and healthcare facilities.
Does the CW9166I-ROW support high-definition video streaming? Yes, its superior performance and low latency make it ideal for high-definition video streaming and other bandwidth-intensive applications.
What management options are available for the CW9166I-ROW? It can be managed using both Cisco DNA Center and traditional network management tools.
Where can I purchase the CW9166I-ROW? It is available from Cisco's authorized resellers and a variety of online retailers.
