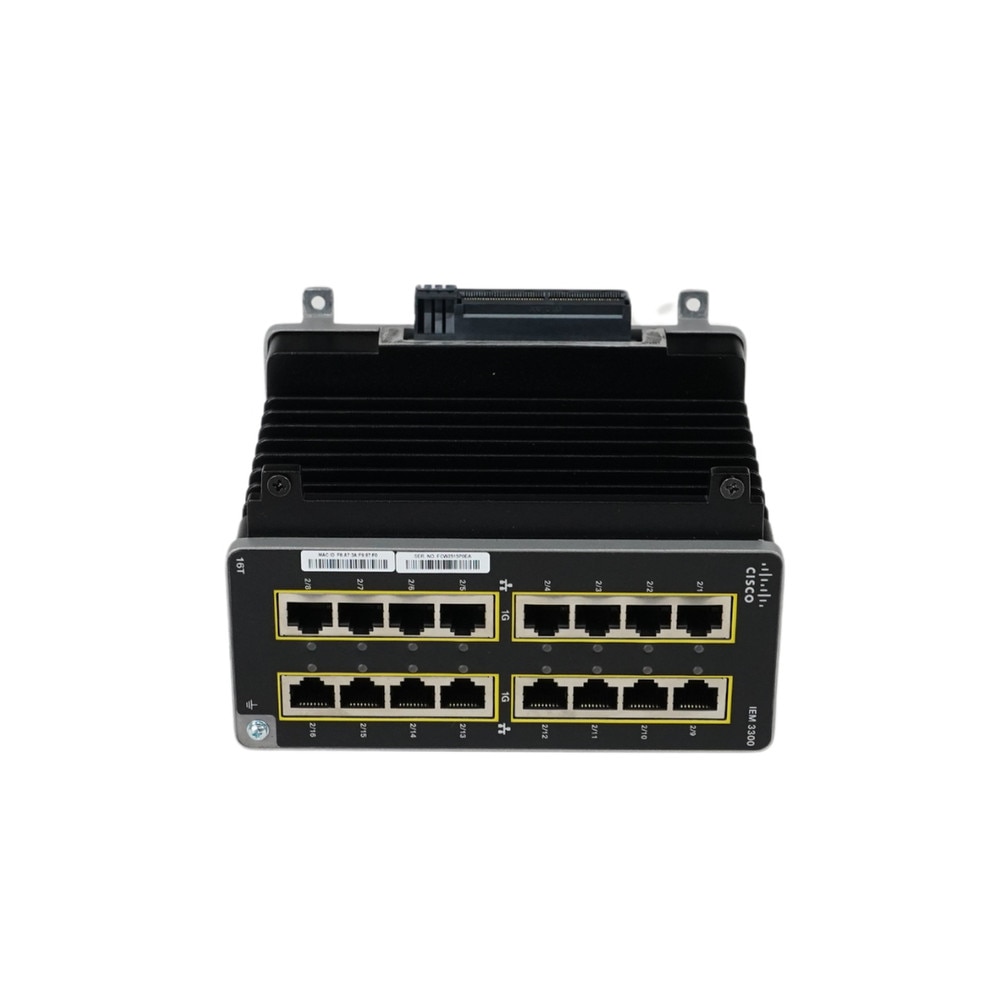

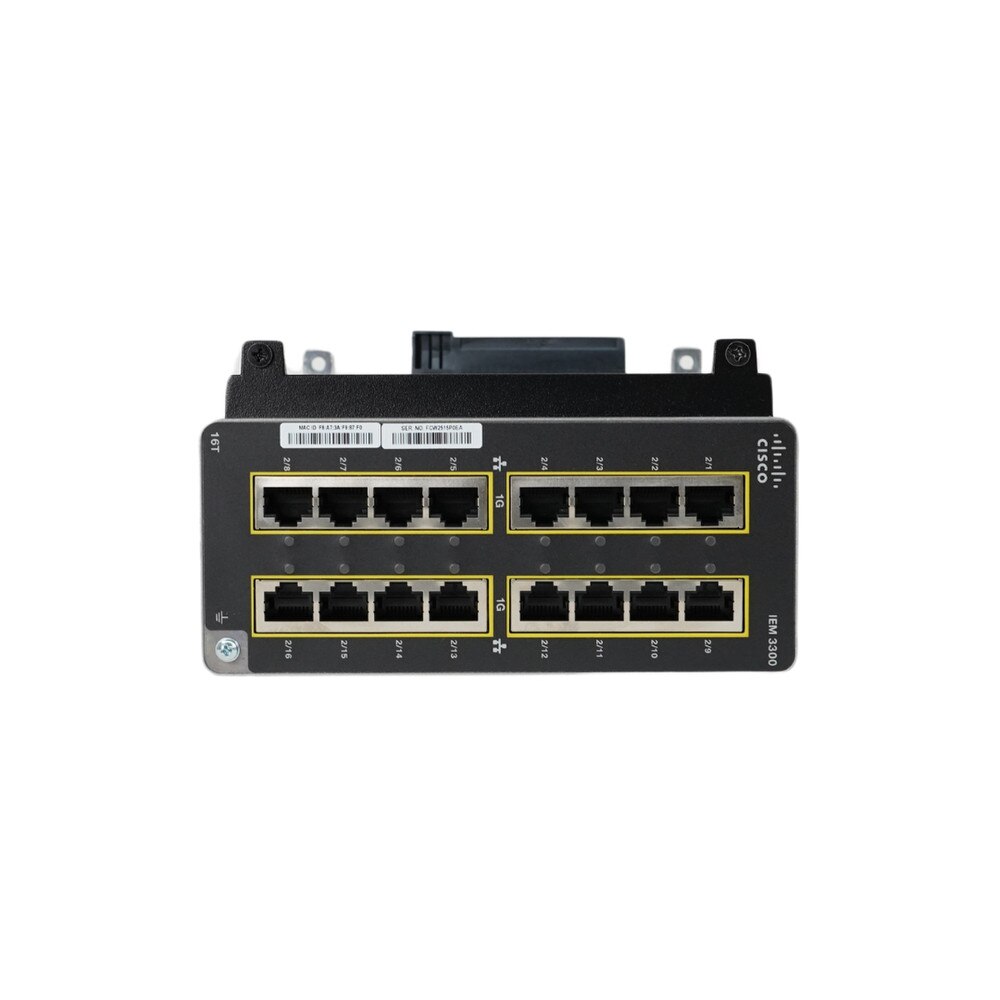

Overview of Cisco Catalyst IEM-3300-16T-RF 16-Port Gigabit Ethernet Expansion Module | Refresh
The Cisco Catalyst IEM-3300-16T-RF 16-Port Gigabit Ethernet Expansion Module is a powerful addition to the Cisco Catalyst IE3300 Rugged Series, delivering high-speed connectivity to industrial applications. This expansion module expands the capabilities of the IE3300 series switches, making them ideal for environments requiring reliable networking solutions. The Cisco Catalyst IEM-3300-16T has 16 Gigabit Ethernet ports for easy integration into existing Cisco Catalyst IE3300 switches. This module is suitable for a wide range of industrial applications, including manufacturing, transportation, and smart cities, where reliable and high-performance networking is required. The rugged design ensures that it can withstand harsh environmental conditions, making it appropriate for deployment in difficult environments. The IEM-3300-16T is an excellent choice for organizations that want to improve their industrial networking capabilities. Its rugged design, high-speed connectivity, and modular flexibility make it an excellent choice for any industrial application.
Key Features of Cisco Catalyst IEM-3300-16T-RF 16-Port Gigabit Ethernet Expansion Module
• 16 Gigabit Ethernet Ports provides ample connectivity for multiple devices, ensuring efficient data transfer and network performance.
• Built to endure extreme temperatures, vibrations, and dust, making it ideal for industrial environments.
• Modular Design easily integrates with Cisco Catalyst IE3300 switches, allowing for flexible expansion and scalability as network demands grow.
• Power over Ethernet (PoE) Support is capable of delivering power to connected devices such as IP cameras, phones, and wireless access points, simplifying installation and reducing cable clutter.
• Cisco IOS XE Operating System runs on a next-generation operating system that offers advanced security features, API-driven configuration, and enhanced management capabilities.
• Real-Time Visibility supports Flexible NetFlow for monitoring traffic patterns and threat analysis, enabling better network management.
• DIN Rail Mountable is designed for easy installation in various industrial settings, ensuring convenience and efficiency.
Specifications
Specifications for Cisco Catalyst IEM-3300-16T-RF 16-Port Gigabit Ethernet Expansion Module | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | IEM-3300-16T-RF |
| Product Name | Cisco Catalyst IEM-3300-16T-RF 16-Port Gigabit Ethernet Expansion Module |
| Product Type | Expansion Module |
Form Factor | DIN rail mountable |
Ports | Gigabit Ethernet x 16 |
Connectivity Technology | Wired |
Cabling Type | Ethernet 1000Base-T |
Data Link Protocol | Gigabit Ethernet |
Features | Cisco Gigabit EtherChannel, Syslog support, MAC address filtering, MSTP support, DHCP snooping, QoS, RADIUS support, SSH support, DHCP server, DAI, PVST+, UDLD, LLDP support, RSPAN, MIB, SNMP support, IGMP filtering, SmartPort technology, BPDU, SCP, NTP, IGMP querier, VTP v.3, RSTP, VTP v.2 |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2 |
Interfaces | 16 x 1000Base-T - RJ-45 |
MTBF | 1,594,210 hours |
Compliant Standards | EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, FCC CFR47 Part 15, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-78, MIL-STD-810, EN 50121-4, IP30, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEEE 1613, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032, EN 60068-2-52, EN 60068-2-60, CISPR 32 Class A, UL 62368-1, IEC 60079-0, EN 60079-0, CISPR 35, EN 61000-4-17, UL 121201, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0 |
Power Consumption Operational | 13 Watt |
Width | 3.4 in |
Depth | 5.3 in |
Height | 6 in |
Weight | 32.94 oz |
Service & Support | Limited warranty - 5 years |
Min Operating Temperature | -40 °F |
Max Operating Temperature | 158 °F |
Designed For | Cisco Catalyst IE3300 Rugged Series |
User Guides
Frequently Asked Questions
Cisco Catalyst IEM-3300-16T-RF 16-Port Gigabit Ethernet Expansion Module
Frequently Asked Questions (FAQ's)
How do I install the Cisco Catalyst IEM-3300-16T? The IEM-3300-16T can be installed by connecting it to the main switch of the Cisco Catalyst IE3300 Series. It is designed for easy installation and hot-swappability.
How many Gigabit Ethernet ports does the IEM-3300-16T provide? It features 16 Gigabit Ethernet copper ports.
Is the IEM-3300-16T compatible with all Cisco Catalyst IE3300 switches? Yes, it is compatible with Cisco Catalyst IE3300 series switches.
What is the purpose of the IEM-3300-16T expansion module? It is intended to increase the number of available Gigabit Ethernet ports in an industrial network, thereby improving connectivity for IoT and other mission-critical applications.
Is the IEM-3300-16T suitable for industrial environments? Yes, the IEM-3300-16T is designed to withstand harsh environments such as extreme temperatures, vibration, and dust.
Does the IEM-3300-16T support Power over Ethernet (PoE)? The IEM-3300-16T does not support PoE and only provides 16 Gigabit Ethernet copper ports.
Can I use the IEM-3300-16T in outdoor applications? The module is intended for industrial environments, which may include outdoor applications if enclosed in appropriate protective equipment.
Does the IEM-3300-16T support Layer 2 or Layer 3 networking? The IEM-3300-16T connects to Cisco Catalyst IE3300 Series switches, which support both Layer 2 and Layer 3 networking.
What is the maximum bandwidth supported by the IEM-3300-16T? The IEM-3300-16T has 16 ports that support Gigabit Ethernet (1 Gbps) speeds.
How does the IEM-3300-16T integrate with existing Cisco network infrastructure? The IEM-3300-16T integrates seamlessly with the Cisco Catalyst IE3300 Series, adding more ports for network expansion while remaining compatible with Cisco management tools and security features.
What temperature range can the IEM-3300-16T withstand? It is intended to operate in harsh environments with wide temperature ranges, typically from -40°C to 75°C (-40°F to 167°F).
Does the IEM-3300-16T require any additional power supply? No, the module is powered by the Cisco Catalyst IE3300 switch it is connected to.
Is the IEM-3300-16T hot-swappable? Yes, the IEM-3300-16T can be hot-swapped, meaning you can add or remove the module without disrupting the network.
What industries is the IEM-3300-16T best suited for? It is ideal for sectors such as manufacturing, transportation, energy, utilities, and smart cities.
Does the IEM-3300-16T support network management features? Yes, it provides network management via the Cisco Catalyst IE3300 Series, which includes Cisco DNA Center for centralized configuration and monitoring.
What mounting options are available for the IEM-3300-16T? The module can be installed in the industrial-grade enclosures designed to house the Cisco Catalyst IE3300 series switches.
Does the IEM-3300-16T support SFP or fiber connections? No, the IEM-3300-16T is a copper-based expansion module. SFP support is available on additional modules and the main switch.
Can the IEM-3300-16T be used for IoT deployments? Yes, it is intended to provide stable and scalable Ethernet connectivity in industrial IoT networks.
What software does the IEM-3300-16T use? The IEM-3300-16T uses Cisco's IOS XE software via its host switch to provide advanced network services, security, and programmability.
What type of cabling does the IEM-3300-16T support? It accepts standard Ethernet copper cabling, such as Category 5e, Category 6, or higher for Gigabit Ethernet speeds.
