Cisco Catalyst C9120AXI-A Wireless Access Point | Refresh
SKU: C9120AXI-A-RF
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview for Cisco Catalyst C9120AXI-A Wireless Access Point | Refresh

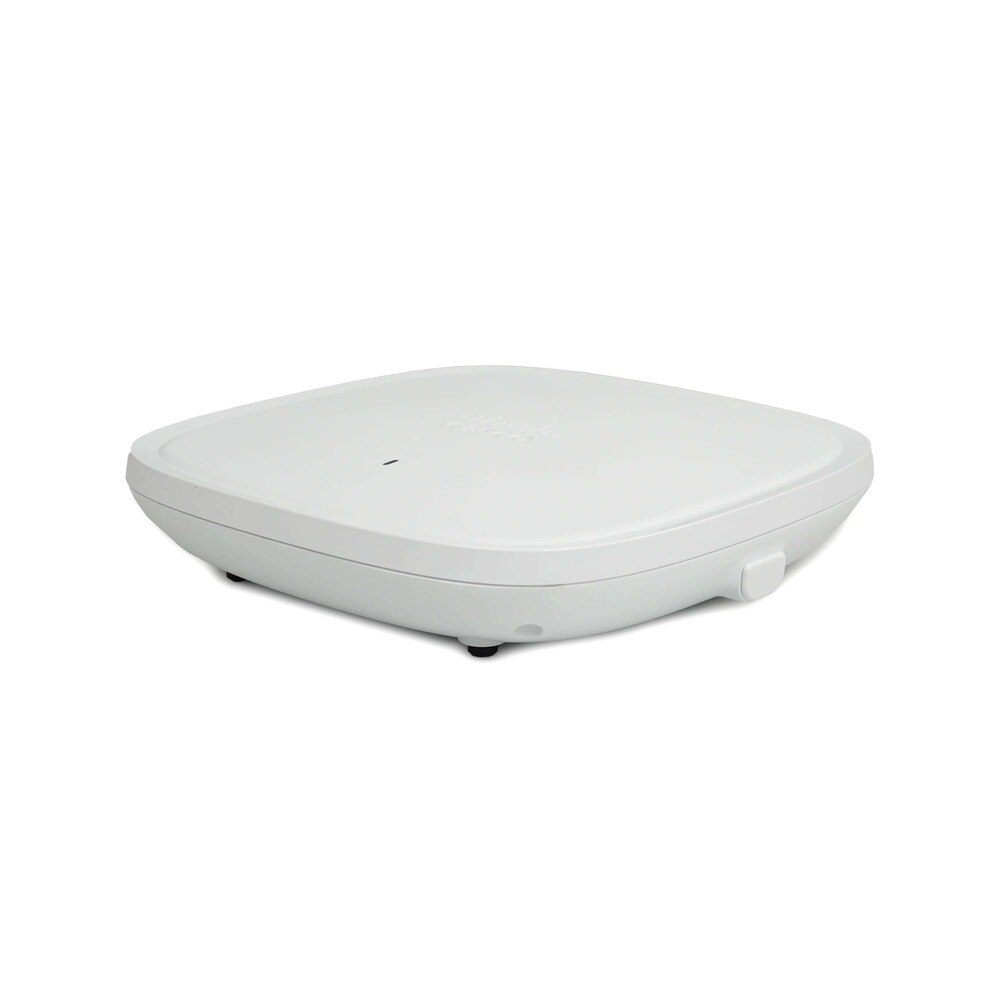

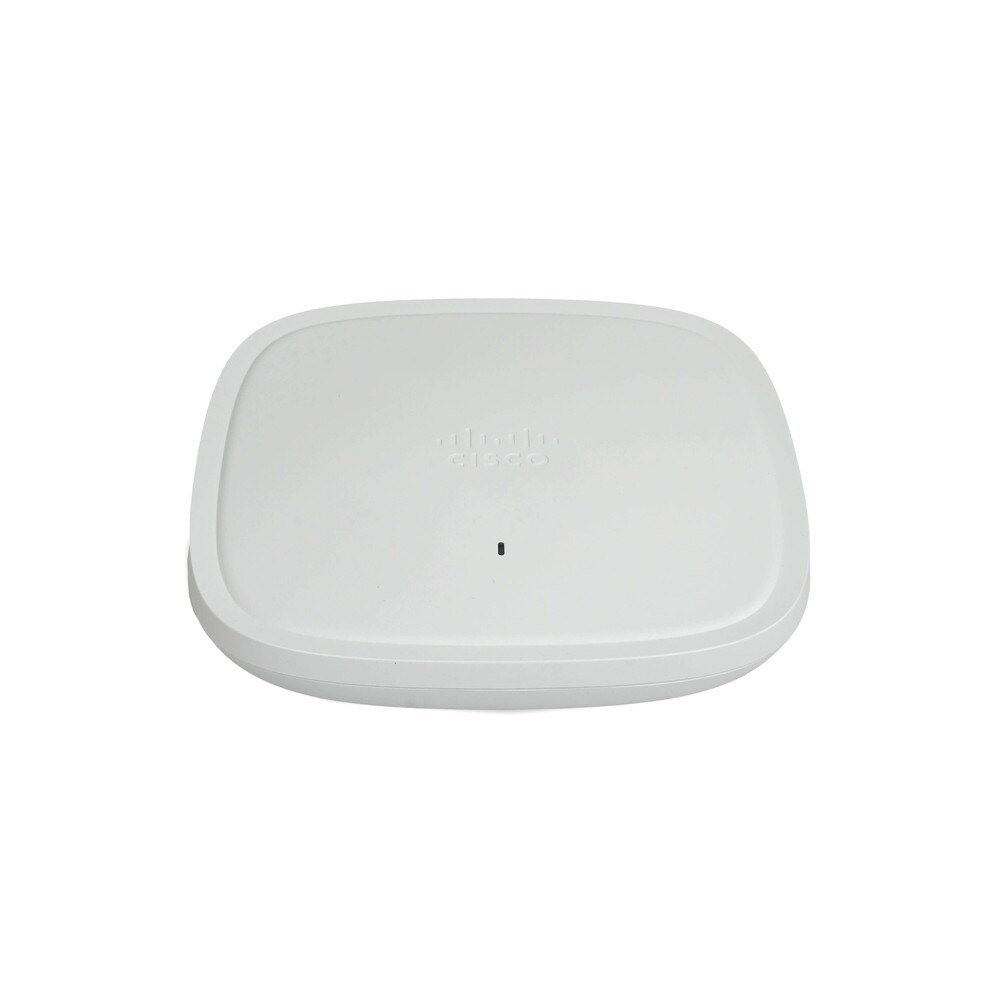

The Cisco Catalyst C9120AXI-A Wireless Access Point is a high-performance, enterprise-grade Wi-Fi 6 (802.11ax) access point intended for next-generation wireless networks. The C9120AXI-A is part of Cisco's Catalyst 9120AX Series, which provides superior performance, security, and intelligence for modern wireless installations. This variant has integrated antennas and is specifically built for the North American market. With its extensive features, the C9120AXI-A is excellent for high-density situations, IoT deployments, and bandwidth-intensive applications. The Cisco Catalyst C9120AXI-A is an excellent option for businesses seeking to future-proof their wireless infrastructure with a high-performance, secure, and intelligent Wi-Fi 6 platform.
Key Features of Cisco Catalyst C9120AXI-A Wireless Access Point
• Wi-Fi 6 (802.11ax) Technology delivers faster speeds, increased capacity, and improved power efficiency.
• Dual-Band Operation supports both 2.4 GHz and 5 GHz bands simultaneously.
• 4x4 MIMO offers four spatial streams for enhanced performance and coverage.
• OFDMA enables more efficient spectrum use and improved performance in high-density environments.
• Integrated BLE 5.0 supports IoT use cases such as location tracking and wayfinding.
• Cisco RF ASIC provides advanced spectrum analysis and security features.
• Multigigabit Ethernet features 2.5 Gbps uplink for high-speed backhaul.
• Intelligent Capture probes the network for deep analysis via Cisco DNA Center.
• Flexible Power Options supports 802.3at PoE+, 802.3bt, and Cisco UPOE/UPOE+.
• Application Hosting enables containerized applications for IoT and business needs.
• Target Wake Time (TWT) improves battery life for client devices.
• BSS Coloring enhances network efficiency in dense deployments.
• Cisco DNA Support enables advanced features like Cisco CMX and Apple FastLane.
• Enterprise-Grade Security includes Cisco Encrypted Traffic Analytics and Trustworthy Solutions.
• Seamless Roaming features optimized AP roaming for improved client mobility.
Specifications
Specification for Cisco Catalyst C9120AXI-A Wireless Access Point | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | C9120AXI-A-RF |
| Product Name | Cisco Catalyst C9120AXI-A Wireless Access Point |
| Product Type | Router |
Ruggedized Design | Indoor |
Width | 8.5 in |
Depth | 8.5 in |
Height | 1.7 in |
Weight | 2.87 lbs |
RAM | 2 GB |
Flash Memory | 1 GB |
Form Factor | External |
Connectivity Technology | Wireless |
Line Coding Format | OFDMA |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, 802.11ax |
Spread Spectrum Method | OFDMA |
Frequency Band | 2.4 GHz, 5 GHz |
Status Indicators | Status |
Features | Quality of Service (QoS), LLDP support, Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Dynamic Frequency Selection (DFS), secure boot, 4x4:4 MU-MIMO technology, Target Wait Time (TWT), image signing, Cisco Trust Anchor module |
Encryption Algorithm | AES, TLS, PEAP, TTLS, WPA, WPA2, EAP-SIM, EAP-FAST |
Authentication Method | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM |
Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Antenna | Internal |
Directivity | Omni-directional |
Internet of Things (IoT) Compatible | Yes |
Communications Technology | Bluetooth Low Energy (LE) |

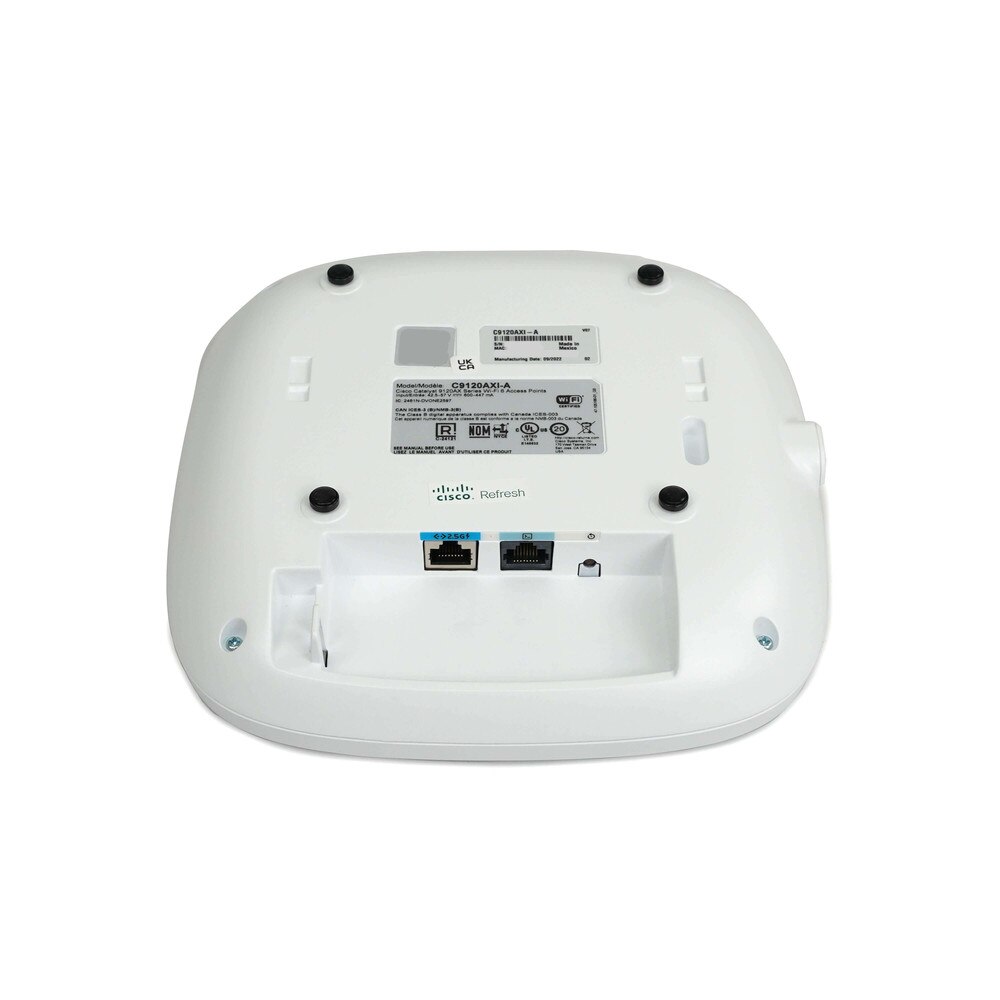

Interfaces | 1 x 1/2.5GBase-T - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x USB 2.0 |

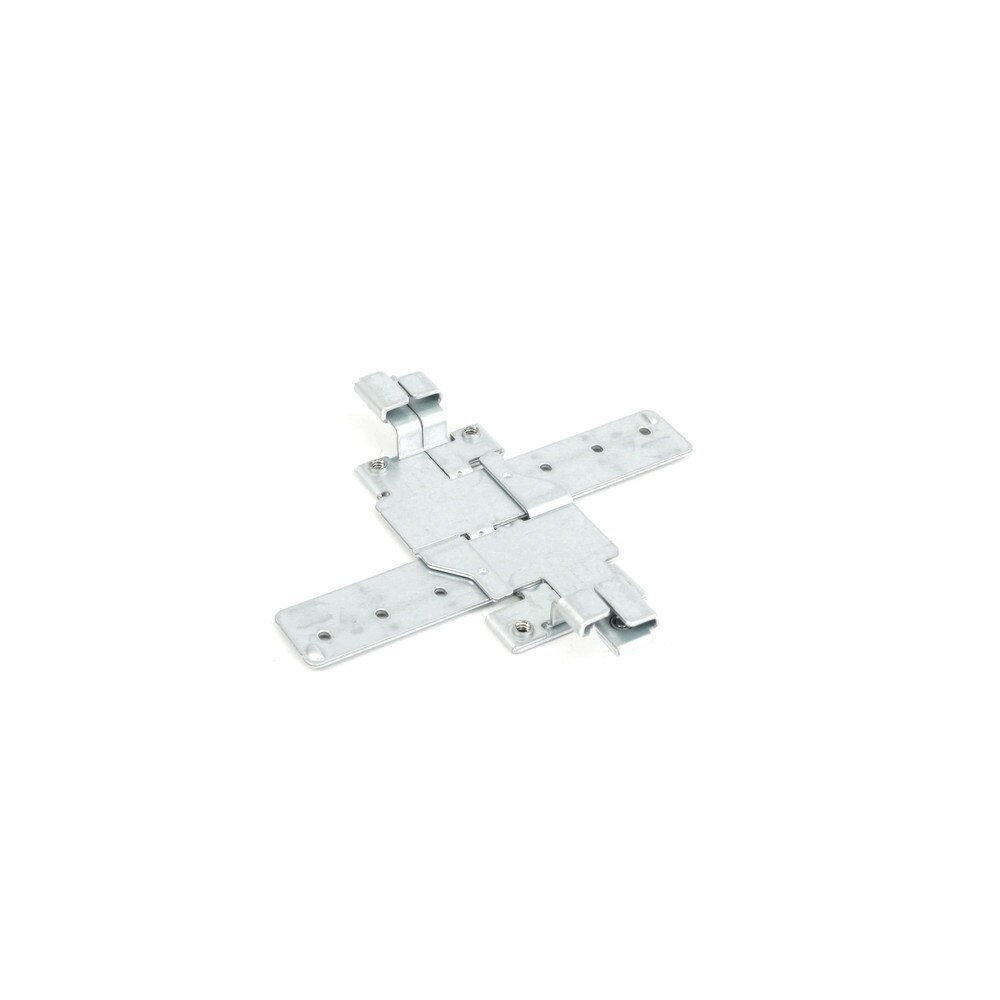

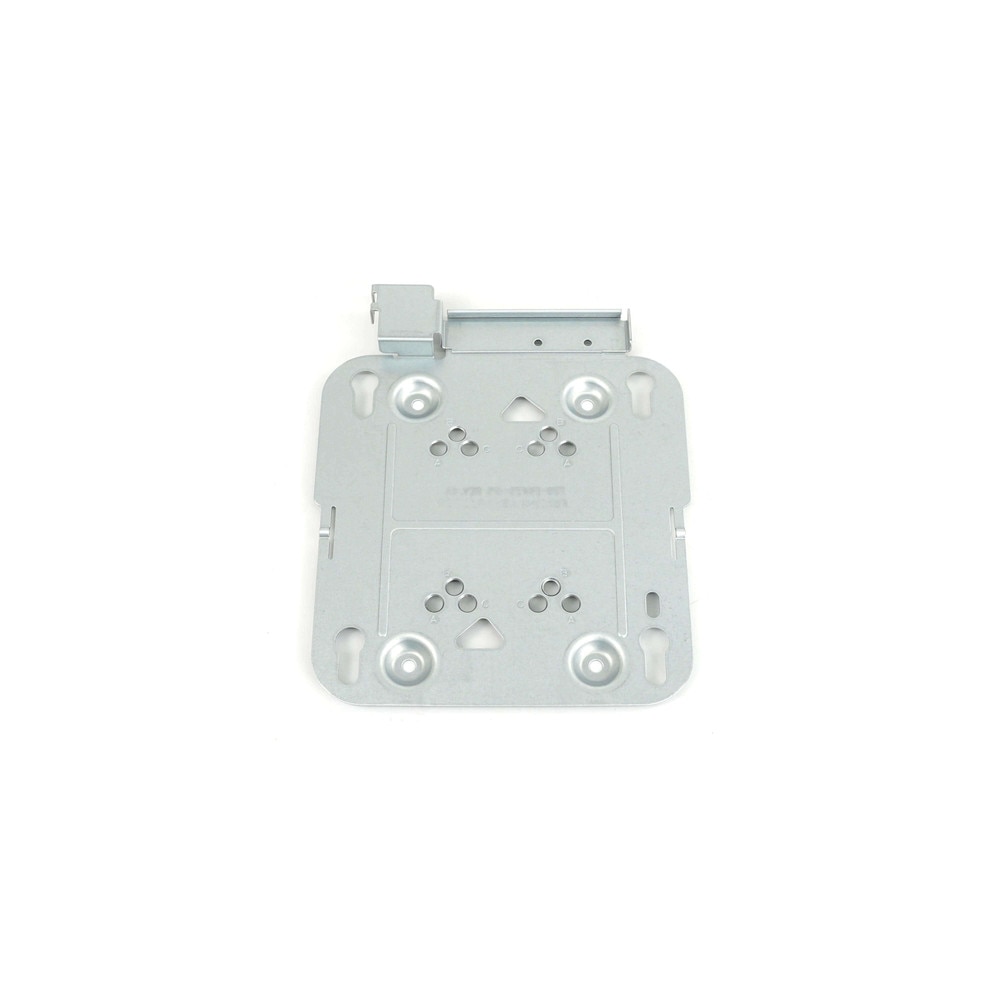

Included Accessories | Low profile bracket, ceiling grid clip |
Compliant Standards | CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, FCC Part 15.247, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC Part 15.407, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, EN 60601, VCCI V-3, EN 62209-1, SRRC, EN 300 328, EN 50385, EN 62209-2, EN 301 489-1, LP0002, RSS-247, KN32, KN35, AS/NZS CISPR 32 Class B, TCVN 7189, EN 301 893, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 60950-1, EN 55035, VCCI-CISPR 32:2016, CNS, EN 301 489-17, AS/NZS 2772, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN, KN 301 489-17 |
Pricing Type | Remanufactured |
Power Over Ethernet (PoE) Supported | UPOE |
Software Included | CAPWAP Software Image |
Service & Support | Limited warranty - advance hardware replacement - lifetime - response time: 10 days |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
User Guides
Frequently Asked Questions
Cisco Catalyst C9120AXI-A Wireless Access Point
Frequently Asked Questions (FAQ's)
What Wi-Fi standard does the C9120AXI-A support? It supports Wi-Fi 6 (802.11ax) for quicker and more stable connectivity.
Is this access point suitable for high-density environments? Yes, it is designed for high-density, high-traffic environments.
How many radios are included in the C9120AXI-A? It has two radios, one 2.4 GHz and one 5 GHz.
What is the maximum data rate supported? Wi-Fi 6 technology can deliver speeds of up to 5.38 Gbps.
Does the C9120AXI-A support MU-MIMO? Yes, it supports MU-MIMO technology for improved performance with numerous devices.
Can the access point be managed through Cisco DNA Center? Yes, it smoothly interacts with Cisco DNA Center to provide centralized management.
What is OFDMA, and is it supported by this model? OFDMA (Orthogonal Frequency Division Multiple Access) improves performance and is compatible with the C9120AXI-A.
Does the C9120AXI-A offer security features? Yes, it has built-in security measures including secure boot and Cisco Trustworthy Solutions.
Is IoT device support available on this model? Yes, it is intended for IoT integration, making it suitable for smart buildings.
What power options are available for the C9120AXI-A? It supports PoE (Power over Ethernet) for simple installation and power management.
Can this access point be ceiling-mounted? Yes, it is intended for ceiling or wall mounting for flexible installation.
Is there a cloud-based management option? Yes, it can be handled via the Cisco DNA Center, which offers cloud management.
What is the coverage area of the C9120AXI-A? Coverage varies by environment, but is intended to offer enough coverage in wide areas.
Does the access point support roaming? Yes, it offers quick roaming across access points to provide uninterrupted connectivity.
What type of encryption is available? It supports WPA3 and other modern encryption technologies to ensure secure connections.
Can I use the C9120AXI-A in outdoor settings? This model is designed for indoor usage; outdoor versions are available in the Catalyst series.
What are the compatible antennas for the C9120AXI-A? It has internal antennas, however external antenna models are available in the Catalyst line.
How many SSIDs can the C9120AXI-A broadcast? It can support up to 16 SSIDs per radio.
Does this model support 802.3at PoE? Yes, it is compliant with the 802.3at PoE standard.
Is the C9120AXI-A compatible with previous Wi-Fi standards? Yes, it is backward compatible with Wi-Fi 5 (802.11ac) and previous technologies.
