Cisco Catalyst C1300-48FP-4X 48-Port Gigabit PoE+ Managed Network Switch | Refresh
SKU: C1300-48FP-4X-RF
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview

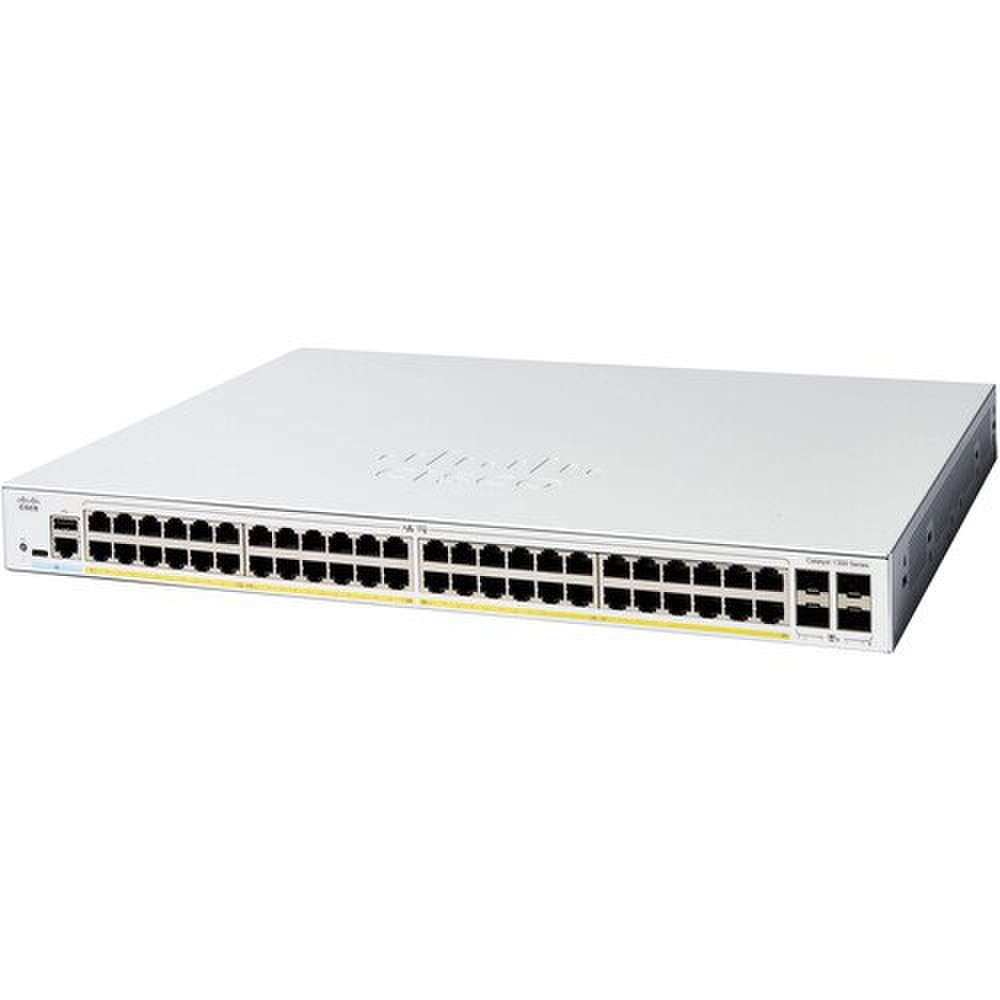

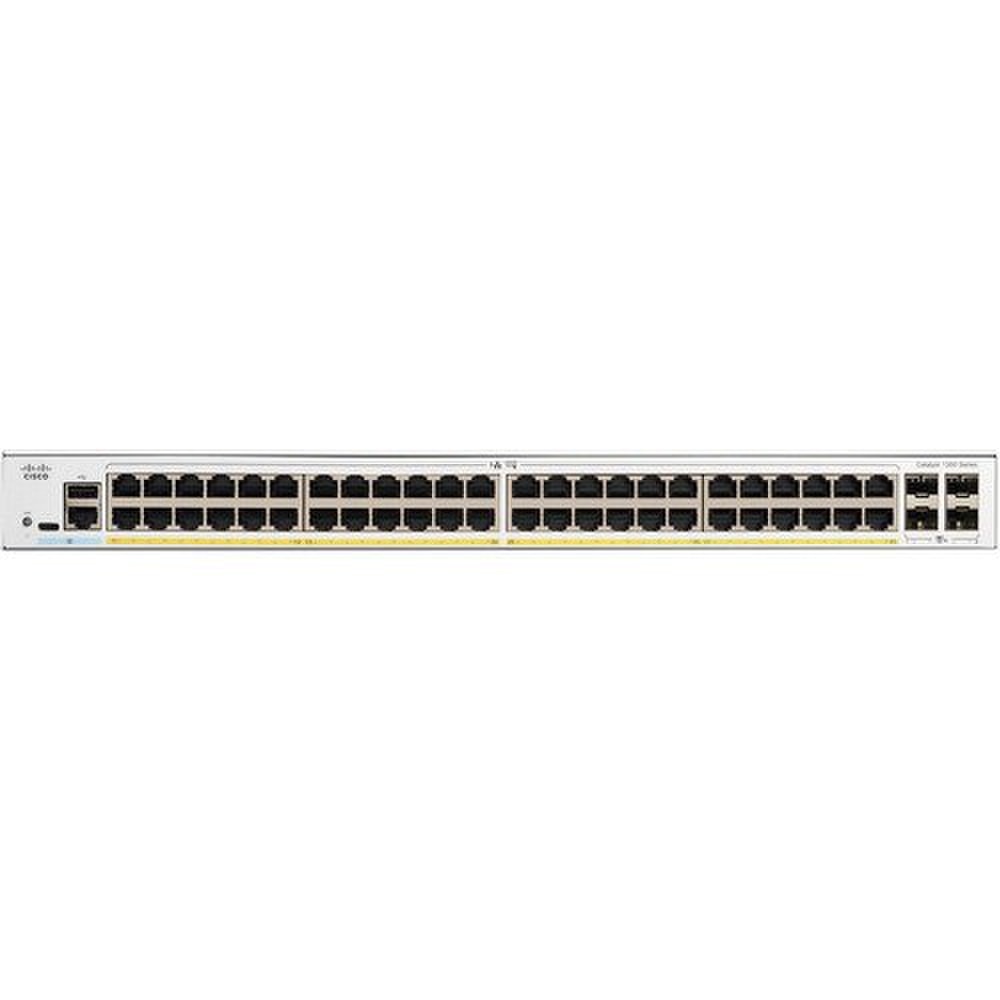

Overview of Cisco Catalyst C1300-48FP-4X 48-Port Gigabit PoE+ Managed Network Switch | Refresh
The Cisco Catalyst C1300-48FP-4X 48-Port Gigabit PoE+ Managed Network Switch is a reliable and adaptable networking solution for medium to large businesses. This switch boasts high-performance connectivity, extensive Power over Ethernet (PoE+) capabilities, and advanced management features, making it ideal for modern network environments that demand dependable performance and scalability. The C1300-48FP-4X is designed to power a wide range of network devices, including IP cameras and wireless access points. This switch has 48 full PoE+ Gigabit Ethernet ports and delivers both power and data over a single cable, making installation easier and reducing clutter. The C1300-48FP-4X is intended to provide a solid foundation for your business network. Its extensive PoE+ capabilities make it easy to deploy powered devices, while its smart management features allow for simple configuration and monitoring, making it an excellent choice for businesses looking to improve their network infrastructure.
Key Features of Cisco Catalyst C1300-48FP-4X 48-Port Gigabit PoE+ Managed Network Switch
• 48 Gigabit Ethernet Ports provides high-speed connectivity for various network devices, ensuring seamless data transfer and communication.
• Power over Ethernet (PoE+) delivers up to 30W per port with a total power budget of 740W, allowing for the powering of devices such as IP phones, security cameras, and wireless access points directly through Ethernet cables.
• Features four SFP+ ports for flexible and high-speed uplink options, enabling easy integration with existing network infrastructure and enhancing scalability.
• Supports essential Layer 2 features, including VLANs, Quality of Service (QoS), and link aggregation, as well as Layer 3 routing capabilities for efficient data traffic management.
• Incorporates IP-MAC port binding to detect and block deliberate network attacks, along with IPv6 First Hop Security to protect against address spoofing and man-in-the-middle attacks.
• Compliant with IEEE 802.3az Energy Efficient Ethernet, optimizing power usage to lower operational costs. The fanless design ensures silent operation, making it suitable for noise-sensitive environments.
• Managed through Cisco's intuitive web interface or Cisco Business mobile app, providing centralized control and visibility for easy configuration and monitoring without requiring extensive IT expertise.
• Engineered for high reliability and performance, ensuring consistent network uptime and productivity for critical applications.
• Backed by Cisco's limited lifetime warranty and ongoing firmware updates, providing peace of mind and long-term investment protection.
Specifications
Specifications for Cisco Catalyst C1300-48FP-4X 48-Port Gigabit PoE+ Managed Network Switch | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | C1300-48FP-4X-RF |
| Product Name | Cisco Catalyst C1300-48FP-4X 48-Port Gigabit PoE+ Managed Network Switch |
| Product Type | Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 740 W |
Performance | Forwarding rate (64‑byte packets): 77.38 Mpps ¦ Switching capacity: 104 Gbps |
Capacity | MSTP instances: 8 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 8 ¦ Link aggregation ports: 8 ¦ VLAN IDs: 4093 ¦ IGMP multicast groups: 2000 ¦ IPv4 routes (static): up to 990 ¦ IPv4 interfaces: 128 ¦ ACL rules: 1024 ¦ Priority queues: 8 ¦ Packet buffer size: 3 MB |
MAC Address Table Size | 16000 entries |
Jumbo Frame Support | 9000 bytes |
Max Units In A Stack | 8 |
Routing Protocol | RIP-2, IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour |
Remote Management Protocol | SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog |
Encryption Algorithm | MD5, SSL |
Authentication Method | RADIUS, TACACS+ |
Features | BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, sFlow, DHCP snooping, DHCP server, MLD snooping, reset button, STP Root Guard, DHCP relay, Port Security, DHCP client, IGMP proxy, Protocol-based VLANs support, Storm Control, MLD proxy, IP source guard, ARP inspection, MAC address authentication, IGMP querier, VLAN mirroring, DNS client, 1 fan, VLAN management, LLDP-MED, Private VLAN, RA guard, Guest VLAN, STP loop guard, EEE, DSCP based CoS, MAC based VLAN, loopback detection, Telnet server, Telnet client, Unknown Storm Control, BPDU Guard, router advertisement guard, DHCPv6 guard, Q-in-Q tunneling, IPv4 and IPv6 dual stack, Zero-Touch Deployment, cable length detection, Web authentication, PoE scheduling, trustworthy systems, layer 3 routing, dynamic routing, ACL support, eco-friendly button, Address Resolution Protocol, Auto Surveillance VLAN, CPE VLAN, TCP congestion, iSCSI traffic optimization, chip guard, boot integrity, persistent PoE, time-based port operation, MSTP support, QoS, PVST+, LACP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS protection, WRR, HoL Blocking Prevention, LAG, RPVST+, DAD, LLDP, path MTU discovery, STP support, CLI management, ATP, FHS, IPMB, NDP, RSTP, PVE, MVR, TPID, UDLD, DAI, Cisco NG PnP Protocol, RSPAN |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az |
Processor | X ARM: 1.4 GHz |
RAM | 1 GB DDR4 SDRAM |
Flash Memory | 512 MB |
Status Indicators | System, PoE, link/activity/speed |
Interfaces | 48 x 1000Base-T RJ-45 PoE+ ¦ 4 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x USB-C console |
Power Device | Internal power supply |
Voltage Required | AC 100-240 V (50 - 60 Hz) |
Included Accessories | Mounting kit, pointer card |
MTBF | 856,301 hours |
Compliant Standards | Plug and Play, FCC CFR47 Part 15, WEEE, CSA 22.2, RFC1213, RFC1493, RFC1757, RFC2674, RFC768, RFC791, RFC1157, RFC2460, RFC2011, RFC1643, RFC2012, RFC2013, UL 62368, RFC783, RFC792, RFC2863, RFC793, RFC826, RFC854, RFC2131, RFC2132, RFC1907, RFC1215, RFC2233, RFC2665, RFC951, RFC1542, RFC2618, RFC4443, RFC1981, RFC4861, RFC4862, RFC4291, RFC813, RFC879, RFC896, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1286, RFC1350, RFC1442, RFC1451, RFC1533, RFC1541, RFC1573, RFC1624, RFC1700, RFC1867, RFC2030, RFC2576, RFC2616, RFC2666, RFC2737, RFC2819, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595 |
Width | 17.5 in |
Depth | 13.8 in |
Height | 1.7 in |
Weight | 12.83 lbs |
Service & Support | Limited warranty - lifetime - response time: next business day ¦ Technical support - consulting - 1 year |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 5 - 90% RH (non-condensing) |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 90% RH (non-condensing) |
User Guides
Frequently Asked Questions
Cisco Catalyst C1300-48FP-4X 48-Port Gigabit PoE+ Managed Network Switch
Frequently Asked Questions (FAQ's)
What is the maximum power output per PoE+ port on the Cisco Catalyst C1300-48FP-4X? Each PoE+ port can supply up to 30 watts of power.
How many uplink ports are available on the Cisco Catalyst C1300-48FP-4X? It features four 10 Gigabit SFP+ uplink ports.
What is the total PoE budget of the Cisco Catalyst C1300-48FP-4X? The switch's total PoE budget is 740W.
Is the Cisco Catalyst C1300-48FP-4X stackable? Yes, the switch supports stacking for greater scalability.
What security features are included in the Cisco Catalyst C1300-48FP-4X? It incorporates network segmentation, advanced threat detection, and access control lists (ACLs).
Can the Cisco Catalyst C1300-48FP-4X be managed via a web interface? Yes, it can be managed using both a web-based interface and Cisco's command-line interface (CLI).
What is the switching capacity of the Cisco Catalyst C1300-48FP-4X? The switch can switch data at speeds of up to 176 Gbps.
Does the Cisco Catalyst C1300-48FP-4X support VLANs? Yes, it provides VLAN segmentation for network traffic management.
What is the maximum number of VLANs supported by the Cisco Catalyst C1300-48FP-4X? The switch can manage up to 4,094 VLANs.
Does the Cisco Catalyst C1300-48FP-4X support redundant power supplies? Yes, it supports optional redundant power supplies to improve reliability.
Is the Cisco Catalyst C1300-48FP-4X suitable for both Layer 2 and Layer 3 switching? Yes, it supports both Layer 2 and Layer 3 switching capabilities.
What kind of devices can be powered using the PoE+ ports? PoE+ ports can power IP phones, wireless access points, IP cameras, and other PoE-enabled devices.
Does the Cisco Catalyst C1300-48FP-4X support IPv6? Yes, the switch can handle both IPv4 and IPv6 protocols.
Can I monitor network traffic on the Cisco Catalyst C1300-48FP-4X? Yes, it has network monitoring and analytics capabilities, such as SNMP and NetFlow.
What is the maximum stacking bandwidth for the Cisco Catalyst C1300-48FP-4X? The highest stacking bandwidth is 160 Gbps.
How can the Cisco Catalyst C1300-48FP-4X be configured? It can be configured using the CLI, a web-based interface, or the Cisco DNA Center.
Does the Cisco Catalyst C1300-48FP-4X support Quality of Service (QoS)? Yes, it includes advanced QoS features for prioritizing critical network traffic.
Is the Cisco Catalyst C1300-48FP-4X energy-efficient? Yes, it uses energy-saving technologies such as Energy Efficient Ethernet (EEE) and low-power mode.
What are the management options available for the Cisco Catalyst C1300-48FP-4X? The switch can be managed using the CLI, web interface, Cisco DNA Center, and third-party network management tools.
What type of environment is the Cisco Catalyst C1300-48FP-4X best suited for? It is ideal for medium to large businesses that need a reliable, secure, and scalable network infrastructure.
