Cisco Catalyst C1200-24T-4X 24-Port Gigabit Smart Managed Switch | Refresh

Cisco Catalyst C1200-24T-4X 24-Port Gigabit Smart Managed Switch | Refresh

SKU: C1200-24T-4X-RF
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$209.99 $209.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco Catalyst C1200-24T-4X 24-Port Gigabit Smart Managed Switch | Refresh

The Cisco Catalyst C1200-24T-4X 24-Port Gigabit Smart Managed Switch is designed for small and medium-sized enterprises that want dependable, expandable and reasonably priced networking solutions. The C1200-24T-4X smart managed switch offers high-speed connection, effective traffic handling, and smooth integration into current infrastructure by combining 24 auto-sensing Gigabit Ethernet ports with 4 fixed 10G SFP+ uplinks. This switch is perfect for applications ranging from enterprise networks to educational institutions that need reliable network performance and easy management because it has Layer 2 switching, basic Layer 3 static routing and comprehensive security features.


Key Features of Cisco Catalyst C1200-24T-4X 24-Port Gigabit Smart Managed Switch


• 24 x 10/100/1000 Mbps Ethernet ports with auto-sensing ports ensure smooth connectivity for a wide range of network devices.

• 4 x 10G SFP+ uplinks that high-speed fiber uplinks provide flexible, scalable network expansion and fast backbone performance.

• 128 Gbps switching capacity with wire-speed, non-blocking switching supports multiple simultaneous data streams with low latency.

• Layer 2 switching and basic Layer 3 routing supports VLANs, static routing, link aggregation, DHCP snooping, IGMP and more for effective traffic management.

• Secure management and monitoring offers SNMP, RMON, SSH, HTTPS, ACLs and MAC address filtering for enhanced network security and control.

• User-friendly management tools with easy web GUI and CLI access for straightforward configuration, monitoring and maintenance.

• Energy efficient that features Energy Efficient Ethernet (IEEE 802.3az) and low power consumption for reduced operating costs.

• Compact rackmount design that fits standard 1U racks with a footprint of 445 x 240 x 44 mm and weighs 6.13 lbs for space-saving installations.


Benefits of Cisco Catalyst C1200-24T-4X 24-Port Gigabit Smart Managed Switch


🗹 Reliable high-speed connectivity that supports demanding business applications with 24 Gigabit ports and 10G uplinks to ensure smooth data flow.

🗹 Scalable network growth that expand easily using uplinks and Layer 3 routing features without costly infrastructure overhaul.

🗹 Simplified network management with user-friendly interfaces and robust security features enable efficient control and reduced downtime.

🗹 Cost-effective operation with energy-saving capabilities lower electricity bills while maintaining high network performance.

🗹 Secure and resilient that advanced security options protect your data and network integrity while meeting compliance needs.

🗹 Ideal for SMBs and campuses that combines enterprise-grade functionality with the affordability and simplicity suited for growing businesses and educational sectors.

Specifications

Specifications for Cisco Catalyst C1200-24T-4X 24-Port Gigabit Smart Managed Switch | Refresh

ManufacturerCisco
Manufacturer Part NumberC1200-24T-4X-RF
Product NameCisco Catalyst C1200-24T-4X 24-Port Gigabit Smart Managed Switch
Product TypeSwitch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 + 4 x 10Gb Ethernet SFP+
Performance
Forwarding rate (64‑byte packets): 95.23 Mpps ¦ Switching capacity: 128 Gbps
Capacity
MSTP instances: 8 ¦ PVST+ instances: 126 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 4 ¦ Link aggregation ports: 8 ¦ Active VLANs: 255 ¦ IGMP multicast groups: 255 ¦ IPv4 routes (static): 32 ¦ IPv4 interfaces: 16 ¦ ACL rules: 512 ¦ Priority queues: 8 ¦ Packet buffer size: 1.5 MB
MAC Address Table Size
8000 entries
Jumbo Frame Support
9000 bytes
Routing Protocol
IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour
Remote Management Protocol
SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog
Encryption Algorithm
SSL
Authentication Method
RADIUS
Features
BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, DHCP server, reset button, Cable Diagnostics Function, fanless, DHCP relay, Port Security, SNMP trap, DHCP client, SP, port grouping, Storm Control, Link Aggregation, IGMP querier, VLAN mirroring, DNS client, Voice VLAN, VLAN management, LLDP-MED, Guest VLAN, ingress rate limiting, STP loop guard, EEE, TCP/UDP proxy, DSCP based CoS, loopback detection, port-based VLAN, Telnet server, Telnet client, Unknown Storm Control, IPv4 and IPv6 dual stack, Zero-Touch Deployment, cable length detection, trustworthy systems, layer 3 routing, remote firmware upgrade, ACL support, eco-friendly button, Auto Surveillance VLAN, TCP congestion, chip guard, boot integrity, time-based port operation, tag-based VLANs, WRR queuing, MSTP support, TFTP support, QoS, PVST+, LACP, CoS, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS protection, WRR, HoL Blocking Prevention, LAG, CDP, VSDP, RPVST+, DAD, LLDP, EQS, path MTU discovery
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Processor
X ARM: 1.4 GHz
RAM
1 GB DDR4 SDRAM
Flash Memory
512 MB
Status Indicators
System, link/activity/speed
Interfaces
24 x 10/100/1000 Base-T RJ-45 ¦ 4 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x USB-C console
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50 - 60 Hz)
Included Accessories

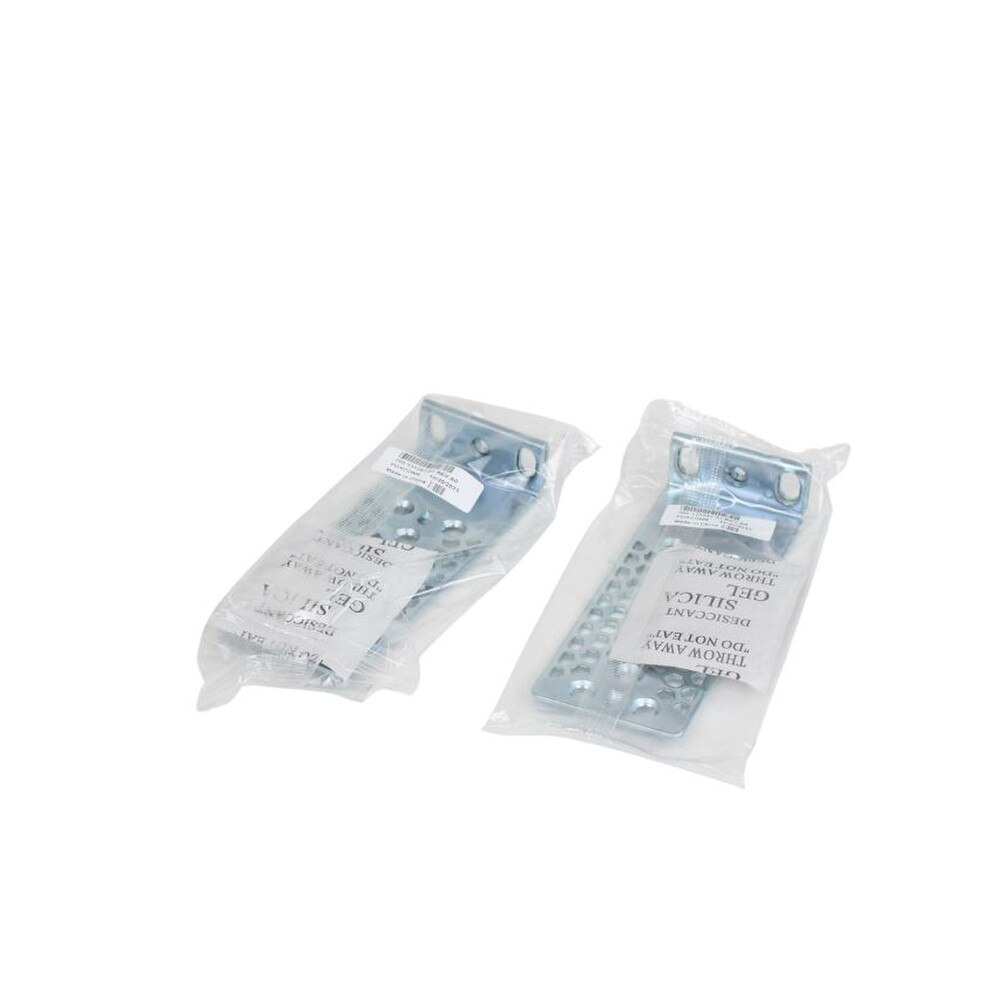

Mounting kit, pointer card
MTBF
2,026,793 hours
Compliant Standards
Plug and Play, FCC CFR47 Part 15, WEEE, CSA 22.2, RFC1213, RFC1493, RFC1757, RFC2674, RFC768, RFC791, RFC1157, RFC2460, RFC2011, RFC1643, RFC2012, RFC2013, UL 62368, RFC783, RFC792, RFC2863, RFC793, RFC826, RFC854, RFC2131, RFC2132, RFC1907, RFC1215, RFC2233, RFC2665, RFC951, RFC1542, RFC2618, RFC4443, RFC1981, RFC4861, RFC4862, RFC4291, RFC813, RFC879, RFC896, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1286, RFC1350, RFC1442, RFC1451, RFC1533, RFC1541, RFC1573, RFC1624, RFC1700, RFC1867, RFC2030, RFC2576, RFC2616, RFC2666, RFC2737, RFC2819, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595
Width
17.5 in
Depth
9.4 in
Height
1.7 in
Weight
6.13 lbs
Service & Support
Limited warranty - lifetime - response time: next business day ¦ Technical support - consulting - 1 year
Min Operating Temperature
23 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% RH (non-condensing)
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 - 90% RH (non-condensing)

User Guides

Cisco Catalyst 1200 Series Switches Data Sheet

Frequently Asked Questions

Cisco Catalyst C1200-24T-4X 24-Port Gigabit Smart Managed Switch
Frequently Asked Questions (FAQ's)



What is the Cisco C1200-24T-4X primarily used for?
  • It’s ideal for connecting workstations, IP phones, wireless APs and other devices in business networks that demand high-speed, secure and reliable connectivity.
    • Does this switch support PoE?
  • No, the C1200-24T-4X does not offer Power over Ethernet. For PoE functionality, consider other models in the Cisco C1200 series.
    • What are the uplink ports used for?
  • The 4x 10G SFP+ ports are used to connect to backbone switches or other networking equipment via fiber optics, enabling faster inter-switch links or uplinks to core infrastructure.
    • Is it a Layer 3 switch?
  • No, this is a Layer 2 smart managed switch. It handles switching and VLANs but does not support full routing capabilities like a Layer 3 device.
    • Can I stack this switch with other switches?
  • While it’s not a stackable switch in the traditional sense, it can be linked via the SFP+ uplinks for high-speed trunking between switches.
    • Is there a fan in this switch?
  • No, the switch uses passive cooling with a fanless design, making it completely silent in operation.
    • Does it support VLAN tagging?
  • Yes, it supports 802.1Q VLAN tagging, allowing for network segmentation and traffic prioritization.
    • What’s the management interface like?
  • It features an easy-to-use web-based GUI, which allows configuration of key settings like VLANs, QoS and security features.
    • Can I use it in a home lab or office?
  • Absolutely. Its quiet operation, energy efficiency and compact size make it well-suited for small offices or technical labs.
    • Is SNMP supported?
  • Yes, the switch supports SNMP for network monitoring and management in larger environments.
    • What type of fiber modules are compatible?
  • The SFP+ ports accept Cisco-approved 10G SFP+ modules for single-mode or multi-mode fiber.
    • Does it come with rack-mounting accessories?
  • Yes, the switch includes brackets and screws for standard 19" rack installation.
    • Is the switch plug-and-play?
  • It can operate in default mode out of the box, but configuring VLANs, QoS and security features will require manual setup via the web interface.
    • Does it support Jumbo Frames?
  • Yes, the switch supports Jumbo Frames, enhancing performance for large file transfers or virtualization.
    • Can I segment guest Wi-Fi traffic using this switch?
  • Yes, you can isolate guest traffic by assigning it to a dedicated VLAN.
    • What security features does it offer?
  • It includes 802.1X port authentication, MAC address filtering, DHCP snooping and denial-of-service prevention.
    • Is it compatible with Cisco Meraki or Catalyst 9000 series?
  • While it doesn’t integrate with Meraki cloud-managed systems, it can connect via standard networking protocols.
    • Does the switch support QoS?
  • Yes, Quality of Service is supported for traffic prioritization, critical for VoIP and video conferencing.
    • How does it differ from unmanaged switches?
  • It offers far more control—custom VLANs, traffic shaping and security policies—which unmanaged switches do not provide.
    • What's included in the box

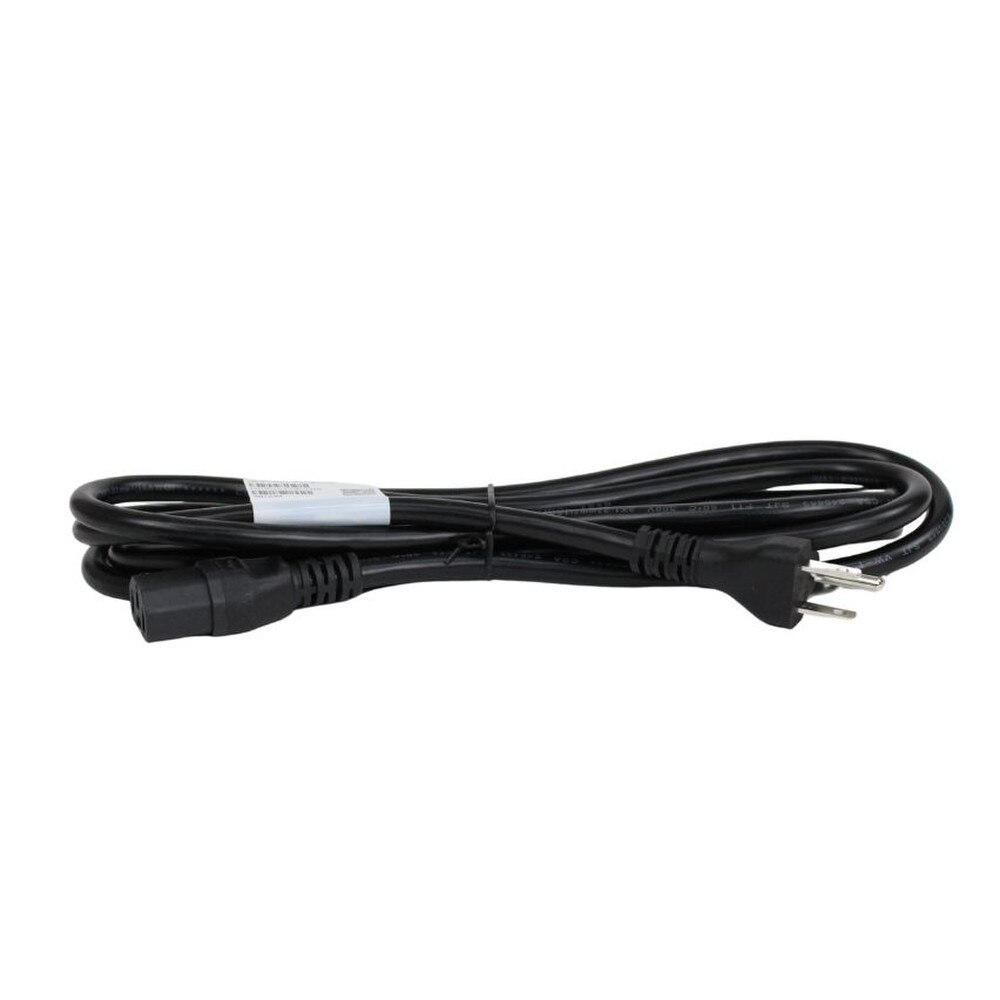

  • Cisco C1200-24T-4X switch, power cord, rack-mount kit, quick start guide, and compliance documentation.
