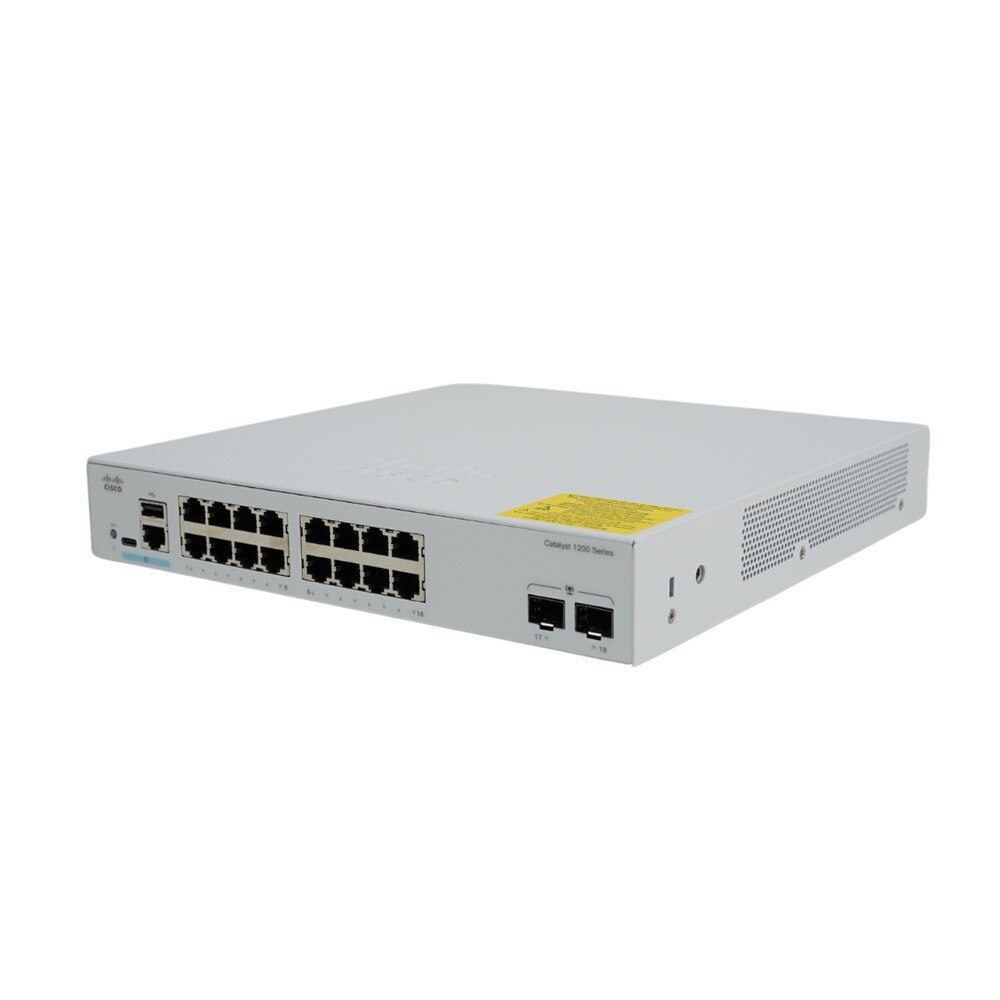

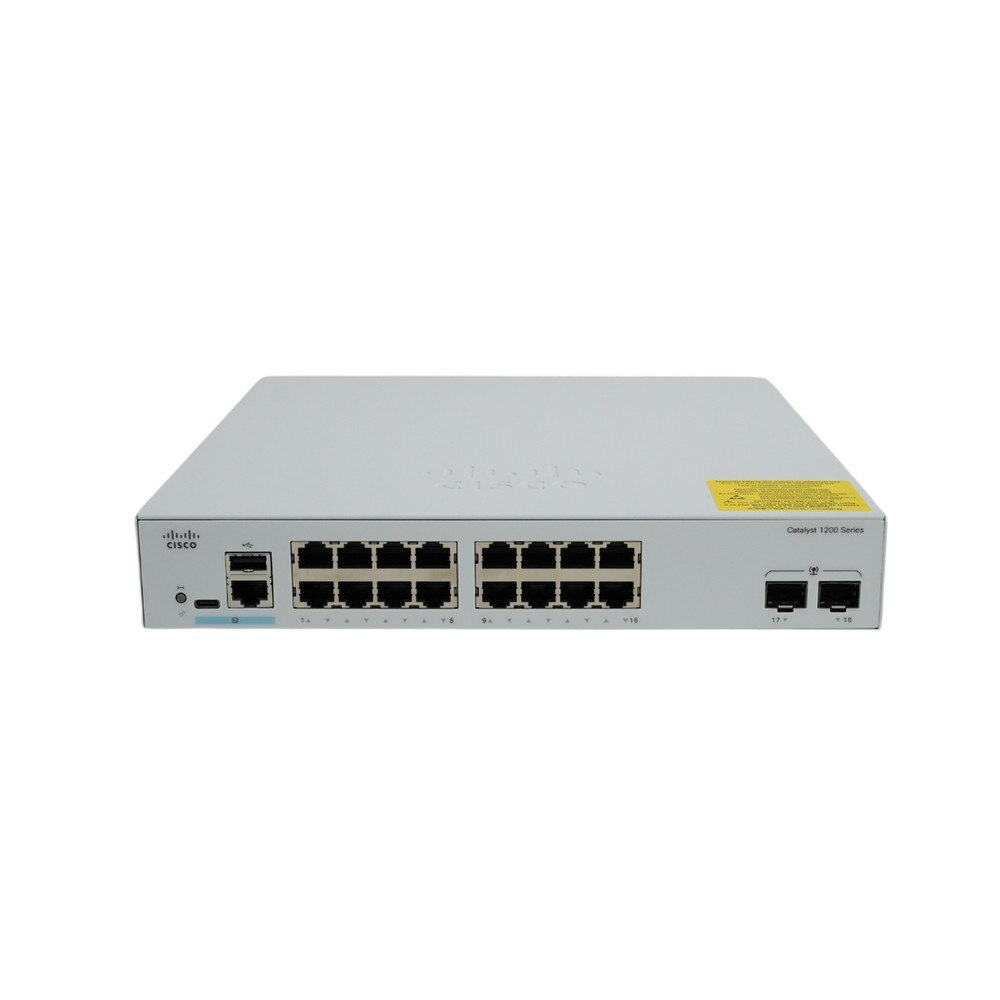

Cisco Catalyst C1200-16T-2G 16-Port GE SFP Switch | Refresh
SKU: C1200-16T-2G-RF
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Cisco Catalyst C1200-16T-2G 16-Port GE SFP Switch | New
The Cisco Catalyst C1200-16T-2G 16-Port GE SFP Switch is a flexible and affordable networking solution for small to medium-sized businesses. This smart switch combines high performance, dependability, and advanced features, making it an excellent choice for businesses looking to improve their network infrastructure with strong connectivity and easy management. The Cisco Catalyst C1200-16T-2G is intended to be a strong foundation for your business network. Its smart management features enable simple configuration, monitoring, and troubleshooting, making it an excellent choice for businesses without a dedicated IT staff. The switch's advanced security features help to protect your network from unauthorized access and potential threats, resulting in a secure and reliable network environment. With its energy-efficient design and fanless operation, the C1200-16T-2G is ideal for office environments where noise levels must be kept low. The switch's compact form factor and versatile mounting options make it suitable for a wide range of deployment scenarios, from desktop to rack-mounted installations.
Key Features of Cisco Catalyst C1200-16T-2G 16-Port GE SFP Switch
• 16 Gigabit Ethernet ports for high-speed connectivity
• 2 Gigabit SFP uplink ports for network expansion
• Smart managed switch with web interface for easy configuration and monitoring
• Layer 2 and basic Layer 3 switching capabilities
• Advanced security features including Access Control Lists (ACLs) and 802.1X authentication
• Energy-efficient design with fanless operation for silent running
• Compact 1U form factor, suitable for desktop or rack-mount installation
• Supports various networking standards including IEEE 802.3, 802.1Q VLAN, and 802.3ad link aggregation
• Limited lifetime warranty with ongoing firmware updates
• No subscription or licenses required
• Compliant with IEEE 802.3az Energy Efficient Ethernet standard
• Integrated with Cisco Business Dashboard for centralized management
• Denial-of-service (DoS) attack prevention for increased network uptime
• Flexible mounting options (rack-mountable)
• Power consumption of approximately 18.37W
Specifications
Specifications for Cisco Catalyst C1200-16T-2G 16-Port GE SFP Switch | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | C1200-16T-2G |
| Product Name | Cisco Catalyst C1200-16T-2G 16-Port GE SFP Switch |
| Product Type | Switch |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 (PoE+) + 2 x Gigabit Ethernet SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 120 W |
| Performance | Forwarding rate (64‑byte packets): 26.78 Mpps ¦ Switching capacity: 36 Gbps |
| Capacity | MSTP instances: 8 ¦ PVST+ instances: 126 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 4 ¦ Link aggregation ports: 8 ¦ Active VLANs: 255 ¦ IGMP multicast groups: 255 ¦ IPv4 routes (static): 32 ¦ IPv4 interfaces: 16 ¦ ACL rules: 512 ¦ Priority queues: 8 ¦ Packet buffer size: 1.5 MB |
| MAC Address Table Size | 8000 entries |
| Jumbo Frame Support | 9000 bytes |
| Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour |
| Remote Management Protocol | SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS |
| Features | BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Unicast Storm Control, SNTP support, DHCP server, reset button, Cable Diagnostics Function, fanless, LACP support, DHCP relay, Port Security, SNMP trap, DHCP client, port grouping, Storm Control, Link Aggregation, IGMP querier, VLAN mirroring, DNS client, Voice VLAN, VLAN management, LLDP-MED, Guest VLAN, ingress rate limiting, STP loop guard, EEE, TCP/UDP proxy, DSCP based CoS, loopback detection, port-based VLAN, Telnet server, Telnet client, Unknown Storm Control, IPv4 and IPv6 dual stack, Zero-Touch Deployment, cable length detection, trustworthy systems, layer 3 routing, remote firmware upgrade, ACL support, eco-friendly button, Auto Surveillance VLAN, TCP congestion, chip guard, boot integrity, time-based port operation, tag-based VLANs, WRR queuing, BSC, MSC, MSTP support, TFTP support, QoS, PVST+, SP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS protection, WRR, HoL Blocking Prevention, LAG, CDP, VSDP, RPVST+, DAD, LLDP, EQS, path MTU discovery |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Processor | X ARM: 1.4 GHz |
| RAM | 1 GB DDR4 SDRAM |
| Flash Memory | 512 MB |
| Status Indicators | System, PoE, link/activity/speed |
| Interfaces | 16 x 100/1000/2.5G/5G (PoE+) RJ-45 ¦ 2 x 1000Base-X SFP ¦ 1 x console RJ-45 ¦ 1 x USB-C console |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |

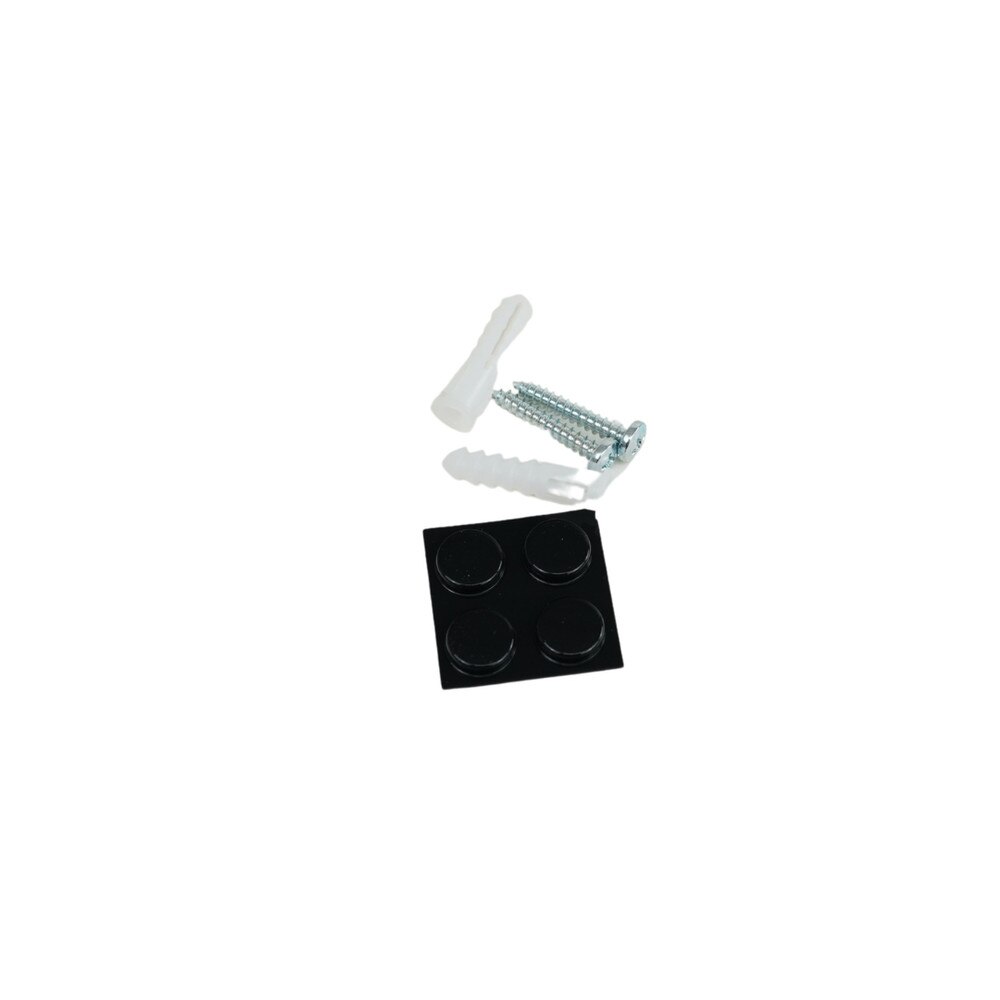

| Included Accessories | Mounting kit, pointer card |
| MTBF | 706,983 hours |
| Compliant Standards | Plug and Play, FCC CFR47 Part 15, WEEE, CSA 22.2, RFC1213, RFC1493, RFC1757, RFC2674, RFC768, RFC791, RFC1157, RFC2460, RFC2011, RFC1643, RFC2012, RFC2013, UL 62368, RFC783, RFC792, RFC2863, RFC793, RFC826, RFC854, RFC2131, RFC2132, RFC1907, RFC1215, RFC2233, RFC2665, RFC951, RFC1542, RFC2618, RFC4443, RFC1981, RFC4861, RFC4862, RFC4291, RFC813, RFC879, RFC896, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1286, RFC1350, RFC1442, RFC1451, RFC1533, RFC1541, RFC1573, RFC1624, RFC1700, RFC1867, RFC2030, RFC2576, RFC2616, RFC2666, RFC2737, RFC2819, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595 |
| Width | 10.6 in |
| Depth | 11.7 in |
| Height | 1.7 in |
| Weight | 5.25 lbs |
| Service & Support | Limited warranty - lifetime - response time: next business day ¦ Technical support - consulting - 1 year |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 90% RH (non-condensing) |
