Overview
Overview of Cisco Catalyst C1000-8FP-E-2G-L-RF 8-Port 2 Gigabit PoE+ Managed Network Switch | Refresh

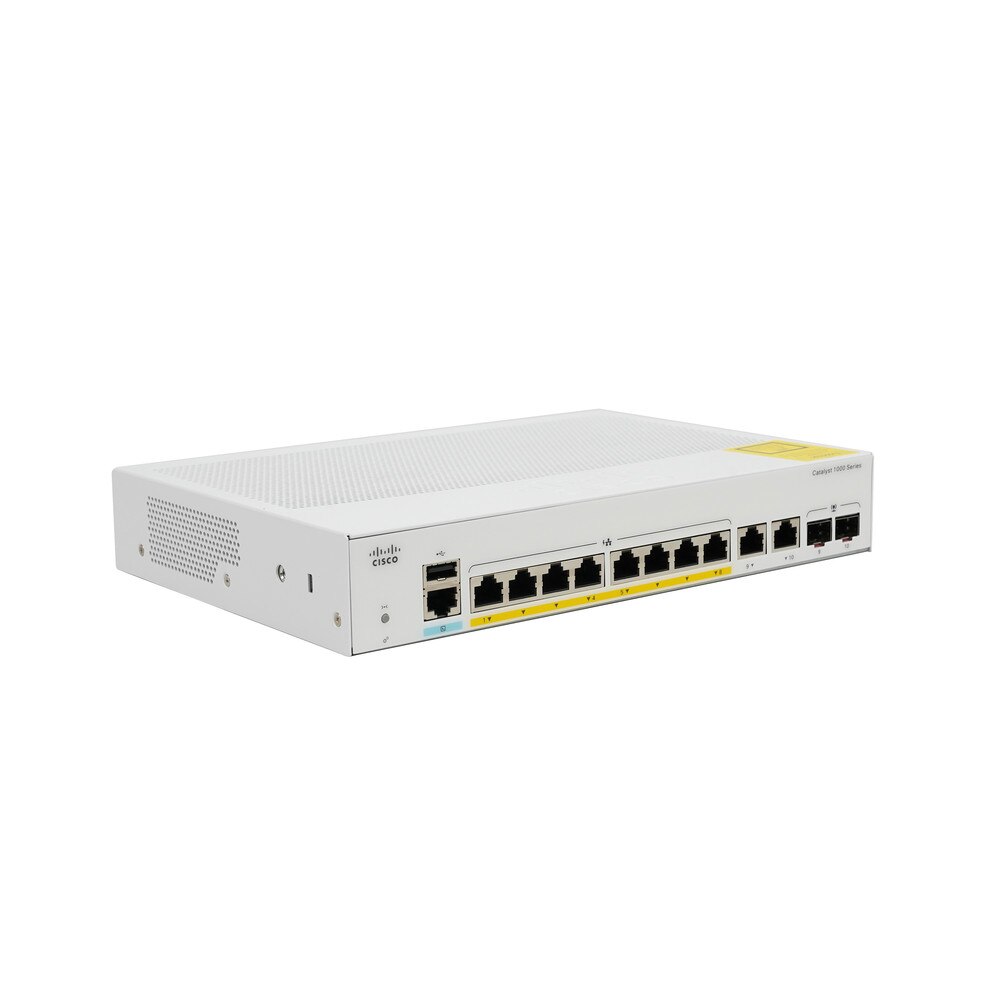

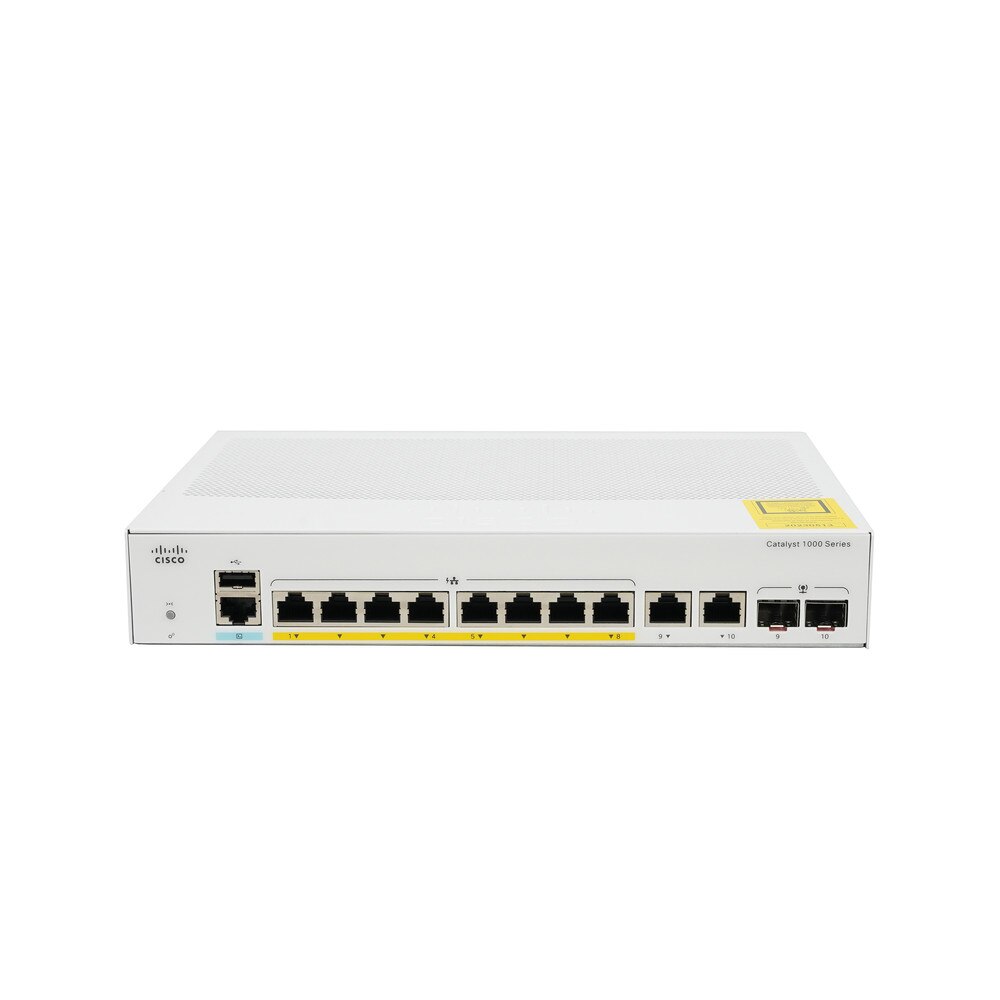

The Cisco Catalyst C1000-8FP-E-2G-L-RF 8-Port 2 Gigabit PoE+ Managed Network Switch is a powerful and versatile 8-port managed network switch designed for small businesses and branch offices. This compact device offers enterprise-class features at a low cost, making it an excellent choice for businesses looking to improve their network infrastructure. This switch is part of the Cisco Catalyst 1000 Series, which is known for its dependability and advanced features. It performs exceptionally well for critical IoT deployments and out-of-wiring closet applications. The C1000-8FP-E-2G-L supports Power over Ethernet Plus (PoE+), allowing it to power devices such as IP phones, wireless access points, and security cameras directly over an Ethernet cable.
The switch runs Cisco IOS software, which gives network administrators a familiar and reliable operating system. It supports both command-line interface (CLI) and web-based management, providing greater configuration and monitoring flexibility. Security features like 802.1X support, SPAN (Switched Port Analyzer), and BPDU Guard help to ensure a secure network environment. The switch also includes advanced QoS (Quality of Service) features for prioritizing critical network traffic.
The C1000-8FP-E-2G-L's compact and fanless design makes it suitable for deployment in a variety of environments, including those that require low noise levels. Its energy-efficient operation reduces power consumption, resulting in lower operating costs. The Cisco Catalyst C1000-8FP-E-2G-L achieves the ideal balance of performance, features, and price, making it an excellent choice for businesses looking to upgrade their network infrastructure with a dependable and future-proof solution.
Key Features of Cisco Catalyst C1000-8FP-E-2G-L-RF 8-Port 2 Gigabit PoE+ Managed Network Switch
• 8 Gigabit Ethernet ports with PoE+ support and 2 combo uplink ports (1G SFP or RJ-45).
• Provides up to 120W PoE budget for powering connected devices like IP phones, wireless access points, and security cameras.
• Offers forwarding bandwidth of 10 Gbps, switching bandwidth of 20 Gbps, and a forwarding rate of 14.88 Mpps for 64-byte L3 packets.
• Enterprise-class fixed managed Gigabit Ethernet Layer 2 switch capabilities.
• Supports Cisco IOS software with both CLI (command-line interface) and an easy-to-use web user interface.
• Features Cisco Configuration Professional's web interface for day-zero provisioning and simplified switch onboarding.
• Compatible with an external Bluetooth dongle for wireless access to the switch CLI and GUI.
• Allows stacking of up to eight switches manageable through a single IP address.
• Includes support for various authentication methods such as Kerberos, Secure Shell (SSH), RADIUS, and TACACS+.
• Supports IGMP, MLDv2, MLD, MSTP, RSTP, and STP.
• Offers multiple protocols including SNMP, RMON, Telnet, HTTP, TFTP, SSH, CLI, NTP, ICMP, DHCP, and more.
• Capable of handling jumbo frames up to 10240 bytes.
• Supports up to 256 active VLANs and 4094 VLAN IDs
Specifications
Specifications for Cisco Catalyst C1000-8FP-E-2G-L-RF 8-Port 2 Gigabit PoE+ Managed Network Switch | Refresh
Manufacturer | Cisco |
Manufacturer Part Number | C1000-8FP-E-2G-L-RF |
Product Name | Cisco Catalyst C1000-8FP-E-2G-L-RF 8-Port 2 Gigabit PoE+ Managed Network Switch |
Product Type | Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP (uplink) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 120 W |
Performance | Forwarding bandwidth: 10 Gbps ¦ Switching bandwidth: 20 Gbps ¦ Forwarding rate (64‑byte L3 packets): 14.88 Mpps |
Capacity | Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte |
Jumbo Frame Support | 10240 bytes |
Routing Protocol | IGMP, MLDv2, MLD, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Features | BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX |
Processor | X ARM: 800 MHz |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | Status |
Interfaces | 8 x 1000Base-T RJ-45 PoE+ - 15 W ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP uplink ¦ 1 x management RJ-45 ¦ 1 x mini-USB Type B ¦ 1 x USB Type A |

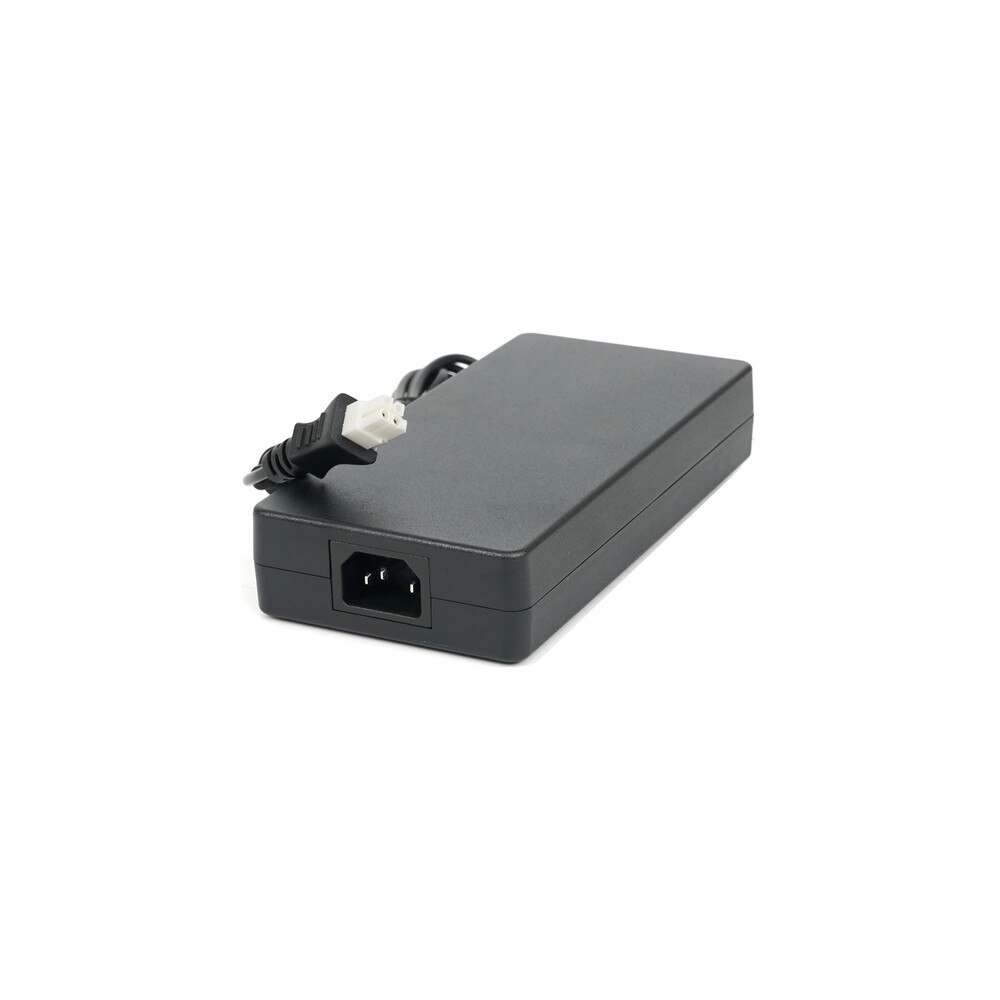

Power Device | External power adapter |
Installed Qty | 1 |
Voltage Required | AC 120/230 V (50 - 60 Hz) |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A |
Width | 26.8 cm |
Depth | 18.5 cm |
Height | 4.39 cm |
Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
Min Operating Temperature | -5 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 5 - 90% |
Min Storage Temperature | -25 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 - 95% |
